2AD7G0009Smartwatch with BT module

WATCH & COMPANION APP USER MANUAL REACH YOUR SUMMIT INDEPENDENCE, PERSEVERANCE, HERITAGE. alpinawatches.com WELCOME 01 3 Thank you for purchasing your AlpinerX Comtesse Glacier and becoming a member of the Alpina community! Please follow the simple instructions detailed in this user manual to start using your watch. ALPINERX COMTESSE GLACIER Activity Tracking Heart Rate Monitoring Dynamic Coach Sleep Monitoring Breathing Exercise Workout with GPS Tracking (Connected GPS) BODY & SPORT Smart Sleep Alarms Always on-Time (Hours, Minutes, Day and Date) Notifications (Calls, Messages, Emails) Chronograph Worldtimer (2 nd Time Zone) Weather Messages Review TIME & NOTIFICATIONS Rechargeable Battery & Battery Level Indicator Cloud Backup & Restore USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 Heart Rate Notifications Get-Active Alerts GET STARTED 02 5 GET STARTED USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 01. CHARGE YOUR WATCH Please make sure to charge your watch using the charging device provided before pairing for the first time. Please refer to page 28 for additional details. 02. GET THE APP Download the ALPINA SMARTWATCH app for iPhone ® or Android. 03. ACTIVATE BLUETOOTH ON YOUR PHONE 04. LAUNCH THE APP AND FOLLOW THE INSTRUCTIONS You will first be invited to create your own profile, then to pair your watch with the app and finally to set your own goals. 05. YOU ARE NOW READY TO USE YOUR ALPINERX COMTESSE GLACIER 6 By pressing the crown button, you can scroll through your watch’s various functions. NAVIGATE ON THE ALPINERX COMTESSE GLACIER DIGITAL SCREEN USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 7 THE APP 03 8 Check your results and data with in-depth graphs and stats while being able to configure your notifications and display preferences. DISCOVER OUR COMPANION APP SLEEP Rest and check your sleep pattern. HEART RATE Keep an eye on your heart beats. GET MOTIVATED Watch, learn and improve. WORKOUT Track and improve your performance. BE ACTIVE Walk, run, check your steps. USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 9 FUNCTIONS OVERVIEW 04 10 ALWAYS ON-TIME (LOCAL TIME) You won’t ever need to set a time, day and date - traveling across time zones, the watch picks-up the time from your smartphone and displays the current time automatically. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 11 WORLDTIMER You can choose to display a second time zone on your watch. A feature particularly useful when travelling in order to keep track of your time at home. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 12 ACTIVITY TRACKING Keep track of your daily steps, calories burnt and total distance travelled. The companion app’s charts will help you to get an overview of your results per week as well as compare your results to people of your age worldwide thanks to a benchmarking tool. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 13 GET-ACTIVE ALERTS Set an alert to remind you to move if you’ve been idle for a set amount of time. You will get notified by the watch’s vibration and move icon. Customize your Get-Active alert in the companion app. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 14 SLEEP MONITORING The sleep monitoring function provides details on your sleeping pattern, including how much time you have spent in deep sleep, light sleep, REM sleep or awake. It will also provide you with insights and tips on how to improve your sleep. Wear your watch at night or put it under your pillow to record your sleep. You can set your favorite mode in the app. Please note that REM sleep is unvailable when using the under the pillow mode. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 15 SMART SLEEP ALARMS Set a smart sleep alarm that will help you to wake up at the best time by vibrating based on your sleep cycle in order to feel rested and refreshed. You can easily activate and disable the Smart Sleep Alarms via your watch’s digital screen or within the companion App. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 16 USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 HEART RATE MONITORING Your AlpinerX Comtesse Glacier watch has an integrated optical heart rate measuring system powered by Philips Wearable Sensing. Philips being the leading provider of optical heart rate solutions, the sensor will provide accurate monitoring for cardiac, activity, health and fitness metrics. It offers an algorithm that extracts and processes the sensor’s data, factoring out body motion, pigmentation and ambient light to produce highly accurate results. The watch measures your Heart Rate throughout the day and night. You can see in depth results within the companion app. A nice add-on is also available in your app: the Breathing Rate which will give you your average of breaths per minutes. FUNCTIONS 17 HEART RATE NOTIFICATIONS Should your heart rate measure be too low or too high, you will get notified by your watch with a vibration and visual alert. If your Heart Rate gets too low, an alarm can be triggered. If your Heart Rate is too high 10 minutes after resting, then alert can be triggered (not when active, only at rest). FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 18 WEATHER Local weather forecast including the maximum and minimum temperature are displayed on your watch’s digital screen and in the companion app. The weather forecast displayed on your watch is linked to your app. It should be synced at least every 6 hours in order to stay accurate. Please note that the watch might display blank data should you forget to pair your watch for a longer period of time. FUNCTIONS USER MANUAL • ALPINERX COMTESSE GLACIER • AL-286 19 BREATHING EXERCISE The Breathe function allows you to regulate your breathing and lower your stress level thanks to a quick and easy exercise. To start the breathing exercise on your watch, select the function by pushing the crown button. Then, tap on your watch’s digital screen to start the exercise a…

Text truncated - open the document above for the full version.

Date 07/05/2020 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, Frederique Constant SA with addrese at Chemin du Champs des Filles, 32 CH-1228 Plan-les-Ouates, Geneva, Switzerland, hereby authorize Wenqiang LU from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151 Heng Tong Road Shanghai 201108 P.R. China to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 31/12/2021.

Date 07/0 5/2020 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AD7G0006/ 2AD7G0007/ 2AD7G0008 / 2AD7G0009 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Frederique Constant SA hereby requests permanent confidential treatment of information accompanying thi s application as outli ned below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The publi c disclosure of these matter s might be harmful to the Applicant and provide unjustified benefits to it s competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made befor e the date of the Grant for this A pplication. Yours sincerely, Company Officer: Peter Stas Telephone Number: +41 22 860 04 40 Email: [email protected]

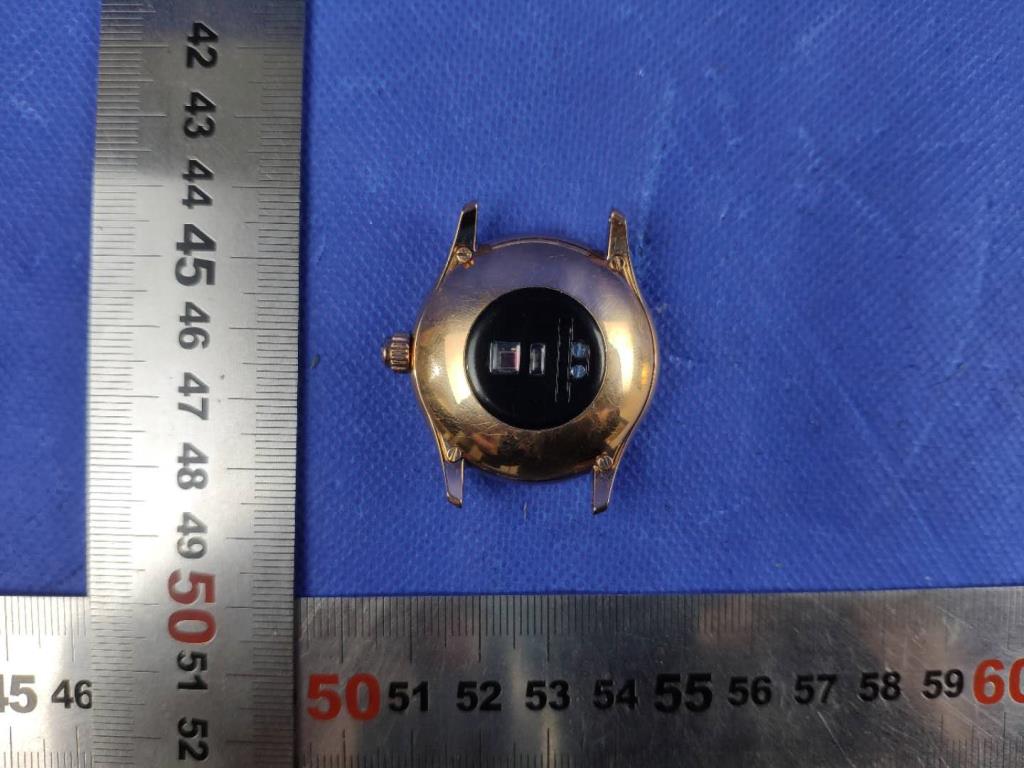

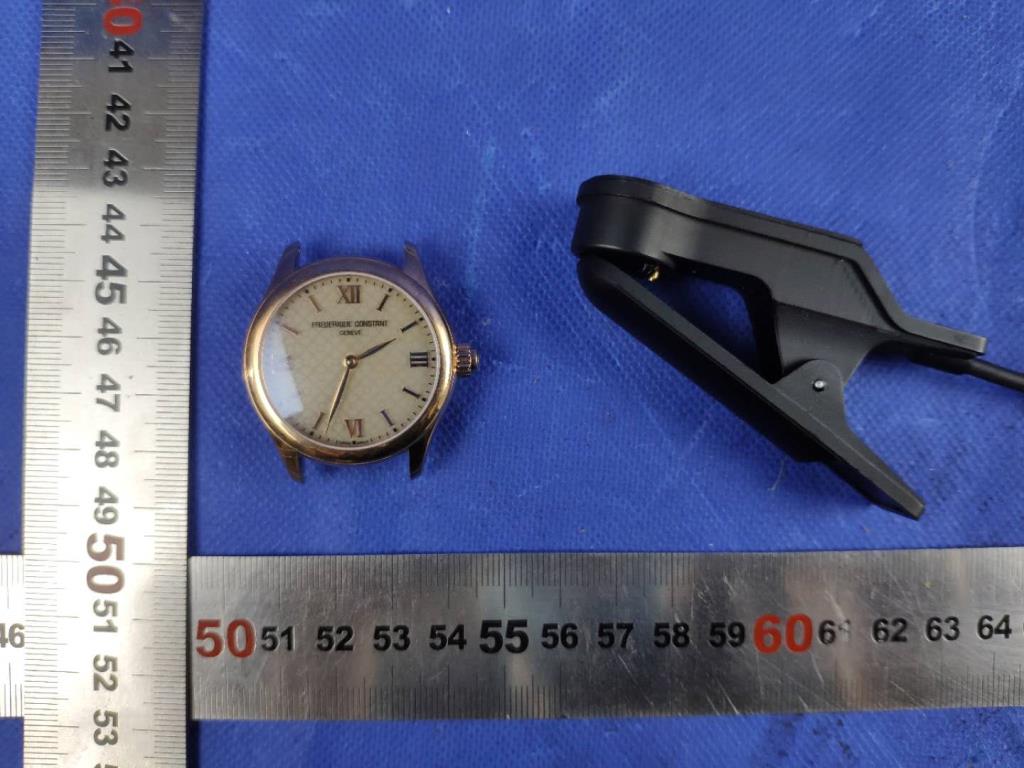

External Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 1 of 2 Product: Smartwatch with BT module FCC ID: 2AD7G0009 External Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 2 of 2 Product: Smartwatch with BT module FCC ID: 2AD7G0009

Scale 1:1 BMFC*1025 1/2 M200042 BSF30231 3023B11 Scale 4:1 2020/07/21 C.H.Y 3H 9H ; Serial Number ; ; ; ; ; ; ; ; ; ; ; ; ; BMFC*1025 2/2 M200042 BSF30231 3023B11 Scale 4:1 2020/07/21 C.H.Y ; ; ; ; ; ; ;

Internal Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 1 of 3 Product: Smartwatch with BT module FCC ID: 2AD7G0009 Antenna Internal Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 2 of 3 Product: Smartwatch with BT module FCC ID: 2AD7G0009 Internal Photos Documentation Manufacturer: FREDERIQUE CONSTANT SA Page 3 of 3 Product: Smartwatch with BT module FCC ID: 2AD7G0009

708882043006-00A TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 RF exposure Estimation 1. Introduction Product: Smartwatch with BT module Model no.: AL286X3C6 FCC ID: 2AD7G0009 The EUT is a Smartwatch with BT module, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r02, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance =-3.42dBm= 0.455mW Distance = 5 mm f = 2.480 GHz [0.456/5] * SQRT (2.480) =0.143 0.143≤ 3.0 Therefore, excluded from SAR testing. - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: _____________________ _____________________ ______________________ Hui TONG Wenqiang LU Jiaxi XU EMC Section Manager EMC Project Engineer EMC Test Engineer Date: 2021-01-22 Date: 2021-01-22 Date: 2021-01-22

Report Number: 708882043006-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 36 Rev. 20.00 FCC/IC- TEST REPORT Report Number : 708882043006-00 Date of Issue: January 22, 2021 Model : AL286X3C6 Product Type : Smartwatch with BT module Applicant : FREDERIQUE CONSTANT SA Address : 32 Chemin Du Champ Des Filles, 1228, Plan-les-Ouates, Geneve, Switzerland Production Facility : FREDERIQUE CONSTANT SA Address : 32 Chemin Du Champ Des Filles, 1228, Plan-les-Ouates, Geneve, Switzerland Test Result : ◼ Positive  Negative Total pages including Appendices : 36 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 708882043006-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 36 Rev. 20.00 1 Table of Contents 1 Table of Contents .................................................................................................................. 2 2 Details about the Test Laboratory ......................................................................................... 3 3 Description of the Equipment under Test .............................................................................. 4 4 Summary of Test Standards .................................................................................................. 5 5 Summary of Test Results ...................................................................................................... 6 6 General Remarks .................................................................................................................. 7 7 Test Setups ........................................................................................................................... 8 8 Systems test configuration .................................................................................................. 11 9 Technical Requirement ....................................................................................................... 12 9.1 Conducted Emission ..................................................................................................... 12 9.2 Conducted peak output power ...................................................................................... 15 9.3 6dB bandwidth and 99% Occupied Bandwidth ............................................................. 17 9.4 Power spectral density .................................................................................................. 20 9.5 Spurious RF conducted emissions ............................................................................... 22 9.6 Band edge .................................................................................................................... 26 9.7 Spurious radiated emissions for transmitter .................................................................. 28 10 Test Equipment List ......................................................................................................... 33 11 System Measurement Uncertainty ................................................................................... 34 12 Photographs of Test Set-ups ........................................................................................... 35 13 Photographs of EUT ........................................................................................................ 36 Report Number: 708882043006-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 36 Rev. 20.00 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.16 Lane, 1951 Du Hui Road, Shanghai 201108, P.R. China Test Firm Registration Number: 820234 IC Registration No.: 25988 Telephone: +86 21 6141 0123 Fax: +86 21 6140 8600 Report Number: 708882043006-00 EMC_SHA_F_R_02.05E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 4 of 36 Rev. 20.00 3 Description of the Equipment under Test Description of the Equipment Under Test Product: Smartwatch with BT module Model no.: AL286X3C6 FCC ID: 2AD7G0009 IC: 12729A-0009 Options and accessories: NA Rating: DC 3.6V RF Transmission Frequency: 2402~2480MHz No. of Operated Channel: 40 Modulation: GFSK Data transmission rate: 1 Mbit/s Antenna Type: Ground Plane Antenna Antenna Gain: 1.5 dBi gain Description of the EUT: The Eq…

Text truncated - open the document above for the full version.

Manufacturer: FREDERIQUE CONSTANT SA Product: Smartwatch with BT module FCC ID: 2AD7G0009 ©2021 Not to be reproduced, except in its entirety, Page 1 of 3 without the Permission of TÜ V SÜ D Certification and Testing (China) Co., Ltd. Shanghai Branch PHOTOGRAPHS OF TEST SET UP Field Strength and Harmonics Test Setup Radiated Emission Setup 9kHz ~ 30MHz 30MHz ~ 1GHz Manufacturer: FREDERIQUE CONSTANT SA Product: Smartwatch with BT module FCC ID: 2AD7G0009 ©2021 Not to be reproduced, except in its entirety, Page 2 of 3 without the Permission of TÜ V SÜ D Certification and Testing (China) Co., Ltd. Shanghai Branch 1GHz ~ 18GHz 18GHz ~ 25GHz Manufacturer: FREDERIQUE CONSTANT SA Product: Smartwatch with BT module FCC ID: 2AD7G0009 ©2021 Not to be reproduced, except in its entirety, Page 3 of 3 without the Permission of TÜ V SÜ D Certification and Testing (China) Co., Ltd. Shanghai Branch Conducted emission Test Setup
