2AD85-C19MBluetooth tracker

welcome to the chipolo community Chipolo connects your belongings to the Chipolo app on your phone and helps you find them. let’s get started 1 Download the free Chipolo app from the App Store or Google Play Store. 2 Follow the easy in-app instructions to set up Chipolo. 3 Attach Chipolo to anything you don’t want to lose. chipolo features Did you know you can share your Chipolo with your loved ones through the Chipolo app, set up the Chipolo phone widget or change your Chipolo’s ringtone? Visit www.chipolo.net/how-it-works and learn about all the Chipolo features. need help? Visit our support pages at www.chipolo.net/support or contact our customer support at [email protected] Make sure that you are running the latest version of the app for this Chipolo to work. battery This product has a replaceable CR2032 battery that will last up to 2 years. When the battery runs out you can replace it in 3 simple steps: 1 Use your fingernails or insert a smaller tool into the small gap on the side of the Chipolo and carefully open the device (image A1) 2 Replace the battery with a new CR2032 type battery, placing the battery positive side up (image A2) 3 Close your Chipolo by aligning the top holes on both lids (image A3) Please use only the specified CR2032 battery type. NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. en requirements List of supported devices available at www.chipolo.net/devices specifications Range: up to 60 m (200 ft) - line of sight Temperature range: -15 °C to +50 °C (5 °F to 122 °F) Modulation method: GFSK Antenna power: < 1 mW Operating frequency band: 2402-2480 MHz warning Do not ingest battery, Chemical Burn Hazard. This product contains a coin battery. If the coin battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from Children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. This product is not a toy or edible. Mobile device casings can interfere with signal strength and decrease Chipolo’s visibility. Large metal parts near your mobile devices and your Chipolo can interfere with the Bluetooth signal. Caution! Lithium battery inside. Risk of explosion in case of incorrect use. Please do not expose the product to a direct heat source. Please do not expose the product to any mechanical stress or impact. Do not attempt to disassemble your Chipolo. You run the risk of electric shock and voiding your warranty. Tips for the most efficient usage can be found at www.chipolo.net/faqs warranty 2 years declaration of conformity This product is compliant with CE and FCC directives. This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. The relevant Declaration of Conformity is available at www.chipolo.net/regulatory. Any changes or modifications not expressly approved by the party responsible for compliance, may void the authorization to operate this equipment. This device complies with the RF exposure SAR test exclusion requirements for portable devices, if a minimum separation distance of 5 mm is kept. However, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. weee directive & product disposal At the end of its service life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for recycling of electrical and electronic equipment or returned to the supplier for disposal. A1A2A3

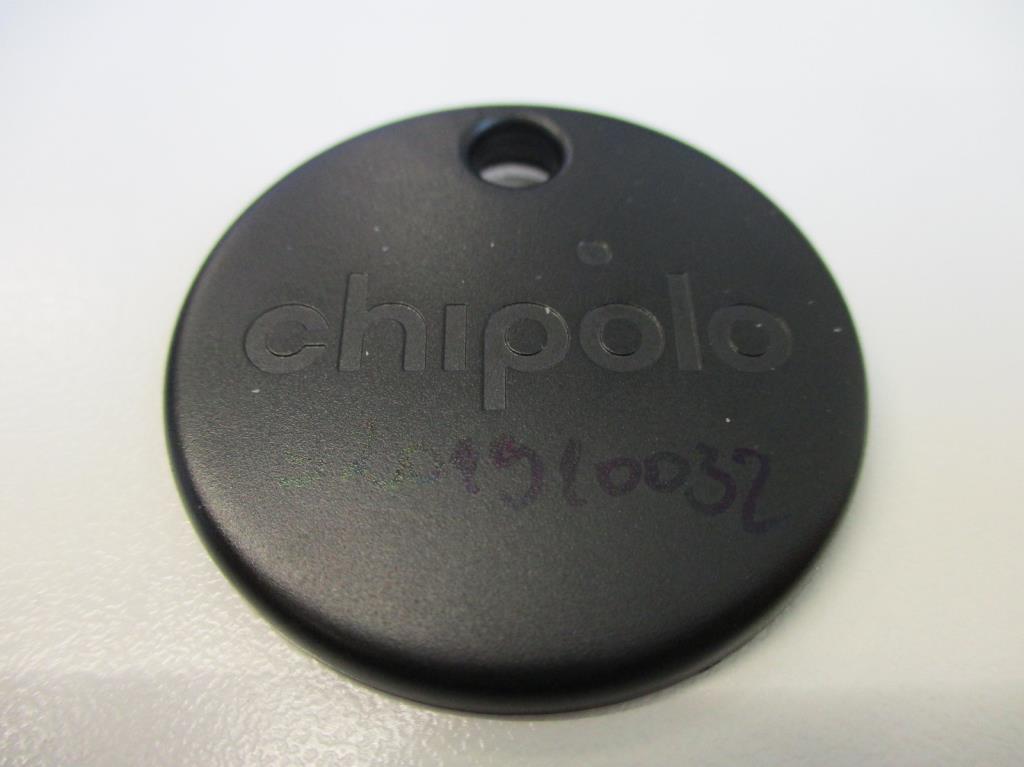

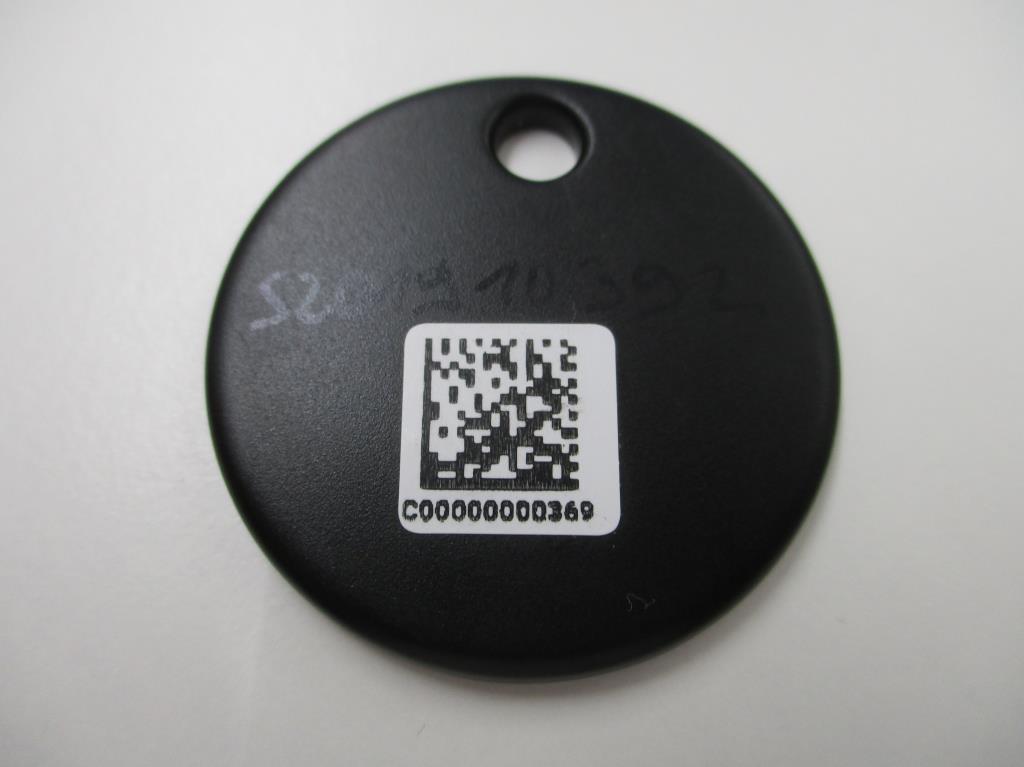

SIQ Ljubljana, Mašera-Spasićeva ulica 10, SI-1000 Ljubljana, Slovenia T +386 1 4778 100, F +386 1 4778 444, [email protected], www.siq.si External photos Project file: C20193276 Date: 2020-06-04 Pages: 3 Product: Bluetooth item finder Type reference: C19M Page: 2 (3) Figure 1 Figure 2 Page: 3 (3) Figure 3

Chipolo ONE Model: C19M FCC ID: 2AD85-C19M IC: 22600-C19M www.chipolo.net Chipolo C19M Markings

SIQ Ljubljana, Mašera-Spasićeva ulica 10, SI-1000 Ljubljana, Slovenia T +386 1 4778 100, F +386 1 4778 444, [email protected], www.siq.si Internal photos Project file: C20193276 Date: 2020-06-04 Pages: 3 Product: Bluetooth item finder Type reference: C19M Page: 2 (3) Figure 1 Figure 2 Page: 3 (3) Figure 3: Modified sample for radiated measurements Figure 4: Modified sample for conducted measurements

T251-0411/20 Page: 2 (5) CONTENTS page 1 GENERAL 3 1.1 EQUIPMENT UNDER TEST 3 1.2 REVIEWED / REFERENCED DOCUMENTS 3 2 LIMITS 4 3 ASSESSMENT PROCEDURE 5 T251-0411/20 Page: 3 (5) 1 GENERAL History sheet Date Report No. Change Revision 2020-06-18 T251-0411/20 Initial Test Report issued. -- 1.1 Equipment under test Bluetooth item finder Type: C19M Device uses integral antenna with 0 dBi. Equipment falls under product for portable use. Samples photos 1.2 Reviewed / referenced documents Reviewed documents: - T251-0278/20 from SIQ Ljubljana T251-0411/20 Page: 4 (5) 2 LIMITS According to 47 CFR §2.1093: The test separation distances required for a device to demonstrate SAR or MPE compliance must be sufficiently conservative to support the operational separation distances required by the device and its antennas and radiating structures. For devices used in close proximity to users, the test separation distance is determined by the smallest distance between the outer surface of the device and the user. When the test separation distance is specified as a “not to exceed” distance in the published RF exposure KDB procedures; for example, ≤ 5 mm, the operational separation distance of the host device cannot be less than the tested distance. Test separation distances specified in the published RF exposure KDB publications as less than or equal to a threshold distance should be treated as a “not to exceed distance,” where smaller test distances may be necessary to satisfy more conservative exposure conditions. Devices that are designed to operate on the body of users using lanyards and straps or without requiring additional body-worn accessories must be tested for SAR compliance using a conservative minimum test separation distance ≤ 5 mm to support compliance. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz. Maximum output power approximations for SAR Test Exclusion Treshold (in mW) at 5 mm distance: Frequency (MHz) 150 300 450 835 900 1500 1900 2450 3600 5200 5400 5800 Power (mW) 39 27 22 16 16 12 11 10 8 7 6 6 T251-0411/20 Page: 5 (5) 3 ASSESSMENT PROCEDURE SAR EVALUATION OF PORTABLE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1093) may be evaluated based on the Clause 4.3 of the KDB 447498 D01 General RF Exposure Guidance v06 adopted by the FCC. Procedure "Standalone SAR test exclusion consideration" used. Standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. Environment: Uncontrolled / General Public Assessment distances: < 5 mm; < 1 mm (approximation of separation used based on thickness of the enclosure material) Assessed frequency ranges: 2,400 GHz to 2,4835 GHz Max power channel (2,402 GHz): At normal test conditions: Max Burst ERP (dBm) Max Burst EIRP (dBm / mW) -2,4 -2,4 / 0,575 At test conditions -15ºC: Max Burst ERP (dBm) Max Burst EIRP (dBm / mW) -2,0 -2,0 / 0,631 Calculation formula: P max. • √f / SD ≤ 3.0 Where: P max. = max. power of channel, including tune-up tolerance in mW SD = min. test separation distance in mm f = assessed RF channel frequency in GHz Calculated value of P max. • √f / SD at 5 mm distance: At normal test conditions At test conditions -15ºC 0,178 0,195 Calculated value of P max. • √f / SD at 1 mm distance: At normal test conditions At test conditions -15ºC 0,89 0,976 Conclusion: Device passes exclusion requirements of 47 CFR part 2.1093.

SIQ Ljubljana, Mašera-Spasićeva ulica 10, SI-1000 Ljubljana, Slovenia T +386 1 4778 100, F +386 1 4778 444, [email protected], www.siq.si TN405E - 02 Test report Number: T251-0301/20 Project file: C20193276 Date: 2020-04-28 Pages: 44 Product: Bluetooth item finder Type reference: C19M Ratings: 3 Vdc (Internal USB power supply) Protection class: III Trademark: chipolo Applicant: Chipolo d.o.o. Gabrsko 12, SI-1420 Trbovlje, Slovenia Manufacturer: Chipolo d.o.o. Gabrsko 12, SI-1420 Trbovlje, Slovenia Place of manufacture: Chipolo d.o.o. Gabrsko 12, SI-1420 Trbovlje, Slovenia Summary of testing Testing method: 47 CFR § 15.247 - Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz Testing location: SIQ Ljubljana, Mašera-Spasićeva ulica 10, SI-1000 Ljubljana, Slovenia Remarks: Date of receipt of test items: 2019-12-12 Number of items tested: 1 Date of performance of tests: 2020-01-30 - 2020-03-24 The test results presented in this report relate only to the items tested. The product complies with the requirements of the testing methods. Tested by: Luka Cvajnar Approved by: Marjan Mak The report shall not be reproduced except in full. T251-0301/20 Page: 2 (34) CONTENTS page 1 GENERAL 3 1.1 DESCRIPTION OF EQUIPMENT UNDER TEST 3 1.2 DESCRIPTION OF THE TEST MODES 3 1.3 TEST EQUIPMENT USED FOR TESTING 4 1.4 TEST SETUP CONFIGURATIONS 5 2 TEST SUMMARY 7 3 TESTS RESULTS 8 3.1 47 CFR § 15.203 – ANTENNA REQUIREMENTS 8 3.2 47 CFR § 15.207 – AC LINE CONDUCTED EMISSION 9 3.3 47 CFR § 15.205, § 15.209, § 15.247 (D) – SPURIOUS EMISSION 10 3.4 47 CFR § 15.247 (A) (2) – 6 DB EMISSION BANDWIDTH 26 3.5 47 CFR § 15.247 (B) (3) – MAXIMUM PEAK OUTPUT POWER 29 3.6 47 CFR § 15.247 (D) –100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 30 3.7 47 CFR § 15.247 (E) – POWER SPECTRAL DENSITY 33 ANNEX I – SAMPLES PHOTOS ERROR! BOOKMARK NOT DEFINED. ANNEX II – TEST SETUP PHOTOS ERROR! BOOKMARK NOT DEFINED. T251-0301/20 Page: 3 (34) 1 GENERAL 1.1 Description of equipment under test Bluetooth item finder Type: C19M FCC ID: 2AD85-C19M Adaptive / non-adaptive equipment non-adaptive equipment Modulation type Other than FHSS Operating mode Single antenna Operating temperature range -15 °C to +50 °C Maximum RF Output power 0 dBm Operating frequency 2402 MHz – 2480 MHz Number of channels 40 Antenna type and gain Integral antenna, 0 dBi Antenna Beamforming / Nominal channel bandwidth 1 MHz Firmware 1.0 1.2 Description of the test modes The equipment uses only one antenna at any moment. On all devices run test firmware and accompanied by a USB-UART converter interface. For testing purposes sample with integral antenna and modified sample with added SMA connector was provided. Test software DA1458X Bluetooth Direct Test Mode was provided by the manufacturer. 1.2.1 Tested Channels Channels Data rate Frequency [MHz] 0 (Lowest) 1 Mbps 2402 19 (Middle) 1 Mbps 2440 39 (Highest) 1 Mbps 2480 Normal test condition: Ambient temperature: 15 C to 35 C Relative humidity: 30 % to 60 % Atmospheric pressure: 860 mbar to 1060 mbar T251-0301/20 Page: 4 (34) 1.3 Test Equipment used for testing Manufacturer & Description Model No. SIQ No. Used Calibrated until Comtest engineering, SAC2 (together with controlling equipment) SAC 3m NPS002 X 2021-06 Maturo, Turn table (2 m diameter) TT 2.0 SI X / Maturo, Bore-sight antenna mast BAM-4.0-P X / Maturo, positioning equipment NCD X / Rohde & Schwarz, RFI receiver ESU 26 X 2020-10 Schwarzbeck, Biconical antenna VHBB9124 109080 X 2020-09 R&S, Ultra Broadband Antenna HL562E X 2020-07 R&S, Horn Antenna HF907 X 2020-05 EMCO, Horn Antenna EMCO 3116 X 2020-09 R&S, Spectrum Analyzer FSV 40 X 2021-05 R&S, Vector signal generator SMBV100B / 2021-05 R&S, Signal generator SMB100A / 2021-05 R&S High resolution power meter OSP-B157W8 X 2021-05 Wainwright Instruments, High pass filter High pass filter WHNX6-2555-3500-26500 X Wainwright Instruments, High pass filter WHNX6-5925-7500-26500 / / Wainwright Instruments, High pass filter WHW2-16340-21500-40000 / / Hp, Manual step attenuator 8494B 11 DB / / Hp, Manual step attenuator 8496B 110 DB / / KEYSIGHT, attenuator 8491B 10 DB / / PMI Low noise amplifier PEC-42-1G40G X 2022-03 1.3.1 Measurement uncertainty Measurements Uncertainty AC Line Conducted Emission 3.2 dB Spurious emission 30 – 300 MHz 4.2 dB Spurious emission 300 – 1000 MHz 4.4 dB Spurious emission 1 GHz – 18 GHz 5.1 dB Spurious emission 18 GHz – 26GHz 5.6 dB 6 dB Emission Bandwidth < 2% Maximum peak output power < 1 dB 100 kHz Bandwidth of Frequency Band Edge < 0.8 dB Power Spectral Density < 1.3 dB Tx spurious emission - conducted < 1.8 dB T251-0301/20 Page: 5 (34) 1.4 Test setup configurations 1.4.1 Conducted measurement test setup 1.4.2 Radiated measurement test setup Note: Bellow 1G non-conductive Table 80 cm above ground plane and above 1G non-conductive Table 150 cm above ground plane. T251-0301/20 Page: 6 (34) 1.4.3 AC Line Conducted Emission For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. LISN E U T H o r i z o n t a l R e f e r e n c e G r o u n d P l a n e Test Receiver Vertical Reference Ground Plane 80 cm 80 cm 40 cm T251-0301/20 Page: 7 (34) 2 TEST SUMMARY 47 CFR 15.247 Test 47 CFR section Section within the report Conclusion Antenna Requirement § 15.203 3.1 PASS AC Line Conducted Emission § 15.207 (a) 3.2 PASS Spurious emission § 15.205, § 15.209, § 15.247 (d) 3.3 PASS 6 dB Emission Bandwidth § 15.247 (a) (2) 3.4 PASS Maximum peak output power § 15.247 (b) (3) 3.5 PASS 100 kHz Bandwidth of Frequency Band Edge § 15.247 (d) 3.6 PASS Power Spectral Density § 15.247 (e) 3.7 PASS T251-0301/20 Page: 8 (34) 3 TESTS RESULTS 3.1 47 CFR § 15.203 – Antenna requirements An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considere…

Text truncated - open the document above for the full version.

SIQ Ljubljana, Mašera-Spasićeva ulica 10, SI-1000 Ljubljana, Slovenia T +386 1 4778 100, F +386 1 4778 444, [email protected], www.siq.si Test setup photos Project file: C20193276 Date: 2020-06-04 Pages: 4 Product: Bluetooth item finder Type reference: C19M Page: 2 (4) Figure 1: Spurious emission 30 MHz-200 MHz Figure 2: Spurious emission 200 MHz-1000 MHz Page: 3 (4) Figure 3: Spurious emission 1-18 GHz Figure 4: Spurious emission 18- 26 GHz Page: 4 (4) Figure 11: Conducted measurements test setup
