BloomSky TM SKY1 OWNER’S MANUAL Introduction This manual will guide you through the setup procedures and highlight BloomSky’s key features. Package Contents
One outdoor module
One power adaptor
One quick start manual Intended Use The SKY1 is designed to allow you to record and share weather data and picture on your location. The data and image will be send to the cloud by Wi-Fi. User can obtain these data and images anywhere by BloomSky APP. Requirements
iOS version 7.0 or higher

Android version 4.0 or higher Setup Procedures
Step 1: Install the BloomSky APP Step 2: Press the power button to p LED will flash once. Then t enters the Wi-Fi setting mode. Step 3: Launch the BloomSky app register the SKY1. After that the several minutes and upload wea Key operation and LED indication: Key：
Power Button：Press
Network Button： record when the device is powered on LED： : Power LED : Charger LED
Power LED flash once when power on Install the BloomSky APP to power on the SKY1. Waiting for about 3 seconds Then the right red LED will begin to flash. That means the device Fi setting mode. app and follow the on-screen instructions to create an account and After that the SKY1 will connect to your Wi-Fi automatically several minutes and upload weather data and picture to BloomSky Cloud. Key operation and LED indication: ress this button to power on/off the device. ：Press this button more than 5 seconds to clean when the device is powered on . : Charger LED :Network LED flash once when power on。 about 3 seconds，the left green means the device to create an account and Fi automatically every y Cloud. seconds to clean up the Wi-Fi
Power LED flash 3 times every 10 seconds when battery low.
Charger LED will light on solid when charging.
Network LED will show red color and flash when network is not configured.
Network LED will show green color and flash when network is configured successfully.
Network LED will show solid green when device in normal work mode and network is configured successfully.
Network LED will show solid red color when device in normal work mode and network is down. Technical Specifications
Model: SKY1
Classification: lithium-ion battery or External power
Power Adapter Model: Input: 100-240V~50/60Hz Output: DC 12V--- 2A
Wi-Fi-connected to BloomSky Cloud.
WLAN Standard: Single-band 2.4GHz IEEE 802.11b/g/n

Frequency Range: 2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)
Number of Channels: 2.4GHz:Ch1 ~ Ch11
Water, dust, UV-resistant body.
5-in-1 sensors measure temperature, humidity, barometric pressure, UV exposure, and precipitation with excellent accuracy.
Ultra-wide angle HD camera built-in with 45-degree adjustable shooting angle.
Smart photometric sensor measures daylight brightness and ensures correct exposure. Smart camera turns on at dawn and off at dusk.
Smart rain sensor distinguishes precipitation from other moisture and responses instantly when rain starts to fall.
Powered by a rechargeable lithium-ion battery. Chargeable Option 1: through A/C Input: 100-220V(worldwide use), operating time up to 20 days per charge. Chargeable Option 2: through solar panel.
Low battery alert sends push notifications on mobile apps.
Wireless, no wires to run. Easy to stand upright on stake apparatus for insertion in patio and garden.
Operating temperature range: -13°F (-25°C) to 149°F (65°C) (± 0.72°F (0.4°C) accuracy)
Battery charging temperature range: 32°F (0°C) to 113°F (45°C)
Temperature Resolution: 1°F
Humidity Resolution: 1%
Humidity Range: 1% to 99% RH (± 5% accuracy)
UV exposure range: 280nm - 400nm (UV-A, UV-B)
Barometric pressure Resolution: 1hPa
Rain sensor minimum detectable threshold: 1mm/1hr
Rechargeable Lithium polymer battery. General Safety and Precautions 1. Read all of the information in the owner’s manual and other included product information in the packaging before operating the product. 2. The SKY1 will not operate within a Faraday cage. 3. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujetaux deux conditions suivantes : (1) cet appareil ne doit pas provoquer d’interférences néfastes, et (2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body Cet équipement doit être inst…

Text truncated - open the document above for the full version.

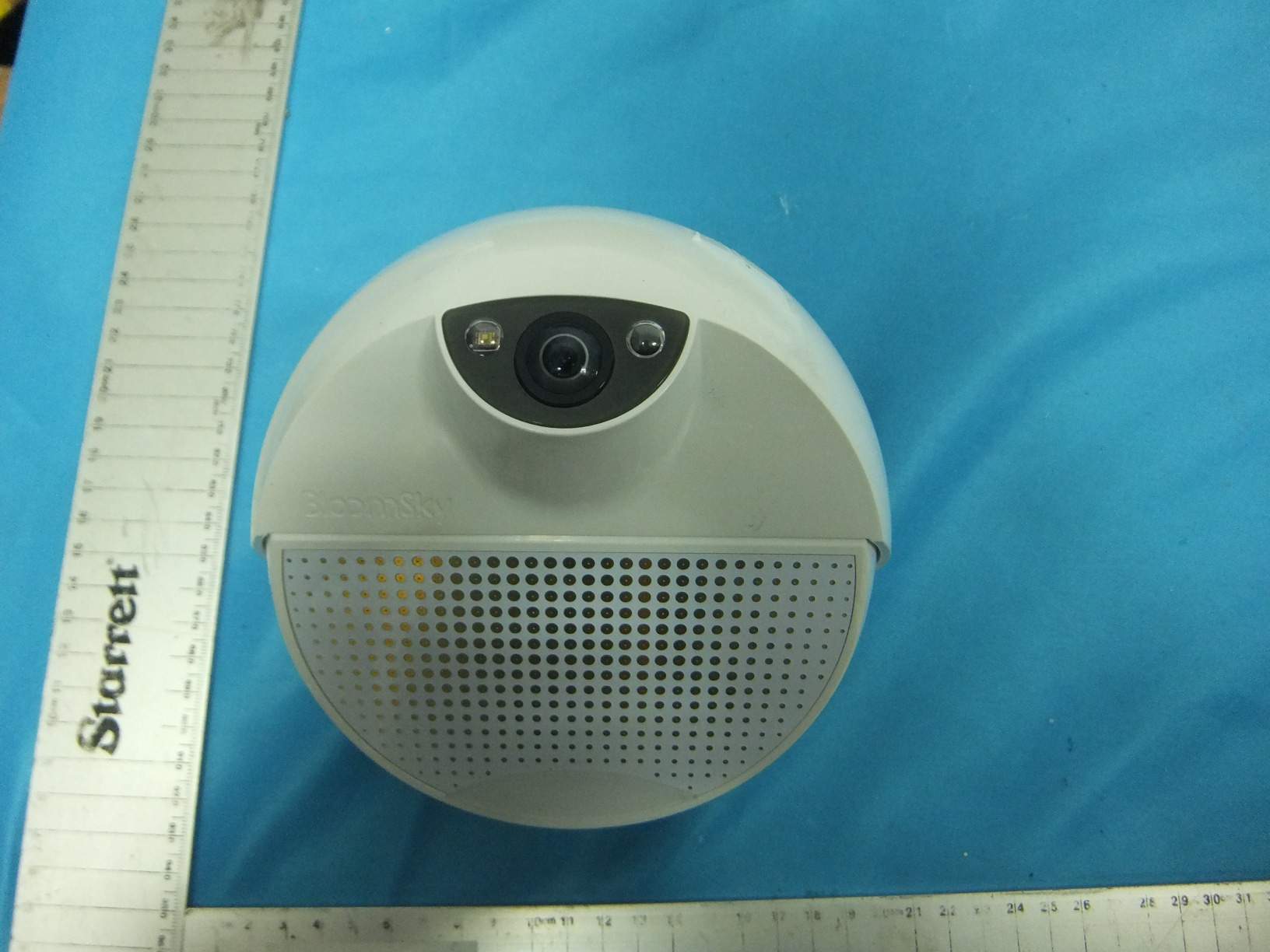

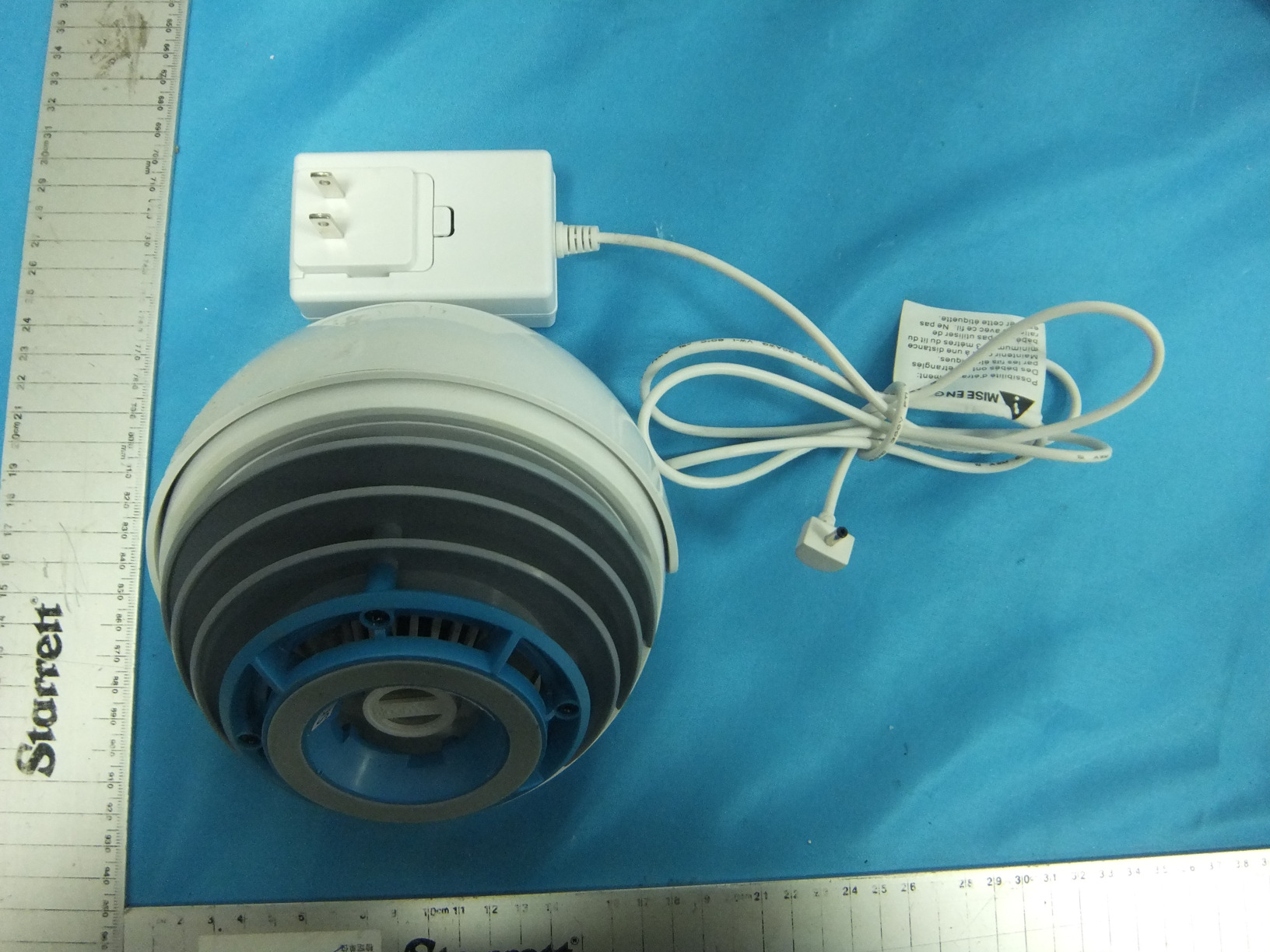

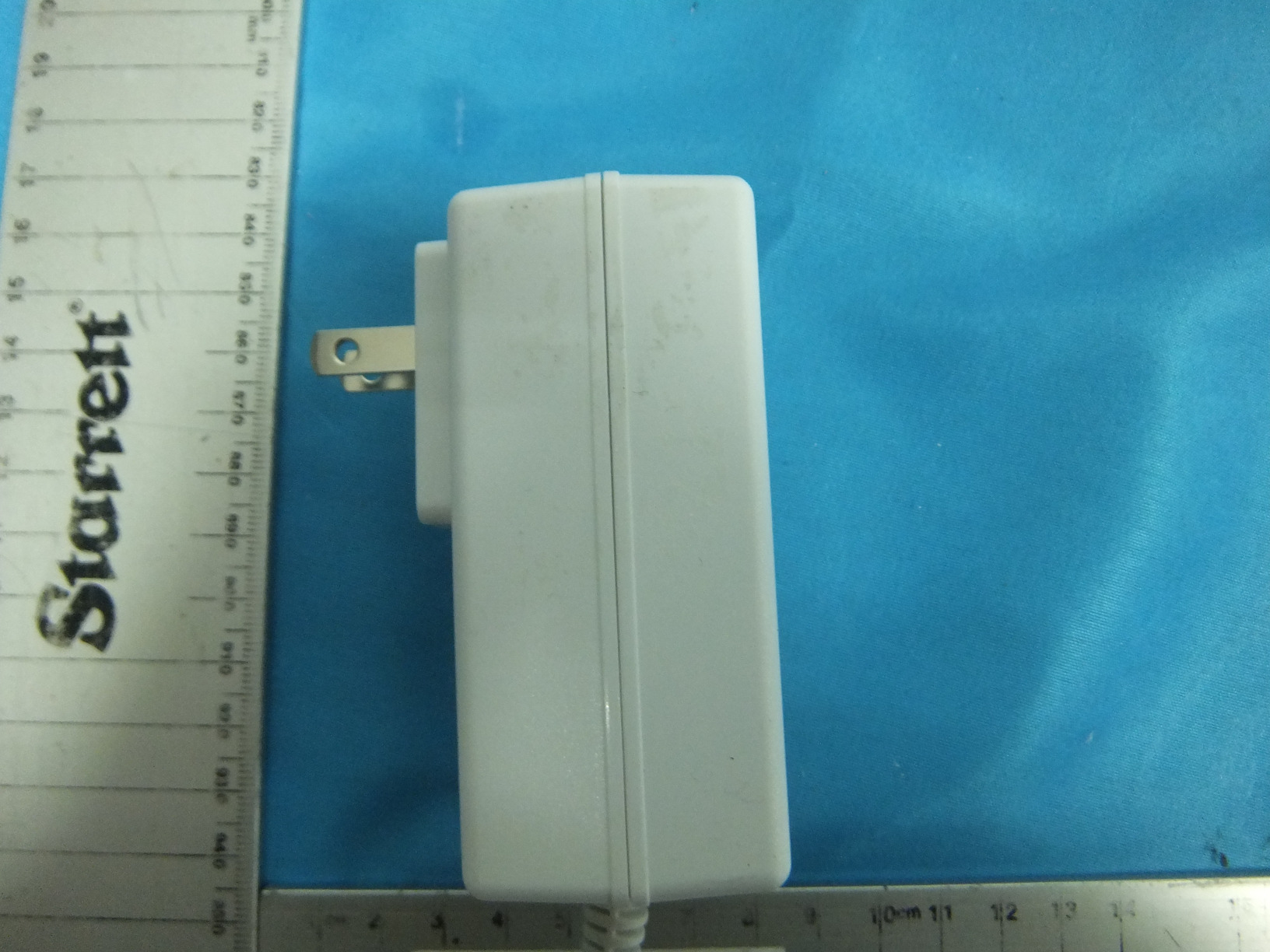

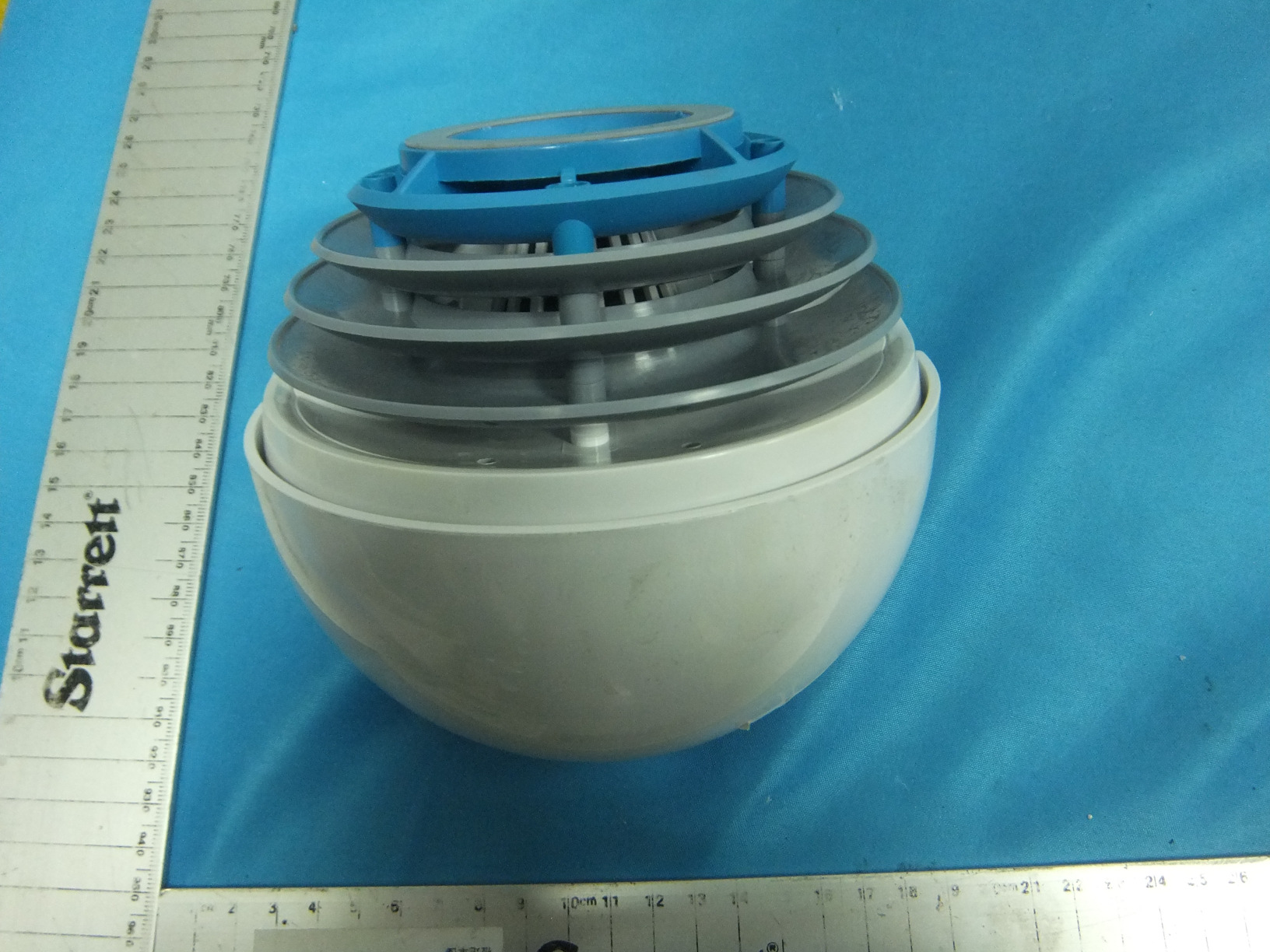

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 6 Page 1 of 6 SKY1 _External Photos-FCC Application No.: SHEM1503000514CR Applicant: BloomSky, Inc. Address of Applicant: 723 N Shoreline Blvd. Mountain View CA 94043 Equipment Under Test (EUT): Product Name: SKY Brand Name: BLOOMSKY Model No.: SKY1 FCC ID: 2AD8ESKY1 IC: 12733A-SKY1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 6 Page 2 of 6 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 EXTERNAL PHOTOS ........................................................................................ 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 6 Page 3 of 6 2 External Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 6 Page 6 of 6 End

Size: 30*20mm

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 14 Page 1 of 14 SKY1 _Internal Photos-FCC Application No.: SHEM1503000514CR Applicant: BloomSky, Inc. Address of Applicant: 723 N Shoreline Blvd. Mountain View CA 94043 Equipment Under Test (EUT): Product Name: SKY Brand Name: BLOOMSKY Model No.: SKY1 FCC ID: 2AD8ESKY1 IC: 12733A-SKY1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 14 Page 2 of 14 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 INTERNAL PHOTOS ......................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 14 Page 3 of 14 2 Internal Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 14 Page 4 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 14 Page 5 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 14 Page 6 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 14 Page 7 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 14 Page 8 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 14 Page 9 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 10 of 14 Page 10 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 11 of 14 Page 11 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 12 of 14 Page 12 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 13 of 14 Page 13 of 14 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 14 of 14 Page 14 of 14 E EE En nn nd dd d

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM150300051403 Page: 1 of 9 Parlam Zhan E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page FCC MPE REPORT Application No.: SHEM1503000514CR Applicant: BloomSky, Inc. FCC ID: 2AD8ESKY1 IC: 12733A-SKY1 Equipment Under Test (EUT): NOTE: The following sample(s) was/were submitted and identified by the client as Product Name: SKY Model No.(EUT): SKY1 Standards: FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance Date of Receipt: March 03, 2015 Date of Test: March 16, 2015 to March 19, 2015 Date of Issue: April 02, 2015 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM150300051403 Page: 2 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 00 / April 02, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM150300051403 Page: 3 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only v SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM150300051403 Page: 4 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM150300051402 Page: 1 of 76 Parlam Zhan E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page RF TEST REPORT Application No.: SHEM1503000514CR Applicant: BloomSky, Inc. FCC ID: 2AD8ESKY1 IC: 12733A-SKY1 Equipment Under Test (EUT): NOTE: The following sample(s) was/were submitted and identified by the client as Product Name: SKY Model No.(EUT): SKY1 Standards: FCC PART 15 Subpart C: 2014 RSS-210 Issue 8 (December 2010)+A1 (February 2015) RSS-Gen Issue 4 (November 2014) Date of Receipt: March 03, 2015 Date of Test: March 16, 2015 to March 19, 2015 Date of Issue: April 02, 2015 Test Result: Pass* *In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM150300051402 Page: 2 of 76 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 00 / April 02, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM150300051402 Page: 3 of 76 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 3 Test Summary Test Item FCC Requirement IC Requirement Test method Result Antenna Requirement FCC Part 15, Subpart C Section 15.203/15.247 (c) RSS-Gen Section8.1.3 --- PASS AC Power Line Conducted Emission FCC Part 15, Subpart C Section 15.207 RSS-Gen Section 8.8 ANSI C63.10 (2013) Section 6.2 N/A Minimum 6dB Bandwidth FCC Part 15, Subpart C Section 15.247 (a)(2) RSS-210 Issue 8 Annex 8 ANSI C63.10 (2013) …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Page 1 of 4 SKY1 _Test Setup Photos-FCC Application No.: SHEM1503000514CR Applicant: BloomSky, Inc. Address of Applicant: 723 N Shoreline Blvd. Mountain View CA 94043 Equipment Under Test (EUT): Product Name: SKY Brand Name: BLOOMSKY Model No.: SKY1 FCC ID: 2AD8ESKY1 IC: 12733A-SKY1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 Radiated Emission Test Setup ............................................................. 3 2.2 Conducted Emissions Test Setup ........................................................ 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup Below 30MHz: 30MHz to 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4 Page 4 of 4 Above 1GHz 2.2 Conducted Emissions Test Setup End
