2AD8QSHSB12JD-3S2.4G Wireless Remote Controller

SHANGHAI SENBO MACHINE MANUFACTURE CO., LTD

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Nov 09, 2020
Application Purpose: Original Equipment
Date of Application: Nov 09, 2020
Equipment Note: 2.4G Wireless Remote Controller
Frequency Range: 2450.00000000 - 2450.00000000
Company: SHANGHAI SENBO MACHINE MANUFACTURE CO., LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2.4GWirelessRemoteControllerUserManual 1.Paneldescription 2.Usedescription （1）Batteryinstallation Unfasteningtherearcoverscrewandremoveit,installtwoNO.7batteries.Besurethe correctionofpolarityofbattery.TheflashoftheSPEED_INDICATOR& CAR_SELECT_INDICATORwillshowit. （2）TheCAR_SELECTkey&CAR_SELECT_INDICATOR Usethiskeytoensuretheuniquecorrectcorrespondingoftheremotetothiscar.Press theCAR_SELECTkeyformorethen2to3seconds,theCAR_SELECT_INDICATOR willturnoff,itshowsthattheremotecancontrolthiscar.Itcanonlycontrolthiscar,and noteffectothers.Note:BeSurethepowerofthecarison,andtheCloserbetweenthe transmitterandthecar. （3）STOPkey Thecarwillbestoppedmovingimmediatelyassoonasthisbuttonispressedinboth remoteandmanualoperatormode. （4）TheSPEED_SLECTkey&SPEED_SELECTindicator Thisbuttonisusedtoselectthespeedgradeofthecar.Thegradewillchangeinthe rangeof3-level:low[oneSPEED_INDICATORflush]、medium[two SPEED_INDICATORflush]andhigh[threeSPEED_INDICATORflush]speed.The changeoftheorderisLOW-MEDIUM-HIGH-MEDIUM-LOWasthebuttonpressed.Note: Onlytheforwarddirectionmovingcanownthisfunction. 5FORWARD_KEY&BACKWORD_KEY Usedtocontrolthemoving.Pressoneofthebuttons,thecarspeedwillascendslowly tothesetupspeedgrade.Sothechildinthiscarwon'thavethesuddenshockandfeel comfortable. （6）LEFT_LEY&RIGHT_LEY Usedtocontroltheleftandrightdirectionofthecar. Receiver: 3.Notice （1）Thetransmitterownsenergy-savingfunction.Thepowerwillautomaticturnoffas theremoteisidleforabout10seconds.itwillworkasanyofthebuttonispressed. （2）TheCAR_SELECTKeymustbeoperatoronceinthefirsttimeuseoftheremote andreplacetheremotebatteries. （3）Theperformanceoftheremotewillbeaffectedwithdamp,wet.Sokeepitoff. （4）Thetransmitterisonlyforadultuse ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing measures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichtherec eiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. Caution:Anychangesormodificationstothisdevicenotexplicitlyapprovedbymanu facturercouldvoidyourauthoritytooperatethisequipment.Thisdevicecomplieswit hpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany interferencereceived,includinginterferencethatmaycauseundesiredoperation. ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanunco ntrolledenvironment.Thisdeviceanditsantennamustnotbelocatedoroperatingin conjunctionwithanyotherantennaortransmitter.

Cover Letter(s)

SHANGHAISENBOMACHINEMANUFACTURECO.,LTD AgentAuthorization Company:SHANGHAISENBOMACHINEMANUFACTURECO.,LTD Address:2/f,Building5,No518,ZhongdaRoad,ZhujingIndustrialPark,Jinshan District,Shanghai,China ProductName:2.4GWirelessRemoteController TradeMark:Senbo ModelNumber(s):SHSB12JD-3S FCCID:2AD8QSHSB12JD-3S WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2020-11-5 Name:Kangsen Title:Generalmanager Company:SHANGHAISENBOMACHINEMANUFACTURECO.,LTD

Cover Letter(s)

SHANGHAISENBOMACHINEMANUFACTURECO.,LTD Add:2/f,Building5,No518,ZhongdaRoad,ZhujingIndustrialPark,Jinshan District,Shanghai,China Tel: Fax: Date:2020-11-5 DearSir/Madam, We,SHANGHAISENBOMACHINEMANUFACTURECO.,LTDHerebydeclaresthe followingstatement,PCBboard,circuit,structureandinternalofthesemodel(s)arethesame, Onlymodelnumberisdifferentforthesemodel: Productname:2.4GWirelessRemoteController ModelNo.:SHSB12JD-3S,SHSB6VJD-S,SHSB12VWS-3S,SHSB6VWS-S Sincerely, Client’sname/title:Kangsen/Generalmanager Contactinformation/address:2/f,Building5,No518,ZhongdaRoad,ZhujingIndustrialPark, JinshanDistrict,Shanghai,China Tel:+86-02157339193Fax:+86-02157333688 E-Mail:[email protected]

Cover Letter(s)

SHANGHAISENBOMACHINEMANUFACTURECO.,LTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2020-11-5 Subject;RequestforConfidentiality FCCID:2AD8QSHSB12JD-3S ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:Kangsen Title:Generalmanager

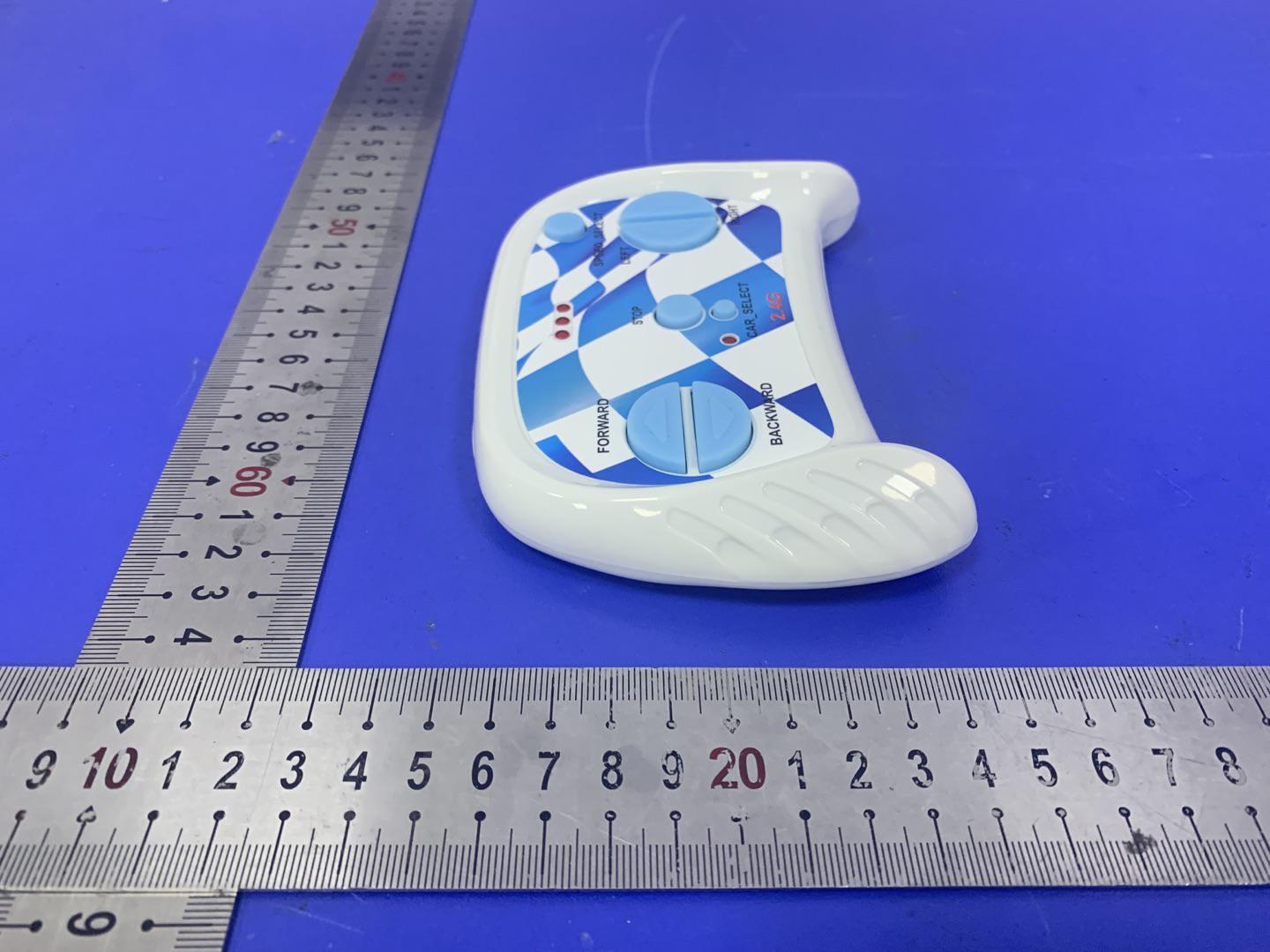

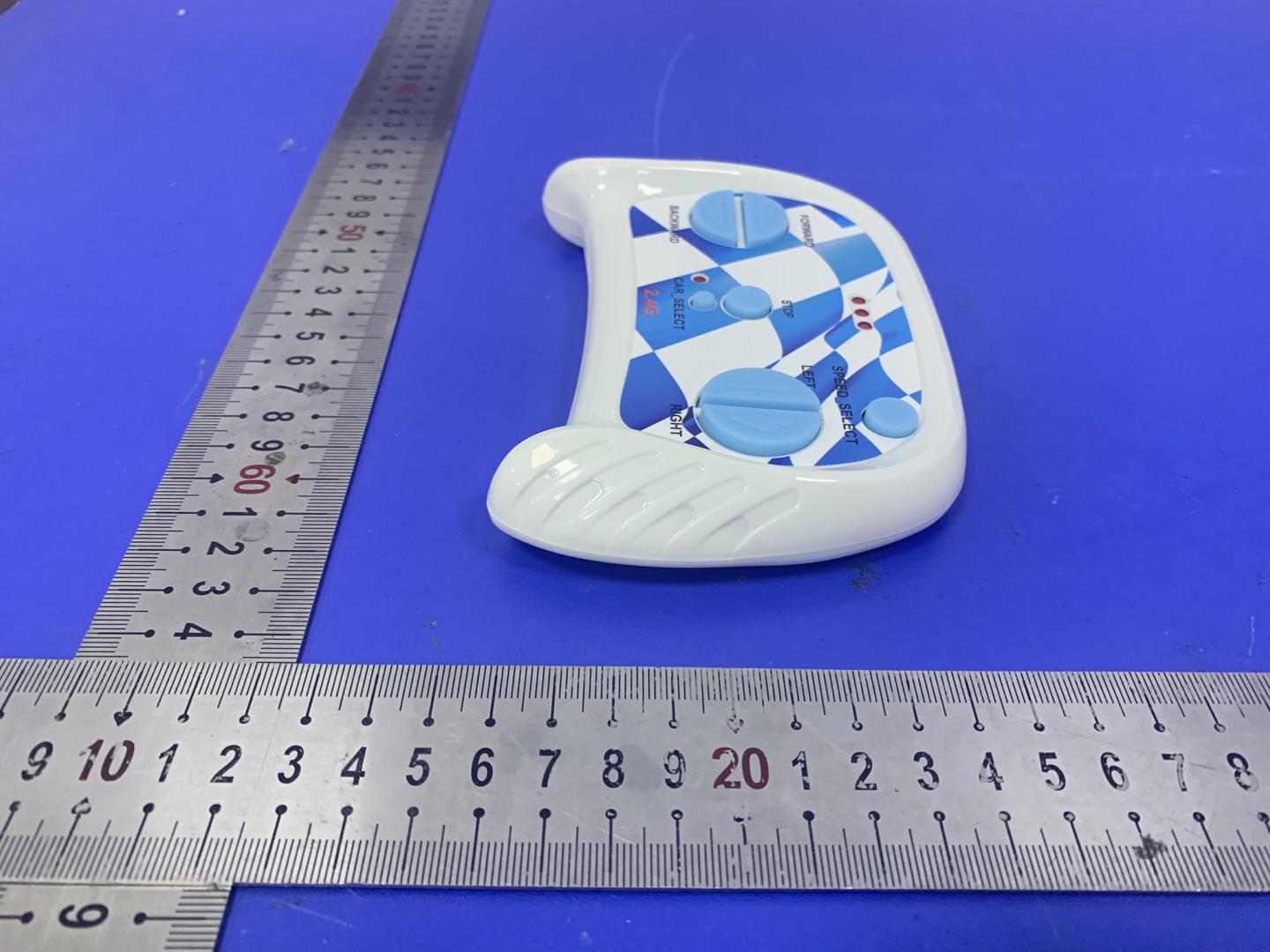

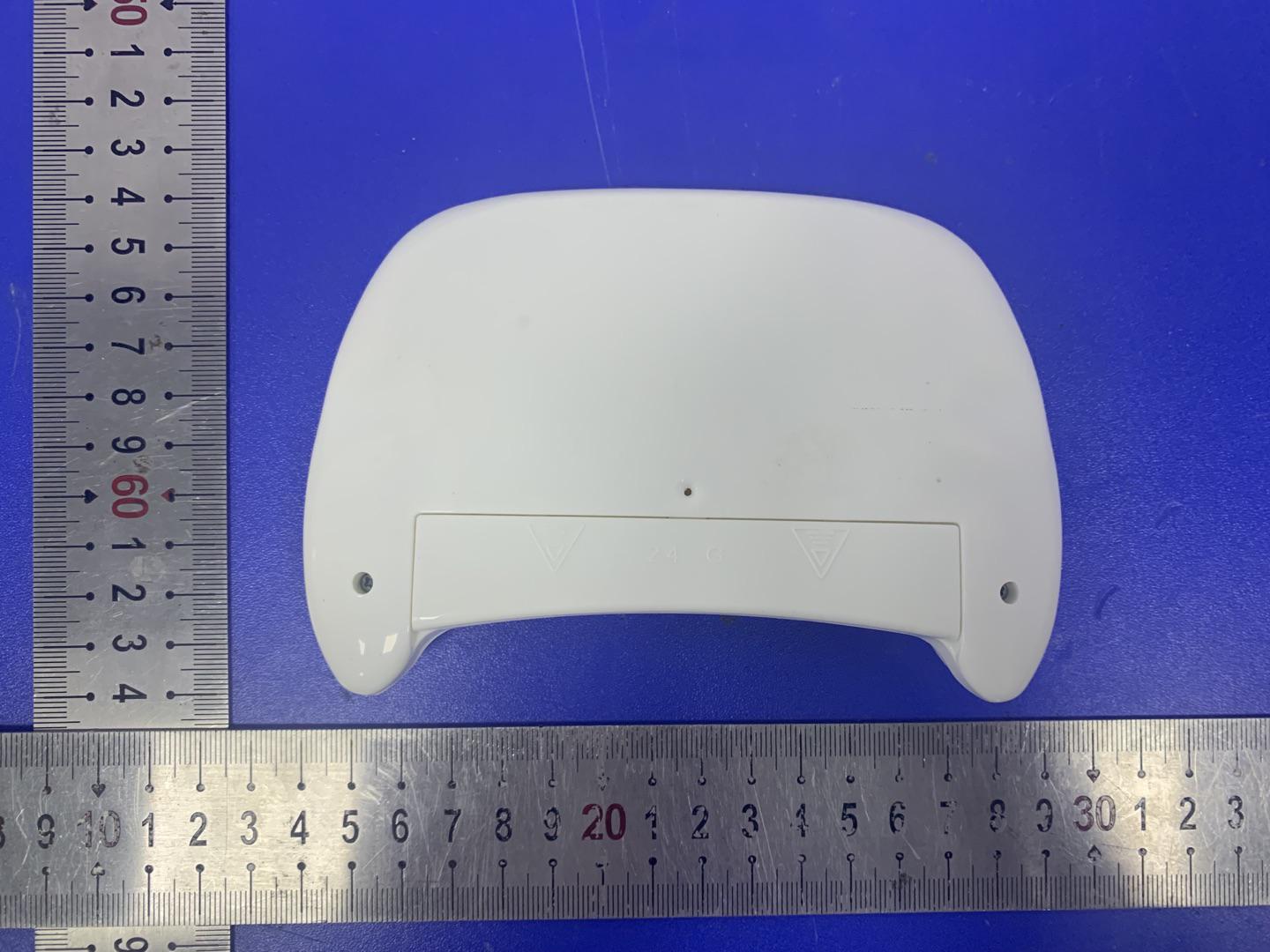

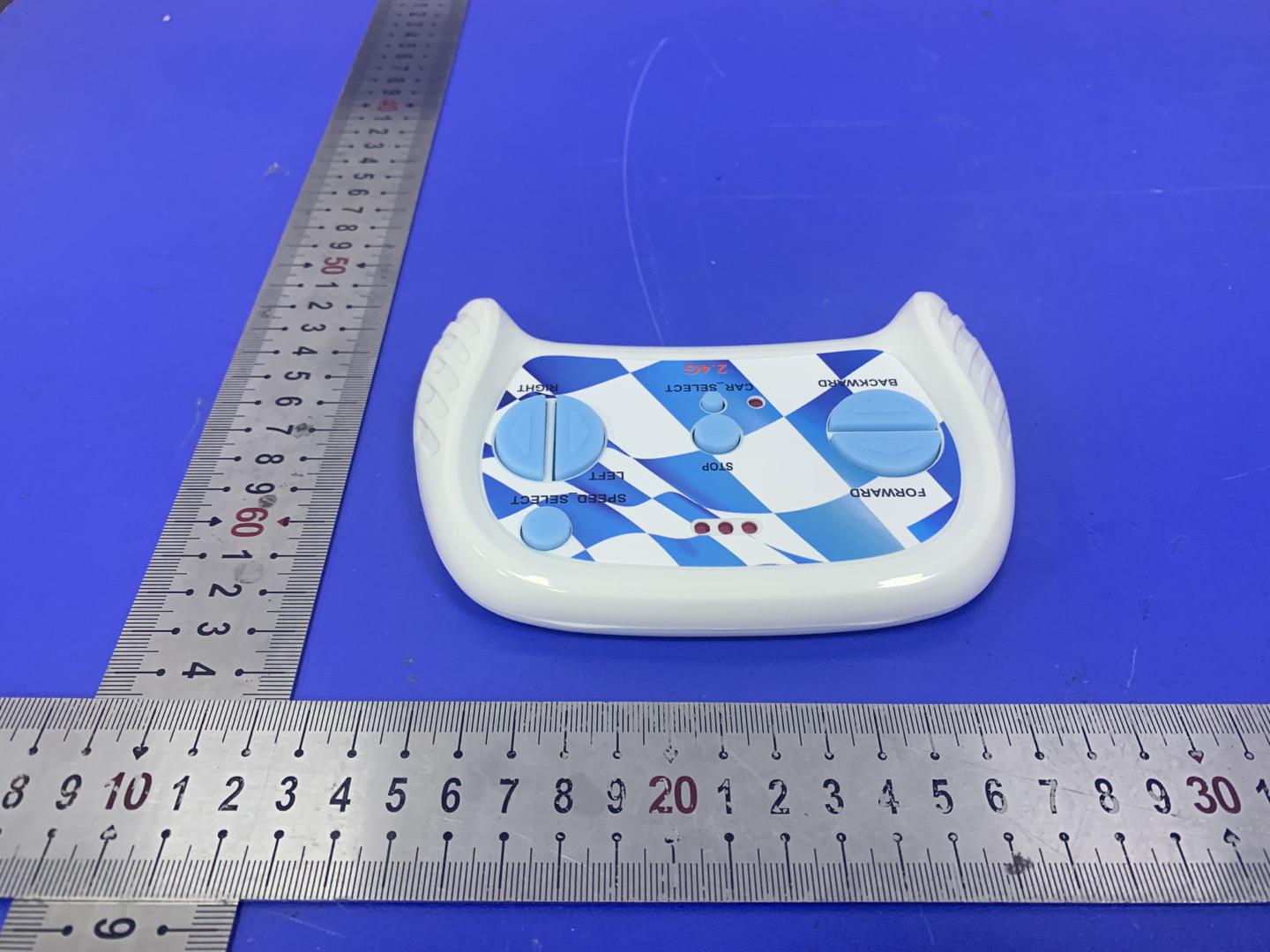

External Photos
