2AD9E-CMM10Marine Source Unit

CMM-10/CMM-10i Marine Source Unit with LCD Display OWNER’S MANUAL MANUEL D’UTILISATION MANUAL DEL PROPIETARIO BEDIENUNGSANLEITUNG MANUALE DEL PROPRIETARIO CMM-10i only CMM-10-10i_MAN_all.indd 1CMM-10-10i_MAN_all.indd 12/24/23 8:56 AM2/24/23 8:56 AM 2 x1 #8 x 1 in (25 mm) 7/64 in (2.78 mm) x1 x1 #8 x 1 in (25 mm) (x4) 2.83W in x 1.81H in (72W mm x 46H mm) CMM-10-10i_MAN_all.indd 2CMM-10-10i_MAN_all.indd 22/24/23 8:56 AM2/24/23 8:56 AM 3 AM FM USB CMM-10i only 1A USB ANT ZONE 1 Z1 SPKR OUT Z2 SPKR OUT Z1 L+ (WH) Z1 L− (WH/BK) Z1 R+ (GY) Z1 R− (GY/BK) Z2 L+ (GN) Z2 L− (GN/BK) Z2 R+ (VI) ILLUMINATION (OR) + GROUND (BK) − AMP TURN-ON (BL) + Z2 R− (VI/BK) POWER ZONE 2 / SUB DAB+ANT +12V (10 - 16V DC) 15A +12V DC (RD) + L (BK) R (RD) L (BK) R (RD) DAB+ CMM-10-10i_MAN_all.indd 3CMM-10-10i_MAN_all.indd 32/24/23 8:56 AM2/24/23 8:56 AM 4 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase separation between the equipment and the receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. SAFETY CONSIDERATIONS • Only use this product in vehicles with 12 volt, negative-ground electrical systems. This product is not certified or approved for use in aircraft. • Mount this product securely to prevent damage or injury in severe conditions. • Do not replace the power wire fuse with one of a different value. Never bypass the fuse. • Listen to your audio system at levels appropriate for operating conditions and hearing safety. INSTALLATION CONSIDERATIONS • Installation requires appropriate tools and safety equipment. Professional installation is recommended. • This product is water-resistant. Do not submerge or subject to high- pressure water spray. • Before installation, turn off the audio system and disconnect the battery system from the audio system. • Install in a dry, well-ventilated location that does not interfere with your factory-installed systems. If a dry environment is not available, a location that is not exposed to heavy splashing may be used. • Before cutting or drilling, check for potential obstacles behind mounting surfaces. • Carefully route all system wiring away moving parts and sharp edges; secure with cable ties or wire clamps and use grommets and loom where appropriate to protect from sharp edges. CMM-10-10i_MAN_all.indd 4CMM-10-10i_MAN_all.indd 42/24/23 8:56 AM2/24/23 8:56 AM 5 GENERAL CONTROL FUNCTIONS ControlFunction Volume/ Select • Rotate to adjust volume • Rotate/press for navigation and making selections Source/ Power • Short press to turn ON; Long press to turn OFF • Short press to advance through available sources Settings • Short press to access audio settings (Bass/Treble/Balance/Fader) • Long press to access system settings (Z2-Sub/Beep/Area/Dimmer/Diagnostic) Back/ Menu • Short press to go back one step or access source specific menus Favorites • Short press to access stored presets • Long press to store a frequency as a preset (up to 9 FM, 9 AM and 9 DAB+) Mute/ Pause • Short press to mute/unmute audio (AM/FM/DAB+) or pause/resume the current selection (USB/Bluetooth) Forward Short press to: • Manually adjust tuner forwards (AM/FM/DAB+) • Select the next track (USB/Bluetooth) Long press to: • Seek to the next channel (AM/FM/DAB+) • Fast-forward (USB/Bluetooth) Backward Short press to: • Manually adjust tuner backwards (AM/FM/DAB+) • Restart track/select the previous track (USB/Bluetooth) Long press to: • Seek to the previous channel (AM/FM/DAB+) • Fast-rewind (USB/Bluetooth) EN CMM-10-10i_MAN_all.indd 5CMM-10-10i_MAN_all.indd 52/24/23 8:56 AM2/24/23 8:56 AM 6 FAVORITES MENU SETTINGS • Short press to access settings/stored presets • Long press to store a frequency as a preset (up to 9 FM, 9 AM and 9 DAB+) • Rotate to navigate • Press to make selections Setting Function DELETESelect from stored presets for removal REPLACEPermits replacement when all preset locations are occupied SYSTEM MENU SETTINGS • Long press to access settings • Rotate to navigate • Press to make selections Setting Function Z2/SUBConfigures preamp outputs: Z2 (rear) or Subwoofer BEEPAudible button press confirmation: On or Off AREAConfigures tuner region: USA, Europe, Australia or Other DIMMERConfigures display and button brightness from 0 to +10 DIAGDisplays software version for diagnostics AUDIO MENU SETTINGS • Short press to access settings • Rotate to navigate • Press to make selections Setting Function BASSBass level control from -10 to +10 TREBLETreble level control from -10 to +10 BALANCEBalance control from full left (L10) to full right (R10) FADERFader control from full front (Z1: 10) to full rear (Z2: 10) SUBSubwoofer preamp level control from 0 to +10 (Z2/SUB must be set to SUB) CMM-10-10i_MAN_all.indd 6CMM-10-10i_MAN_all.indd 62/24/23 8:56 AM2/24/23 8:56 AM 7 USB MENU SETTINGS • Short press to access settings • Rotate to navigate • Press to make…

Text truncated - open the document above for the full version.

JL Audio, Inc. 10369 North Commerce Pkwy, Miramar, FL 33025, United States Date: 2023-04-20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d) (5) (i) Filing SUBJECT: FCC Application for FCC ID: 2AD9E-CMM10 To Whom It May Concern: JL Audio, Inc. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signatory [Mitchell Phillipi, Sr. Manager, WW Compliance]

JL Audio, Inc. 10369 North Commerce Parkway, Miramar, FL 33025, United States Date: 2023-04-20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d) (5) (ii) Filing SUBJECT: FCC Application for FCC ID: 2AD9E-CMM10 To Whom It May Concern: JL Audio, Inc. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signatory [Mitchell Phillipi, Sr. Manager, WW Compliance]

JL Audio, Inc. 10369 North Commerce Parkway, Miramar, FL 33025, United States Date: 2023-04-20 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AD9E-CMM10 Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐ For 45 days, pursuant to Public Notice DA 04-1705. or ☐ For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signatory [Mitchell Phillipi, Sr. Manager, WW Compliance]

JL Audio, Inc. 10369 North Commerce Parkway, Miramar, FL 33025, United States Date: 2023-04-20 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AD9E-CMM10 POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, JL Audio, Inc. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [Mitchell Phillipi, Sr. Manager, WW Compliance]

JL Audio, Inc. 10369 North CommercePkwy, Miramar,FL 33025,UnitedStates Date: 2023-04-20 FEDERALCOMMUNICATIONSCOMMISSION AUTHORIZATIONAND EVALUATIONDIVISION 7435 OAKLANDMILLSROAD COLUMBIA,MD 21046 SUBJECT: FCC Application for FCC ID: 2AD9E-CMM10 To WhomIt May Concern: I, the undersigned,herebystatesthis equipmenthas been testedand found to complywith the limits for a Class B digitaldevice,pursuantto part 15 of the FCC Rules,and will apply the Supplier'sDeclarationof Conformityprocedureto the Part 15 ClassB Digitaland receiversthat operatein the rangebetween30 and 960 MHz of this compositedevice.I understandthe followingFCC requirements: 1. Devicessubjectto the SDoCprocedureare requiredto be testedto show compliance with the FCC technicalregulationsby a recognizedaccreditedtestinglaboratory.The testinglaboratorymust be accreditedby a Commissionapprovedaccreditationbody or designatedunderthe termsof a government-to-governmentMutualRecognition Agreement(MRA).A listingof thoseaccreditedtestinglaboratoriesthat have been recognizedby the Commissionis publishedon the FCCWebpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Selectthe "accredited"option to searchfor FCC recognizedaccreditedtest firms.) 2. Pt 2.1077containsthe list of informationthat must be includedin the Supplier's Declarationof Conformity,whichmust be suppliedwith each productsold.The SDoC complianceinfo shall be includedin the User ’s Manualor as a separatesheet.The info must containthename,address,andphonenumberof theresponsibleparty,which mustbelocatedwithintheUnitedStates.Accordingto 2.909(b),the responsibleparty is either the Manufactureror if theproductis importedtheImporter. Sincerely, Signatory [MitchellPhillipi,Sr. Manager,WW Compliance]

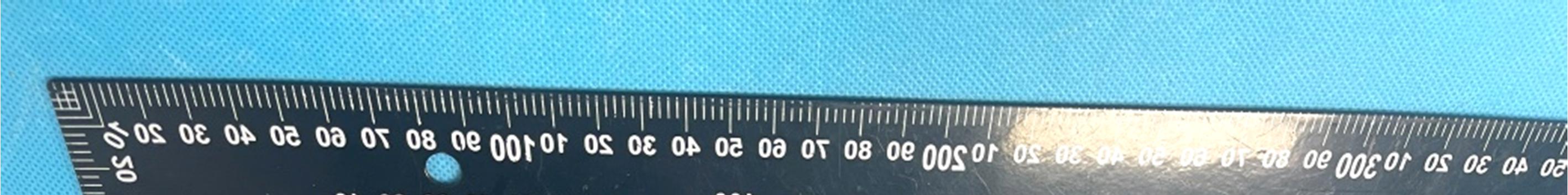

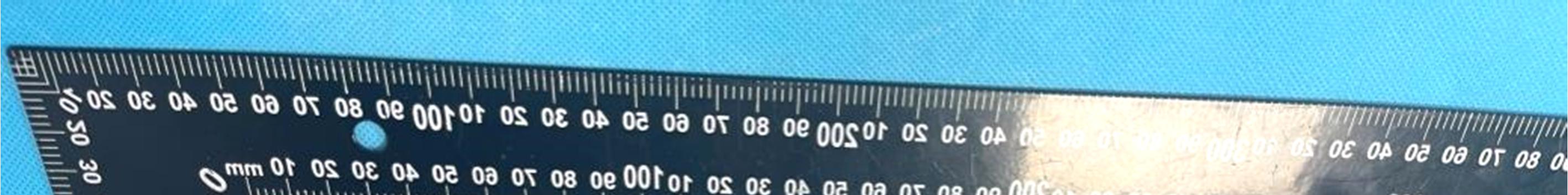

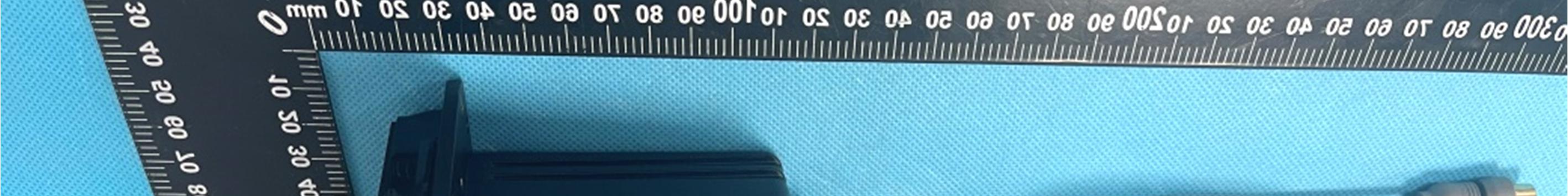

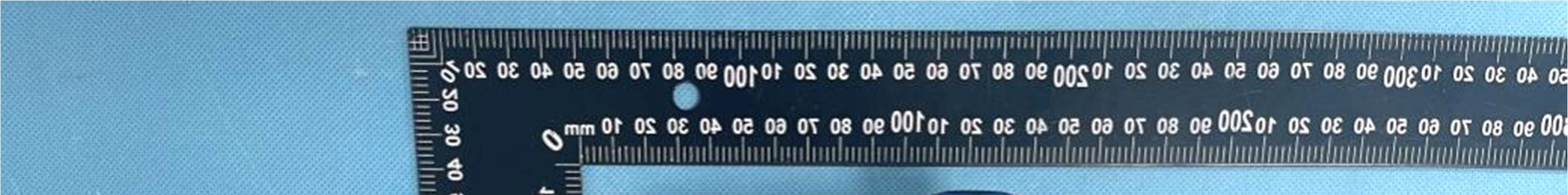

Reference No.: WTX23X02032356W001 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X02032356W001 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X02032356W001 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTX23X02032356W001 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X02032356W001 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X02032356W001 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX23X02032356W001 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: JL Audio, Inc. Address of applicant: 10369 North Commerce Parkway, Miramar, FL 33025 Manufacturer: SHENZHEN TOKWA PRECISION TECHNOLOGY CO., LTD . Address of manufacturer: A5 Building, Tongxin Industrial Zon, No.87, Tongxin Road, Longgang District, Shenzhen City, Guangdong Province, P.R.China General Description of EUT: Product Name: Marine Source Unit Trade Name / Model No.: CMM-10 Adding Model(s): / Rated Voltage: DC12V Battery Capacity: / FCC ID: 2AD9E-CMM10 Equipment Type: Mobile device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V5.0 (BR/EDR mode) Frequency Range: 2402-2480MHz RF Output Power: 4.22dBm (Conducted) Data Rate: 1Mbps, 2Mbps, 3Mbps Modulation: GFSK, π/4 DQPSK, 8DPSK Quantity of Channels: 79 Channel Separation: 1MHz Type of Antenna: PCB Antenna Antenna Gain: 2.81dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 4.22 2.81 100 5.00 5.66 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 C 20.00 5.66 3.68 768.00 0.01 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 62 TEST REPORT Reference No. .................... : WTX23X02032356W001 FCC ID ................................ : 2AD9E-CMM10 Applicant ........................... : JL Audio, Inc. Address.............................. : 10369 North Commerce Parkway, Miramar, FL 33025 Manufacturer ..................... : SHENZHEN TOKWA PRECISION TECHNOLOGY CO., LTD . Address.............................. : A5 Building, Tongxin Industrial Zon, No.87, Tongxin Road, Longgang District, Shenzhen City, Guangdong Province, P.R.China Product Name ................... : Marine Source Unit Model No... ......................... : CMM-10 Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2022-11-23 Date of Test........................ : 2022-11-23 to 2023-02-21 Date of Issue ..................... : 2023-03-03 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Gala Wang Silin Chen Reference No.: WTX23X02032356W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 62 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .........................................................................5 1.2 TEST STANDARDS .................................................................................................................................................6 1.3 TEST METHODOLOGY ...........................................................................................................................................6 1.4 TEST FACILITY ......................................................................................................................................................6 1.5 EUT SETUP AND TEST MODE ..............................................................................................................................7 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................9 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 13 3. ANTENNA REQUIREMENT ................................................................................................................................. 14 3.1 STANDARD APPLICABLE ..................................................................................................................................... 14 3.2 EVALUATION INFORMATION ................................................................................................................................ 14 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .................................................................................... 15 4.1 STANDARD APPLICABLE ..................................................................................................................................... 15 4.2 FREQUENCY HOPPING SYSTEM ......................................................................................................................... 15 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................... 16 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION .................................................... 17 5.1 STANDARD APPLICABLE ..................................................................................................................................... 17 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 17 5.3 TEST PROCEDURE .............................................................................................................................................. 17 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 18 6. DWELL TIME OF HOPPING CHANNEL ........................................................................................................... 19 6.1 STANDARD APPLICABLE ..................................................................................................................................... 19 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 19 6.3 TEST PROCEDURE .............................................................................................................................................. 19 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 20 7. 20DB BANDWIDTH ............................................................................................................................................... 21 7.1 STANDARD APPLICABLE ........................................................................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX23X02032356W001 Page 8 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Reference No.: WTX23X02032356W001 Page 9 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (1GHz to 18GHz) Radiation Emission Test Setup (Above 18GHz) Reference No.: WTX23X02032356W001 Page 10 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ***** END OF REPORT *****
