2AD9E-MBTCRXV3Bluetooth Audio Receiver

Weatherproof Bluetooth® Controller / Receiver Product Description The MBT-CRXv3 is a water-resistant (IP67 rated) Bluetooth® receiver designed for marine and powersports applications. It can be used as a stand-alone Bluetooth® source unit/receiver, connecting directly to an amplier. It can also be used as an add-on Bluetooth® controller/receiver, connected to an existing head unit’s line-level/auxiliary inputs. The MBT-CRXv3 is not designed to drive loudspeakers directly. What’s Included (1) MBT-CRXv3 Bluetooth controller/receiver (1) Threaded fastening collar (1) Thin round gasket (1) Thick round gasket (1) Square adaptor plate (1) Square adaptor gasket (4) Stainless steel mounting screws (1) User Manual Installation Applications This product is designed for operation in 12 volt, negative-ground electrical systems. Using this product in systems with positive ground and/or voltages other than 12 volts may result in damage to the product and will void the warranty. This product is not certied or approved for use in aircraft. Safety Considerations • Whenever possible, mount this product in a dry, well-ventilated location that does not interfere with other factory installed electronic devices. If a dry environment is not available, a location that is not exposed to heavy splashing may be used. • While this product is designed to be water- resistant, it should never be submerged under water for prolonged periods or subjected to high-pressure water spray. • Do not mount in an engine compartment or in any areas of extreme heat. • Ensure this product is securely installed so that it does not come loose in the event of a collision/sudden jolt or as a result of repeated vibrations during normal operation. • Check before drilling to make sure that you will not be drilling into an exterior panel/ hull, fuel tank, gas/brake line, wiring harness, or other vital system. • Do not run system wiring outside or underneath the vehicle/vessel. This is an extremely dangerous practice, which can result in severe damage/injury. • Protect all system wires from sharp edges (metal, berglass, etc.) by carefully routing them, tying them down and using gro mmets and loom where appropriate. • Secure all wiring as needed, using cable ties or wire clamps to protect them from moving parts and sharp edges. • Do not replace the power wire fuse with one of a dierent value. Never bypass the fuse. Mounting & Installation The design of the MBT-CRXv3 requires just a single hole for installation. Its easy-to- use threaded-collar mounting system can accommodate installations in at surfaces up to 1.75 inches (4.5 cm) thick. A front-mounted adaptor plate is included for installations in panels exceeding 1.75 inches (4.5 cm) thick, or where rear access is limited or not possible. Refer to the diagrams below for your specic mounting application. Standard Collar-Mount Installation Front-Mount Adaptor Installation IP67 WATER RESISTANT MBT_CRX_MANv2-071018.indd 17/10/18 12:05 PM v3 Wiring DiagramPairing Your Device (required for operation) ts ruoy erusnE .1reaming device has Bluetooth® enabled and that the MBT-CRXv3 is on (backlit in blue). The JL Audio logo on the MBT-CRXv3 will blink to indicate it is in pairing mode. ts ruoy nihtiW .2reaming device’s Bluetooth® setup menu, select “MBT-CRXv3” from the list of pairable devices. lufsseccus nehW .3ly connected, the JL Audio logo on the MBT-CRXv3 will stop blinking and remain lit. A single beep will be heard through the connected audio system. Note: If optional connection is made to a head unit’s remote turn-on output, the head unit will nd the MBT-CRXv3 power button will no longer operate. Pairing Considerations cont’d When a connected streaming device is out of range for more than one minute, the MBT-CRXv3 will automatically disconnect this streaming device and return to pairing mode (JL Audio logo will blink). When that same device comes back into range, it should be reconnected to the MBT-CRXv3 manually. Controlling Audio Playback Once connected, use the controls on the MBT-CRXv3 to adjust volume up/down, track selection and play/pause. Pressing the JL Audio Logo will change the zone (and LED color) from All Zones (default)(White) to Zone 1 (Blue) Zone 2 (Red) Subwoofer (Green) IP67 Water Resistance Rating This product has been tested to withstand immersion in water, up to 1 meter (3.28 ft.) deep, for up to 30 minutes (when prop- erly installed). Note - while designed to be water resistant, this product should never be submerged under water for prolonged periods or subjected to activity that creates pressure on it that exceeds its depth rating. 2-Year Limited Warranty (U.S.A.) Visit www.jlaudio.com for warranty details. For Service Information in the U.S.A. please call JL Audio c ustomer service: (954) 443-1100 during normal business hours (Eastern Time) • JL Audio, Inc • 10369 N Commerce Parkway, Miramar, FL 33025 International Warranties: Products purchased outside the United States of America are covered only by that country’s distributor and not by JL Audio, Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JL Audio, Inc. is u nder license. Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries and any use of such marks b y JL Audio, Inc. is under license. 071018 • Printed in China Pairing Considerations Multiple devices can be paired to the MBT-CRXv3, but only one streaming device can connect at one time. The MBT-CRXv3 will remember the last device that was connected to it and reconnect with it automatically. If that streaming device is not active, then other paired streaming devices can connect manually, or new streaming devices can be paired. Bluetooth® …

Text truncated - open the document above for the full version.

JL Audio, Inc. 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/3/22 To whom it may concern: We, JL Audio, Inc., hereby certify that the equipment for which authorization is sought (FCC ID: 2AD9E-MBTCRXV3) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature Mitchell Phillipi Sr. Manager, WW Compliance JL Audio, Inc. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V02

JL Audio, Inc. 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/3/22 U.S. Agent Designation JL Audio, Inc. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2AD9E-MBTCRXV3): Name and company of U.S. agent: JL Audio, Inc. Physical U.S. address of agent: 10369 North Commerce, Miramar, FL 33025-3962, United States FRN of U.S. agent: 0012294716 Email address of U.S. agent: [email protected] JL Audio, Inc acknowledges their obligation to accept service of process on behalf of JL Audio, Inc. JL Audio, Inc accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Mitchell Phillipi Sr. Manager, WW Compliance JL Audio, Inc. Signature Marianne VonFeldt Oxenhorn General Counsel JL Audio, Inc. 48_[model] US_Agent_2.911(d)(7) - U, V03

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023/3/22 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AD9E-MBTCRXV3 MBT-CRXv3 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Mitchell Phillipi/ Sr. Manager, WW Compliance Company: JL Audio, Inc. Address: 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States Phone: +1 4255036576 Fax: +1 (954) 443-1111 E-Mail: [email protected]

JL Audio, Inc. 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/3/22 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AD9E-MBTCRXV3 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Mitchell Phillipi/ Sr. Manager, WW Compliance Company: JL Audio, Inc. Address: 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States Phone: +1 4255036576 Fax: +1 (954) 443-1111 E-Mail: [email protected]

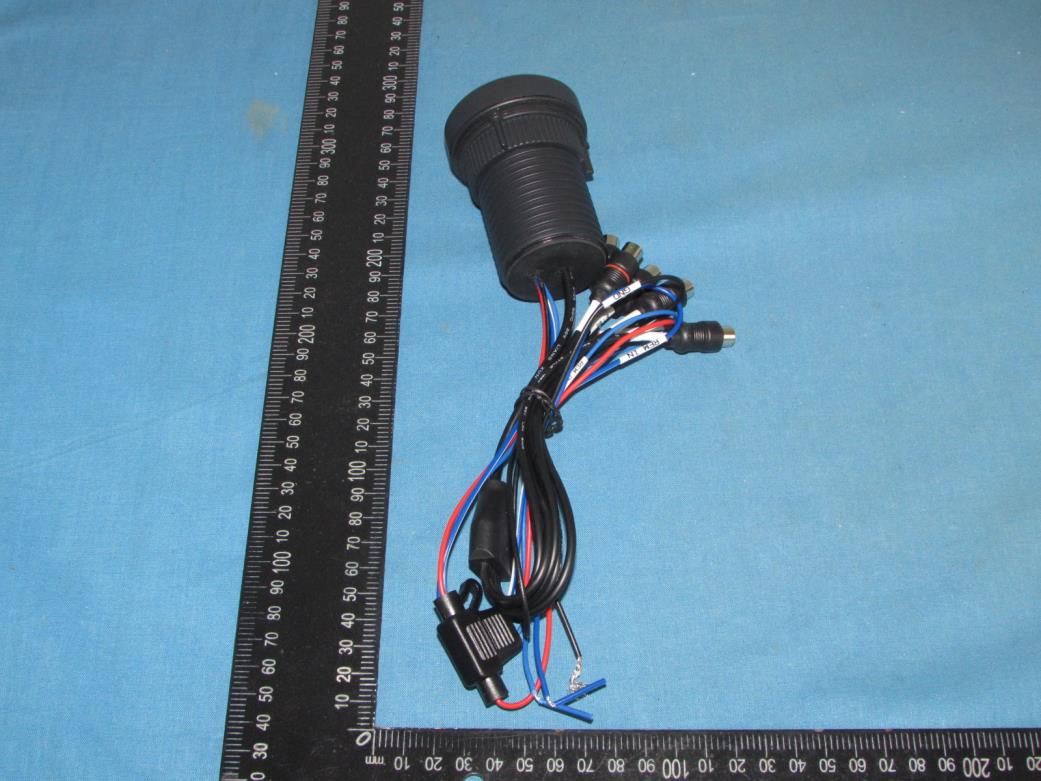

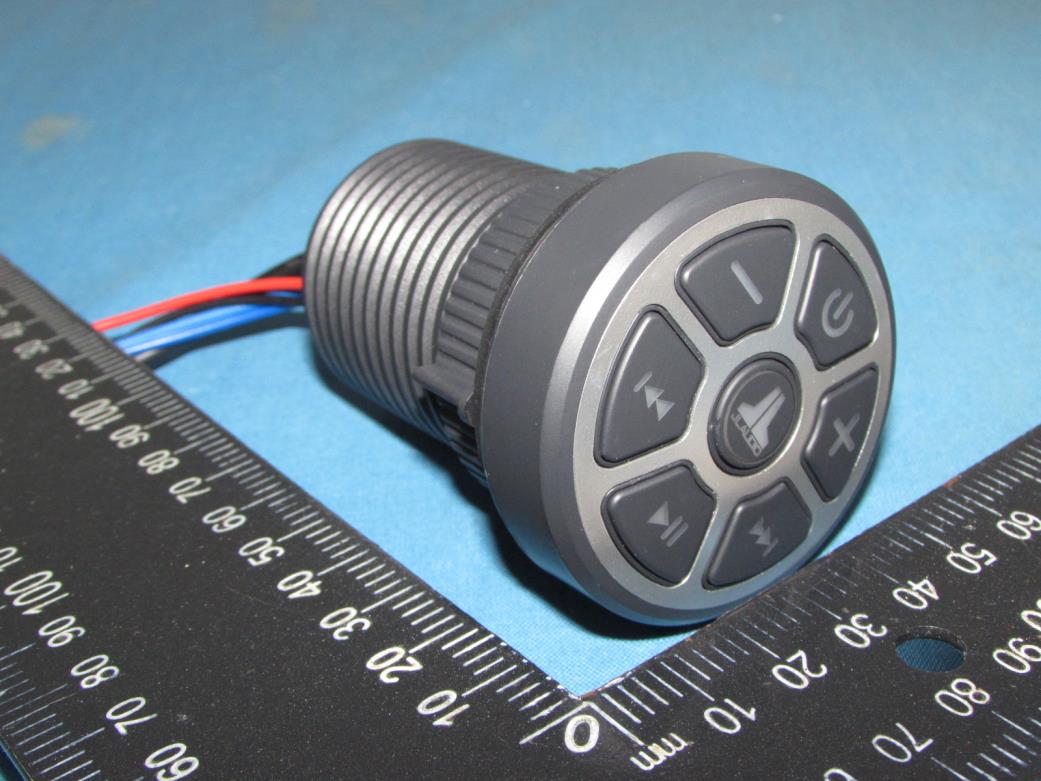

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This reportshall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Fig.3

Label Location: FCC ID: 2AD9E-MBTCRXV3

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Fig.3 Fig.4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 Fig.5 Fig.6 Bluetooth Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4 Fig.7

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 3 RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 3 The example values shown in Table B.2 are for illustration only. Frequency (MHz) Distance (mm) 5 10 15 20 25 30 35 40 45 50 300 39 65 88 110 129 148 166 184 201 217 450 22 44 67 89 112 135 158 180 203 226 835 9 25 44 66 90 116 145 175 207 240 1900 3 12 26 44 66 92 122 157 195 236 2450 3 10 22 38 59 83 111 143 179 219 3600 2 8 18 32 49 71 96 125 158 195 5800 1 6 14 25 40 58 80 106 136 169 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 3 Conducted Power Results Test Mode Channel Frequency (MHz) Measured Peak Output Power (dBm) GFSK(1Mbps) 00 2402 7.15 19 2440 5.51 39 2480 6.38 Manufacturing tolerance GFSK (1Mbps Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 7.0 5.5 6.0 Tolerance ±(dB) 1.0 1.0 1.0 Results Test Mode Channel Frequency (MHz) Max. Tune Up Power (dBm, Peak) Max. Eirp including Tune Up (dBm, Peak) Max. Eirp including Tune Up (mW, Peak) Exemption Limit (mW) GFSK(1Mbps) 2402 8.0 10.3 10.72 3060 2440 6.5 8.8 7.59 3060 2480 7.0 9.3 8.51 3060 The antenna gain of the EUT for BT is 2.3dBi(Max). the Maximum Eirp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

1.AntennaDescription: AntennaplateMonopoleAntenna Antennapeakgain2.3dBi Frequencyrange2.402MHz~2.480MHz Connecttype DirectConnect 2.Pictureofantenna 3.AntennaRadiationPattern [email protected] [email protected] [email protected]

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: Bluetooth Audio Receiver Trade Mark: N/A Test Model: MBT-CRXv3 FCC ID: 2AD9E-MBTCRXV3 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.668 2401.632 2402.300 0.5 PASS 2440 0.632 2439.656 2440.288 0.5 PASS 2480 0.648 2479.644 2480.292 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0142 2401.4592 2402.4734 --- --- 2440 1.0178 2439.4597 2440.4775 --- --- 2480 1.0085 2479.4658 2480.4743 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 7.15 ≤30 PASS 2440 5.51 ≤30 PASS 2480 6.38 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -8.4 ≤8.00 PASS 2440 -10.17 ≤8.00 PASS 2480 -9.06 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 6.75 -49.9 ≤-13.25 PASS High 2480 5.30 -49.89 ≤-14.7 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference 6.50 6.50 --- PASS 30~1000 6.50 -43.75 ≤-13.5 PASS 1000~26500 6.50 -52.49 ≤-13.5 PASS 2440 Reference 4.04 4.04 --- PASS 30~1000 4.04 -43.08 ≤-15.96 PASS 1000~26500 4.04 -51.97 ≤-15.96 PASS 2480 Reference 6.10 6.10 --- PASS 30~1000 6.10 -41.24 ≤-13.9 PASS 1000~26500 6.10 -51.42 ≤-13.9 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 2.09 2.50 83.60 0.48 2440 2.09 2.50 83.60 0.48 2480 2.10 2.50 84.00 0.48 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 16 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -49.63 ≤-41.20 PASS AV 2361.740 -49.13 ≤-41.20 PASS AV 2390.000 -49.33 ≤-41.20 PASS Peak 2310.000 -41.86 ≤-21.20 PASS Peak 2388.830 -38.61 ≤-21.20 PASS Peak 2390.000 -40.86 ≤-21.20 PASS High 2480 AV 2483.500 -46.82 ≤-41.20 PASS AV 2483.520 -46.82 ≤-41.20 PASS AV 2500.000 -48.61 ≤-41.20 PASS Peak 2483.500 -41.33 ≤-21.20 PASS Peak 2487.680 -39.21 ≤-21.20 PASS Peak 2500.000 -39.63 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 18 of 19 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV BLE_1M_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 Report No.: TZ230103970-E Page 19 of 19

Report No.: TZ230103970-E Page 1 of 32 FCC TEST REPORT Test report On Behalf of JL Audio, Inc. For Bluetooth Audio Receiver Model No.: MBT-CRXv3 FCC ID: 2AD9E-MBTCRXV3 Prepared for : JL Audio, Inc. 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/2/7~2023/2/19 Date of Report: 2023/2/20 Report Number: TZ230103970-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230103970-E Page 2 of 32 TEST RESULT CERTIFICATION Applicant’s name ................. : JL Audio, Inc. Address .................................. : 10369 North Commerce Pkwy, Miramar, Florida 33025-3962, United States Manufacture's Name ............ : AVS (Ningbo) Industrial Co.Ltd Address .................................. : NO. 7, 59TH, CHUANG FU ROAD, XIAO GANG INDUSTRIAL AREA, BEI LUN NB CITY, ZHE JIANG ,CHINA Product description Trade Mark: N/A Product name ........................... : Bluetooth Audio Receiver Model and/or type reference : MBT-CRXv3 Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2023/2/7~2023/2/19 Date of Issue .......................................... : 2023/2/20 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230103970-E Page 3 of 32 Revision History Revision Issue Date Revisions Revised By 000 2023/2/20 Initial Issue Andy Zhang Report No.: TZ230103970-E Page 4 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 5 1.3 EUT CONFIGURATION .......................................................................................................................................... 6 1.4. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.5. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.6. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.7. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.8. DESCRIPTION OF TEST MODES .......................................................................................................................... 7 1.9. FREQUENCY OF CHANNELS ................................................................................................................................ 7 2. TEST METHODOLOGY ......................................................................................................................................... 8 2.1. EUT CONFIGURATION......................................................................................................................................... 8 2.2. EUT EXERCISE ................................................................................................................................................... 8 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 8 3. SYSTEM TEST CONFIGURATION ...................................................................................................................... 9 3.1. JUSTIFICATION..................................................................................................................................................... 9 3.2. EUT EXERCISE SOFTWARE ................................................................................................................................ 9 3.3. SPECIAL ACCESSORIES ...................................................................................................................................... 9 3.4. BLOCK DIAGRAM/SCHEMATICS........................................................................................................................... 9 3.5. EQUIPMENT MODIFICATIONS .............................................................................................................................. 9 3.6. TEST SETUP ........................................................................................................................................................ 9 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 10 5. TEST RESULT ....................................................................................................................................................... 11 5.1.…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AD9E-MBTCRXV3 TEST SETUP PHOTOS OF THE EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz
