2ADBM-LS11High Performance Wireless Media Module

Libre Wireless Technologies © 2023 Libre Confidential LS11 High Performance Wireless Media Module Data Sheet Rev: 1.5 LS11 – Data Sheet Libre Wireless Technologies Data Sheet Ver.1.5 Page 2 of 27 Libre Confidential LS11 Module Ordering Information L S 1 1DEL44G Libre Model Code ETHERNET Code Wireless Connectivity Code Memory Code (DDR) Memory Code (NAND) Extended Feature Code LS - LibreSync 11 - Model number N - No ETH E - ETH Supported A - Wi-Fi 6 + BT/BLE 5.2 L - Wi-Fi 6 + BT/BLE 5.2 + LE audio T - Wi-Fi 6E + BT/BLE 5.2 + LE audio N- No Wi-Fi and BT/BLE 8 - 8 Gbit 4 - 4 Gbit 2 - 2 Gbit 1 - 1 Gbit 8 - 8 Gbit 4 - 4 Gbit 2 - 2 Gbit 1 - 1 Gbit Memory Code (Density) G - Gigabit D - Dolby Support R - Reserved LS11 Ordering Information LS11 – Data Sheet Libre Wireless Technologies Data Sheet Ver.1.5 Page 3 of 27 Libre Confidential Sl. No Part Number Ethernet Support Wireless Connectivity Memory Density Flash / DDR Extended Features 1 LS11-EA-44G-R Yes Wi-Fi 6, BT/BLE 5.2 512MB / 512MB Dolby Not supported 2 LS11-NA-44G-R No Wi-Fi 6, BT/BLE 5.2 512MB / 512MB Dolby Not supported 3 LS11-EA-88G-R Yes Wi-Fi 6, BT/BLE 5.2 1GB / 1GB Dolby Not supported 4 LS11-NA-88G-R No Wi-Fi 6, BT/BLE 5.2 1GB / 1GB Dolby Not supported 5 LS11-EA-22G-R Yes Wi-Fi 6, BT/BLE 5.2 256MB / 256MB Dolby Not supported 6 LS11-NA-22G-R No Wi-Fi 6, BT/BLE 5.2 256MB / 256MB Dolby Not supported 7 LS11-EN-44G-R Yes No 512MB / 512MB Dolby Not supported 8 LS11-EN-88G-R Yes No 1GB / 1GB Dolby Not supported 9 LS11-EN-22G-R Yes No 256MB / 256MB Dolby Not supported • The LS11 module with different memory configuration is available based on the request. • Dolby feature can be implemented based on the customer requirement. LS11 – Data Sheet Libre Wireless Technologies Data Sheet Ver.1.5 Page 4 of 27 Libre Confidential Table of Contents 1. Document Information ............................................................................................................. 6 1.1. Document Revision History ........................................................................................................... 6 2. Introduction ................................................................................................................................. 7 3. Module Feature Summary ....................................................................................................... 7 4. LibreSync Features .................................................................................................................... 9 5. Block Diagram ........................................................................................................................... 10 6. Specifications ............................................................................................................................. 11 6.1. General Specifications ................................................................................................................... 11 6.2. Wi-Fi Specifications ........................................................................................................................ 12 6.3. Bluetooth Specifications ............................................................................................................... 13 6.4. Antenna Specification .................................................................................................................... 14 6.5. Rubber Antenna Specification ................................................................................................... 15 7. Mechanical, Connectors and Interfaces ............................................................................ 16 7.1. Physical Module ............................................................................................................................... 16 7.1.1. Module Manufacturer ............................................................................................................... 16 7.2. Media Connector Specification .................................................................................................. 19 7.3. Pin Descriptions .............................................................................................................................. 20 7.3.1. Connector ...................................................................................................................................... 20 8. Power Consumption ................................................................................................................ 25 9. Environmental ........................................................................................................................... 26 9.1. Storage Conditions ......................................................................................................................... 26 10. Disclaimer ................................................................................................................................... 27 LS11 – Data Sheet Libre Wireless Technologies Data Sheet Ver.1.5 Page 5 of 27 Libre Confidential Table of Figures Figure 5-1: LS11 Module Block Diagram ....................................................................................................... 10 Figure 7.1-1: LS11 Module Top View .............................................................................................................. 16 Figure 7.1-2: LS11 Module Bottom View ....................................................................................................... 16 Figure 7.1-3: LS11 Top View - Mechanical Dimension 1 ......................................................................... 17 Figure 7.1-4: LS11 Bottom View - Mechanical Dimension 2................................................................... 18 Figure 7.2-1: Media Connector ......................................................................................................................... 19 LS11 – Data Sheet Libre Wireless Technologies Data Sheet Ver.1.5 Pa…

Text truncated - open the document above for the full version.

Sep.20,2023 DeclarationOfIdentity ToWhomItMayConcern: WithregardstotheapplicationforModel:LS11,Accordingtothedesigner,LibreWireless Technologies,Inc.,weherebydeclarethedifferencebetweenModel:LS11andModelas; BasicModelNumber:LS11 BasicBrandName:LIBRE BasicProductName:HighPerformanceWirelessMediaModule BasicCertificateNumber: ☐New/☒AdditionalModelNumber(s):LS11-EA-44G-R,LS11-NA-44G-R,LS11-EN-44G-R,LS11- EA-88G-R,LS11-NA-88G-R,LS11-EN-88G-R,LS11-EA-22G-R,LS11-NA-22G-R,LS11-EN-22G-R DeclaretheCircuit,PCBLayout,ElectricalParts,andappearanceofthefollowingproduct(s)are identicaltothebasicmodel: Exceptthefollowing(s): Modelname; mainlymemorydifferenceandwithethernetorwithoutethernet,withPNornot. YoursSincerely, LibreWirelessTechnologies,Inc. ChargePersonPrintedName:SARAHCAO ChargePersonTitle:PM E-Mail:[email protected]

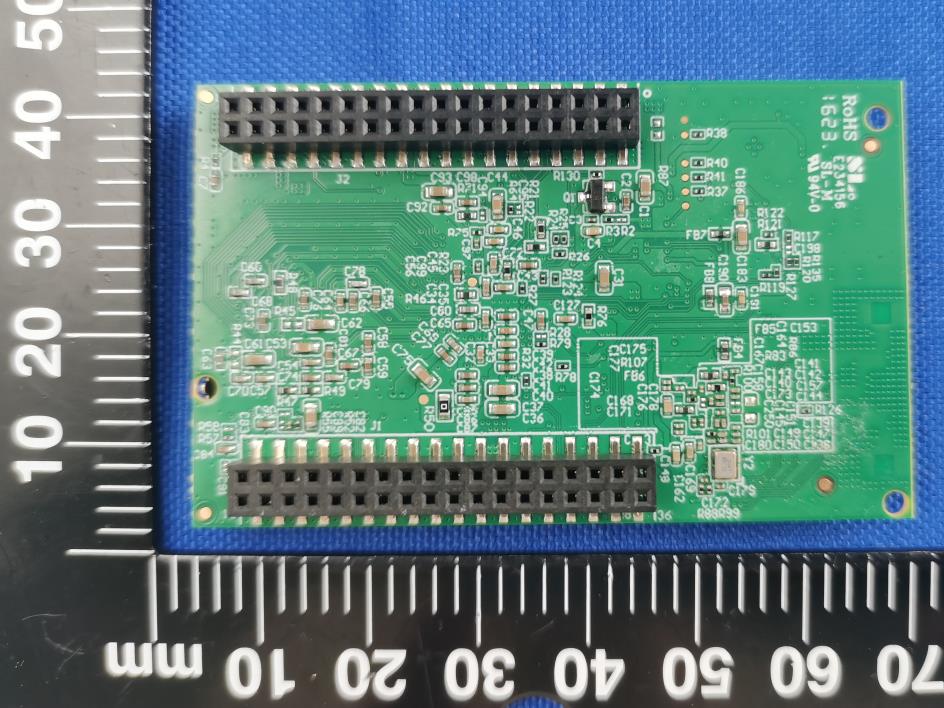

Report No.: BL-SZ2381398-AW 1 / 4 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2381398-AW 2 / 4 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: BL-SZ2381398-AW 3 / 4 TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: BL-SZ2381398-AW 4 / 4 FRONT VIEW OF EUT --BLANK BELOW--

Checked by Compliance 2023.8.24 1:1 二维码尺寸：8.8×8.8mm 文字：Arial Bold 5pt LS11 二维码为QR码，内容为Wifi和BT的MAC ID,16进制递增，不用特别注明WiFi、BT，中间用逗号分开即可 内容为：××××××××××××(WLAN),××××××××××××(BT) WiFi、BT的MAC内容同QR内容需一致，注意是内容需累加 MH XXXX XXXX 此内容是生产代码（注意MH、XXXX后面有1个空格） 10 2023：表示生产周数和年份，根据实际时间填写 yoyo Echo √ Lydia 该内容产线打印， 可根据实际空间调整大小 其余部分采购下发订单印刷 注： FCC ID: 2ADBM-LS11 IC: 20276-LS11 WiFi MAC: ×××××××××××× ETH MAC: ×××××××××××× MH XXXX XXXX 10 2023 Model No.: LS11 a a b gn c PN: LS11-EA-88G-R FCC ID: XXXXX-XXXX IC: XXXXX-XXXX WiFi MAC: ×××××××××××× BT MAC: ×××××××××××× MH XXXX XXXX 10 2023 PN: LS11-EA-88G-R Model No.: LS11 a a b gn c size: 45*18mm 材质:铜版纸背胶 模块标签 FCC ID: XXXXX-XXXX IC: XXXXX-XXXX WiFi MAC: ×××××××××××× BT MAC: ×××××××××××× XXXX XXXX 10 2023 PN: LS11-EA-88G-R

Report No.: BL-SZ2381398-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 13 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Libre Wireless Technologies, Inc. Address: 17835 Newhope Street, Ste A, Fountain Valley, CA 92708, US Equipment Type: High Performance Wireless Media Module Model Name: LS11 (refer to section 2.3) Brand Name: LIBRE FCC ID: 2ADBM-LS11 Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: Aug. 22, 2023 Test Date: Sep. 08, 2023 - Sep. 20, 2023 Date of Issue: Oct. 09, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Xiong Lining Checked by: Xu Rui Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2381398-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 13 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Oct. 09, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Test Laboratory .............................................................................................................. 3 1.2 Test Location .................................................................................................................. 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ...................................................................................................... 4 2.2 Manufacturer Information ............................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ................................................... 4 2.4 Ancillary Equipment ........................................................................................................ 4 2.5 Technical Information ..................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................... 6 3.1 Test Standards ............................................................................................................... 6 4 DEVICE CATEGORY AND LEVELS LIMITS .............................................................................. 7 5 ASSESSMENT RESULT ............................................................................................................. 9 5.1 Output Power ................................................................................................................. 9 5.2 Tune-up power ............................................................................................................. 10 5.3 RF Exposure Evaluation Result ................................................................................... 11 5.4 Collocated Power Calculation ...................................................................................... 12 5.5 Conclusion .................................................................................................................... 12 Report No.: BL-SZ2381398-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 13 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2381398-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 13 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Libre Wireless Technologies, Inc. Address 17835 Newhope Street, Ste A, Fountain Valley, CA 92708, US 2.2 Manufacturer Information Manufacturer Libre Wireless Technologies, Inc. Address 17835 Newhope Street, Ste A, Fountain Valley, CA 92708, US 2.3 General Description for Equipment under Test (EUT) EUT Name High Performance Wireless Media Module Model Name Under Test LS11 Series Model Name LS11-EA-44G-R, LS11-NA-44G-R, LS11-EA-88G-R, LS11-NA-88G-R, LS11-EA-22G-R, LS11-NA-22G-R, LS11-EN-22G-R, LS11-EN-88G-R, LS11-EN-44G-R Description of Model name differentiation All models are same with electrical parameters and internal circuit structure, but only differ in model name and mainly memory difference and with ethernet or without ethernet, with PN or not. (this information provided by the applicant) Hardware Version VC3.0 Software Version 18.35.387.23.104 (gf431dd32) FWID 01-c7e36b48 Dimensions (Approx.) N/A Weight (Approx.) N/A 2.4 Ancillary Equipment Note: Not applicable. Report No.: BL-SZ2…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2381398-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 74 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Libre Wireless Technologies, Inc. Address: 17835 Newhope Street, Ste A, Fountain Valley, CA 92708, US Equipment Type: High Performance Wireless Media Module Model Name: LS11 (refer to section 2.3) Brand Name: LIBRE FCC ID: 2ADBM-LS11 Test Standard: 47 CFR Part 15 Subpart C (refer to section 3.1) Sample Arrival Date: Aug. 22, 2023 Test Date: Sep. 11, 2023 - Sep. 20, 2023 Date of Issue: Oct. 09, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2381398-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 74 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Oct. 09, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Test Laboratory .............................................................................................................. 4 1.2 Test Location .................................................................................................................. 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 General Description for Equipment under Test (EUT) ................................................... 5 2.4 Technical Information ..................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................. 7 3.1 Test Standards ............................................................................................................... 7 3.2 Test Verdict .................................................................................................................... 7 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 8 4.1 Test Environments ......................................................................................................... 8 4.2 Test Equipment List ........................................................................................................ 8 4.3 Test Software List ........................................................................................................... 9 4.4 Measurement Uncertainty .............................................................................................. 9 4.5 Description of Test Setup ............................................................................................. 10 4.6 Measurement Results Explanation Example ................................................................ 13 5 TEST ITEMS .............................................................................................................................. 14 5.1 Antenna Requirements ................................................................................................. 14 5.2 Output Power ............................................................................................................... 15 5.3 Occupied Bandwidth .................................................................................................... 17 5.4 Conducted Spurious Emission ..................................................................................... 18 5.5 Band Edge (Authorized-band band-edge) .................................................................... 20 Report No.: BL-SZ2381398-602 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 74 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.6 Conducted Emission .................................................................................................... 22 5.7 Radiated Spurious Emission ........................................................................................ 23 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 28 5.9 Power Spectral density (PSD) ...................................................................................... 29 ANNEX A TEST RESULT ............................................................................................................. 30 A.1 Output Power, Duty Cycle ............................................................................................ 30 A.2 Occupied Bandwidth .................................................................................................... 33 A.3 Conducted Spurious Emissions ................................................................................... 37 A.4 Band Edge (Authorized-band band-edge) .................................................................... 42 A.5 Conducted Emissions ................................................................................................... 45 A.6 Radiated Spurious Emission ........................................................................................ …

Text truncated - open the document above for the full version.

Report No.: BL-SZ2381398-603 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 162 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Libre Wireless Technologies, Inc. Address: 17835 Newhope Street, Ste A, Fountain Valley, CA 92708, US Equipment Type: High Performance Wireless Media Module Model Name: LS11 (refer to section 2.3) Brand Name: LIBRE FCC ID: 2ADBM-LS11 Test Standard: 47 CFR Part 15 Subpart C (refer to section 3.1) Sample Arrival Date: Aug. 22, 2023 Test Date: Sep. 08, 2023 - Sep. 20, 2023 Date of Issue: Oct. 09, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Julie Zhu Checked by: Ye Hongji Approved by: Liao Jianming (Technical Director) _______________ _______________ _______________ Report No.: BL-SZ2381398-603 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 162 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Oct. 09, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 4 1.1 Test Laboratory .............................................................................................................. 4 1.2 Test Location .................................................................................................................. 4 2 PRODUCT INFORMATION ......................................................................................................... 5 2.1 Applicant Information ...................................................................................................... 5 2.2 Manufacturer Information ............................................................................................... 5 2.3 General Description for Equipment under Test (EUT) ................................................... 5 2.4 Technical Information ..................................................................................................... 6 3 SUMMARY OF TEST RESULTS ................................................................................................. 8 3.1 Test Standards ............................................................................................................... 8 3.2 Test Verdict .................................................................................................................... 8 4 GENERAL TEST CONFIGURATIONS ........................................................................................ 9 4.1 Test Environments ......................................................................................................... 9 4.2 Test Equipment List ........................................................................................................ 9 4.3 Test Software List ......................................................................................................... 10 4.4 Measurement Uncertainty ............................................................................................ 10 4.5 Description of Test Setup ............................................................................................. 11 4.6 Measurement Results Explanation Example ................................................................ 14 5 TEST ITEMS .............................................................................................................................. 15 5.1 Antenna Requirements ................................................................................................. 15 5.2 Output Power ............................................................................................................... 16 5.3 Occupied Bandwidth .................................................................................................... 18 5.4 Conducted Spurious Emission ..................................................................................... 19 5.5 Band Edge (Authorized-band band-edge) .................................................................... 21 Report No.: BL-SZ2381398-603 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 162 Web: www.titcgroup.com Template No.: TRP-FCC Part 15.247 (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 5.6 Conducted Emission .................................................................................................... 23 5.7 Radiated Spurious Emission ........................................................................................ 24 5.8 Band Edge (Restricted-band band-edge) ..................................................................... 29 5.9 Power Spectral density (PSD) ...................................................................................... 30 ANNEX A TEST RESULT ............................................................................................................. 31 A.1 Output Power ............................................................................................................... 31 A.2 Occupied Bandwidth .................................................................................................... 39 A.3 Conducted Spurious Emissions ................................................................................... 49 A.4 Band Edge (Authorized-band band-edge) .................................................................... 76 A.5 Conducted Emissions ................................................................................................... 89 A.6 Radiated Emission ..........................................................................................…

Text truncated - open the document above for the full version.

ADD：No 3 XinLang Road ,Yinghu industrial Park, Wangting Town Xiangcheng district Suzhou City TEL：0512-66706846 FAX：0512-65088773 MAIL;[email protected] RoyHellenTakFrank Description ANTENNA DRAWING P/N RC1WFI0886A1 CUS TOMER APPROVED BY STAMP Approval QualityRDSales Suzhou Point Positive Electronic Technology Co.,ltd SPECIFICATION FOR APPROVAL Customer Hansong(NanJing)Technology Ltd Customer P/N 45-2-000146 Rev. A1 1 4. Material Data Sheet MHF Connector ------- Coaxial Cable ------- 5. Material SGS.Rohs.MSDS ------- Table of Contents 1、 Antenna Drawing ----- 2、Electrical Properties ----- Return Loss /VSWR Radiation Pattern 3 ,Packing date ----- 10.Raw Material Coaxial Cable RG178 Housing/HingeTPE Swivel Lead Length L:108MM Connector RP-SMA Impedance 50欧 V.S.W.R 2:1 Max. 9.Mechanical Characteristics Antenna TypeDual band antenna Polarization Typevertical or horizontal Peak Gain2.4G~2.0DBi/5G~2.5DBi Typica 7.Color BK 8.Electrical Characteristics Operating Frequency2.4-5.8Ghz 4. Part No 45-2-000146 5.Standard 6.Antenna Profile see Drawing 1. Description ANTENNA 2. Customer Hansong(NanJing)Technology Ltd 3. Model No RC1WFI0886A SPECIFICATION Saint Tak Roy PP SM3033 6PCS/BAG 2.4--5.8Ghz antenna 2.4--5.8Ghz Hangsong RC1WFI0886A 45-2-000146 TotalPoint ValuesAnt. Port Input Pwr. (dBm)Tot. Rad. Pwr. (dBm)Peak EIRP (dBm)Directivity (dBi)Efficiency (dB)Efficiency (%)Gain (dBi) Frequency (MHz) 24000-3.210252.552445.76269-3.2102547.75022.55244 24500-4.058222.66516.72331-4.0582239.28062.6651 25000-1.797533.76926.56674-2.7975378.91021.9701 2.4G Gain (dBi) -14 4 -10 -6 -2 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 2.45G Gain (dBi) -35 5 -25 -15 -5 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 2.5G Gain (dBi) -10 4 -6 -2 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 TotalPoint ValuesAnt. Port Input Pwr. (dBm)Tot. Rad. Pwr. (dBm)Peak EIRP (dBm)Directivity (dBi)Efficiency (dB)Efficiency (%)Gain (dBi) Frequency (MHz) 51500-0.61974.739195.35887-0.61968486.70252.73919 58500-1.34413.245294.58942-1.3441373.38152.24529 5.15G Gain(dBi) -12 6 -8 -4 0 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 5.85G Gain(dBi) -10 4 -6 -2 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Test Result : & Peak Gain Frequency Range(MHZ) 2400245025005150 5850 Gain (dBi) 2.24529 2.73919 1.9701 2.6651 2.55244 无锡源达电工材料有限 无锡源达电工材料有限无锡源达电工材料有限 无锡源达电工材料有限公司 公司公司 公司 WUXI YUANDA ELECTRICAL MATERIAL WUXI YUANDA ELECTRICAL MATERIAL WUXI YUANDA ELECTRICAL MATERIAL WUXI YUANDA ELECTRICAL MATERIAL CO.,L CO.,LCO.,L CO.,LT TT TD. D.D. D. 中国江苏省江阴市青阳镇南陈村 邮编214401 Nachen,Qingyang Town, Jiangyin City 214400,Jiangsu, China ___________________________________________________________________________ 客户 客户客户 客户/Customer: /Customer: /Customer: /Customer: 苏州 苏州苏州 苏州点正 点正点正 点正电子 电子电子 电子科技 科技科技 科技有限 有限有限 有限公 公公 公司 司司 司__________________ ____________________________________ __________________ 客户料号 客户料号客户料号 客户料号/ Customer P/N:_ / Customer P/N:_/ Customer P/N:_ / Customer P/N:_ Y YY YD DD D1 11 178 7878 78__________ ____________________ __________ 规 规规 规 格 格格 格 书 书书 书 Specification SpecificationSpecification Specification 50 5050 50Ω ΩΩ Ω(FEP) (FEP)(FEP) (FEP)绝缘射频电缆 绝缘射频电缆绝缘射频电缆 绝缘射频电缆 50 5050 50Ω ΩΩ Ω FEP FEP FEP FEP Insulat InsulatInsulat Insulated eded ed Coaxial Cable Coaxial Cable Coaxial Cable Coaxial Cable Y YY YD DD D1 11 178 7878 78 系列 系列系列 系列 Y YY YD DD D1 11 178 7878 78 SERIES SERIES SERIES SERIES 编制 编制编制 编制/Signed by: /Signed by:/Signed by: /Signed by: cool lai cool laicool lai cool lai 编制日期 编制日期编制日期 编制日期/ Date: / Date:/ Date: / Date: 2 22 22 22 2 th thth th April 20 April 20April 20 April 2009 0909 09 无锡源达电工材料有限 无锡源达电工材料有限无锡源达电工材料有限 无锡源达电工材料有限公司 公司公司 公司 WUXI YUANDA ELECTRICAL MATERIAL WUXI YUANDA ELECTRICAL MATERIAL WUXI YUANDA ELECTRICAL MATERIAL WUXI YUANDA ELECTRICAL MATERIAL CO.,L CO.,LCO.,L CO.,LT TT TD. D.D. D. 中国江苏省江阴市青阳镇南陈村 邮编214401 Nachen,Qingyang Town, Jiangyin City 214400,Jiangsu, China ___________________________________________________________________________ 1. 适用范围: Scope 本规格书制定了50Ω FEP 绝缘射频电缆YD178 系列的结构和电气特性. This specification covers the construction and the electrical properties of YD1…

Text truncated - open the document above for the full version.
