2ADBT-HANDXOM-A1A1-bluetooth Speaker

Packing list 1. 1 set of audio 2. 3.5mm audio line 3. USB power line/Digital line 4.Usual manual 5. Battery The main functions of the Handxom-A1 1. Support to read SD card 2. Support MP3 / WMA / WAV audio format 3. Support Bluetooth music and Bluetooth call 4. Support externalAUX audio input 5. support FM radio function 6. support voice prompt function Appearance introduction 1. key: long press to turn on/off under playing mode short press is play/pause, during bluetooth mode, short press is answer phone call. 2.key, under the playing mode, short press is last/next song, long press is to reduce/increase volume. 4.key, short press to mode switch(FM/Bluetooth) 5 Mic communication port 6. Micro usb port (charging/data connection) 7. Guiding light 8. LINE IN hole: External audio input port, use for playing mobile phone, computer and other equipment's music. 9. Memory card slot: SD card socket, use for read music file in SD card 10. Power turn on/off key Function introduction -.Local music Insert SD card, long press the to open, entry local music for playing. Short presskey can switch to last/next song, long press key can reduce/increase volume;short presskey can pause/play music.Press can switch the mode. -.Bluetooth Entry Bluetooth mode, the Handxom-A1 can research Bluetooth connection and match. Different brands of mobile phone when using bluetooth, the volume adjusted appropriately. 1 Once the Bluetooth connection is established, play music on mobile phone port, short press key can switch to last/next music, long presskey can reduce/increase volume, short press key could pause/play music. M M 2. After successful of Bluetooth connection, when the phone call, short presskey can answer during phone call long press key can reduce/increase the volume, short press key can hang up the call. 3. Under Bluetooth mode, short press key can switch mode. -.FM For the first opening the mobile Handxom-A1switch to FM radio mode, can automatic research channel. During playing FM, short press key can switch channel, long press can reduce/increase the volume. Short press key can automatic research channel.Press keyto switch mode. -. USB storage Insert USB line, audio could change into charging status,under FM mode short press key canswitch to USB storage mode, can read content of SD card. Under USB mode, short press key can switch mode. -. LINE IN Insert LINE IN line, access the external sound source, audio can automatic entry LINE IN mode. Under LINE IN mode, long press key can reduce/increase the volume, short press key can pause/play music. Notes: During LINE IN mode, short press key can't switch mode. Handxom-A1 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectio n against harmful interference in a residential installation. This equipment generates uses and c an radiate radio frequency energy and, if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipme M M M M M nt off and on, the user is encouraged to try to correct the interference by one or more of the fol lowing measures: ‐ Reorient or relocate the receiving antenna. ‐Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must be located for operating in conjunction with any other antenna or transmitter.

Handxom, S.A. 11 Rue Oge, Petion-Ville, Haiti HT6140 Date: 2014-10-20 FCC ID: 2ADBT-HANDXOM-A1 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Dated this / Day of 107/06/2014 / By: Yiyong Huang Signature Printed Title: Manager On behalf of : Handxom, S.A. Telephone: 0509-2811 9128

Handxom, S.A. DATE 2014-10-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADBT-HANDXOM-A1 Product Name: A1-bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this / Day of 10/20/2014 / By: Yiyong Huang Signature Printed Title: On behalf of : Handxom, S.A. Telephone: 0509-2811 9128

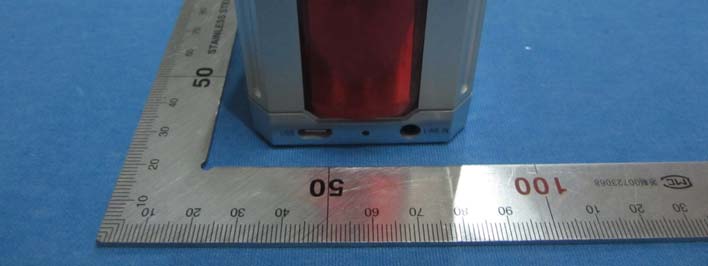

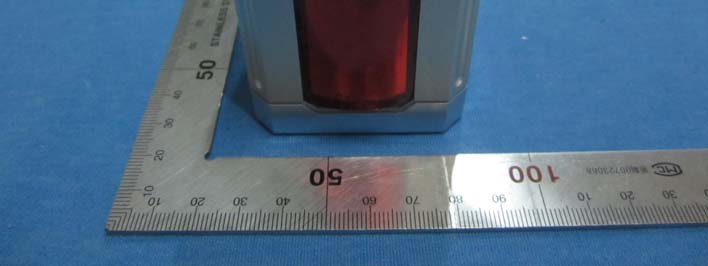

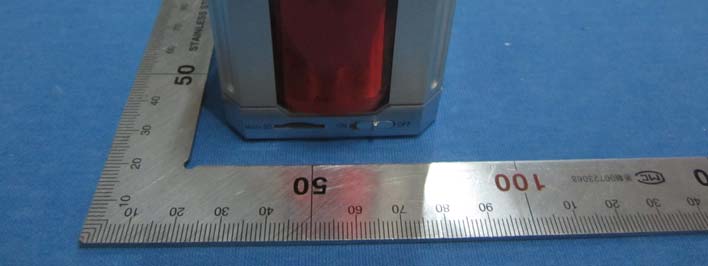

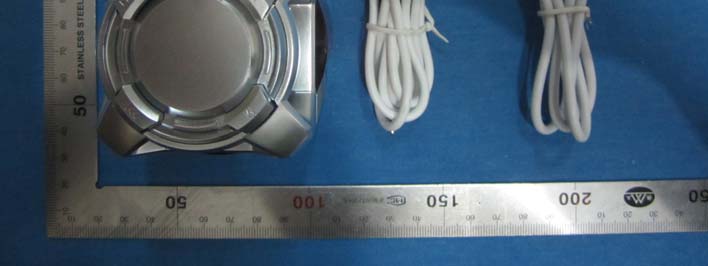

Report No.: TMC1410059601 Page: 24 of 29 9 EUT Constructional Details Report No.: TMC1410059601 Page: 25 of 29 Report No.: TMC1410059601 Page: 26 of 29

Label Length: 30mm Width: 15mm Product Name: A1-bluetooth Speaker Model No.: Handxom-A1 FCC ID: 2ADBT-HANDXOM-A1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

Label location Label location

Report No.: TMC1410059601 Page: 27 of 29 Report No.: TMC1410059601 Page: 28 of 29 Report No.: TMC1410059601 Page: 29 of 29 ------End------

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 1dBi ;so Ant numeric gain=1.26 Field strength = 94.85 dBuV/m @3m So Pt={ [10 ( 94.85 /20) /10 6 x3] 2 /30x1.26 }x1000 mW =0.73mW So (0.73 mW/5mm)x √2.480 GHz = 0.23 <3 Then SAR evaluation is not required

TMC Rheinland Testing Services Corp Limited Address: 1-A,Baisha Industrial Area, No.3011, Shahe West Road, Nanshan District, Shenzhen, Guangdong, P.R. China FCC Report Product Description: A1-Bluetooth Speaker Trade Mark: Handxom Model No.: Handxom-A1 FCC ID: 2ADBT-HANDXOM-A1 Applicant: Handxom, S.A. Address: 11 Rue Oge, Petion-Ville, Haiti HT6140 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2013 Test Date: 10 ~ 20 October, 2014 Issued Date: 20 October, 2014 Test Result: Complied James Wu Laboratory Manager The test result in this test report relate only to the tested samples in this report . This report shall not be reproduced except in full without the written approval of TMC Rheinland Testing Services Corp Limited Report No.: TMC1410059601 Page: 2 of 21 2 Version Version No. Date Description 00 20 October, 2014 Original Prepared By: Date: 20 October, 2014 Young Li Project Engineer Check By: Date: 20 October, 2014 Dixon Hao Reviewer Report No.: TMC1410059601 Page: 3 of 21 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 6 5.4 TEST FACILITY .................................................................................................................................... 6 5.5 TEST LOCATION ................................................................................................................................. 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 MEASUREMENT DATA AND TEST RESULTS ...................................................................................... 8 7.1 ANTENNA REQUIREMENT ..................................................................................................................... 8 7.2 CONDUCTED EMISSIONS ..................................................................................................................... 9 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 12 7.4 RADIATED EMISSION METHOD ........................................................................................................... 14 Report No.: TMC1410059601 Page: 4 of 21 4 Test Summary Test Item Section in CFR 47 Result Antenna requirement 15.203 Pass AC Power Line Conducted Emission15.207 Pass Field strength of the fundamental signal15.249 (a) Pass Spurious emissions 15.249 (a) (d)/15.209 Pass Band edge 15.249 (d)/15.205 Pass 20dB Occupied Bandwidth 15.215 (c) Pass Pass: The EUT has complied with the essential requirements in the standard. Report No.: TMC1410059601 Page: 5 of 21 5 General Information 5.1 Client Information Applicant: Handxom, S.A. Address: 11 Rue Oge, Petion-Ville, Haiti HT6140 Manufacturer: Handxom, S.A. Address: 11 Rue Oge, Petion-Ville, Haiti HT6140 5.2 General Description of EUT Product Name: A1-Bluetooth Speaker Brand Mark: Handxom Model No.: Handxom-A1 Bluetooth Version: V2.1+EDR Operation Frequency: 2402MHz~2480MHz Channel numbers: 79 Channel separation: 1MHz Modulation type: Frequency Hopping Spread Spectrum (FHSS) Modulation technology: GFSK, Pi/4QPSK, 8DPSK Antenna Type: Integral Antenna Antenna Gain: 1.00dBi (declare by Applicant) Power supply: lithium-ion charge battery 3.7V Operation Frequency each of channel Channel Frequency Channel Frequency ChannelFrequency Channel Frequency 1 2402MHz 21 2422MHz 41 2442MHz 61 2462MHz 2 2403MHz 22 2423MHz 42 2443MHz 62 2463MHz ................................ 18 2419MHz 38 2439MHz 58 2459MHz 78 2479MHz 19 2420MHz 39 2440MHz 59 2460MHz 79 2480MHz 20 2421MHz 40 2441MHz 60 2461MHz Note: In section 15.31(m), regards to the operating frequency range over 10 MHz, the Lowest frequency, the middle frequency, and the highest frequency of channel were selected to perform the test, and the selected channel see below: Test channel Frequency (MHz) Lowest channel 2402 Middle channel 2441 Highest channel 2480 Report No.: TMC1410059601 Page: 6 of 21 5.3 Test Mode Bluetooth mode Keep the EUT in communicating mode with Bluetooth device. Non-hopping mode Keep the EUT in continuously transmitting mode of modulation with the fix frequency. Hopping mode Keep the EUT in continuously transmitting mode of modulation with hopping. Per-test mode. We have verified the construction and function in typical operation, The EUT was placed on three different polar directions; i.e. X axis, Y axis, Z axis. which was shown in this test report and defined as follows: Axis X Y Z Field Strength(dBuV/m) 87.91 93.52 83.28 Final Test Mode: The EUT was tested in GFSK, Pi/4QPSK, 8DPSK modulation, and found the GFSK modulation is the worst case. According to ANSI C63.4 standards, the test results are both the “worst case” and “worst setup”: Y axis (see the test setup photo) 5.4 Test F…
