2ADCE-FH-HULLRemote control transmitter

Owner’s Manual Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Why read this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Safety first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Keep your distance from other fishers . . . . . . . . . . . . . . . . . . . . . .3 Look out for the safety of others . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Keep yourself safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Be safe around other vessels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Legal requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Know what local rules apply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Limit traces and hooks to 25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Identify your equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Your kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Conrad Meier Fish Harvester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Beach trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Assembly of beach trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Electric winch and main line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Trace rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Batteries and charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Strobe light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Visibility flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Charging the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Installing the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Fish Harvester User Guide Conrad Meier Fish Harvester User Guide Page 1 Welcome Why read this manual Fishing with the Conrad Meier Fish Harvester is not complex, but there are a few things you need to know to ensure you get maximum enjoyment from it, and that you comply with International maritime regulations. Take the time to read this manual before you get to the beach, so you can maximise fishing time. Please also read the maintenance section to avoid any unnecessary maintenance bills . Welcome Loading the beach trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Using the Fish Harvester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Activating the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Loading traces with bait . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Check before you launch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Launching the Conrad Meier Fish Harvester . . . . . . . . . . . . . . . . .25 Attaching traces and sinkers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Engaging the gear when the line is out . . . . . . . . . . . . . . . . . . . . .27 Tips and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Guiding the Conrad Meier Fish Harvester on the water . . . . . . . .29 Positioning the hooks and sinkers . . . . . . . . . . . . . . . . . . . . . . . . . .30 Operating the winch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Getting the best out of the batteries . . . . . . . . . . . . . . . . . . . . . . .31 Looking after your kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Clean after every use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Check and replace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Waterproofing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Two (2) Year Limited Replacement Warranty Statement . . . . . . . . .34 Fish Harvester User Guide Welcome Conrad Meier Fish Harvester User Guide Page 3Page 2 Conrad Meier Fish Harvester User Guide Checklist Use the checklist below to make sure that you have everything you need in your Conrad Meier Fish Harvester kit . ✔Conrad Meier Fish Harvester ✔Remote control ✔Beach trolley ✔Electric winch ✔Emergency winch handle ✔Main line ✔Trace rack ✔Catch and trace rack carry bag ✔Hooks and sinkers ✔Strobe light ✔Visibility flag ✔12V batteries x 3 ✔Battery charger ✔Gloves These items are described in detail in Your kit starting on page 7. Support If you experience problems with your equipment or its performance, please call 0800 002 999 or 1 800 200 3111 for assistance . Safety Safety first! Your Conrad Meier Fish Harvester is an advanced fishing system. Your enjoyment will rely on observing a high level of personal safety as well as protecting the safety of others. This section sets out important safety guidelines for operating your Conrad Meier Fish Harvester . K…

Text truncated - open the document above for the full version.

Date 8 October 2014 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia, MD 21046 United States of America To whom it may concern CONFIDENTIALITY REQUEST - FCC ID: 2ADCE-FH-HULL Reference rule sections 0.457 (d) (ii) and pursuant to rule section 0.459 (a) confidentiality is requested as follows. Specific Information: Schematics, Block Diagram, Part List, Operational Description. The schematics contain trade secret information which is not made routinely available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. It should be treated as confidential for the duration of the Grant Of Authorisation. Yours Faithfully Mikael Stewart Senior Electronic Development Engineer Brand Developers Ltd

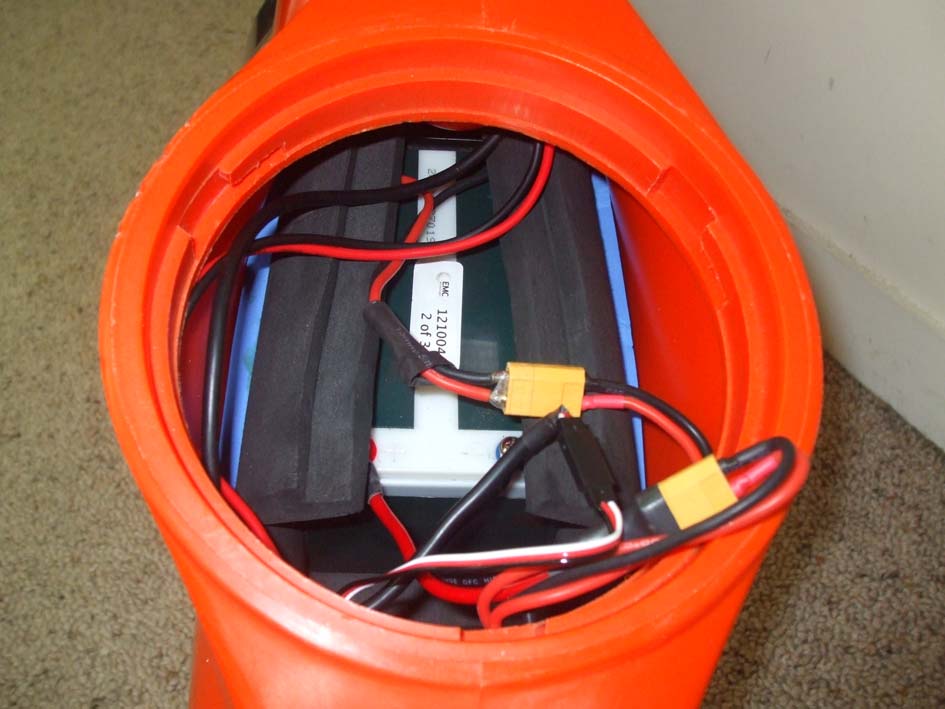

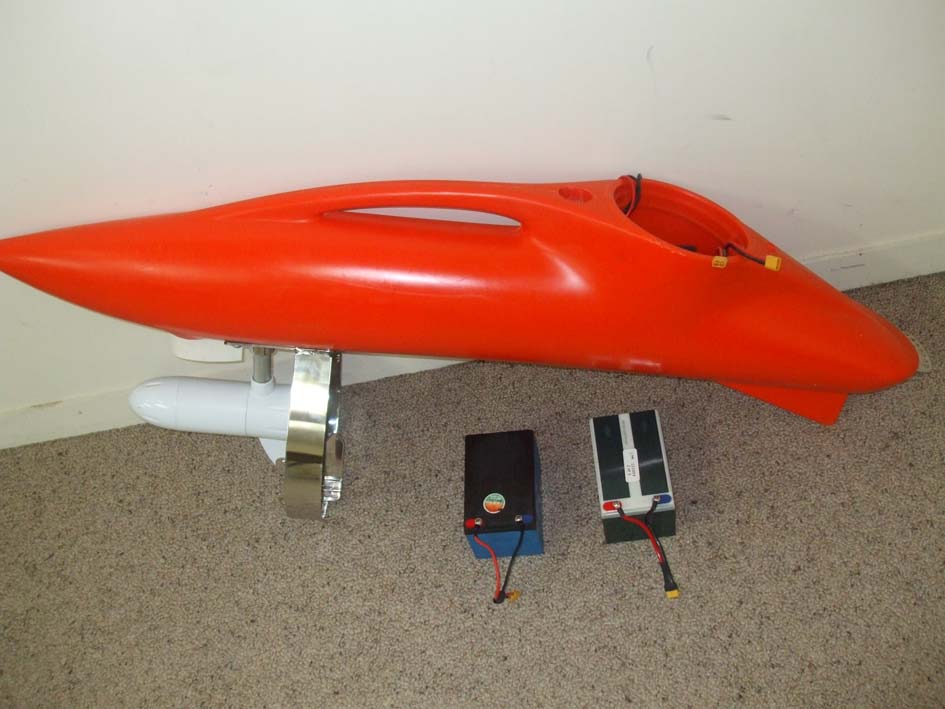

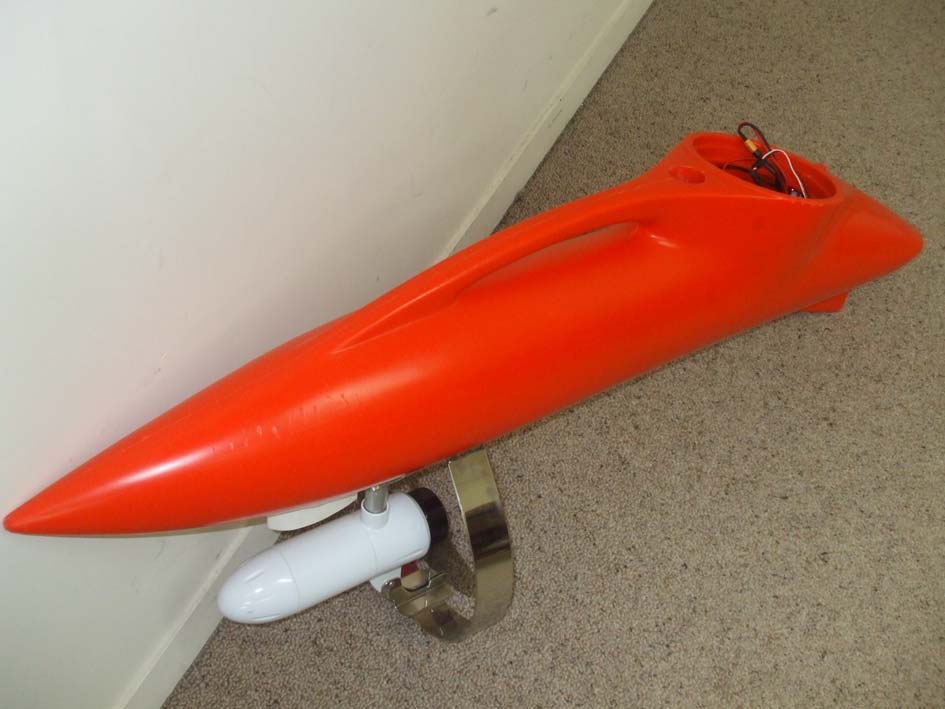

____________________________________________________________________________________________________________________________________________________________________________ Page 14 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. 10. PHOTOGRAPHS External Photos / Internal Photos ____________________________________________________________________________________________________________________________________________________________________________ Page 15 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 16 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full.

Date 8 October 2014 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia, MD 21046 United States of America To whom it may concern Alternative Label Placement - FCC ID: 2ADCE-FH-HULL The abrasive sand and marine environment in which the Fish Harvester Hull will be subject to during its service life will impinge on the legibility of any markings or labels etched in or adhered to the exposed polyethylene outer hull. On this basis we deem it necessary to affix any permanent information to an alternate location within the vessel. Operating instructions prescribe manual installation and connection of batteries prior to activating the Fish Harvester. This requires opening the Hatch Assembly indicated in Figure 1, which in turn provides sufficient exposure of a label placed on the Battery Box Assembly as illustrated in Figure 2. Opening the hatch is a regular part of operating the Fish Harvester. We therefore request authorisation from the Federal Communications Commission for the implementation of this alternative label placement. Yours Faithfully Mikael Stewart Senior Electronic Development Engineer Brand Developers Ltd Conrad Meier Fish Harvester July 2014 P a g e 2 | 3 Justification for Alternative Label Placement for Hull Assembly Confidential: Internal Use Only Figure 1. FCC label location within Fish Harvester Hull Conrad Meier Fish Harvester July 2014 P a g e 3 | 3 Justification for Alternative Label Placement for Hull Assembly Confidential: Internal Use Only Figure 2. FCC label location on internal battery box

____________________________________________________________________________________________________________________________________________________________________________ Page 14 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. 10. PHOTOGRAPHS External Photos / Internal Photos ____________________________________________________________________________________________________________________________________________________________________________ Page 15 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 16 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 17 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. The antenna is located in the top quarter of the darker green portion of the circuit board directly below this writing The antenna is located in the top quarter of the darker green portion of the circuit board directly below this writing.

The antenna is located in the top quarter of the darker green portion of the circuit board directly below this writing The antenna is located in the top quarter of the darker green portion of the circuit board directly below this writing.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland 1145 New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Conrad Meier Fish Harvester B-010046 Remote Control Assembly tested to the Code of Federal Regulations (CFR) 47 Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiators Section 15.249 – Operation in the band 900 – 928 MHz for Brand Developers Ltd This Test Report is issued with the authority of: ________________________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. CLIENT INFORMATION 3 4. DESCRIPTION OF TEST SAMPLE 4 5. EQUIPMENT PARAMETERS 4 6. ATTESTATION 5 7. TEST RESULTS 6 8. TEST EQUIPMENT USED 13 9. ACCREDITATIONS 13 10. PHOTOGRAPHS 14 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Conrad Meier Fish Harvester B-010046 Remote Control Assembly complies with 47 CFR Part 15 and in particular Sections, 15.205, 15.207, 15.209, 15.215 and 15.249 as detailed below when tested in accordance with ANSI C63.4 – 2003. 2. RESULTS SUMMARY The results of testing carried out between 22 nd May 2014 and the 16 th June 2014 and on the 3rd October 2014 are detailed below. Clause Description Result 15.201 Equipment authorisation requirement Applied 15.203 Antenna requirement Complies 15.204 External power amplifiers Not applicable 15.205 Operation in restricted bands Complies 15.207 Conducted emissions Not applicable battery, powered device. 15.209 Radiated emissions See below 15.215 Additional provisions Complies 15.249 (a) Field strength of fundamental Complies 15.249 (a) Field strength of harmonics Complies 15.249 (b) Fixed, point to point operations Not applicable 15.249 (c) 3 metre measurement distance Noted 15.249 (d) Spurious emission levels except harmonics Complies 15.249 (e) Detectors above 1000 MHz Noted 15.249 (f) Reference to section 15.37(d) Noted 3. CLIENT INFORMATION Company Name Brand Developers Ltd Address Unit H, 686 Rosebank Road Avondale City Auckland 1026 Country New Zealand. Contact Mr Mikael Stewart ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. 4. DESCRIPTION OF TEST SAMPLE Brand Name Conrad Meier Fish Harvester Model Number B-010046 Product Hull Remote Control Assembly Manufacturer Brand Developers Ltd Country of Origin New Zealand FCC ID 2ADCE-FH-HULL The device that was tested is a remote control transceiver that operates on 924.5 MHz and is powered using lead acid batteries. The device is located within a purpose built Kontiki floatation device. It allows for the control of a battery operate motor and it also allows the device to be steered. A Kontiki device is a fishing device that allows a long line, containing many hooks, to be taken several hundred meters from the shore line. 5. EQUIPMENT PARAMETERS The 900 MHz transceiver in this device has the following RF specifications: FCC Band: 902 - 928 MHz Operating Frequency: 1 channel at 924.5 MHz Rated Power: less than 1 dBm Modulation Type: GFSK packet Antenna Type: Internal whip located on sealed circuit board Power Supply: 2 x 12 Vdc lead acid batteries ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. 6. ATTESTATION This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. All compliance statements have been made with respect of the specification limit with no reference to the measurement uncertainty. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand. Andrew Cutler General Manager EMC Technologies NZ Ltd ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. 7. TEST RESULTS Section 15.201: Equipment authorisation require…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 18 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. Test Set Up Photos ____________________________________________________________________________________________________________________________________________________________________________ Page 19 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 20 of 20 Test Report No 140924.1 8th October 2014 This report may not be reproduced except in full. Radiated emissions test set up photos – Below 30 MHz Radiated emissions test set up photos – Above 30 MHz
