Date 8 October 2014 Federal Communications Commission Equipment Authorisation Branch 7435 Oakland Mills Road Columbia, MD 21046 United States of America To whom it may concern CONFIDENTIALITY REQUEST - FCC ID: 2ADCE-FH-REM Reference rule sections 0.457 (d) (ii) and pursuant to rule section 0.459 (a) confidentiality is requested as follows. Specific Information: Schematics, Block Diagram, Part List, Operational Description. The schematics contain trade secret information which is not made routinely available to the public or to our competitors. Disclosure of this information could result in an unfair advantage to our competitors. It should be treated as confidential for the duration of the Grant Of Authorisation. Yours Faithfully Mikael Stewart Senior Electronic Development Engineer Brand Developers Ltd

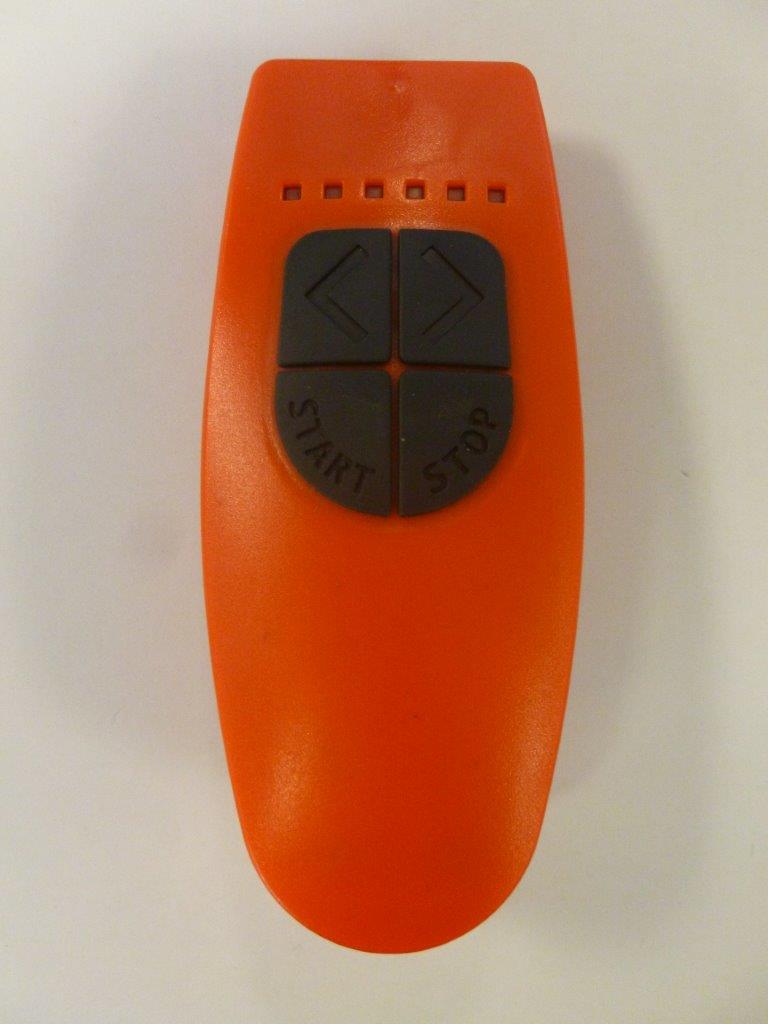

____________________________________________________________________________________________________________________________________________________________________________ Page 16 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. 9. PHOTOGRAPHS External Photos

____________________________________________________________________________________________________________________________________________________________________________ Page 14 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. Section 15.247(i) – Radio Frequency Hazard Information As per Section 15.247 (i) spread spectrum transmitters operating in the 900 – 928 MHz band are required to be operated in a manner that ensures that the public is not exposed to RF energy levels in accordance with CFR 47, Section 1.1307(b)(1). In accordance with Section 1.1310 this device would be classed as a portable device and therefore Section 2.1093 will apply. Section 2.1093 requires SAR measurements to be carried out as the device is portable. A SAR evaluation has been carried out in accordance with KDB Publication 447498 D01 General RF Exposure Guidance v05r02 dated February 7, 2014. Clause 4.3.1 1 has been applied to this device as the power output is very low. A worst case scenario has been applied to this device with the application of the 1-g SAR limits even though the device will most likely be held in the hand where the 10-g SAR limits could be applied. At 924.500 MHz the transmitter continuous peak output power was determined to be +9.6 dBm or 9.1 mW EIRP The highest frequency in use is 924.5 MHz or 0.9245 GHz. A 5 mm safe distance has been applied The 1-g SAR safe distance was calculated as follows: 1-g SAR = (P (mW) / x (mm)) * (√f (GHz)) 1-g SAR = (31 mW / 5 mm) * √ 0.9245 GHz) = 1.8 The 1-g SAR threshold level, for distances < 50 mm, is ≤ 3.0. The device will therefore meet the requirements of Section 2.1093 without any further testing by falling below the 1-g SAR threshold level. Result: Complies.

____________________________________________________________________________________________________________________________________________________________________________ Page 1 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. EMC Technologies (NZ) Ltd PO Box 68-307 Newton, Auckland New Zealand Phone 09 360 0862 Fax 09 360 0861 E-Mail Address: [email protected] Web Site: www.emctech.com.au TEST REPORT Conrad Meier Fish Harvester OD-010048 Kontiki Remote Control Transmitter tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators including Section 15.247 - Operation in the band 900 – 928 MHz for Brand Developers Ltd This Test Report is issued with the authority of: ______________________________ Andrew Cutler - General Manager ____________________________________________________________________________________________________________________________________________________________________________ Page 2 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 5 5. DESCRIPTION OF TEST SYSTEM 5 6. RESULTS 6 7. TEST EQUIPMENT USED 15 8. ACCREDITATIONS 15 9. PHOTOGRAPHS 16 ____________________________________________________________________________________________________________________________________________________________________________ Page 3 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. 1. STATEMENT OF COMPLIANCE The Conrad Meier Fish Harvester OD-010048 Kontiki Remote Control Transmitter complies with FCC Part 15 Subpart C including Section 15.247 as an Intentional Radiator when the methods as described in ANSI C63.4 - 2003 and those defined in FCC KDB 558074 D01 v03r02. 2. RESULTS SUMMARY The results of testing carried out between May and August 2014 are detailed below: Clause Parameter Result 15.201 Equipment authorisation requirement Certification required. 15.203 Antenna requirement Complies. 15.204 External PA and antenna modifications Noted. 15.205 Restricted bands of operation Complies. 15.207 Conducted limits Not applicable. Device is powered using internal DC batteries. 15.209 Radiated emission limits Complies. 15.247 (a)(2) Minimum bandwidth Complies (b)(3) Peak output power Complies (b)(4) Antenna gain less than 6 dBi Complies (c) Operation with directional antenna Not applicable (d) Out of band emissions Complies (e) Power spectral density Complies (f) Hybrid systems Not applicable (g) Use of all channels Not applicable (h) Intelligent frequency hopping Not applicable (i) Radio frequency hazards Complies ____________________________________________________________________________________________________________________________________________________________________________ Page 4 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification with the following conditions: The client selected the test sample. The report relates only to the sample tested. This report contains no corrections. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. All compliance statements have been made with respect of the specification limit with no reference to the measurement uncertainty. In addition this equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures that are consistent with industry or Commission standards and demonstrate that the equipment complies with the appropriate standards. I further certify that the necessary measurements were made by EMC Technologies NZ Ltd, 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand. Andrew Cutler General Manager EMC Technologies NZ Ltd ____________________________________________________________________________________________________________________________________________________________________________ Page 5 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. 4. CLIENT INFORMATION Company Name Brand Developers Ltd Address 519 – 521 Lake Road Takapuna City Auckland 0622 Country New Zealand. Contact Mr Mikael Stewart 5. DESCRIPTION OF TEST SYSTEM Brand Name Conrad Meier Fish Harvester Model Number OD-010048 Product Remote Control Transmitter Manufacturer Brand Developers Ltd Country of Origin New Zealand / China Serial Number Not serialised FCC ID 2ADCE-FH-REM The device that was tested is a handheld remote control transceiver. This device is used to control a powered Kontiki floatation device. A Kontiki device is a fishing device that allows a long line, containing many hooks, to be taken several hundred meters from the shore line. The device has the following specifications: FCC Band: 900 MHz – 928 MHz Test Frequency: 924.5000 MHz Rated Power: 50 mW (+17 dBm) Modulation Type: Digital Modulation - Wideband FSK Antenna Type: Internal whip antenna Power Supply: 2 x 1.5 Vdc batteries ____________________________________________________________________________________________________________________________________________________________________________ Page 6 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. 6. RESULTS Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C. Methods and Procedures The following measurement methods and procedures have been applied: - ANSI C63.4 – 2003 - FCC KDB 558074 D01 v03r02 Section 15.201: Equipment…

Text truncated - open the document above for the full version.

____________________________________________________________________________________________________________________________________________________________________________ Page 19 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. Test set up photos: X Plane ____________________________________________________________________________________________________________________________________________________________________________ Page 20 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 21 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. Test Set Up - Z Plane ____________________________________________________________________________________________________________________________________________________________________________ Page 22 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. Test Set Up - Y Plane ____________________________________________________________________________________________________________________________________________________________________________ Page 23 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. ____________________________________________________________________________________________________________________________________________________________________________ Page 24 of 24 Test Report No 140502.11 3 rd September 2014 This report may not be reproduced except in full. Radiated emissions test set up photos – Below 30 MHz Radiated emissions test set up photos – Above 30 MHz
