2ADDG-ASTRObattery camera

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body

EKEN GROUP LIMITED Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020.04.14 Subject; Request for Long Term Confidentiality FCC ID: 2ADDG-ASTRO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Molly Mok Title: Sales Manager

Statement Product: battery camera Model: Astro Additional Model: Argus, Astro 2, Astro 3, Astro 4, Astro5, Astro 6, Astro 7, Astro 8, Astro 9, Argus 2, Argus 3, Argus 4, Argus 5, Argus 6, Argus 7, Argus 8, Argus 9 Trademark: N/A We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/04/14 Name: Molly Mok Company Name: EKEN GROUP LIMITED Address: Room 2511-2512, Meilan Business Center, Qianjin Two Road, XiXiang, Baoan District, Shenzhen, Guangdong, China Tel / Fax: +86-755-85261055/+86-755-85261055-802 E-Mail: [email protected]

EKEN GROUP LIMITED Agent Authorization Company: EKEN GROUP LIMITED Address: Room 2511-2512, Meilan Business Center, Qianjin Two Road, XiXiang, Baoan District, Shenzhen, Guangdong, China Product Name: battery camera Model Number(s): Astro, Argus, Astro 2, Astro 3, Astro 4, Astro5, Astro 6, Astro 7, Astro 8, Astro 9, Argus 2, Argus 3, Argus 4, Argus 5, Argus 6, Argus 7, Argus 8, Argus 9 Product Description: battery camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-04-14 Name: Molly Mok Title: Sales Manager Company: EKEN GROUP LIMITED

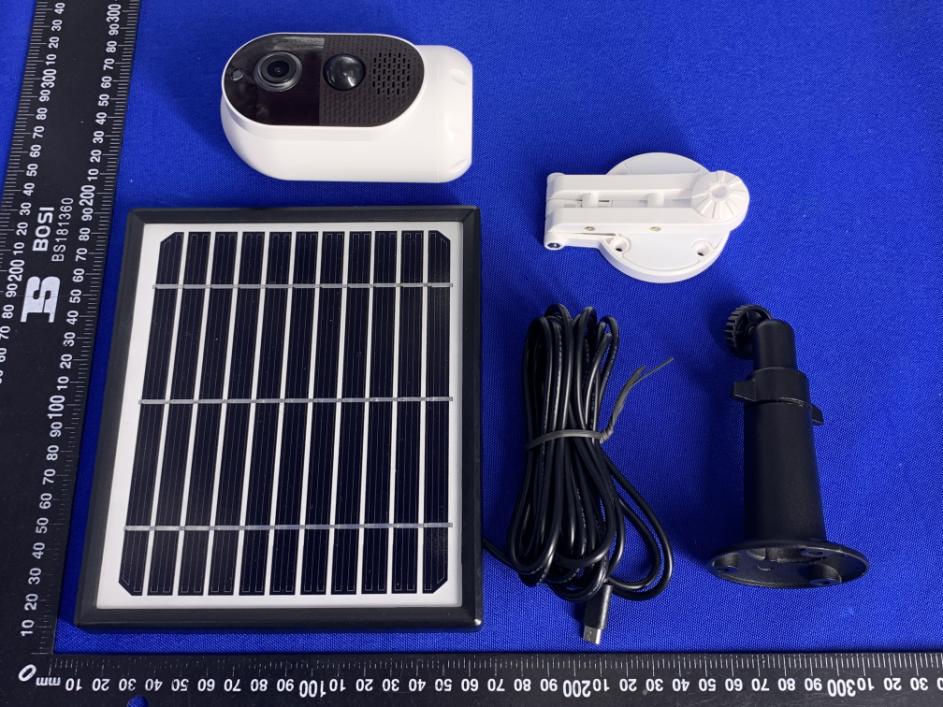

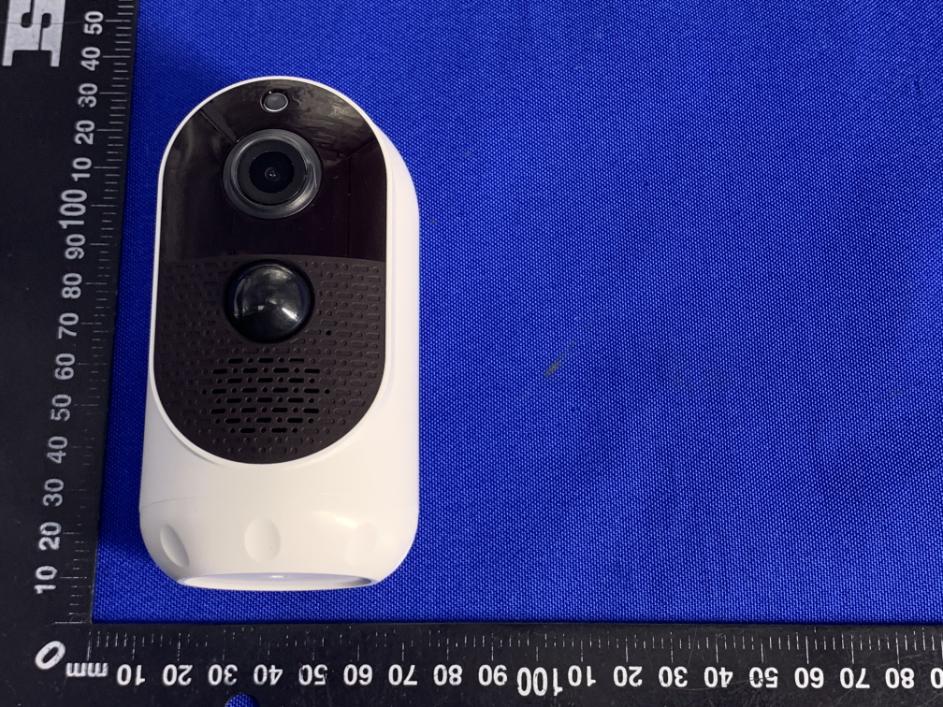

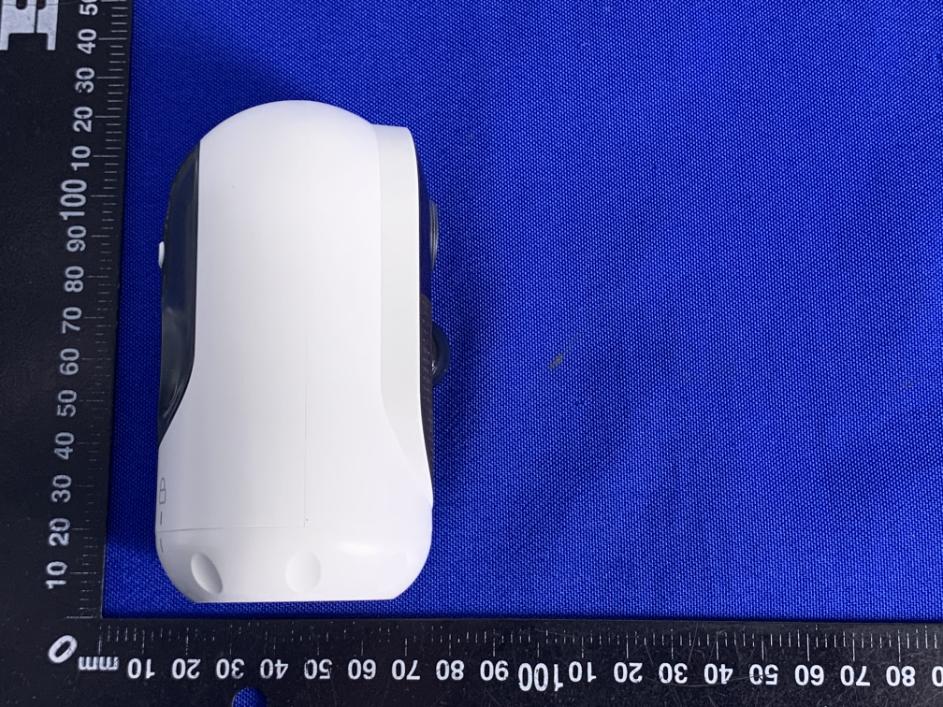

Page 1 of 4 Appendix B: Photographs of EUT Product: battery camera Model: Astro External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: Astro Label: Size: L*W=20*18mm Location

Page 1 of 7 Appendix B: Photographs of EUT Product: battery camera Model: Astro Internal Photos Page 2 of 7 Antenna Page 3 of 7 Page 4 of 7 Page 5 of 7 Page 6 of 7 Page 7 of 7

Maximum Permissible Exposure FCC ID: 2ADDG-ASTRO Applicable Standard According to §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Remark: 1) The maximum output power for antenna is 14.65dBm (29.17mW) at 2462MHz, 3.68dBi antenna gain(with 2.33 numeric antenna gain.) 2) For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20cm, even if the calculation indicate that the MPE distance would be lesser. Maximum Permissible Exposure output power= 29.17mW Numeric Antenna gain= 2.33 Substituting the MPE safe distance using d=20cm into above equation. Yields: S=0.000199*P*G Where P=Power in mW G=Numeric antenna gain S=Power density in mW/cm2 Power density= 0.013525mW/cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2ADDG-ASTRO Product: battery camera Model No.: Astro Additional Model No.: Argus, Astro 2, Astro 3, Astro 4, Astro5, Astro 6, Astro 7, Astro 8, Astro 9, Argus 2, Argus 3, Argus 4, Argus 5, Argus 6, Argus 7, Argus 8, Argus 9 Trade Mark: N/A Report No.: TCT200312E006 Issued Date: Apr. 13, 2020 Issued for : EKEN GROUP LIMITED Room 2511-2512, Meilan Business Center, Qianjin Two Road, XiXiang, Baoan District, Shenzhen, Guangdong, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note:This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200312E006 Page 2 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ................................................................................................... 3 2. Test Result Summary ........................................................................................... 4 3. EUT Description .................................................................................................... 5 4. General Information ............................................................................................. 7 4.1. Test environment and mode ........................................................................................... 7 4.2. Description of Support Units .......................................................................................... 8 5. Facilities and Accreditations ............................................................................. 9 5.1. Facilities...............................................................................................................................9 5.2. Location................................................................................................................................9 5.3. Measurement Uncertainty...............................................................................................9 6. Test Results and Measurement Data ............................................................ 10 6.1. Antenna requirement ...................................................................................................... 10 6.2. Conducted Emission ...................................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ....................................................... 15 6.4. Emission Bandwidth ....................................................................................................... 16 6.5. Power Spectral Density .................................................................................................. 17 6.6. Conducted Band Edge and Spurious Emission Measurement ........................... 18 6.7. Radiated Spurious Emission Measurement ............................................................. 20 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200312E006 Page 3 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: battery camera Model No.: Astro Additional Model: Argus, Astro 2, Astro 3, Astro 4, Astro5, Astro 6, Astro 7, Astro 8, Astro 9, Argus 2, Argus 3, Argus 4, Argus 5, Argus 6, Argus 7, Argus 8, Argus 9 Trade Mark: N/A Applicant: EKEN GROUP LIMITED Address: Room 2511-2512, Meilan Business Center, Qianjin Two Road, XiXiang, Baoan District, Shenzhen, Guangdong, China Manufacturer: EKEN GROUP LIMITED Address: Room 2511-2512, Meilan Business Center, Qianjin Two Road, XiXiang, Baoan District, Shenzhen, Guangdong, China Date of Test: Mar. 13, 2020 – Apr. 10, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab.and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By:Date:Apr. 10, 2020 Kevin Huang Reviewed By: Date:Apr. 13, 2020 Beryl Zhao Approved By: Date:Apr. 13, 2020 Tomsin Report No.: TCT200312E006 Page 4 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary RequirementCFR 47 SectionResult Antenna requirement§15.203/§15.247 (c)PASS AC Power Line Conducted Emission §15.207PASS Conducted Peak Output Power §15.247 (b)(3)PASS 6dB Emission Bandwidth§15.247 (a)(2)PASS Power Spectral Density§15.247 (e)PASS Band Edge§15.247(d)PASS Spurious Emission§15.205/§15.209PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200312E006 Page 5 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: battery camera Model No.: Astro Additional Model: Argus, Astro 2, Astro 3, Astro 4, Astro5, Astro 6, Astro 7, Astro 8, Astro 9, Argus 2, Argus 3, Argus 4, Argus 5, Argus 6, Argus 7, Argus 8, Argus 9 Trade Mark: N/A Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n…

Text truncated - open the document above for the full version.

Report No.: TCT200312E006 Page 46 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/HCH 11N20SISO/LCH 11N20SISO/MCH Report No.: TCT200312E006 Page 47 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/MCH Report No.: TCT200312E006 Page 48 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/HCH Report No.: TCT200312E006 Page 49 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Band-edge for RF Conducted Emissions Result Table ModeChannel Carrier Power [dBm] Max.Spurious Level [dBm] Limit [dBm]Verdict 11BLCH4.359-45.632-25.64PASS 11BHCH4.301-45.893-25.70PASS 11GLCH1.116-44.312-28.88PASS 11GHCH1.100-43.083-28.90PASS 11N20SISOLCH0.457-41.320-29.54PASS 11N20SISOHCH1.234-43.400-28.77PASS 11N40SISOLCH-1.150-33.636-31.15PASS 11N40SISOHCH-1.198-34.438-31.2PASS Test Graph Graphs 11B/LCH 11B/HCH Report No.: TCT200312E006 Page 50 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/LCH 11G/HCH 11N20SISO/LCH Report No.: TCT200312E006 Page 51 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/HCH 11N40SISO/LCH 11N40SISO/HCH Report No.: TCT200312E006 Page 52 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com RF Conducted Spurious Emissions Result Table ModeChannelPref [dBm]Puw [dBm]Verdict 11BLCH3.849<LimitPASS 11BMCH3.971<LimitPASS 11BHCH4.292<LimitPASS 11GLCH-0.310<LimitPASS 11GMCH-0.429<LimitPASS 11GHCH-0.466<LimitPASS 11N20SISOLCH-0.598<LimitPASS 11N20SISOMCH-0.568<LimitPASS 11N20SISOHCH0.087<LimitPASS 11N40SISOLCH-4.040<LimitPASS 11N40SISOMCH-4.073<LimitPASS 11N40SISOHCH-4.154<LimitPASS Test Graph 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH Report No.: TCT200312E006 Page 53 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 54 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH Report No.: TCT200312E006 Page 55 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 56 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH Report No.: TCT200312E006 Page 57 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 58 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH Report No.: TCT200312E006 Page 59 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 60 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH

Report No.: TCT200312E006 Page 61 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 62 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH Report No.: TCT200312E006 Page 63 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 64 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH /11N20SISO/L CH Report No.: TCT200312E006 Page 65 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 66 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_MCH_Graphs Pref/11N20SIS O/MCH Puw/11N20SIS O/MCH Report No.: TCT200312E006 Page 67 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 68 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_HCH_Graphs Pref/11N20SIS O/HCH Puw/11N20SIS O/HCH Report No.: TCT200312E006 Page 69 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 70 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_LCH_Graphs Pref/11N40SIS O/LCH Puw/11N40SIS O/LCH Report No.: TCT200312E006 Page 71 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 72 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_MCH_Graphs Pref/11N40SIS O/MCH Puw/11N40SIS O/MCH Report No.: TCT200312E006 Page 73 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 74 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_HCH_Graphs Pref/11N40SIS O/HCH Puw/11N40SIS O/HCH Report No.: TCT200312E006 Page 75 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com

Report No.: TCT200312E006 Page 76 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 77 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Power Spectral Density Result Table ModeChannel Meas.Level [dBm/30KHz] Meas.Level [dBm/3KHz] Verdict 11BLCH-1.943-11.943PASS 11BMCH-1.906-11.906PASS 11BHCH-1.677-11.677PASS 11GLCH-3.722-13.722PASS 11GMCH-3.813-13.813PASS 11GHCH-3.344-13.344PASS 11N20SISO LCH-3.699-13.699PASS 11N20SISO MCH-3.003-13.003PASS 11N20SISO HCH-2.718-12.718PASS 11N40SISO LCH-8.223-18.223PASS 11N40SISO MCH-7.884-17.884PASS 11N40SISO HCH-7.920-17.920PASS Note: Compensate 10dB is for Exchange rate of RBW Exchange rate of RBW = 10*log10(Reference bandwidth/RBW at measurement) =‐10[dB] where Reference bandwidth = 3 KHz Test Graph Graphs 11B/LCH Report No.: TCT200312E006 Page 78 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B/MCH 11B/HCH 11G/LCH Report No.: TCT200312E006 Page 79 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G/MCH 11G/HCH 11N20SISO/LCH Report No.: TCT200312E006 Page 80 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO/MCH 11N20SISO/HCH 11N40SISO/LCH Report No.: TCT200312E006 Page 81 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO/MCH 11N40SISO/HCH Report No.: TCT200312E006 Page 82 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix B: Photographs of Test Setup Product: battery camera Model: Astro Radiated Emission Report No.: TCT200312E006 Page 83 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission Report No.: TCT200312E006 Page 84 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix C: Photographs of EUT Product: battery camera Model: Astro External Photos Report No.: TCT200312E006 Page 85 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 86 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 87 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 88 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: battery camera Model: Astro Internal Photos Report No.: TCT200312E006 Page 89 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 90 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 91 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 92 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 93 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200312E006 Page 94 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com *****END OF REPORT*****

Page 1 of 2 Appendix A: Photographs of Test Setup Product: battery camera Model: Astro Radiated Emission Page 2 of 2 Conducted Emission
