2ADDG-H3ACTION CAMERA

Hello Congratulations on your new camera! This user manual will help you learn the basics of capturing life’s most incredible moments! Getting Started Turn camera ON and repeatedly press the Power/Mode Button to cycle through camera modes. 1. Video (1080p 30fps/ 720p 60fps) Record Video 2. Playback (Event, Video or JPEG) View your videos and photos on the screen 3. Settings (Video Settings, Photo Settings, and System Settings) Repeatedly press the Shutter/Select Button to cycle through three settings. Use the Up or Down Button to cycle through the Settings options and press Shutter/Select to select desired option. a. Video Settings: 1) Movie Size: 1080p 30fps or 720p 60fps Micro SD Card 1080p 30fps 720p 60fps 32 GB 240 mins 320 mins 16 GB 120 mins 160 mins 8 GB 60 mins 80 mins 4 GB 30 mins 40 mins 2) Loop Record: On/Off 3) Date Stamp: Off/Date/Date & Time 4) Exposure: +-2.0/+-1.7/+-1.3/+-1.0/+-0.7/+-0.3/0 b. Photo Settings: 1) Resolution: 2M 2) Single Shot: On/Off 3) Treble Shot (Burst Photo 3 photos): On/Off 4) Selftimer (Time Lapse): OFF/5 Seconds/ 10 Seconds/ Double Shoot a series of photos at set time intervals 5) Continuous (Burst Photo): 2, 3, 5, 10, 20, 30 or 60 second intervals c. System Settings: 1) Sounds: On/Off, Start-up 1/2/3/None, Beep On/Off, Volume 0/1/2/3 2) Power Frequency: 50Hz/60Hz/Auto 3) Panel Protect (Screen Saver): Off/1 mins/3 mins/5 mins 4) Power Save: Off/1 mins/3 mins/5 mins 5) Date & Time: YY/MM/DD 6) Language: English/Simplified Chinese/ Traditional Chinese/ France/ Spanish/ Italian/ Portuguese/ Dutch/ Polish/ Russian/ Japanese 7) Format: No/Yes 8) Rotate: 180 On/Off 9) Reset All: No/Yes 10) Version Capturing Video + Photos Press the Shutter/Select Button to start/stop recording. Press the Down/Shutter Button to take a picture. You can also change video and photo settings in the Settings menu. Storage/MicroSD Cards This camera is compatible with 4GB, 16GB, and 32GB capacity microSD, microSDHC, and microSDXC memory cards. You must use a microSD card with a Class 10 speed rating. We recommend using brand name memory cards for maximum reliability in high-vibration activities. Charging the Battery If recording is occurring when battery reaches 0%, the camera will save the file and power OFF. To charge the battery: 1. Connect the camera to a computer or USB power supply. 2. The Charging Status Light remains ON while the battery is charging. 3. The Charging Status Light will turn OFF when the battery is fully charged. Connecting to the iSmart DV App (Wi-Fi Edition Only) The iSmart DV App lets you control your camera remotely using a smartphone or tablet. Features include full camera control, live preview, photo playback and sharing of select content and more. 1. Download the iSmart DV App to your smartphone or tablet at the Apple App Store or Google Play. 2. Press the Power/Mode Button to power camera ON. 3. Press the Up/Wi-Fi On/Off button to turn on Wi-Fi*. 4. In your smartphone or tablet’s Wi-Fi settings, connect to the network called “Sports Cam 8” followed by a series of numbers. 5. Enter the password “1234567890”. 6. Open the iSmart DV App on your smartphone or tablet. * Press and hold the Up/Wi-Fi On/Off button for three seconds to turn off Wi-Fi. Compatibility The iSmart DV App is compatible with some smartphones and tablets listed below. For Apple iOS: • iPhone 5 & 5S (iOS 7) • iPad Air & Mini (iOS 7) For Android: • Android 4X Quad-core devices * Compatibility varies by device. Content playback, sharing and access to the camera's memory card might be not available on some devices. FCC Compliance: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including Interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’sauthority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

EKEN GROUP LIMITED Room 2511-2512, Meilan Business Center, Qianjin Two Road, Xixiang, Baoan District, Shenzhen, China DATE :2015-12-08 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADDG-H3 Product Name: ACTION CAMERA Request for Long-term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential long term:  Block diagram  Schematics  Operational Description These documents contain detailed system and equipment description and related information about the product which EKEN GROUP LIMITED considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, EKEN GROUP LIMITED considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market Dated this / Day of 08/12/2015 / By: Molly mok Signature Printed Title: sales manager On behalf of : EKEN GROUP LIMITED Telephone: +86 755 5261055-802

Differences Declaration To whom concern, We, EKEN GROUP LIMITED hereby declares: The product model(s) H3, A7, A8, A9, W9, G1, G2, G3, G4, G5, G6, G7, G8, G9, H1, H2, H4, H5, H6, H7, H8, H9, I1, I2, I3, I4, I5, I6, I7, I8, I9, N1, N2, N3, N4, N5, N6, N7, N8, N9, M1, M2, M3, M4, M5, M6, M7, M8, M9, K1, K2, K3, K4, K5, K6, K7, K8, K9, R1, R2, R3, R4, R5, R6, R7, R8, R9 are identical in the PCB layout, interior structure and electrical circuits with the product model H3, the only differences are the model name for commercial purpose. Authorized signature: Position: Management Date: 2015/12/08

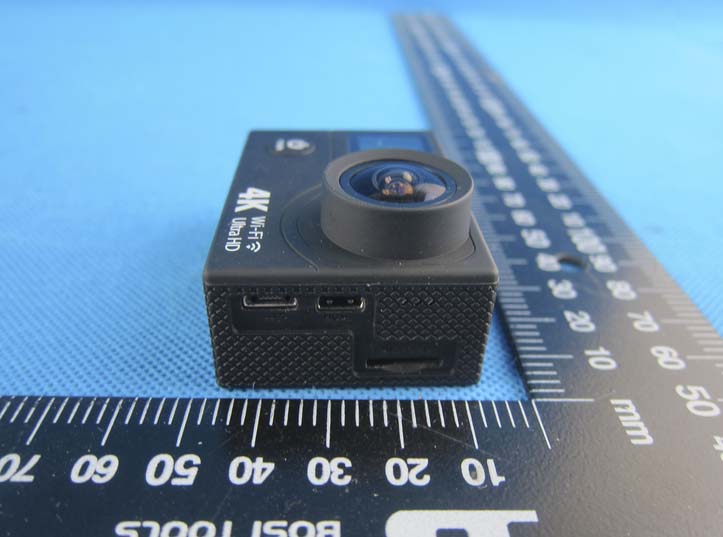

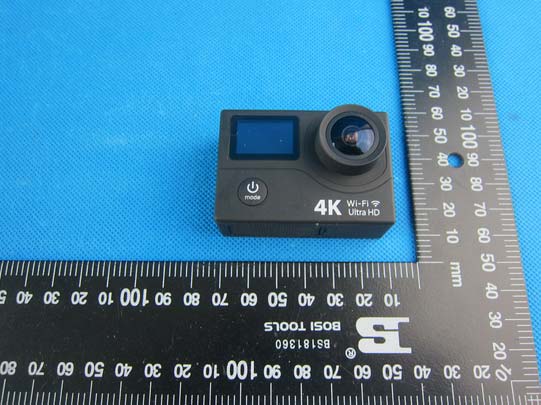

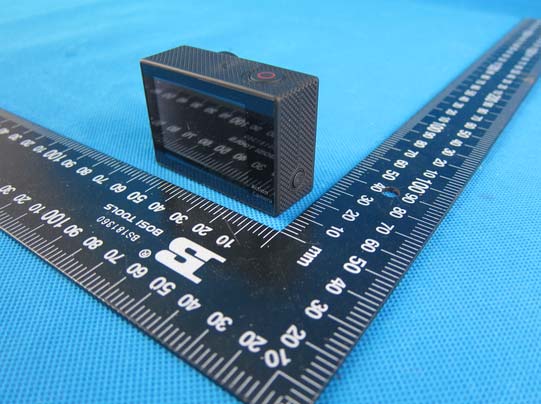

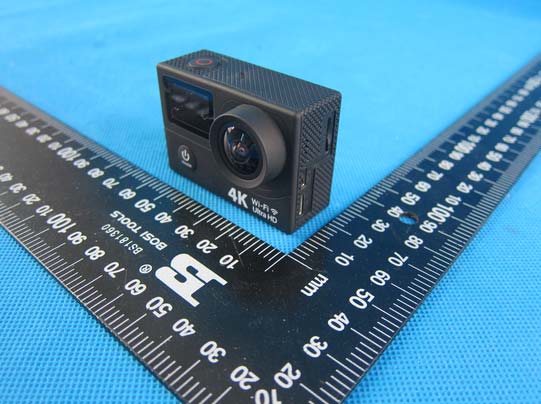

External Photos of EUT Sample \

Label Location

Internal Photos of EUT Sample

FCC ID: 2ADDG-H3 The device has a standalone transmission. According to KDB 447498 section 4.3.1, the 1-g SAR test exclusion thresholds at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] ≤ 3.0 The maximum tune-up limit power is 8.85dBm(7.67mW) @ 2. 412GHz For the head and body SAR, use 5mm as the conservative minimum test sep aration distance, [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)] =2.38≤ 3.0 So standalone SAR measurements are not required for both head and body.

Shenzhen EBO Technology Co., Ltd . 1-4F, Huafeng Science Park, Xin’an Sixth Road, 82 th District, Bao’an, Shenzhen, China. Telephone: +86-755-29451282, Fax: +86-755-22639141 Report No.: EBO1511082-E274 Page: 1 of 63 Authorized Signature: Kevin Yu Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the EBO product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of EBO International Electrical Approvals or testing done by EBO International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by EBO International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. FCC Report (WIFI) Applicant: EKEN GROUP LIMITED Address of Applicant: Room 2511-2512, Meilan Business Center, Qianjin Two Road, Xixiang, Baoan District, Shenzhen, China Equipment Under Test (EUT) Product Name: ACTION CAMERA Model No.: H3, A7, A8, A9, W9, G1, G2, G3, G4, G5, G6, G7, G8, G9, H1, H2, H4, H5, H6, H7, H8, H9, I1, I2, I3, I4, I5, I6, I7, I8, I9, N1, N2, N3, N4, N5, N6, N7, N8, N9, M1, M2, M3, M4, M5, M6, M7, M8, M9, K1, K2, K3, K4, K5, K6, K7, K8, K9, R1, R2, R3, R4, R5, R6, R7, R8, R9 FCC ID: 2ADDG-H3 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2014 Date of sample receipt: November 23, 2015 Date of Test: November 23, 2015 To December 8, 2015 Date of report issued: December 8, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Shenzhen EBO Technology Co., Ltd . Report No.: EBO1511082-E274 Page: 2 of 63 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Version No. Date Description 00 December 8, 2015 Original Prepared By: Date: December 8, 2015 Project Engineer Check By: Date: December 8, 2015 Reviewer Shenzhen EBO Technology Co., Ltd . Report No.: EBO1511082-E274 Page: 3 of 63 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.ebotek.cn and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.ebotek.cn . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION ..................................................................................................................................................2 3 CONTENTS ..............................................................................................................................................3 4 TEST SUMMARY .....................................................................................................................................4 5 GENERAL INFORMATION ......................................................................................................................5 5.1 CLIENT INFORMATION.........................................................................…
