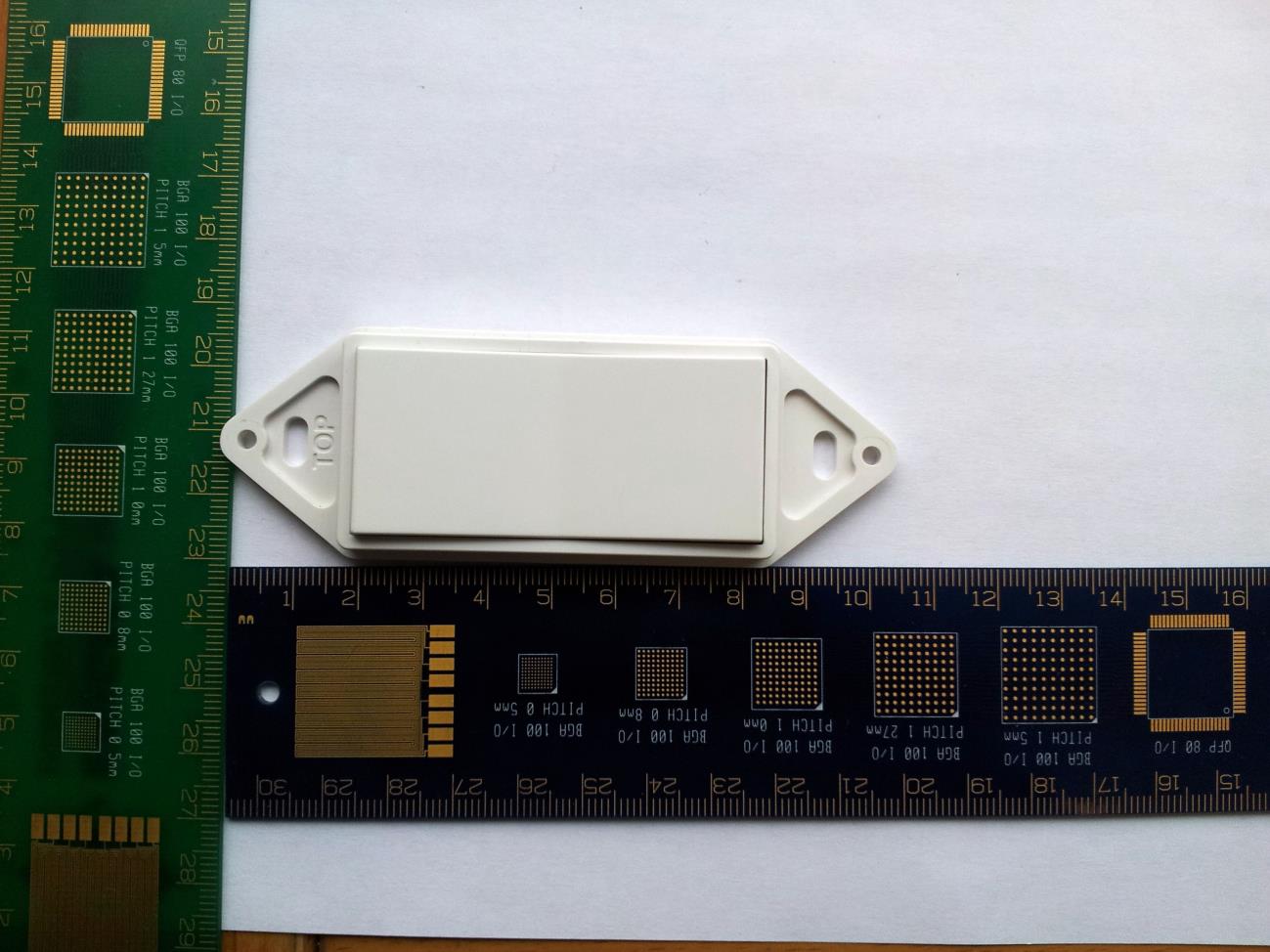

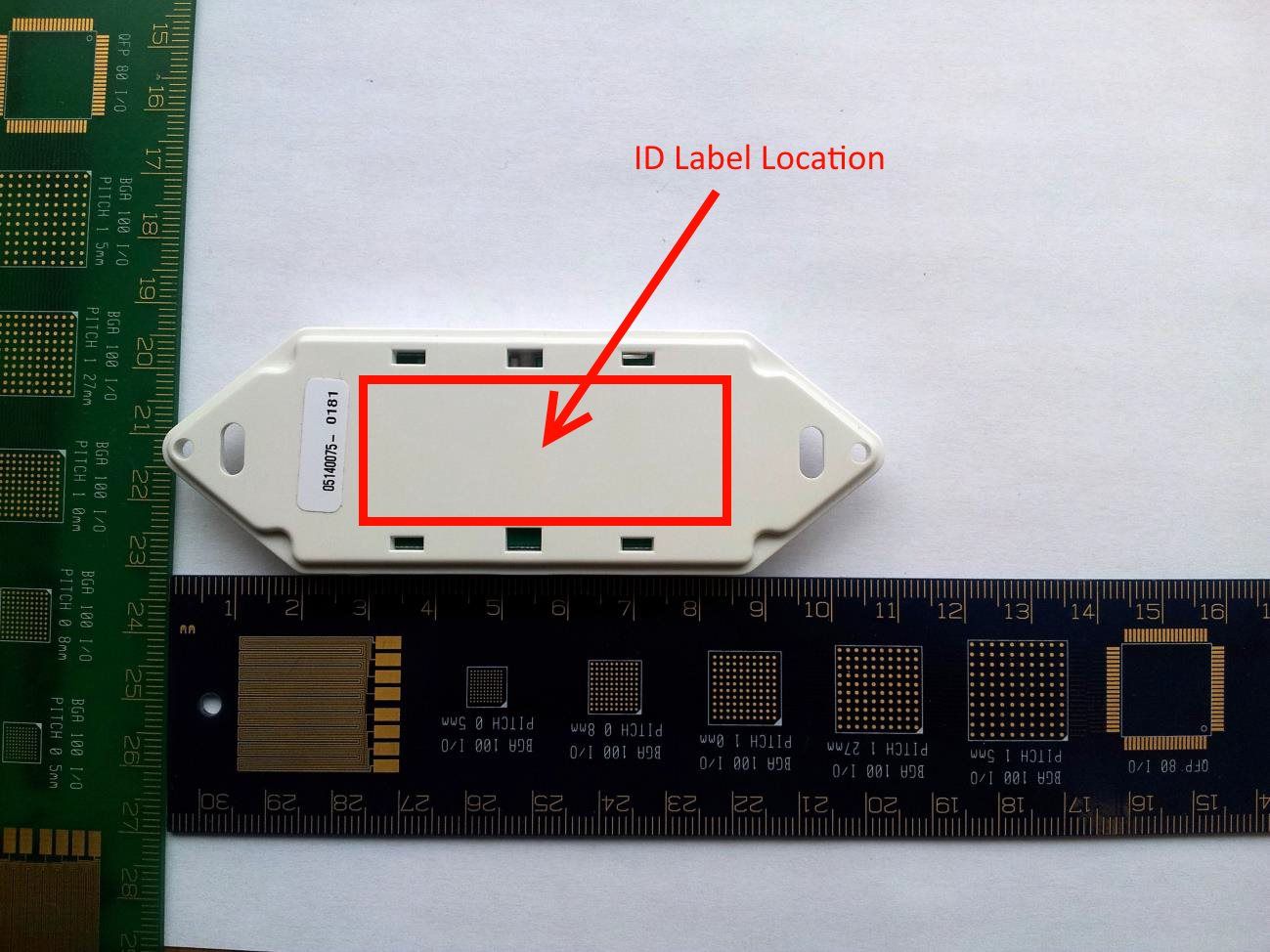

Levven Automation Inc. 9741 - 54th Ave NW, Edmonton Alberta, Canada T6E 5J4 Phone: (780) 391-3000 Fax: (780) 391-3001 1-9 Wireless Light Switch User Manual (Draft) 1 System description The wireless light switch system is designed to wireless turn lights on or off from anyway in a house, which contains two components: switch and controller. The Switch is a thin, wall mount switch that looks and feels much like a normal decora switch and fits in a normal decora faceplate. It is battery-powered and transmits commands in a secured way to controllers when a user pushes a button. The Controller is an action component that receives commands from remote switches and takes action accordingly. It is installed in the junction box to a lighting fixture connected with phase, neutral and control wires. The switch to controller can be point to point (one switch controlling one controller) or multi point to multi point (multi switches signaling one or more controllers). Levven Automation Inc. 9741 - 54th Ave NW, Edmonton Alberta, Canada T6E 5J4 Phone: (780) 391-3000 Fax: (780) 391-3001 2-9 2 Specifications 2.1 Switch 1. Dimensions......................................................................................105mmx36mmx11.2mm 2. Battery............................................................................................................................CR2032 3. Wireless frequency.......................................................................................................917Mhz 4. Wireless range..................................................................Up to 100 meters line of sight 5. Operating Temperature.........................................................................................0-40°C 6. Indoor use only 2.2 Controller 1. Dimensions......................................................................................56mmx47.7mmx39.6mm 2. Voltage................................................................................................................120VAC, 60Hz 3. Maximum load..................................................................................................................600W 4. Wireless frequency.......................................................................................................917Mhz 5. Wireless range..................................................................Up to 100 meters line of sight 6. Operating temperature.........................................................................................0-40°C 7. Load type.....................................Incandescent, halogen and other resistive light fixtures Levven Automation Inc. 9741 - 54th Ave NW, Edmonton Alberta, Canada T6E 5J4 Phone: (780) 391-3000 Fax: (780) 391-3001 3-9 8. Indoor use only 3 Features  Compatible for incandescent, halogen and other resistive light fixtures  Non-relayable wireless lighting control  On-Off controller  Battery powered switch operable up to 10 years*  Ease of multiple-way control o Each switch can control as many as possible controllers, as long as they are within the wireless range o Each controller controllable by up to 10 switches  Advanced security level o Rolling code to prevent repeat attack o 128-bit encryption  Ease of installation (No wiring between controller and switch, and a switch can be attached to anywhere)  Switch dimmer function ready *Conditions apply: typical operation 100 switches per day, average 0.5 second press and hold time, 20°C. Actual battery life greatly depends on usage environment, such as temperature and humidity, and operation conditions, such as press and hold time. 4 Installation Instructions WARNINGS: • To be installed and/or used in accordance with local electrical codes and regulations. • The controller should be mounted to a listed electrical junction box of suitable size with height no less than 2” (50.8mm) and with ½” knockouts, such as ⁄ Octagonal box. • If you are unsure about any part of these instructions, consult a qualified electrician. NOTE: Use check boxes  when Steps are completed. Step 1  WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring! Step 2  Identifying your wiring application, these wires in a junction box are needed 1. Line/hot 2. Neutral Levven Automation Inc. 9741 - 54th Ave NW, Edmonton Alberta, Canada T6E 5J4 Phone: (780) 391-3000 Fax: (780) 391-3001 4-9 3. Load (to light fixture) Step 3  Mount the controller inside a suitable junction box: The controller is normally installed inside a junction box that supports light fixtures. Insert its connector coupling into a ½” knockout from inside, with the antenna stretching out from the hole as well. Levven Automation Inc. 9741 - 54th Ave NW, Edmonton Alberta, Canada T6E 5J4 Phone: (780) 391-3000 Fax: (780) 391-3001 5-9 Step 4  Wiring controller:  Connect (Neutral) wire from junction box to white wire on controller  Connect (Line/hot) wire from junction box to black wire on controller  Connect (Load) wire from junction box to red wire on controller Step 5  Power on the controller  The green LED on the controller will be lit  The red LED will indicate controller status: it is on indicating the circuit to the light fixture is connected; it is off indicating the circuit to the light fixture is disconnected Step 6  Pairing switch with controller:  On the controller, press “PAIR” button. The LED on the controller will begin flash green slowly NOTE: If there is no pairing request received within 60 seconds, the controller will quit the pairing procedure and the LED will go back to solid status automatically  Press both switch buttons. You may need to push hard to let them contact the bottom of the switch. When it is activated, the LED on the controller will begin flash green and red rapidly  Press “PAIR” on the controller again to confirm the pairing. The LED will flash green rapidly for a while to indicate success, then stop flashin…
