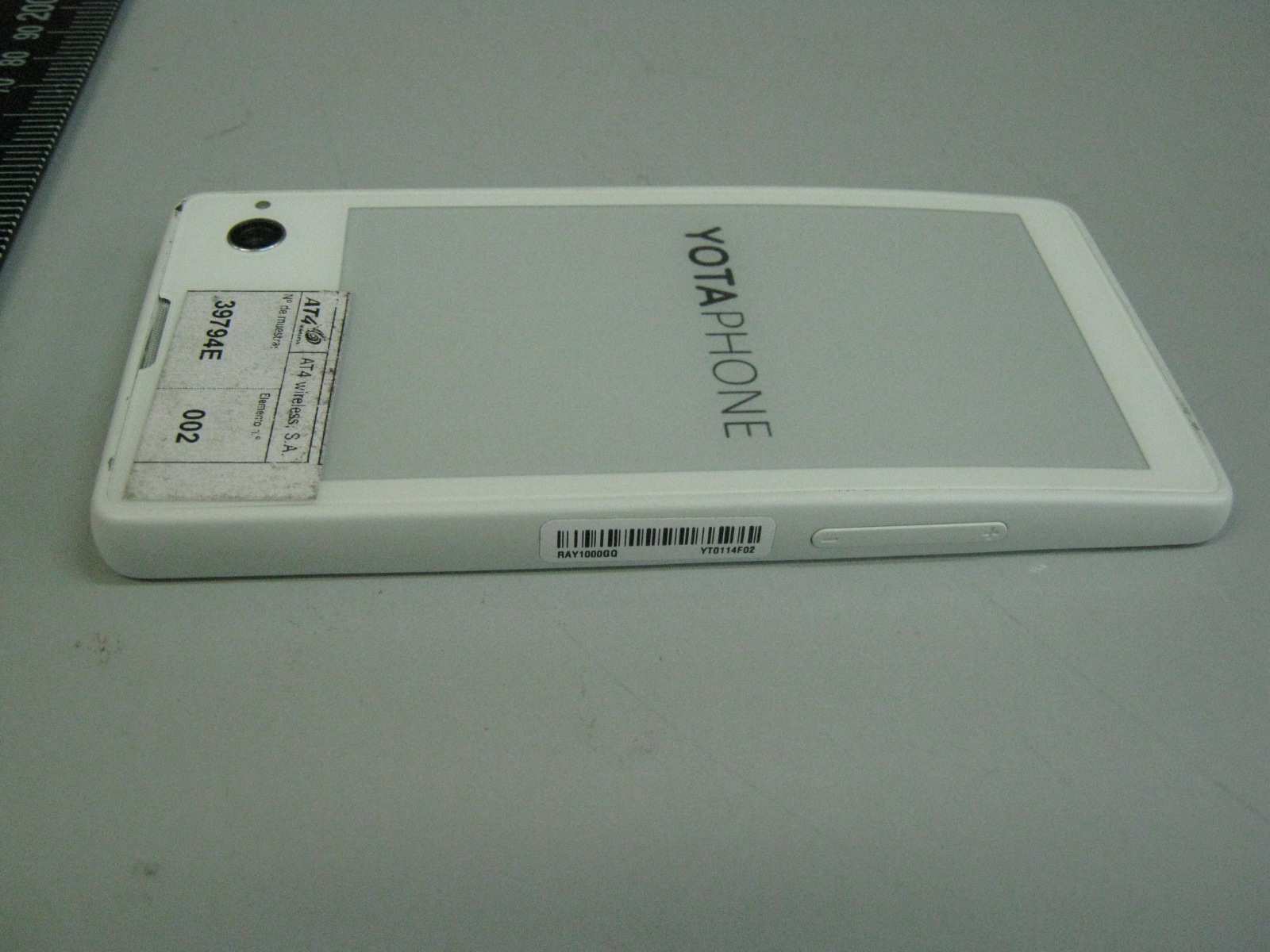

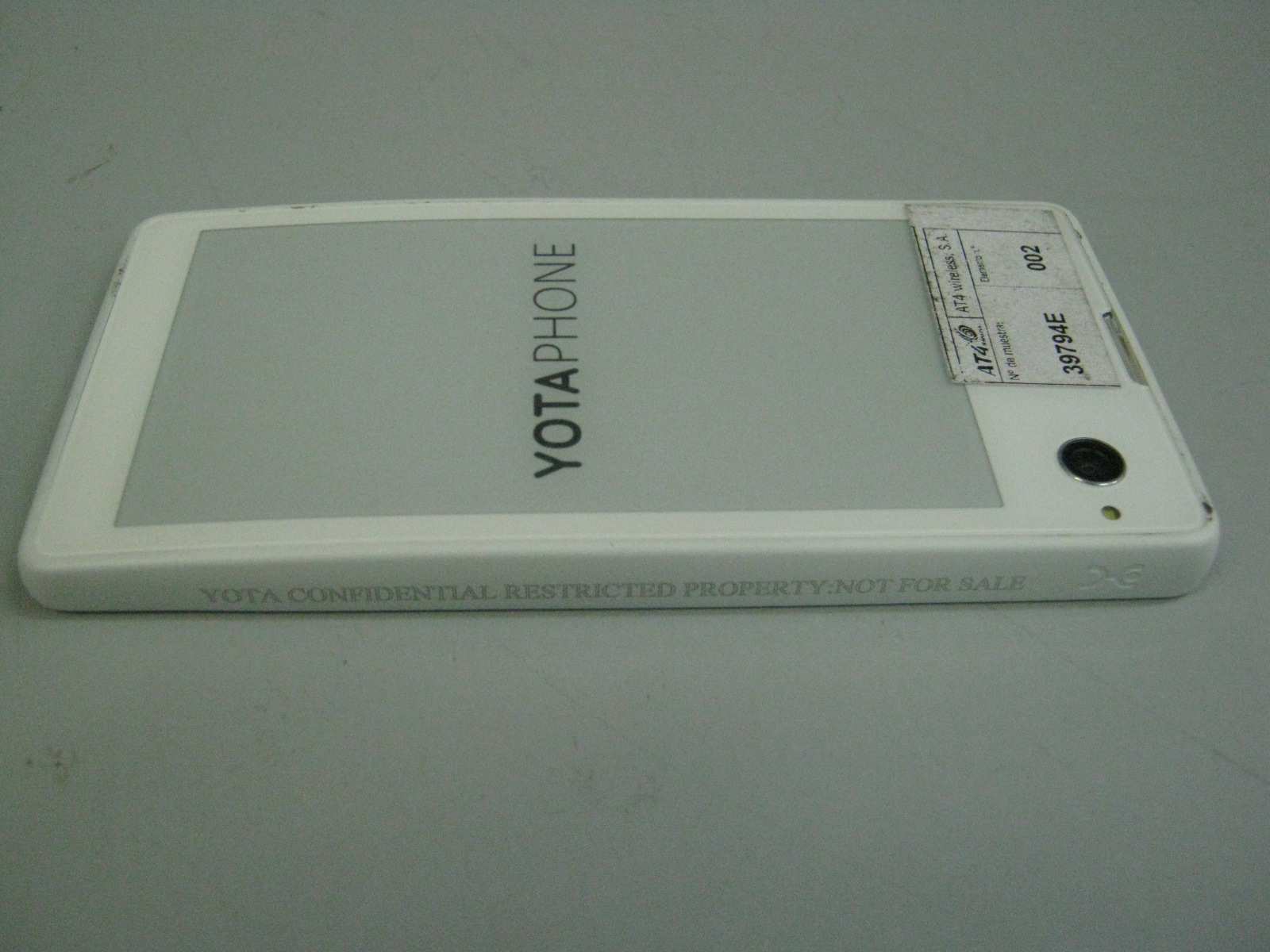

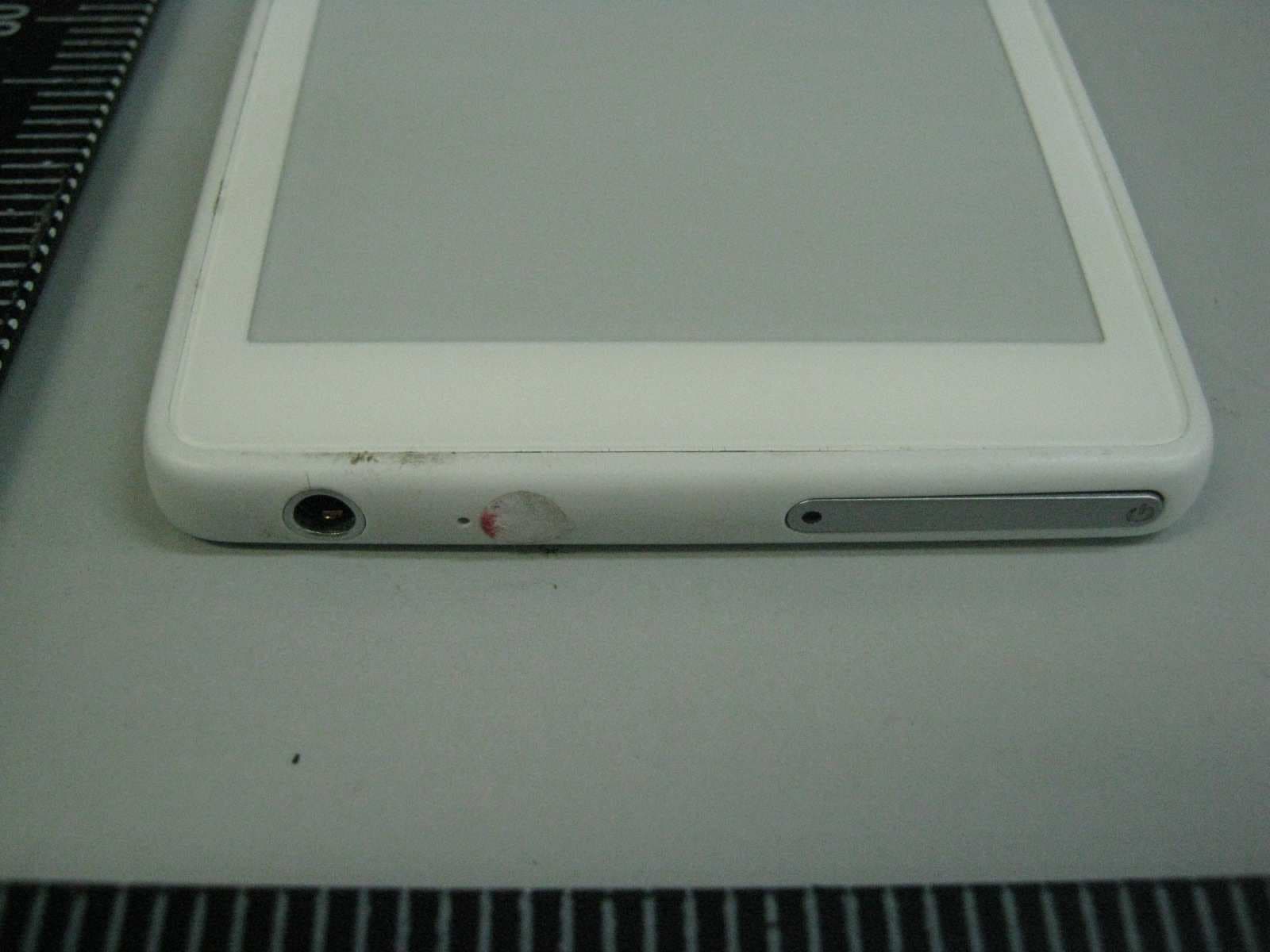

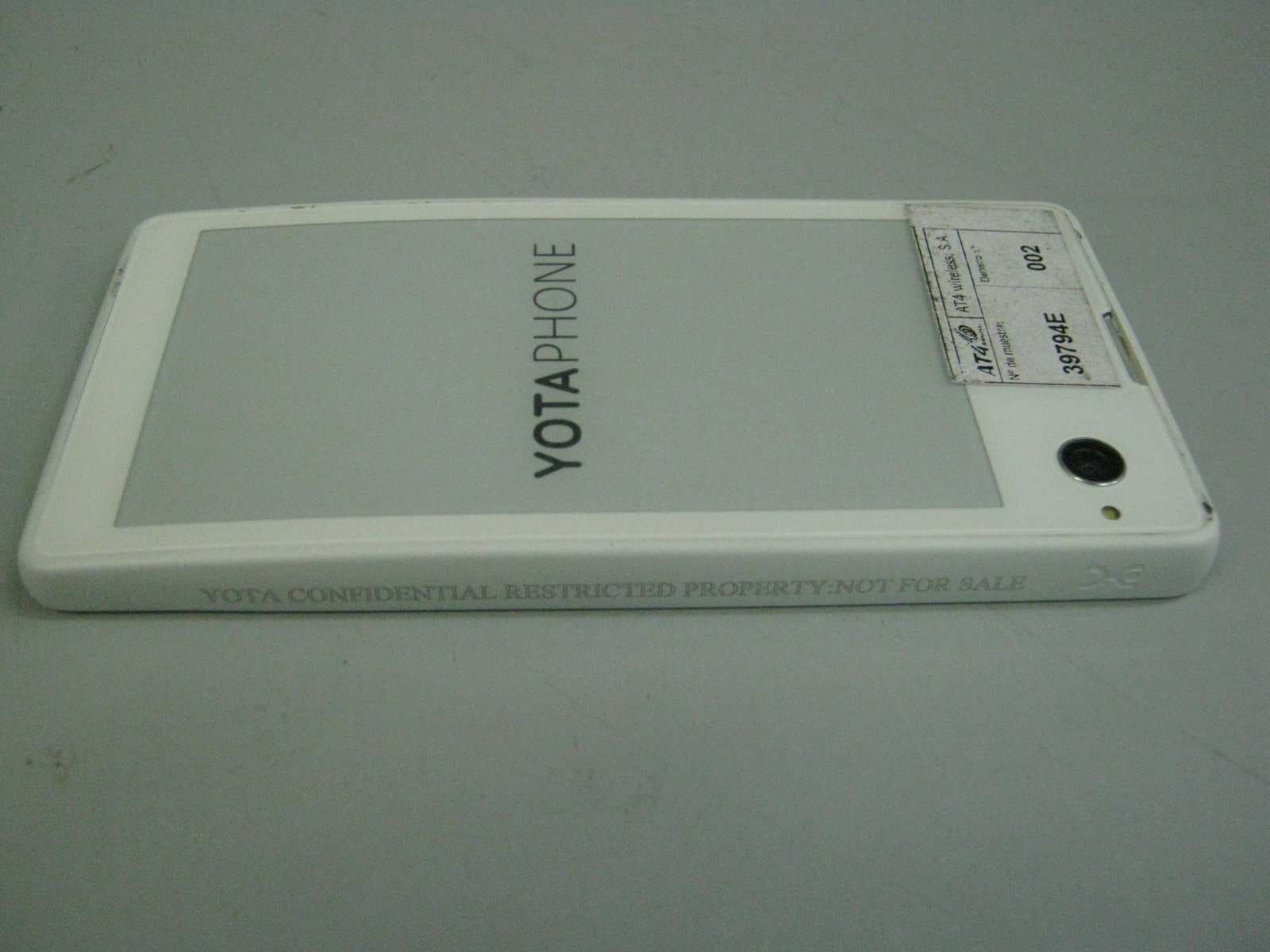

2ADHW201Smartphone with GSM/GPRS/EDGE 850/1900, WCDMA/HSPA FDD 2,5, 802.11 a/b/g/n/ac, BT/BLE, NFC, FM Radio

User Guide YOTAPHONE 2 USER GUIDE YOTAPHONE 2 User Guide User Guide i Contents Introduction ...................................................................................................................................................................................................................................... 1 Getting started ................................................................................................................................................................ ........................................................... 1 Get to know your YotaPhone ............................................................................................................................................................................................ 2 Install the SIM card ........................................................................................................................................................................................................... 3 Charge your phone ........................................................................................................................................................................................................... 5 Charge with a USB power adapter ................................................................................................................................................................................... 6 Charge with a computer .................................................................................................................................................................................................... 9 Switch your phone on/off................................................................................................................................................................................................. 11 Basics ................................................................................................................................................................ ...................................................................... 11 Lock or unlock the screen ............................................................................................................................................................................................... 12 Lock or unlock the colour display .................................................................................................................................................................................... 12 Lock or unlock the always-on display ............................................................................................................................................................................. 12 Use the touch screen ...................................................................................................................................................................................................... 12 Tap ................................................................................................................................................................ .................................................................. 13 Tap and hold ................................................................................................................................................................................................................... 13 Double tap ................................................................................................................................................................ ....................................................... 14 Drag and drop ................................................................................................................................................................................................................. 14 Swipe................................................................................................................................................................ ............................................................... 15 Pinch ............................................................................................................................................................................................................................... 15 Nagivate the colour display ............................................................................................................................................................................................. 16 Switch aeroplane mode on/off ........................................................................................................................................................................................ 16 Adjust the volume ................................................................................................................................................................ ............................................ 17 Change the volume settings ........................................................................................................................................................................................... 17 Switch between silent, vibration, and normal mode ........................................................................................................................................................ 17 Personalise the home screen ......................................................................................................................................................................................... 18 Customise the Favourites tray ........................................................................................................................................................................................ 18 Remove an application or widget shortcut from the Favourites tray ...............…

Text truncated - open the document above for the full version.

YOTADEVICES FCC Confidentiality Request TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, P015 5RL ATTN: Reviewing Engineer Date: Dec. 10, 2014 Ref: Confidentiality request for FCC ID: 2ADHW201 To whom it may concern: Pursuant to §0.457(d)(1)(ii) and §0.459 of the Commission's Rules (47 C.F.R.) and §552 (b)(4) of the Freedom of Information Act, Yota Devices Ltd. hereby request permanent confidentiality to avoid release of sensitive information of the product to the public. For the product stated above, we request that the following information be withheld from public disclose: Block diagram Operational description Schematics Part list/Tune up information The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to Yota Devices Ltd. and provide unjustified benefits to our competitors. Yota Devices Ltd. understand that pursuant to §0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Jukka T Ollila Test Lead Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus Phone: +358405433264 E-mail: [email protected] Sincerely,

YOTADEVICES TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, P015 5RL Date: Dec. 10, 2014 Authorisation letter We, Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus , hereby authorize AT4 wireless, S.A. Parque Tecnologico de Andalucia CI Severo Ochoa n° 2 29590 Campanillas - Malaga Spain Ricardo Orejas Phone: +34952619317 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. The present authorization considers the development of documents on behalf of the client, written under his own letterhead and related to the necessary information to be provided on his behalf to complete the certification process. We also hereby certify that neither we nor any party to this application are subject to a denial of U.S. Federal benefits, which include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862 because of conviction for possession or distribution of controlled substance. This authorisation is applicable to the product: Model: YD201 FCC ID: 2ADHW201 This agreement expires one year from the current date. Sincerely, Jukka T Ollila Test Lead Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus Phone: +358405433264 E-mail: [email protected]

D 5 6 1 4 3 2 1 2 3 4 5 6 A B C D A B C DRAWING NO. HI-P CORPORATION PART NAME PART NO. MATERIAL PART VER. DRW. VER. SCALE UNIT SHEET CONFIDENTIAL PROJECT NAME (29.00) (6.00) 4.50 11.00 14.00 (17.00) 3.00 2.95 2.95 (19.90) DRW.VER.ECN NO.DESCRIPTIONDATEDESIGNEDAPPROVED A- NEW RELEASED OCT-15-14LYEPAUL TAN TITANIUMDC1000103A LABEL, IMEI FCC (NO LOGO)DC1000103ASIGNATUREDATE DESIGNEDLYEOCT-15-14 SEE NOTES 4.000MM1 OF 1CHECKEDHH TEE OCT-15-14 APPROVEDPAUL TAN OCT-15-14 COPYRIGHT 2013 HI-P R&D CENTERCREATED BY PRO/E WILDFIRE SIZE:A2 UNITS mm STANDARD TOLERANCES INTERPRET ALL DIMENSIONS AND TOLERANCES PER ASME Y14.5M-1994 TOLERANCES UNLESS OTHERWISE SPECIFIED ON THIS DOCUMENT ONE PLACEX.X0.3 TWO PLACEX.XX0.13 ANGULAR DIMX.X0.5 HOLE DIA. VARIATIONX.X0.1 REFERENCE(X.XX) REF DRAWING NOTES: 1. DESCRIPTION & APPLICATION LABEL COMPONENT DESIGNED FOR USE IN MOBILE DEVICES PRODUCTS OVER A TEMPERATURE RANGE OF -20°C TO +70°C IN AN INDOOR / OUTDOOR ENVIRONMENT. 2. APPLICABLE DOCUMENTS HSDC-RD-ME-001 CONTROLLED AND REPORTABLE MATERIALS DISCLOSURE HSDC-RD-ME-003 RECEIVING BAR CODE SPECIFICATION HSDC-RD-ME-004 COSMETIC SPECIFICATION FOR HANDHELD PRODUCTS HSDC-RD-ME-005 SUPPLIER CORRECTIVE ACTION REQUEST PROCEDURE ASTM D1238 STANDARD TEST METHOD FOR MELT FLOW RATES OF THERMOPLASTICS BY EXTRUSION PLASTOMETER ASME Y14.5M-1994 AMERICAN STANDARD ON GEOMETRIC DIMENSIONING AND TOLERANCING (GD&T), VERSION 1994 3. MATERIALS 3.A LABEL: FASSON WHITE PET, 72825T, THICKNESS 0.05mm. 3.B LABEL BACKGROUND COLOR : WHITE LABEL MARKING COLOR : BLACK 4. TOLERANCE / APPEARANCE 4.A ALL DIMENSIONS IN mm UNLESS OTHERWISE SPECIFIED. 4.B ALL NOMINAL PART GEOMETRY IS DEFINED BY THE PRO/ENGINEER DATABASE. ALL DIMENSIONS FOR THE LOCATION OF FEATURES (SURFACE, AXIS, OR CENTERLINE) SHALL BE WITH RESPECT TO DATUMS "A", "B", AND "C" WITH A TOLERANCE OF ± 0.10 mm UNLESS OTHERWISE SPECIFIED. ALL DIMENSIONS FOR FEATURES OF SIZE (HOLE, SLOT, PIN, ETC, WITH AN AXIS OR CENTERLINE) SHALL BE IRRESPECTIVE OF DATUMS AND HAVE A TOLERANCE OF ± 0.10 mm UNLESS OTHERWISE SPECIFIED. DIMENSIONING AND TOLERANCE PER ASME Y14.5M. ALL POINTS IN THE DATABASE MUST BE HELD TO THE LINEAR TOLERANCE SHOWN IN THE TOLERANCE TABLE ON THIS DRAWING. 5. QUALITY CONTROL REQUIREMENTS 5.A WHERE THERE IS A CONFLICT BETWEEN THE DRAWING NOTES AND AN APPLICABLE DOCUMENT NOTE, THE DRAWING NOTES SHALL SUPERSEDE. 5.B SAMPLES PRODUCED FROM A PRODUCTION PROCESS FLOW SHALL BE SUBMITTED FOR QUALIFICATION WITH DATA. MINIMUM DATA REQUIREMENTS INCLUDE (i) MEASUREMENTS AND A PROCESS CAPABILITY STUDY (Cp>2.0/Cpk>1.5) ON THIRTY-FIVE (35) RANDOMLY SELECTED SERIALIZED SAMPLES, FROM EACH CAVITY, FOR EACH PARAMETER DENOTED AS PROCESS CONTROL, (ii) MEASUREMENTS ON FIVE (5) SERIALIZED PARTS, FROM EACH CAVITY, FOR ALL OTHER PARAMETERS/DIMENSIONS DENOTED ON THE DRAWING, AND (iii) DOCUMENTATION OF CONFORMANCE TO ALL NOTES ON THIS DRAWING AS WELL AS ANY TESTS SPECIFIED IN SUPPORTING DOCUMENTS (e.g. PLATING THICKNESS, HARDNESS, GRAPHICS WEAR TEST, ETC.). MAY ADD PROCESS CONTROL PARAMETERS LATER IF THE NEED ARISES. DIMENSIONS DENOTED WITH THE SYMBOL "<ST>" OR [X] REQUIRE Cp/Cpk DATA FOR ALL PART QUALIFICATION & FIRST ARTICLE SUBMISSIONS. 5.C PRODUCTION LOT DATA, SHALL BE PROVIDED WITH EACH PRODUCTION LOT UNTIL THREE (3) CONSECUTIVE SHIPMENTS DEMONSTRATE A Cp>2.0 AND Cpk>1.5 FOR ALL PROCESS CONTROL DIMENSIONS, AND THAT NO SUPPLIER CORRECTIVE ACTION REQUESTS (SCARs) WERE ISSUED RELATING TO ANY CONCERNS WITH THIS PART. THEREAFTER, FUTURE LOTS WILL NO LONGER REQUIRE DATA TO BE SHIPPED WITH SUPPLIED MATERIAL. HOWEVER, SUPPLIER MUST CONTINUE TO GENERATE THE DATA AND MAINTAIN IT ON FILE FOR REVIEW FOR A MINIMUM OF TWO (2) YEARS. 5.D IF THE Cp/Cpk VALUES ON ANY DEFINED PROCESS CONTROL PARAMETER SHOULD FALL BELOW 2.0 AND 1.5, RESPECTIVELY, AT ANY TIME DURING THE MANUFACTURE OF THIS PART, THEN SUPPLIER MUST 100% SCREEN ALL PARTS TO THOSE SPECIFIED PARAMETERS. QUALITY ENGINEERING IS TO BE NOTIFIED WHENEVER SUCH A CONDITION EXISTS. THIS SHOULD BE DONE THROUGH THE USE OF A CORRECTIVE ACTION RESPONSE FORM USING THE 8D FORMAT. AN INITIAL NOTIFICATION SHOULD BE SUBMITTED NO MORE THAN TWELVE (12) HOURS AFTER A PROBLEM HAS BEEN IDENTIFIED, STATING THE IMMEDIATE CONTAINMENT ACTION TAKEN. AFTER ANALYSIS OF ROOT CAUSE OF DISCREPANCY, A PLAN DEFINING PERMANENT CORRECTIVE ACTION(S) SHALL BE SUBMITTED WITH SAMPLES AND SUPPORTING DATA FOR APPROVAL BY QUALITY ENGINEERING. 5.E ALL DIMENSIONS SHALL BE CONTROLLED BY A QUALITY CONTROL PLAN. SUPPLIER MUST SUBMIT THIS DOCUMENT AS PART OF THEIR PART QUALIFICATION PACKAGE. NO PRODUCTION LOTS SHOULD BE SUPPLIED PRIOR TO THAT SUBMITTAL AND APPROVAL BY SUPPLIER DEVELOPMENT ENGINEERING. 6. PACKAGING REQUIREMENTS 6.A PARTS ARE TO BE PACKAGED SO AS TO PREVENT DAMAGE IN SHIPMENT AND HANDLING. 6.B LABELS ARE TO BE PROVIDED ON A ROLL WITH AN INNER CORE DIAMETER OF THREE(3) INCHES. THE ROLLS SHALL CONTAIN A MINIMUM OF 1000 LABELS PER ROLL AND MAXIMUM OF 12,000 LABELS PER ROLL. SPLICES ARE REEL SHALL NOT EXCEED THREE(3). IN THE EVENT OF A SPICE, ALL LABELS SHALL BE REMOVED FROM THE SPLICED REGION. BAR CODE NUMBERS SHALL BE CONSECUTIVE WITHIN A REEL AND MISSING BAR CODE NUMBERS SHALL BE IDENTIFIED ON THE OUTSIDE OF EACH SHRINK-WRAPPED ROLL. 6.C LABELS SHALL BE PLACED ON TRANSLUCENT LINER AND SHALL BE SEPARATED AS SHOWN ON THIS POINT. 6.D ALL TRAY DESIGNS MUST BE APPROVED BY DEVELOPMENT ENGINEERING. 6.E ROLLS SHALL BE DATE CODED AND ROLL PACKAGED IN A BOX. 7. GENERAL REQUIREMENTS 7.A FOR ALL INITIAL DRAWING DETAILS AND SUBSEQUENT REVISIONS TO THIS DRAWING, THE SUPPLIER MUST COMPLETE AND RETURN A SIGNED "PRINT ACCEPTANCE FORM". 7.B NO CHANGES SHALL BE ALLOWED TO THE DESIGN, PRODUCTION MATERIAL, PRODUCTION PROCESSES, MANUFACTURING SITES/LINES, TOOLING, OR TO ANY OTHER FACTORS AFFECTING PART QUALITY, COST, OR PERFORMANCE, WITHOUT PRIOR EXPLICIT WRITTEN APPROVAL BY DEVELOPMENT ENGINEERING, QUALITY ENGINEERING, AND SOURCING DEPARTMENTS. 7.C ALL NON-CONFORMING MATERIAL MUST BE DISPOSITIONED WITH A SCAR P…

Text truncated - open the document above for the full version.

Exploded View Top Side Main PCB With shields removed Bottom Side Main PCB With shields removed Bottom Side Bottom PCB Top Side Bottom PCB

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 1 of 1652015-01-07 Informe de ensayo nº: Test report No: NIE: 43480RRF.001A1 Test report REFERENCE STANDARDS: FCC 47CFR Part 2.1093, Published RF Exposure KDB Procedures, IC RSS -102 Issue 4:2010 Identificación del objeto ensayado......................: Identification of item tested Phablet Marca ...................................................................: Trade YotaPhone Modelo y/o referencia tipo ..................................: Model and /or type reference YD201 Other identification of the product ....................: Commercial name: YOTAPHONE2 FCC ID: 2ADHW201 IC ID: 12469A-201 Final HW version ................................................: P2 Final SW version .................................................: 2.6 IMEI TAC ...........................................................: IMEI: 004402600038263, 004402600038370 Características.....................................................: Features GSM/GPRS/E-GPRS, WCDMA/HSDPA/HSPA/ HSPA+/DC-HSDPA, WiFi b/g/n20 and WiFi a/n20/ac20/n40 Peticionario .........................................................: Applicant YOTA DEVICES LTD Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Offices 903 -904, Block A-B, 6016, Larnaca, Cyprus. Contact person: Jukka Ollila Telephone: +358405433264 e-mail: [email protected] Método de ensayo solicitado, norma...................: Test method requested, standard 1.FCC 47 CFR Part 2.1093. (10-1-11 Edition) –Radiofrequency radiation exposure evaluation: portable devices. 2. FCC OET KDB 447498 D01 General RF Exposure Guidance v05r02 (February 2014). 3.FCC OET KDB 865664 D01 v01r03 – SAR Measurement Requirements for 100 MHz to 6 GHz (February 2014). 4.FCC OET KDB 248227 D01 - v01r02 –SAR Measurements Procedures 802.11a/b/g Transmitters (May 2007 –Revised). 5.FCC OET KDB 941225 D01-v03 – 3G SAR Measurement Procedures (October 2014). 6.FCC OET KDB 648474 D04 - v01r02 –SAR Evaluation Considerations for Wireless Handsets (Dec 2013). 7.FCC OET KDB 941225 D07 UMPC Mini Tablet v01r01 – SAR Evaluation Procedures for UMPC Mini-Tablet Devices. AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 2 of 1652015-01-07 8. FCC OET KDB 941225 D06 Hot Spot SAR v02 – SAR Evaluation Procedures for Portable Deviceswith Wireless Router Capabilities. 9.IC RSS-102 Issue 4 (2010-03). Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). 10.Canada`s Safety Code No.6 –Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz . Resultado..............................................................: Summary Considering the results of the performed test according to FCC 47CFR Part 2.1093, the item under test is IN COMPLIANCE with the requested specifications specified in the standards. The maximum 1g volume averaged SAR for standalone transmission found during this test has been 0.964W/kg, for body position and WCDMA II Band. The maximum 1g volume averaged SAR for multiband transmission found during this test has been 1.160 W/kg, for body position. NOTE: The results presented in this Test Report apply only to the particular item under test established in page 1 of this document, as presented for test on the date(s) shown in section, “USAGE OF SAMPLES, TESTING PERIOD AND ENVIRONMENTAL CONDITIONS”. Aprobado por (nombre / cargo y firma) ...........: Approved by (name / position & signature) F. Cañas Regulatory Lab. Manager Fecha de realización ...........................................: Date of issue 2015-01-07 Formato de informe No.......................................: Report template No FDT08_15  AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 3 of 1652015-01-07 Index Competences and guarantees.........................................................................................................................4 General conditions.........................................................................................................................................4 Uncertainty ....................................................................................................................................................4 Usage of samples...........................................................................................................................................5 Test sample description .................................................................................................................................5 Test samples supplier ....................................................................................................................................5 Testing period................................................................................................................................................5 Environmental conditions..............................................................................................................................5 Modifications to the reference test report......................................................................................................6 Remarks and comments.................................................................................................................................6 Testing verdicts .............................................................................................................................................8 Appendix A – Test configuration ................................................................…

Text truncated - open the document above for the full version.

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 56 of 1652015-01-07 Appendix C –Measurement report AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 57 of 1652015-01-07 GSM 850 MHz – Right hand side – Cheek position – Middle Channel – Plot Nº 1 Test Laboratory: AT4 Wireless; Date: 06/10/2014 DUT: YotaPhone2; Type: Handset; Serial: IMEI:004402600038263 Communication System: UID 10021 - DAB, GSM-FDD (TDMA, GMSK); Frequency: 848.6 MHz; Duty Cycle: 1:8.6896 Medium parameters used (interpolated): f = 848.6 MHz; σ= 0.88 S/m; ε r = 40.308; ρ= 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: - Probe: ES3DV3 - SN3052; ConvF(6.5, 6.5, 6.5); Calibrated: 24/09/2014; - Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn669; Calibrated: 08/07/2014 - Phantom: SAM head-body simulator ; Type: Twin SAM V4.0; Serial: --- - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Right Hand Side - 900 MHz/GSM 850, Mid CH, Cheek/Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.258 W/kg Right Hand Side - 900 MHz/GSM 850, Mid CH, Cheek/Zoom Scan (7x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.75 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.284 W/kg SAR(1 g) = 0.236 W/kg; SAR(10 g) = 0.179 W/kg(SAR corrected for target medium) Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.241 W/kg 0 dB = 0.241 W/kg = -6.18 dBW/kg AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 58 of 1652015-01-07 GSM 850 MHz – Body – Back Face 10 mm – Middle Channel –Plot Nº 2 Test Laboratory: AT4 Wireless; Date: 07/10/2014 DUT: YotaPhone2; Type: Handset; Serial: IMEI:004402600038263 Communication System: UID 10021 - DAB, GSM-FDD (TDMA, GMSK); Frequency: 848.6 MHz; Duty Cycle: 1:8.6896 Medium parameters used (interpolated): f = 848.6 MHz; σ= 1.007 S/m; ε r = 55.179; ρ= 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: - Probe: ES3DV3 - SN3052; ConvF(6.26, 6.26, 6.26); Calibrated: 24/09/2014; - Sensor-Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn669; Calibrated: 08/07/2014 - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BA; Serial: SN:1060 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Flat Phantom Side - 900 MHz/GSM 850, Mid CH, Back face, d=10mm/Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.280 W/kg Flat Phantom Side - 900 MHz/GSM 850, Mid CH, Back face, d=10mm/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.72 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.316 W/kg SAR(1 g) = 0.256 W/kg; SAR(10 g) = 0.199 W/kg(SAR corrected for target medium) Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.267 W/kg 0 dB = 0.267 W/kg = -5.73 dBW/kg AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 59 of 1652015-01-07 GPRS 850 MHz 2 slots – Right and side – Cheek position – Middle Channel – Plot Nº 3 Test Laboratory: AT4 Wireless; Date: 06/10/2014 DUT: YotaPhone2; Type: Handset; Serial: IMEI:004402600038263 Communication System: UID 10024 - DAB, GPRS-FDD (TDMA, GMSK, TN 0-1); Frequency: 836.6 MHz; Duty Cycle: 1:4.52898 Medium parameters used (interpolated): f = 836.6 MHz; σ= 0.863 S/m; ε r = 40.636; ρ= 1000 kg/m 3 Phantom section: Right Section DASY5 Configuration: - Probe: ES3DV3 - SN3052; ConvF(6.5, 6.5, 6.5); Calibrated: 24/09/2014; - Sensor-Surface: 3mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn669; Calibrated: 08/07/2014 - Phantom: SAM head-body simulator ; Type: Twin SAM V4.0; Serial: --- - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Right Hand Side - 900 MHz/GPRS 850, 2 slots, Mid CH, Cheek/Area Scan (81x171x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.463 W/kg Right Hand Side - 900 MHz/GPRS 850, 2 slots, Mid CH, Cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.28 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.515 W/kg SAR(1 g) = 0.428 W/kg; SAR(10 g) = 0.324 W/kg(SAR corrected for target medium) Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.437 W/kg 0 dB = 0.437 W/kg = -3.60 dBW/kg AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 60 of 1652015-01-07 GPRS 850 MHz 2 slots – Body – Back Face 10 mm – Middle Channel – Plot Nº 4 Test Laboratory: AT4 Wireless; Date: 08/10/2014 DUT: YotaPhone2; Type: Handset; Serial: IMEI:004402600038263 Communication System: UID 10024 - DAB, GPRS-FDD (TDMA, GMSK, TN 0-1); Frequency: 836.6 MHz; Duty Cycle: 1:4.52898 Medium parameters used (interpolated): f = 836.6 MHz; σ= 0.966 S/m; ε r = 55.05; ρ= 1000 kg/m 3 Phantom section: Flat Sect…

Text truncated - open the document above for the full version.

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 114 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 115 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 116 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 117 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 118 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 119 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 120 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 121 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 122 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 123 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 124 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 125 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 126 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 43480RRF.001A1 Page 127 of 1652015-01-07 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4…
