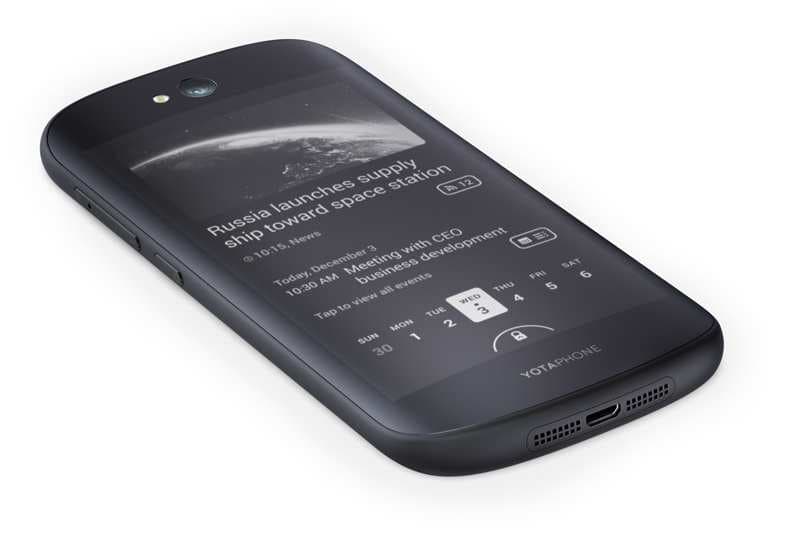

2ADHW205Smartphone with GSM/GPRS/EDGE 850/1900, WCDMA/HSPA FDD 2, 4, 5, LTE 2, 4, 5, 7, 12, 802.11 a/b/g/n/ac, BT/BLE, NFC and FM Radio

User Guide TITANIUM_USER_GUIDE Titanium_User_Guide User Guide i Contents Getting started ................................................................................................................................................................................................................................. 1 Get to know your YotaPhone .................................................................................................................................................................................................... 1 Install the SIM card .................................................................................................................................................................................................................... 3 Charge your phone .................................................................................................................................................................................................................... 5 Charge with a USB power adapter ................................................................................................................................................................................... 6 Charge with a computer .................................................................................................................................................................................................... 9 Switch your phone on/off ......................................................................................................................................................................................................... 10 Basics ............................................................................................................................................................................................................................................. 11 Lock or unlock the screen ....................................................................................................................................................................................................... 11 Lock or unlock the colour display .................................................................................................................................................................................... 12 Lock or unlock the always-on display ............................................................................................................................................................................. 12 Use the touch screen .............................................................................................................................................................................................................. 12 Tap .................................................................................................................................................................................................................................. 13 Tap and hold ................................................................................................................................................................................................................... 13 Double tap ....................................................................................................................................................................................................................... 14 Drag and drop ................................................................................................................................................................................................................. 14 Swipe............................................................................................................................................................................................................................... 15 Pinch ............................................................................................................................................................................................................................... 15 Nagivate the colour display ..................................................................................................................................................................................................... 16 Switch aeroplane mode on/off ................................................................................................................................................................................................. 16 Adjust the volume .................................................................................................................................................................................................................... 17 Change the volume settings ........................................................................................................................................................................................... 17 Switch between silent, vibration, and normal mode ........................................................................................................................................................ 17 Personalise the home screen .................................................................................................................................................................................................. 18 Customise the Favourites tray ........................................................................................................................................................................................ 18 Remove an application or widget shortcut from the Favourites tray ............................................................................................................................... 19 Add an application shortcut to the home scre…

Text truncated - open the document above for the full version.

TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Date: May 29, 2015 Confidentiality Request FCC ID: 2ADHW205 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Yota Devices Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: - Schematics - Block diagram - Operational description - Partlist - Tune-up information Yota Devices Ltd. also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of 180 days: - External photographs - Internal photographs - User’s manual - Test set-up photographs The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, p.a. Jukka T Ollila Test Lead Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus Phone: +358405433264 E-mail: [email protected]

Product similarity declaration TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL ATTN: Reviewing Engineer Date: May. 29, 2015 Ref: Similarity declaration between FCC ID: 2ADHW201 and FCC ID: 2ADHW205 To whom it may concern: We, Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus , hereby declares that the device: Model: YD205 FCC ID: 2ADHW205 Is a variant of the already certified device: Model: YD201 FCC ID: 2ADHW201 In which the WWAN circuitry (filters, duplexer and antenna) has been slightly modified to enable the operation in LTE bands: 2, 4, 7 and 12. The circuitry (including PCB, components and antennas) of the WLAN, Bluetooth and NFC functionality has not been modified at all and so that the original test reports and test results for the product YD201 (FCC ID: 2ADHW201) remains fully applicable and representative for the product YD205 (FCC ID: 2ADHW205). Further information about the changes is provided in the operational description. Sincerely, p.a. Jukka T Ollila Test Lead Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus Phone: +358405433264 E-mail: [email protected]

Label declaration TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL ATTN: Reviewing Engineer Date: May. 29, 2015 Ref: Attestation letter regarding label location for FCC ID: 2ADHW205 To whom it may concern: We, Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus , hereby declares about the device: Model: YD205 FCC ID: 2ADHW205 the following: 1. The device is handheld 2. The FCC identifier is visible at the time of purchase as it is located in the SIM tray. 3. The user does not require any special tools for access to the label and the FCC label is not be placed on a removable part (SIM tray is not removable) Sincerely, p.a. Jukka T Ollila Test Lead Yota Devices Ltd. Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Office 6016, Larnaca, Cyprus Phone: +358405433264 E-mail: [email protected]

Exploded View Top Side Main PCB Shields removed Bottom Side Main PCB Shields removed Top Side Bottom PCB Bottom Side Bottom PCB Front display components attached to the flex. Flex can’t be removed. No removable shields Electronic paper back display. No PCB and no removable shields Lower antenna carrier, both sides Upper antenna carrier, both sides

TITANIUM US/LATAM VARIANT - TMO S/N QUANTITY DESCRIPTION MANUFACTURER 1 1 CAP,CHIP,39PF,+5%,-5%,25V-DC,0201 TAIYO YUDEN 2 6 CAP,0.1UF+/-10% 25Vdc X5R(E1A),0402 MURATA 3 5 CAP,CHIP,15PF,+5%,-5%,25V-DC,0201 MURATA 4 4 CAP,FXD,1000PF,+10%,-10%,16V-DC,0201 SAMSUNG 5 2 CAP,FXD,100PF,+/-5%,50V,0201,-55/125DEG TAIYO YUDEN 6 34 CAP,CHIP,100PF,+5%,-5%,25V-DC,0201 MURATA/SAMSUNG 7 5 CAPACITOR,CHIP,10PF,.5PF+/-,25V-DC,0201 MURATA/SAMSUNG 8 15 CAPACITOR,CHIP,22PF,+5%,-5%,50V-DC,0201 MURATA 9 8 CAPACITOR,CHIP,33PF,+5%,-5%,25V-DC,0201 TDK/SAMSUNG/MURATA 10 4 CAP,FXD,12PF,+5%,-5%,25V-DC,0201,COG,-55DEG CMIN,125DEG CMAX,P MURATA 11 2 CAP,CHIP CERAMIC 1.1PF +/-0.25PF C0G/NP0 25V 0201 MURATA 12 3 CAP,CHIP CERAMIC 10NF +/-10% 16V 0201 MURATA 13 125 CAP,FXD,1UF,+10%,-10%,6.3V,0402,X5R MURATA 14 5 CAP,1UF,+/-20%,6.3V,0402,X5R,-55~85DEGC MURATA 15 4 CAPACITOR,2.2UF,+/-20%,6.3V,0402,X5R MURATA 16 25 CAP,0.1UF,+/-10%,10VDC,X5R,0201 TAIYO YUDEN 17 2 CAP-47PF,+/-5%,50V-0201 MURATA 18 2 CAPACITOR,CHIP,33PF,+5%,-5%,50V-DC,0201 MURATA 19 1 CAP,CHIP CERAMIC 5.0PF +/-0.25PF C0G/NP0 25V 0201 MURATA 20 1 CAP,HQ,1.1PF,0.1PF,50V,0402 MURATA 21 1 CAP,CHIP CERAMIC 3.3PF +/-0.1PF,50V-DC,0402 MURATA 22 1 CAP,CHIP CERAMIC 4.7PF +/-0.25PF,50V-DC,0402 MURATA 23 1 CAP,CHIP CERAMIC 2PF +/-0.05PF,50V-DC,0402 MURATA 24 1 CAP,HQ,6.2PF,0.1PF,50V,0402 MURATA 25 1 CAP,HQ,9.1PF,0.1PF,50V,0402 MURATA 26 1 CAP,4.7PF,+/-2.2%,50VDC,C0G,0201 MURATA 27 2 CAP,CHIP,1PF,.25PF+/-,25V-DC,0201 TAIYO YUDEN 28 16 CAP,1.0UF,+/-10%,10VDC,0402 TAIYO YUDEN 29 4 CAPACITOR,2.2UF,+10%,-10%,10V,0603 MURATA/TAIYO YUDEN 30 2 CAP 47uF,6.3V,X5R,0805,T=0.85+/-0.1mm SAMSUNG 31 3 CAPACITOR,CHIP,27PF,+5%,-5%,50V-DC,0201 MURATA 32 9 CAP SMD0805 CERM 47UF 6.3V X5R 20% ROHS MURATA 33 3 CAP,CHIP CERAMIC 47UF 20% X5R 10V ROHS TDK 34 16 CAPACITOR,.1UF,+10%,-10%,10V,0402 SAMSUNG 35 8 CAP,CER,4.7UF,+20%,-20%,6.3V,0402 TAIYO YUDEN 36 12 CAP,1.0uF+/-10% 25Vdc X5R(E1A),0402 MURATA 37 2 CAPACITOR,.01UF,+10%,-10%,25V-DC,0402 YAGEO 38 2 CERAMIC CHIP CAPACITOR,0.1UF,+10%,-10%,10V,0201 MURATA 39 2 CAP,X5R,4.7UF,+/-10%,16V,0603 TAIYO YUDEN 40 1 CAP,10UF,+/-20%,10VDC,X5R,0603 TAIYO YUDEN 41 1 CAP,CER,22UF,+/-20%,10V,0805,-55/85DEG TAIYO YUDEN 42 1 CAP,FXD,.47UF,+10%,-10%,6.3V-DC,0201 SAMSUNG 43 44 CAPACITOR,.1UF,+10%,-10%,6.3V,0201 TDK/MURATA/SAMSUNG 44 8 CAP,FXD,22UF,+20%,-20%,6.3V-DC,0603 SAMSUNG 45 9 CAP,2.2UF,+/-10%,10VDC,0402 MURATA 46 7 CAP,CHIP CERAMIC 10UF 20% X5R 6.3V MURATA 47 3 CAPACITOR,CHIP,1000PF,+10%,-10%,25V-DC,0201 MURATA 48 5 CAP,FXD,22UF,+20%,-20%,10V-DC,0603 SAMSUNG 49 8 CAPACITOR,4.7UF,+10%,-10%,10V,0603 TDK / TaiyoYuden 50 2 CAP,22UF,+/-10%,10V,2.4x1.65mm MURATA 51 25 CAP,CHIP,82PF,+5%,-5%,25V-DC,0201,COG MURATA/SAMSUNG 52 1 CAP,CHIP CERAMIC 4.3PF +/-0.1PF C0G/NP0 25V ROHS,0201 MURATA 53 1 CAPACITOR,FIXED,18PF,+5%,-5%,25V-DC,0201 TAIYO YUDEN/SAMSUNG 54 4 CAP,FXD,100PF,+10%,-10%,50V-DC,0201,X5R,-55DEG CMIN,85DEG CMAX,P TAIYO YUDEN 55 2 CAP,CHIP CERAMIC 3.3PF +/-0.25PF C0G/NP0 25V 0201 MURATA 56 2 CAP,CHIP CERAMIC 0.47uF, 25V, 10%, 0402 TAIYO YUDEN 57 1 CAP,CERAMIC CHIP,15NF,+/-10%,50V,0402,X7R MURATA 58 2 CAP,CHIP CERAMIC 22NF, 25V, 10%, 0201 TAIYO YUDEN 59 2 CAP,CHIP CERAMIC 10uF, 25V, 20%, 0603 MURATA 60 1 CAP,CHIP CERAMIC 1uF,16V, 10%, 0402 TAIYO YUDEN 61 1 CAP, 68nF, 5%, 50V, UJ(JIS), 1206 MURATA 62 1 CAP, 39nF, 5%, 50V, UJ(JIS), 0805 MURATA 63 1 CAP,CHIP CERAMIC, 0.1UF, +5%, -5%, 50V-DC, 1206 MURATA 64 1 CAP,1.5PF,+/-0.1PF%,25VDC,COG,0201 MURATA 65 1 CAP,0.5PF,+/-20%,50VDC,0201 MURATA 66 18 CAP,4.7UF,+/-20%,4V,0402,X5R,-55~85DEGC MURATA 67 1 CAP,CHIP CERAMIC 470PF 10% X7R 25V ROHS MURATA 68 3 CAPACITOR,CHIP,12PF,+5%,-5%,25V-DC,0201 MURATA/SAMSUNG 69 3 CAPACITOR,.01UF,+10%,-10%,6.3V,0201 MURATA/YAGEO 70 1 CAP,4700PF,+/-10%,50VDC,X7R,0402 TAIYO YUDEN 71 1 CAP,CHIP CERAMIC 0.1UF 10% X5R 6.3V 0201 TAIYO YUDEN 72 5 CAP,1UF,+/-10%,6.3V,0402,X5R SAMSUNG 73 3 CAP,CERAMIC CHIP,22UF,+20%,-20%,10V-DC,0805,X5R,-55DEG CMIN,85 SAMSUNG 74 1 CAP,CERAMIC,10UF,+20%,-20%,10V-DC,0402,X5R,-55DEG CMIN,85DEG CMAX,P SAMSUNG 75 1 CAP,47PF,+/-5%,25VDC,0402 TAIYO YUDEN 76 2 CAP,1UF,+/-20%,6.3VDC,0402,X7R MURATA 77 2 CAP,10UF,+/-20%,6.3V,X5R,0603,-55~85DEGC MURATA/TAIYO YUDEN 78 2 CAP,CHIP,56PF,+5%,-5%,25V-DC,0201,C0G,-55DEG CMIN,125DEG CMAX,P MULTIPLE 79 2 CAP,75PF,+/-2%,25VDC,0201 MURATA 80 2 CAP,CHIP,33PF,+/-2%,25VDC,C0G,0201 MURATA 81 2 CAP,CHIP,180PF,+/-5%,25VDC,X7R,0201 MURATA 82 3 CAPACITOR,CHIP,8.2PF,.5PF+/-,25V-DC,0201 MURATA 83 1 CAP,CER CHIP,10UF,+20%,-20%,6.3V,0402 SAMSUNG 84 3 CAP,10UF,+/-10%,10VDC,X5R(E1A),0603 MURATA 85 7 CAP,4.7UF,+/-10%,25VDC,0805,X6S MURATA 86 2 CAP,10000PF,+/-10%,50VDC,0603 MURATA 87 2 CAP,2.2UF,+/-10%,25VDC,X7R(E1A),0805 Taiyo Yuden 88 2 CAP,10000PF+/-10% 25Vdc X5R(E1A),0603 MURATA 89 2 CAP,3.0PF,+/-0.1PF,25VDC,0201 MURATA 90 1 CAP,CHIP,2.2PF,+/-0.1PF,COG,25VDC,0201 MURATA 91 2 DIODE, SCHOTTKY 20V 0.5A 2PIN TOSHIBA 92 6 Bi-directional ESD TVS Diode,7.82V,0402 KEC/ROHM 93 6 DIODE,SCHOTTKY BARRIER,DB2L32300L PANASOINC 94 2 BEAD,220OHM,+/-25%,DCR=0.065OHM,1A,0201 TDK 95 1 FERR,600OHM 100MHZ TDK 96 2 FLTR,FERR,100OHM 100MHZ, 3A MURATA ELECTRONIC 97 1 FLTR,FERR, 2500OHM 100MHZ, 0603, 50MA MURATA ELECTRONIC 98 4 FLTR,FERR,1000OHM 100MHZ, 0.8A TDK CORP OF AMERICA 99 1 IDCTR,COIL,COILS,FERRITEBEAD,0603,240OHM TAIYO YUDEN 100 2 FLTR,FERR,150MA,SM,0402,33OHM TDK 101 2 IDCTR,COIL,COILS,FERRITEBEAD,30OHM TAIYO YUDEN 102 1 FILTER, SAW 2110-2170MHZ RX 50/50 1109 B1 B4 ROHS TAIYO YUDEN 103 1 FILTER,SAW 1842.5MHZ UNBAL-DRX 50/50 1109 B3 ROHS MURATA 104 1 FILTER,SAW 2620-2690MHZ UNBAL DRX 50/50 1109 B7 ROHS MURATA 105 1 FILTER SAW 729MHZ/746MHZ RX 50/50 1109 TAIYO YUDEN 106 1 FLTR,SAW,BAND2/25,4.7DB,50,1.35X1.05X0.6 MURATA 107 1 FLTR,SAW, GPS/GNSS,1583MHZ, UNBAL 50/50, IL1.2DB 1109 MURATA ERIE NORTH AMERICA 108 1 FILTER,SAW GPS/GNSS 1583MHZ UNBAL 50/100 IL=1.4DB 1109 ROHS MURATA 109 1 FLTR,SAW,876MHZ UNBAL 50/50 1109 B26 MURATA 110 1 FILTER,SAW 791-821MHZ RX 50/50 1411 B20 ROHS TAIYO YUDEN 111 1 FLTR,SAW, 942.5MHZ UNBAL DRX 50/50 1109 B8 MURATA 112 2 FILTER,LOW PASS …

Text truncated - open the document above for the full version.

YOTA-TITANIUM FCC WWAN OUTPUT POWER+TUNNING TOLERANCE Tuning tolerance for maximum TX power level: +1 dB / -1.5dB Protocol GMSK (Highest PCL output power configuration) Power class Power level 1 Tx 2 Tx 3 Tx 4 Tx GSM850 4 33 33 31 29 27 GSM900 4 33 33 31 29 27 GSM1800 1 30 30 28 26 24 GSM1900 1 30 30 28 26 24 Tuning tolerance for maximum TX power level: +1.5 dB / -1.5 dB Protocol 8-PSK (Highest PCL output power configuration) Power class Power level 1 Tx 2 Tx 3 Tx 4 Tx EGSM850 E2 26,5 26,5 24,5 22,5 20,5 EGSM900 E2 26,5 26,5 24,5 22,5 20,5 EGSM1800 E2 25,5 25,5 23,5 21,5 19,5 EGSM1900 E2 25,5 25,5 23,5 21,5 19,5 Tuning tolerance for maximum TX power level: +0.5 dB / -1.5 dB Protocol Power class Power level WCDMA 2 3 24 WCDMA 5 3 24 Tuning tolerance for maximum TX power level: +1 dB / -1dB Protocol Power class Max Power level LTE 2 3 23 LTE 4 3 23 LTE 5 3 23 LTE 7 3 23 LTE 12 3 23 Cellular Calibration Procedures A new multifrequency Envelope Tracking (ET) technology was implemented in this platform which makes use of power control IC QFE1100 to dynamic change the VCC to the Power Amplifier for reducing thermal effect and improving power consumption. The characterization and factory calibration flows are shown in Figure 19.2 Fi gure 19.2: ET Characterization and Calibration Process. In order to maintain consistency of Tx output power, in factory, every board has to go through 4 calibration sweeps. 1) Sweep 1: Alignment of M-line Finding the relationship between Pin, Pout and Vcc at 3dB compression points 2) Sweep 2: DPD Based on output power on M-line, system choice, and calibration algorithm will adjust and find the optimize value of pre-distortion parameters at 4 target power data point. 3) Sweep: Power Measure the TX power by applying all the characterization and calibration parameters. All the calibration will be stored in NV 4) Pout vs Frequency Compensate the power flatness across the band frequency at 4 target power points from sweep 2. Cellular Production Specifications Channels/Frequency Supported Bluetooth: 79 channels, Frequency Range 2.402 - 2.480 GHz All Channels having 1MHz Bandwidth. WLAN: 2.4 GHz Band, Channels 1-11, Frequency Range 2.412 - 2.462 GHz All channels operate with 20MHz Bandwidth. 5GHz Band, Channels 36-134, Frequency Range 5.18 – 5.67 GHz Device won’t operate in the frequency range 5.6 – 5.65 GHz For 802.11 a/ac, all channels operate with 20 MHz Bandwidth For 802.11 n, channels operate with 20 MHz and 40 MHz Bandwidth. Power Table (WLAN) (tolerance : +/- 1 dB) Below are the power tables for 2.4 GHz & 5GHz band channels of WLAN. Channels in 2.4GHz Band WLAN Tune up C hannels in 5GHz Band

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 2015-05-21 Informe de ensayo nº: Test report No: NIE: 45636RRF.004 Test report REFERENCE STANDARDS: FCC 47CFR Part 2.1093, Published RF Exposure KDB Procedures, IEEE Std 1528:2013, IEEE Std C95-3:2002, IEEE Std C95-1:2005, IC RSS -102 Issue 5:2015 Identification of item tested ................................. : Yotaphone2 Dual screen SmartPhone with EPD back screen Trade ................................................................... : YotaPhone Model and /or type reference .............................. : YD205 Other identification of the product .................... : FCC ID: 2ADHW205 IC: 12469A-205 Final HW version ................................................ : P2 Final SW version ................................................. : 4.4.3-S01-003-US1.0.3.63a Features ................................................................ : CPU: Qualcomm Snapdragon 801, quad-core 2.26 GHz Network: GSM 850, 900, 1800, 1900 MHz, UMTS/HSPA+/DC-HSDPA 850,900,1900,1700/2100,2100 MHz; LTE CAT4 B2 MIMO,B3 MIMO, B4 MIMO, B5 MIMO, B7 MIMO, B12 MIMO and B20 MIMO Connectivity: WiFi 802.11 a/b/g/n/ac, USB 2.0, BT v4.0 LE, GPS w/A-GPS + Glonass, NFC Manufacturer ....................................................... : YOTA DEVICES LTD Arch. Makariou & Kalograion, 4, Nicolaides Sea View City, 9th Floor, Flat/Offices 903 -904, Block A-B, 6016, Larnaca, Cyprus Test method requested, standard........................ : 1. FCC 47 CFR Part 2.1093. (10-1-14 Edition) – Radiofrequency radiation exposure evaluation: portable devices. 2. FCC OET KDB 447498 D01 General RF Exposure Guidance v05r02 (February 2014). 3. FCC OET KDB 865664 D01 v01r03 – SAR Measurement Requirements for 100 MHz to 6 GHz (February 2014). 4. FCC OET KDB 248227 D01 - v01r02 – SAR Measurements Procedures 802.11a/b/g Transmitters (May 2007 – Revised). 5. FCC OET KDB 941225 D01-v03 – 3G SAR Measurement Procedures (October 2014). AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 2015-05-21 6. FCC OET KDB 648474 D04 - v01r02 – SAR Evaluation Considerations for Wireless Handsets (Dec 2013). 7. FCC OET KDB 941225 D07 UMPC Mini Tablet v01r01 – SAR Evaluation Procedures for UMPC Mini-Tablet Devices 8. FCC OET KDB 941225 D06 Hot Spot SAR v02 – SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities. 9. IC RSS-102 Issue 5. Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands). 10. Canada`s Safety Code No.6 – Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz to 300 GHz . Summary .............................................................. : Considering the results of the performed test according to FCC 47CFR Part 2.1093, the item under test is IN COMPLIANCE with the requested specifications specified in the standards. The maximum 1g volume averaged SAR for standalone transmission found during this test has been 1.176 W/kg, for body position and WCDMA IV Band. The maximum 1g volume averaged SAR for multiband transmission found during this test has been 1.372 W/kg, for body position. NOTE: The results presented in this Test Report apply only to the particular item under test established in page 1 of this document, as presented for test on the date(s) shown in section, “USAGE OF SAMPLES, TESTING PERIOD AND ENVIRONMENTAL CONDITIONS”. Approved by (name / position & signature) ...... : A. Llamas RF Lab. Manager Date of issue ......................................................... : 2015-05-21 Report template No.............................................. : FDT08_16 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 3 of 197 2015-05-21 Index Competences and guarantees ......................................................................................................................... 4 General conditions ......................................................................................................................................... 4 Uncertainty .................................................................................................................................................... 4 Usage of samples ........................................................................................................................................... 5 Test sample description ................................................................................................................................. 5 Identification of the client ............................................................................................................................. 5 Testing period ................................................................................................................................................ 5 Environmental conditions .............................................................................................................................. 5 Remarks and comments ................................................................................................................................. 6 Testing verdicts ............................................................................................................................................. 7 Appendix A – Test configuration .................................................................................................................. 9 Appendix B – Test results ........................................................................................................................... 23 Appendix C …

Text truncated - open the document above for the full version.

AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 137 of 197 2015-05-21 Appendix E – Calibration data AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 138 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 139 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 140 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 141 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 142 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 143 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 144 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 145 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 146 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 147 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 148 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 149 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 150 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 151 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 152 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 153 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 154 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 155 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 156 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 157 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 158 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 159 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 160 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 161 of 197 2015-05-21 AT4 wireless, S.A. Parque Tecnológico de Andalucía, c/ Severo Ochoa nº 2 · 29590 Campanillas · Málaga · España www.at4wireless.com · C.I.F. A29 507 456 Report No: (NIE) 45636RRF.004 Page 162 of 197 2015-05-21 AT4 wi…
