2ADINN5004LLTE PDA

Getting Started With Your LTE PDA Model: N5004L 3 Front/Back N5004L OverviewIndex N5004L Overview 3 Setting up Your Phone 4 Safety information 6 Certificate 10 Warranty information & Registration 12 Customer Support 13 Bottom Volume control Wake/Sleep button Rear camera flash Rear camera Speaker Type-C connector 45 Setting Up Your Phone Follow these step-by-step instructions to set up your N5004L. Power off the phone before inserting any cards! Remove Back Cover • Remove the back cover by prying the lower left corner of your device. Insert SIM • Orient SIM card to match diagram on slot. • SIM (Nano) support 4G LTE connections. Replace Back Cover • After installing the SIM card, memory card, and battery, align the cover and snap it closed. Be sure to press all around the edges to ensure a secure fit. Charge/Sync • Plug in the type C connector to charge the phone or transfer data. 1 1 2 2 3 3 4 4 Warning: SIM cards are small enough to become a choking hazard, so please keep them away from children & pets. SIM cards are also quite delicate. Please be careful when handling your card. 67 Safety information • This section contains important information about the operation of your device, it also contains information about how to use the device safely. Read this information carefully before using your device. Electronic device Do not use your device if using the device is prohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interference with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wireless devices may affect the performance of hearing aids or pacemakers. Consult your service provider for more information. • Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Protecting your hearing when using a headset • To prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. To reduce this risk, lower the headset volume to a safe and comfortable level. • Exposure to high volumes while driving may cause distraction and increase your risk of an accident. Areas with flammables and explosives • Do not use the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not store or transport the device in containers with flammable liquids, gases, or explosives. Traffic security • Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. • Concentrate on driving. Your first responsibility is to drive safely. • Do not hold the device while driving. Use hands-free accessories. • When you must make or answer a call, pull off the road safely and park the vehicle first. • RF signals may affect the electronic systems of motor vehicles. For more information, consult the vehicle manufacturer. • Do not place the device over the air bag or in the air bag deployment area in a motor vehicle. Doing so may hurt you because of the strong force when the air bag inflates. • Wireless devices may interfere with the airplane’s flight system. Do not use your device where wireless devices are not allowed according to the airplane company’s regulations. Operating environment • Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these environments may result in circuit malfunctions. Do not use your device during thunderstorms to protect your device against any danger caused by lightning. • Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to 45 °C. Extreme heat or cold may damage your device or accessories. • Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged periods. • To protect your device or accessories from fire or electrical shock hazards, avoid rain and moisture. • Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove, water heater, radiator, or candle. • Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury. • Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature burn symptoms, such as red spots and darker pigmentation, may occur. • Do not use your device’s camera flash directly in the eyes of people or pets. Otherwise temporary loss of vision or damage to the eyes may occur. • Do not touch the device’s antenna. Otherwise, communication quality may be reduced. • Do not allow children or pets to bite or suck the device or accessories. Doing so may result in damage or explosion. • Observe local laws and regulations, and respect the privacy and legal rights of others. Child safety • Comply with all precautions with regard to child’s safety. Letting children play with the device or its accessories may be dangerous. The device includes detachable parts that may present a choking hazard. Keep away from children. • The device and its accessories are not intended for use by children. Children should only use the device with adult supervision. Accessories • Using an unapproved or incompatible power adapter, charger or battery may cause fire, explosion or other hazards. • Choose only accessories approved for use with this model by the device manufacturer. The use of any other types of accessories may void the warranty, may violate local regulatio…

Text truncated - open the document above for the full version.

QA-FR-170-B Sun Cupid Technology (HK) Ltd. ADD: 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon,Hong Kong TEL: +852-2725 0161 FAX: +852- 27250090 Mail: [email protected] FCC Authorization Date: 2020-07-09 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Ro ad Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Sun Cup id Technology (HK) Ltd. Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to app lication for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice fro m the applicant. Sincerely Yours, Client’s signature Printed Name: Danny Sit Title: Manager

QA-FR-171-A Sun Cupid Technology (HK) Ltd. ADD: 16/F, CEO Tower, 77 Wing Hong St,Cheung Sha Wan, Kowloon,Hong Kong TEL: +852-2725 0161 FAX: +852- 27250090 Mail: [email protected] Block Diagra m Schematics Operation Description BOM/ Tune up procedure( for licensed device) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed name Danny Sit Title Manager FCC Confidential Authorization Date: 2020-0 7-09 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Co lumbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ADINN5004L In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Sun Cupid Technology (HK) Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below:

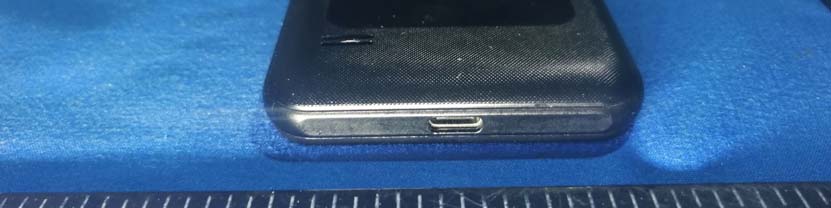

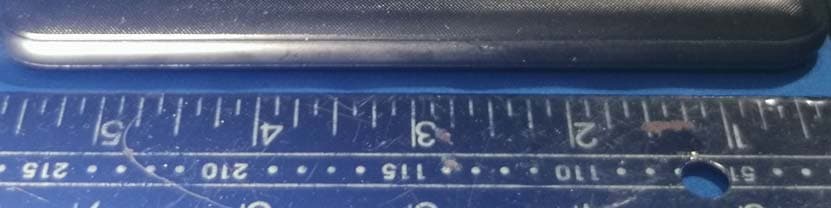

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

FCC ID:

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS NFC Coil WIFI/BT Antenna GSM/WCDMA/LTE Main Antenna LTE Aux Antenna

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Sun Cupid Technology (HK) Ltd. 16/F,CEO Tower,77 Wing Hong Street,Cheung Sha Wan,Kowloon,Hong Kong. FCC ID: 2ADINN5004L Report Type: Original Report Product Type: LTE PDA Report Number: RDG200526012-20A Report Date: 2020-07-09 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200526012-20A SAR Evaluation Report 2 of 84 Note:For LTE Band 71 test data please refer to the report RDG200526012-20B, which was issued by Bay Area Compliance Laboratories Corp. (Shenzhen). Attestation of Test Results EUT Information EUT Description LTE PDA Tested Model N5004L FCC ID 2ADINN5004L Serial Number RDG200526012-SA-S1 Test Date 2020-06-11~ 2020-06-14 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Body SAR 0.61 1.6 PCS 1900 1g Body SAR 0.49 WCDMA Band 2 1g Body SAR 0.77 WCDMA Band 4 1g Body SAR 0.99 WCDMA Band 5 1g Body SAR 0.61 LTE Band 2 1g Body SAR 0.70 LTE Band 5 1g Body SAR 0.63 LTE Band 7 1g Body SAR 0.67 LTE Band 12 1g Body SAR 0.49 LTE Band 66&4 1g Body SAR 1.17 LTE Band 71 1g Body SAR 0.49 WLAN 2.4G 1g Body SAR 0.47 WLAN 5.2G 1g Body SAR 0.08 WLAN 5.8G 1g Body SAR 0.22 Bluetooth 1g Body SAR 0.06 Simultaneous 1g Body SAR 1.46 1g Body SAR 1.46 (Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequenc y range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200526012-20A SAR Evaluation Report 3 of 84 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION .................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 6 SAR LIMITS ................................................................................................................................................................. 7 FACILITIES .................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 19 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 20 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 26 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 26 CHEEK/TOUCH POSITION ........................................................................................................................................... 27 EAR/TILT POSITION ................................................................…

Text truncated - open the document above for the full version.

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. SAR TEST REPORT For Sun Cupid Technology (HK) Ltd. 16/F,CEO Tower,77 Wing Hong Street,Cheung Sha Wan,Kowloon,Hong Kong. FCC ID: 2ADINN5004L Report Type: Original Report Product Type: LTE PDA Report Number: RDG200526012-20B Report Date: 2020-06-19 Reviewed By: Yates Li SAR Engineer Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 2 of 36 Attestation of Test Results EUT Information EUT Description LTE PDA Tested Model N5004L FCC ID 2ADINN5004L Serial Number RDG200526012-SA-S1 Test Date 2020/05/29 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) LTE Band 71 1g Body SAR 0.49 1.6 Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) IEC 62209-2:2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices-Human models, instrumentation, and procedures-Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D05 SAR for LTE Devices v02r05 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Note: Except LTE Band 71,other test data please refer to the report RSZ200526012-20A,which was issued by Bay Area Compliance Laboratories Corp. (Dongguan) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 3 of 36 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 EUT DESCRIPTION ................................................................................................................................................... 5 TECHNICAL SPECIFICATION ......................................................................................................................................... 5 REFERENCE, STANDARDS, AND GUIDELINES ................................................................................................. 6 SAR LIMITS ................................................................................................................................................................ 7 FACILITIES ................................................................................................................................................................. 8 DESCRIPTION OF TEST SYSTEM .......................................................................................................................... 9 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 15 EQUIPMENTS LIST & CALIBRATION INFORMATION ................................................................................................... 15 SAR MEASUREMENT SYSTEM VERIFICATION ............................................................................................. 16 LIQUID VERIFICATION ............................................................................................................................................... 16 SYSTEM ACCURACY VERIFICATION .......................................................................................................................... 17 SAR SYSTEM VALIDATION DATA .................................................................................................................... 18 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 19 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................... 19 CHEEK/TOUCH POSITION ................................................................................................…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Report No.: RDG200526012-20A SAR Plots Plot 1# Test Plot 1#: GSM 850_ Body Worn Front_Mid DUT: LTE PDA; Type: N5004L; Serial: RDG200526012-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.905 S/m; ε r = 41.492; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.369 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.49 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.402 W/kg SAR(1 g) = 0.310 W/kg; SAR(10 g) = 0.236 W/kg Maximum value of SAR (measured) = 0.370 W/kg 0 dB = 0.370 W/kg = -4.32 dBW/kg Report No.: RDG200526012-20A SAR Plots Plot 2# Test Plot 2#: GSM 850_ Body Worn Back_Mid DUT: LTE PDA; Type: N5004L; Serial: RDG200526012-SA-S1 Communication System: Generic GSM; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium parameters used: f = 836.6 MHz; σ = 0.905 S/m; ε r = 41.492; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.717 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.74 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.893 W/kg SAR(1 g) = 0.465 W/kg; SAR(10 g) = 0.255 W/kg Maximum value of SAR (measured) = 0.722 W/kg 0 dB = 0.722 W/kg = -1.41 dBW/kg Report No.: RDG200526012-20A SAR Plots Plot 3# Test Plot 3#: GSM 850_ Body Front_Mid DUT: LTE PDA; Type: N5004L; Serial: RDG200526012-SA-S1 Communication System: Generic GPRS-4 slots; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.905 S/m; ε r = 41.492; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.462 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.20 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.525 W/kg SAR(1 g) = 0.394 W/kg; SAR(10 g) = 0.298 W/kg Maximum value of SAR (measured) = 0.482 W/kg 0 dB = 0.482 W/kg = -3.17 dBW/kg Report No.: RDG200526012-20A SAR Plots Plot 4# Test Plot 4#: GSM 850_ Body Back _Mid DUT: LTE PDA; Type: N5004L; Serial: RDG200526012-SA-S1 Communication System: Generic GPRS-4 slots; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.905 S/m; ε r = 41.492; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (61x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.950 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.02 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.597 W/kg; SAR(10 g) = 0.326 W/kg Maximum value of SAR (measured) = 0.941 W/kg 0 dB = 0.941 W/kg = -0.26 dBW/kg Report No.: RDG200526012-20A SAR Plots Plot 5# Test Plot 5#: GSM 850_ Body Left _Mid DUT: LTE PDA; Type: N5004L; Serial: RDG200526012-SA-S1 Communication System: Generic GPRS-4 slots; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.905 S/m; ε r = 41.492; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Version 52.10 (2); SEMCAD X Version 14.6.12 (7470) Area Scan (41x111x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.461 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.76 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.527 W/kg SAR(1 g) = 0.357 W/kg; SAR(10 g) = 0.245 W/kg Maximum value of SAR (measured) = 0.470 W/kg 0 dB = 0.470 W/kg = -3.28 dBW/kg Report No.: RDG200526012-20A SAR Plots Plot 6# Test Plot 6#: GSM 850_ Body Right_Mid DUT: LTE PDA; Type: N5004L; Serial: RDG200526012-SA-S1 Communication System: Generic GPRS-4 slots; Frequency: 836.6 MHz;Duty Cycle: 1:2 Medium parameters used: f = 836.6 MHz; σ = 0.905 S/m; ε r = 41.492; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration:  Probe: EX3DV4 - SN7329; ConvF(9.97, 9.97, 9.97) @ 836.6 MHz; Calibrated: 2019/10/22  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn772; Calibrated: 2019/10/6  Phantom: Twin SAM; Type: Twin SAM V5.0; Serial: TP:1412  Measurement SW: DASY52, Vers…

Text truncated - open the document above for the full version.

Report No.: RDG200526012-20 Page 1 of 4 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom Type: Twin SAM; Model: Twin SAM V5.0; S/N: 1412 Body Back Setup Photo(10 mm) 10mm Report No.: RDG200526012-20 Page 2 of 4 Body Front Setup Photo(10 mm) Body Left Setup Photo(10 mm) 10mm 10mm Report No.: RDG200526012-20 Page 3 of 4 Body Right Setup Photo(10 mm) Body Top Setup Photo(10 mm) 10mm 10mm Report No.: RDG200526012-20 Page 4 of 4 Body Bottom Setup Photo(10 mm) 10mm

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 1 of 15 APPENDIX C PROBE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 2 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 3 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 4 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 5 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 6 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 7 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 8 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 9 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 10 of 15 APPENDIX D DIPOLE CALIBRATION CERTIFICATES Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 11 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 12 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 13 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 14 of 15 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B SAR Evaluation Report 15 of 15

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B Page 1 of 8 Test Plot 1#: LTE Band 71_Body Back_1RB_Middle DUT: LTE PDA; Type: N5004L; Serial:RDG200526012-SA-S1; Communication System: UID 0, Generic FDD-LTE (0); Frequency: 680.5 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 680.5 MHz; σ = 0.88 S/m; ε r = 41.709; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY5 Configuration: • Probe: EX3DV4 - SN7522; ConvF(9.92, 9.92, 9.92) @ 680.5 MHz; • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1562; Calibrated: 03/03/2020 • Phantom: SAM-Twin V8.0 P1aP2a; Type: QD 000 P41 AA ; Serial: 1962 • Measurement SW: DASY52, Version 52.10 (2); Body Back/LTE Band 71 1RB Mid/Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.401 W/kg Body Back/LTE Band 71 1RB Mid/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.64 V/m; Power Drift = -0.14 dB Peak SAR (extrapolated) = 0.485 W/kg SAR(1 g) = 0.387 W/kg; SAR(10 g) = 0.288 W/kg Maximum value of SAR (measured) = 0.395 W/kg 0 dB = 0.395 W/kg = -4.03 dBW/kg Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RDG200526012-20B Page 2 of 8 Test Plot 2#: LTE Band 71_Body Back_50%RB_Middle DUT: LTE PDA; Type: N5004L; Serial:RDG200526012-SA-S1; Communication System: UID 0, Generic FDD-LTE (0); Frequency: 680.5 MHz;Duty Cy…
