2ADINN5502LLTE Mobile Phone

Getting Started With Your 4G LTE mobile phone Model: A10L, N5502L N5502L For FCC and IC certification only Index A10L Overview 3 Setting Up Your Phone 4 Safety Information 6 Certificate 10 Warranty Information & Registration 14 Customer Support 15 For FCC and IC certification only 3 Front/Back A10L Overview To p Bottom Wake/ Sleep button microUSB connector Microphone Volume control Rear camera & flash AUX-In/ Headset jack Front camera Earpiece & Speaker Speaker For FCC and IC certification only 4 Setting Up Your Phone Follow these step-by-step instructions to set up your A10L. Power off the phone before inserting any cards! Remove Back Cover • Remove the back cover by prying the lower left corner of your device. Insert SIM • Orient SIM card to match diagram on slot. • SIM (Nano) support 4G LTE connections. 1 3 2 2 6 For FCC and IC certification only 5 Follow these step-by-step instructions to set up your A10L. Power off the phone before inserting any cards! Insert microSD™ Memory Card (Optional) • Remember to power off the phone and remove battery before inserting memory card. Insert the Battery • Align the battery contacts, then insert the battery contact-first. Replace Back Cover • After installing the SIM card, memory card, and battery, align the cover and snap it closed. Be sure to press all around the edges to ensure a secure fit. Charge/Sync • Plug in the micro USB connector to charge the phone or transfer data. 1 3 4 4 5 5 6 Warning: SIM cards are small enough to become a choking hazard, so please keep them away from children & pets. SIM cards are also quite delicate. Please be careful when handling your card. For FCC and IC certification only 6 Saf ety information • This section contains important information about the operation of your device, it also contains information about how to use the device safely . Read this information carefully before using your device. Electr onic device Do not use your device if using the device is pr ohibited. Do not use the device if doing so causes danger or interference with other electronic devices. Interfer ence with medical equipment • Follow rules and regulations set forth by hospitals and health care facilities. Do not use your device where prohibited. • Some wir eless devices may affect the performance of hearing aids or pacemakers. Consult your service pr ovider for more information. • Pacemaker manufactur ers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to pr event potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. Pr otecting your hearing when using a headset • T o prevent possible hearing damage, do not listen at high volume levels for long periods. • Using a headset at high volumes may damage your hearing. T o reduce this risk, lower the headset volume to a safe and comfortable level. • Exposur e to high volumes while driving may cause distraction and increase your risk of an accident. Ar eas with flammables and explosives • Do not use the device wher e flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these envir onments increases the risk of explosion or fire. In addition, follow the instructions indicated in text or symbols. • Do not stor e or transport the device in containers with flammable liquids, gases, or explosives. T raffic security • Observe local laws and r egulations while using the device. To reduce the risk of accidents, do not use your wir eless device while driving. • Concentrate on driving. Y our first responsibility is to drive safely. • Do not hold the device while driving. Use hands-fr ee accessories. • When you must make or answer a call, pull of f the road safely and park the vehicle first. • RF signals may af fect the electronic systems of motor vehicles. For more information, consult the vehicle manufactur er. • Do not place the device over the air bag or in the air bag deployment ar ea in a motor vehicle. Doing so may hurt you because of the str ong force when the air bag inflates. • W ireless devices may interfere with the airplane’s flight system. Do not use your device where wir eless devices are not allowed according to the airplane company’s regulations. Operating environment • A void dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these envir onments may result in circuit malfunctions. Do not use your device during thunderstorms For FCC and IC certification only 7 to protect your device against any danger caused by lightning. • Ideal operating temperatures ar e 0 °C to 35 °C. Ideal storage temperatures are -20 °C to 45 °C. Extreme heat or cold may damage your device or accessories. • Do not expose your device to direct sunlight (such as on a car dashboar d) for prolonged periods. • To pr otect your device or accessories from fire or electrical shock hazards, avoid rain and moisture. • Keep the device away from sour ces of heat and fire, such as a heater, microwave oven, stove, water heater, radiator , or candle. • Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece may attract these objects and result in injury . • Stop using your device or applications for a while if the device is overheated. If skin is exposed to an overheated device for an extended period, low temperature bur n symptoms, such as red spots and darker pigmentation, may occur. • Do not use your device’s camera flash directly in the eyes of people or pets. Otherwise temporary loss of vision or damage to the eyes may occur. • Do not touch the device’s antenna. Otherwise, communication quality may be r educed. • Do not allow children or pets to bite or suck the device or accessories. Doing so may r esult in damage or explosion. • Observe local laws and regulations, and r espect the privacy and legal rights of others. Child safety • Comply with…

Text truncated - open the document above for the full version.

QA-FR-170-B Sun Cupid Technology (HK) Ltd. ADD: 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon,Hong Kong TEL: +852-2725 0161 FAX: +852- 27250090 Mail: [email protected] FCC Authorization Date: 2020-05-29 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Sun Cupid Technology (HK) Ltd. Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Danny Sit Title: Manager

QA-FR-171-A Sun Cupid Technology (HK) Ltd. ADD: 16/F, CEO Tower, 77 Wing Hong St,Cheung Sha Wan, Kowloon,Hong Kong TEL: +852-2725 0161 FAX: +852- 27250090 Mail: [email protected] FCC Confidential Authorization Date: 2020-05-29 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046  Block Diagram  Schematics  Operation Description  BOM/ Tune up procedure( for licensed device) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed name Danny Sit Title Manager Subject: Confidentiali ty Request regarding application for certification of FCC ID: 2ADINN5502L In accordance with Se ctions 0.457 and 0.459 of the Commission’s Ru les, Sun Cupid Technology (HK) Ltd. hereby requests long-term confi dential treatment of in formation accompany ing this application a s outlined be low:

Sun Cupid Technology (HK) Ltd. Add: 16/F, CEO Tower, 77 Wing Hong St,Cheung Sha Wan, Kowloon,Hong Kong Tel: +852-2725 0161 Fax: +852- 27250090 Email: [email protected] DECLARATION OF SIMILARITY Date: 2020-05-29 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. We, Sun Cupid Technology ( HK) Ltd. , hereby declare that t he product: LTE Mobile Phone, FCC ID: 2ADINN55 02L. model:A10 L is electrica lly identica l with the model:N 5502L which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. Best Regar ds, Signature: Printe d Name: D anny Sit Title: Manager

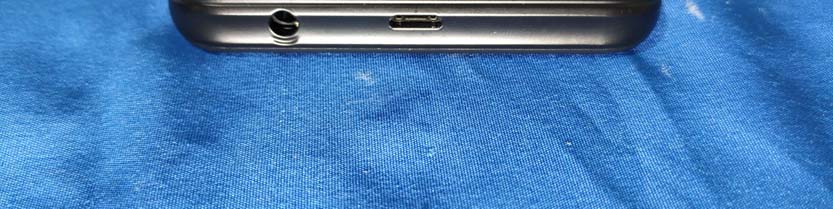

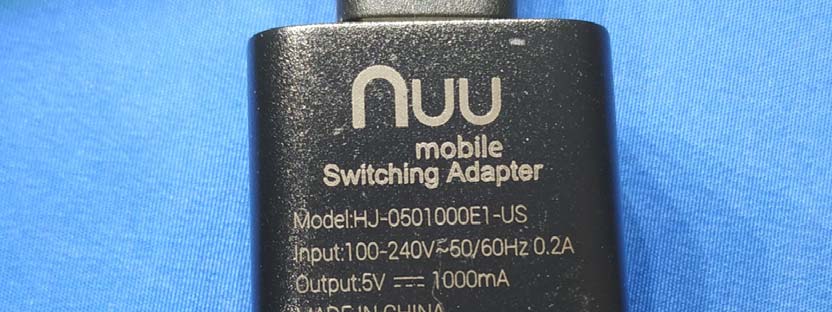

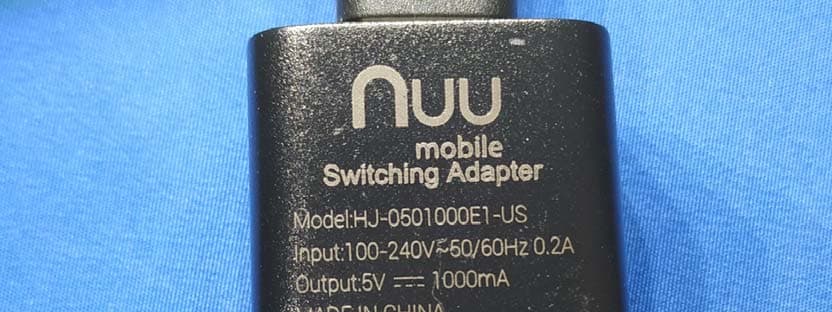

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS ANT -2G/3G/4G ANT- GPS ANT –BT/WIFI

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*”. SAR EVALUATION REPORT For Sun Cupid Technology (HK) Ltd. 16/F,CEO Tower,77 Wing Hong Street,Cheung Sha Wan,Kowloon,Hong Kong. FCC ID: 2ADINN5502L Report Type: Original Report Product Type: LTE Mobile Phone Report Number: RDG200424004-20 Report Date: 2020-05-26 Reviewed By: Rocky Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200424004-20 SAR Evaluation Report 2 of 98 Attestation of Test Results EUT Information EUT Description LTE Mobile Phone Tested Model N5502L Multiple Model A10L FCC ID 2ADINN5502L Serial Number RDG200424004-SA-S1 Test Date 2020-4-30~ 2020-5-5 MODE Max. SAR Level(s) Reported(W/kg) Limit (W/kg) GSM 850 1g Head SAR 0.38 1.6 1g Body SAR 0.53 PCS 1900 1g Head SAR 0.46 1g Body SAR 0.61 WCDMA Band 2 1g Head SAR 0.72 1g Body SAR 0.88 WCDMA Band 4 1g Head SAR 0.28 1g Body SAR 0.46 WCDMA Band 5 1g Head SAR 0.48 1g Body SAR 0.47 LTE Band 2 1g Head SAR 0.59 1g Body SAR 0.97 LTE Band 5 1g Head SAR 0.34 1g Body SAR 0.33 LTE Band 7 1g Head SAR 0.71 1g Body SAR 0.23 LTE Band 12&17 1g Head SAR 0.16 1g Body SAR 0.31 LTE Band 66&4 1g Head SAR 0.57 1g Body SAR 0.62 Wi-Fi 2.4G 1g Head SAR 0.23 1g Body SAR 0.20 Wi-Fi 5.2G 1g Head SAR 0.89 1g Body SAR 0.24 Wi-Fi 5.8G 1g Head SAR 0.73 1g Body SAR 0.20 Bluetooth 1g Head SAR 0.02 1g Body SAR 0.01 Simultaneous 1g Head SAR 1.50 1g Body SAR 1.17 1g Body SAR 1.17(Hotspot) Applicable Standards FCC 47 CFR part 2.1093 Radiofrequency radiation exposure evaluation: portable devices RF Exposure Procedures: TCB Workshop April 2019 IEEE1528:2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200424004-20 SAR Evaluation Report 3 of 98 Applicable Standards IEC 62209-1:2016 Measurement procedure for the assessment of specific absorption rate of human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices – Part 1: Devices used next to the ear (Frequency range of 300 MHz to 6 GHz) KDB procedures KDB 447498 D01 General RF Exposure Guidance v06 KDB 648474 D04 Handset SAR v01r03 KDB 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04 KDB 865664 D02 RF Exposure Reporting v01r02 KDB 941225 D01 3G SAR Procedures v03r01 KDB 941225 D05 SAR for LTE Devices v02r05 KDB 941225 D06 Hotspot Mode v02r01 KDB 248227 D01 802 11 Wi-Fi SAR v02r02 Note: This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in FCC 47 CFR part 2.1093 and has been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and RF exposure KDB procedures. The results and statements contained in this report pertain only to the device(s) evaluated. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200424004-20 SAR Evaluation Report 4 of 98 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 5 EUT DESCRIPTION .................................................................................................................................................... 6 TECHNICAL SPECIFICATION ......................................................................................................................................... 6 REFERENCE, STANDARDS, AND GUIDELINES .................................................................................................. 7 SAR LIMITS ................................................................................................................................................................. 8 FACILITIES .................................................................................................................................................................. 9 DESCRIPTION OF TEST SYSTEM ........................................................................................................................ 10 EQUIPMENT LIST AND CALIBRATION ............................................................................................................. 16 EQUIPMENTS LIST & CALIBRATION INFORMATION .................................................................................................... 16 SAR MEASUREMENT SYSTEM VERIFICATION .............................................................................................. 17 LIQUID VERIFICATION ............................................................................................................................................... 17 SYSTEM ACCURACY VERIFICATION ........................................................................................................................... 20 SAR SYSTEM VALIDATION DATA ..................................................................................................................... 22 EUT TEST STRATEGY AND METHODOLOGY ................................................................................................. 31 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR........................................................................ 31 CHE…

Text truncated - open the document above for the full version.

PROBE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES DIPOLE CALIBRATION CERTIFICATES

Test Plot 1 DUT: LTE Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 1#: GSM 850 E Mobile Pho cation System arameters use ection: Left S onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x121x1): value of SA R an (7x8x7)/Cu Value = 4.26 (extrapolate d = 0.291 W/kg value of SAR 0 dB = 0. 0_Head Left C one; Type: N5 m: Generic GSM d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C M (30deg prob SW: DASY52 Interpolated R (interpolated ube 0: Measur 1 V/m; Power d) = 0.372 W/k g; SAR(10 g) R (measured) = .340 W/kg = - Cheek_Middl 5502L; Seria M; Frequency MHz; σ = 0.93 ConvF(9.97, 9 chanical Surfa Calibrated: 201 e tilt) with CR , Version 52.1 grid: dx=1.50 d) = 0.354 W/k rement grid: d r Drift = -0.17 kg = 0.224 W/k g = 0.340 W/kg -4.69 dBW/kg le al: RDG20042 y: 836.6 MHz; 34 S/m; ε r = 42 9.97, 9.97) @ ace Detection 19/10/6 RP v5.0_2015 10 (2); SEMCA 00 mm, dy=1.5 kg dx=8mm, dy=8 7 dB g g g 24004-SA-S1 ;Duty Cycle: 1 2.514; ρ = 100 836.6 MHz; C ) 0321; Type: Q AD X Version 500 mm 8mm, dz=5mm Repo 1:8 00 kg/m 3 ; Calibrated: 20 QD000P40CD n 14.6.12 (747 m ort No.: RDG2 19/10/22 D; Serial: TP:1 70) 200424004-20 Page 1 of 1 874 0 88 Test Plot 2 DUT: LTE Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 2#: GSM 850 E Mobile Pho cation System arameters use ection: Left S onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x121x1): value of SA R an (7x8x7)/Cu Value = 5.400 (extrapolated = 0.189 W/kg value of SAR 0 dB = 0. 0_Head Left T one; Type: N5 m: Generic GSM d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C M (30deg prob SW: DASY52 Interpolated R (interpolated ube 0: Measur 0 V/m; Power d) = 0.227 W/k g; SAR(10 g) R (measured) = .215 W/kg = - Tilt_Middle 5502L; Seria M; Frequency MHz; σ = 0.93 ConvF(9.97, 9 chanical Surfa Calibrated: 201 e tilt) with CR , Version 52.1 grid: dx=1.50 d) = 0.240 W/k rement grid: d r Drift = -0.12 kg = 0.152 W/k g = 0.215 W/kg -6.68 dBW/kg al: RDG20042 y: 836.6 MHz; 34 S/m; ε r = 42 9.97, 9.97) @ ace Detection 19/10/6 RP v5.0_2015 10 (2); SEMCA 00 mm, dy=1.5 kg dx=8mm, dy=8 2 dB g g g 24004-SA-S1 ;Duty Cycle: 1 2.514; ρ = 100 836.6 MHz; C ) 0321; Type: Q AD X Version 500 mm 8mm, dz=5mm Repo 1:8 00 kg/m 3 ; Calibrated: 20 QD000P40CD n 14.6.12 (747 m ort No.: RDG2 19/10/22 D; Serial: TP:1 70) 200424004-20 Page 2 of 1 874 0 88 Test Plot 3 DUT: LTE Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 3#: GSM 850 E Mobile Pho cation System arameters use ection: Right onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (81x151x1): value of SA R an (7x7x7)/Cu Value = 5.41 (extrapolate d = 0.368 W/kg value of SAR 0 dB = 0. 0_Head Right one; Type: N5 m: Generic GSM d: f = 836.6 M Section V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C M (30deg prob SW: DASY52 Interpolated R (interpolated ube 0: Measur 1 V/m; Power d) = 0.459 W/k g; SAR(10 g) R (measured) = .427 W/kg = - t Cheek_Mid 5502L; Seria M; Frequency MHz; σ = 0.93 ConvF(9.97, 9 chanical Surfa Calibrated: 201 e tilt) with CR , Version 52.1 grid: dx=1.20 d) = 0.431 W/k rement grid: d r Drift = 0.05 kg = 0.289 W/k g = 0.427 W/kg -3.70 dBW/kg dle al: RDG20042 y: 836.6 MHz; 34 S/m; ε r = 42 9.97, 9.97) @ ace Detection 19/10/6 RP v5.0_2015 10 (2); SEMCA 00 mm, dy=1.2 kg dx=8mm, dy=8 dB g g g 24004-SA-S1 ;Duty Cycle: 1 2.514; ρ = 100 836.6 MHz; C ) 0321; Type: Q AD X Version 200 mm 8mm, dz=5mm Repo 1:8 00 kg/m 3 ; Calibrated: 20 QD000P40CD n 14.6.12 (747 m ort No.: RDG2 19/10/22 D; Serial: TP:1 70) 200424004-20 Page 3 of 1 874 0 88 Test Plot 4 DUT: LTE Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 4#: GSM 850 E Mobile Pho cation System arameters use ection: Right onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x121x1): value of SA R an (7x8x7)/Cu Value = 5.857 (extrapolated = 0.168 W/kg value of SAR 0 dB = 0. 0_Head Right one; Type: N5 m: Generic GSM d: f = 836.6 M Section V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C M (30deg prob SW: DASY52 Interpolated R (interpolated ube 0: Measur 7 V/m; Power d) = 0.209 W/k g; SAR(10 g) R (measured) = .195 W/kg = - t Tilt_Middle 5502L; Seria M; Frequency MHz; σ = 0.93 ConvF(9.97, 9 chanical Surfa Calibrated: 201 e tilt) with CR , Version 52.1 grid: dx=1.50 d) = 0.190 W/k rement grid: d r Drift = 0.15 kg = 0.135 W/k g = 0.195 W/kg -7.10 dBW/kg e al: RDG20042 y: 836.6 MHz; 34 S/m; ε r = 42 9.97, 9.97) @ ace Detection 19/10/6 RP v5.0_2015 10 (2); SEMCA 00 mm, dy=1.5 kg dx=8mm, dy=8 dB g g g 24004-SA-S1 ;Duty Cycle: 1 2.514; ρ = 100 836.6 MHz; C ) 0321; Type: Q AD X Version 500 mm 8mm, dz=5mm Repo 1:8 00 kg/m 3 ; Calibrated: 20 QD000P40CD n 14.6.12 (747 m ort No.: RDG2 19/10/22 D; Serial: TP:1 70) 200424004-20 Page 4 of 1 874 0 88 Test Plot 5 DUT: LTE Communi c Medium pa Phantom s DASY5 C o  Pr  Se  E  P h  M Area Sca n Maximum Zoom Sc a Reference Peak SAR SAR(1 g) = Maximum 5#: GSM 850 E Mobile Pho cation System arameters use ection: Flat S e onfiguration: robe: EX3DV ensor-Surface lectronics: DA hantom: SAM Measurement S n (71x121x1): value of SA R an (7x8x7)/Cu Value = 19.46 (extrapolated = 0.432 W/kg value of SAR 0 dB = 0. 0_Body Worn one; Type: N5 m: Generic GSM d: f = 836.6 M ection V4 - SN7329; C e: 1.4mm (Mec AE4 Sn772; C M (30deg prob SW: DASY52 Interpolated R (interpolated ube 0: Measur 6 V/m; Power d) = 0.743 W/k g; SAR(10 g) R (measured) = .603 W/kg = - n Back_Midd 5502L; Seria M; Frequency MHz; σ = 0.93 ConvF(9.97, 9 chanical Surfa Calibrated: 201 e tilt) with CR , Version 52.1 grid: dx=1.50 d) = 0.542 W/k rement grid: d r Drift = 0.02 kg = 0.309 W/k g = 0.603 W/kg -2.20 dBW/kg dle al: RDG2004…

Text truncated - open the document above for the full version.

Report No.: RDG200424004-20 Page 1 of 6 APPENDIX B EUT TEST POSITION PHOTOS Liquid depth ≥ 15cm Phantom: SAM (30deg probe tilt) with CRP v5.0_20150321; Type: QD000P40CD; Serial: TP:1874 Report No.: RDG200424004-20 Page 2 of 6 Head Left Cheek Setup Photo Head Left Tilt Setup Photo Report No.: RDG200424004-20 Page 3 of 6 Head Right Cheek Setup Photo Head Right Tilt Setup Photo Report No.: RDG200424004-20 Page 4 of 6 Body (Worn) Back Setup Photo (10mm) Body (Worn) Front Setup Photo (10mm) 10 mm 10 mm Report No.: RDG200424004-20 Page 5 of 6 Body Left Setup Photo (10mm) Body Right Setup Photo (10mm) 10mm 10mm Report No.: RDG200424004-20 Page 6 of 6 Body Bottom Setup Photo (10mm) Body Top Setup Photo (10mm) 10mm 10mm

FCC PART 15.247 TEST REPORT For Sun Cupid Technology (HK) Ltd. 16/F,CEO Tower,77 Wing Hong Street,Cheung Sha Wan,Kowloon,Hong Kong. Report Type: Original Report Product Name: LTE Mobile Phone Re port Number: RDG200424004-00B Re port Date: 2020-05-18 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID:2ADINN5502L Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200424004-00B Page 2 of 58 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 DECLARATIONS ............................................................................................................................................................ 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SUPPORT CABLE LIST AND DETAILS .......................................................................................................................... 10 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 11 SUMMARY OF TEST RESULTS ............................................................................................................................. 12 FCC §15.247 (i) & §1.1310 & §2.1093- RF EXPOSURE .......................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 16 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 19 APPLICABLE STANDARD ............................................................................................................................................ 19 EUT SETUP ................................................................................................................................................................ 19 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .............................................................................................. 20 TEST PROCEDURE ...................................................................................................................................................... 20 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 20 T…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
