2ADINS5702LSmart phone

1 User Manual Product Name: Smart phone Model Name: X6mini Brand Name: NUU Manufacture: Sun Cupid Technology (HK) Ltd. 2 Table of Contents Safety Information ............................................................ .4 Appearance and Key Function.........................................6 Introduction ......................................................................... 9 Call Functions ..................................................................... 9 Contacts ............................................................................. 11 Message ............................................................................. 14 Camera ................................................................................ 24 Photos ................................................................................. 25 3 Music ................................................................................... 27 Sound Recorder ............................................................... 28 Alarm Clock ....................................................................... 31 Play Store ........................................................................... 33 Settings............................................................................... 34 Storage ............................................................................... 36 FCC Rules Compliance ................................................... 42 IC Notice ............................................................................. 46 4 Safety Information Please carefully read the iterms bellow: Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. Hospitals Please follow limitations. Please turn off your mobile phone when near medical instruments. Airports Remember to follow all airport and flight safety regulations. Please do not use your phone during flight. Toxic Chemicals 5 Do not use your mobile phone around fuels or chemicals. Hazard Do not use in hazardous areas where explosions may occur. Accessories and Batteries Use only Blu authorized batteries and accessories. Backup Remember to keep a written record of all important information. Water Your phone is not waterproof. Keep it away from water and liquids. SOS Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial 911 and send. 6 Appearance and Key Function 3 2 4 5 6 7 9 8 10 11 1 7 1、Earphone 7、Speaker 2、Sub camera 8、Main camera 3、USB port 9、Main2 camera 4、Power key 10、Flash 5、volume button 11、fingerprint 6、Receiver 8 Introduction Power On and Off On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key to switch on the phone. Off - In standby mode, long press on Power key until an options menu appears. Select Power Off in the menu and confirm Security You may set a security lock feature as a security measure for the phone. For further information regarding password locks, password revision and other functions please enter into the security option in system settings. 9 Call Functions At the dial keyboard, enter the phone number and then click the dial key. If dialing an and enter the number of the extension. You may also press and hold the 0 key to add a (+) sign when adding an international dialing prefix. history Every telephone number called and received will be saved in the history. All numbers in the 10 history can be dialed directly by clicking the CALL BACK on the screen. When the number appears on the list, click it to view details. Call Options There are different options that can be used in the history and dialing interface. You may press the MORE while in the dial interface and adjust speed dial and call settings. In the dialing interface, you may press the search button to browse through contacts list or set default contact resources. Contacts Add Contact 11 Enter: Click on the applications menu and select contacts. • The default display is the phone contacts and SIM card contacts. • The contacts are organized alphabetically by default. Click the Search icon to enter the contact search interface.  Any numbers or letters associated with any of the contacts  saved in the list will be shown in the search results. Add New Contact 1. Click the add contact icon (+) to add contact. 2. Select to save your contacts to the Google TM account, the phone or the SIM card. 3. You may enter different contact details which include adding a picture, name, telephone number, group, address, and email among other options. 4. Click to finish and save contact. 12 13 Messages You may use this function to exchange text messages and multimedia messages with your family and friends. The messages to and from the same contact or phone number will be saved into a single conversation so you may see the entire message history conveniently. 14 Send an SMS Application Menu » Messaging » New message (or shortcut icon) 1. Click to enter recipient (You may enter contacts from contact book or enter a new number) 2. Compose Message 3. Send Send an MMS When creating message, the default message style is SMS. The message will automatically convert to MMS when adding an attachment. 1. Click the attachment icon in the messaging interface. 2. Click to add attachments and create an MMS message. Internet Browser Menu Functions •Recent tab • After browsing through multiple pages, this option will return the user to the previous page. 15 Windows • You may view all windows open by clicking the windows icon in the upper right part of the browser. Bookmarks • Click the save to Bookmarks option to make the current URL as a saved Bookmark. • Click Bookmarks/History to opened saved bookmarks. Find on page: Search current page. Share page: Select to share the current page. Bookmarks/History: Show your browsing history and view the most visited pa…

Text truncated - open the document above for the full version.

Sun Cupid Technology (HK) Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2019.12.05 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, Sun Cupid Technology (HK) Ltd. hereby authorize (Shenzhen STS Test Services Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Danny Sit Signature:

Ref : ACR.348.1.19.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK, No.190, CHONGQING ROAD,FUYONG STREET BAO’AN DISTRICT,SHENZHEN,GUANGDONG,CHINA MVG COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 45/15 EPGO281 Calibrated at MVG US 2105 Barrett Park Dr. - Kennesaw, GA 30144 Calibration Date: 03/25/201 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in MVG USA using the CALISAR / CALIBAIR test bench, for use with a COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.348.1.19.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 04/02/2019 Checked by : Jérôme LUC Product Manager 04/02/2019 Approved by : Kim RUTKOWSKI Quality Manager 04/02/2019 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 04/02/2019Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.348.1.19.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lowe r Detection Lim it _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 B oundary Effect __________________________________________________________ 5 4 Me asurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 S ensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment .................................................................................................... 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.348.1.19.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer MVG Model SSE2 Serial Number SN 45/15 EPGO281 Product Condition (new / used) New Frequency Range of Probe 0.45 GHz-6GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.186 M Dipole 2: R2=0.193M Dipole 3: R3=0.19 4 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION MVG’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – MVG COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 2 mm Maximum external diameter 8 mm Probe Tip External Diameter 2.5 mm Distance between dipoles / probe extremity 1 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.348.1.19.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liq…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F., Building B, Zhuoke Science Park, No.190,Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] S T L A B S Testing Engineer : (Aaron Bu) Technical Manager : (Jason Lu) Authorized Signatory : (Vita Li) SAR Dipole Performance Measurement Report EUT Type： SAR Validation Dipole and Waveguide Model Name： DIP 0G750-331,DIP 0G835-332, DIP 1G800-329, DIP 1G900-333, DIP 2G450-335, DIP 2G600-336 Brand Name: SATIMO Test Conclusion： Pass Test Date： 14 Aug. 2019~16 Aug. 2019 Date of Issue： 17 Aug. 2019 ISSUED BY Shenzhen STS Test Services Co., Ltd. 1. Equipment List Kind of Equipment Manufacturer Type No. Serial No. Last Calibration Calibrated Until PC Acer N/A N/A N/A N/A E-Field Probe MVG SSE5 SN 14/16 EP309 2018.12.13 2019.12.12 Dielectric Probe Kit MVG SCLMP SN 32/14 OCPG67 2018.12.01 2019.11.30 Phantom1 MVG SAM SN 32/14 SAM115 N/A N/A Phantom2 MVG SAM SN 32/14 SAM116 N/A N/A Attenuator Agilent 99899 DC-18GHz N/A N/A Directional coupler Narda 4226-20 3305 N/A N/A Network Analyzer Agilent 8753ES US38432810 2019.03.02 2020.03.01 Multi Meter Keithley Multi Meter 2000 4050073 2018.10.13 2019.10.12 Signal Generator Agilent N5182A MY50140530 2018.10.16 2019.10.15 Power Amplifier DESAY ZHL-42W 9638 2018.10.13 2019.10.12 Power Meter R&S NRP 100510 2018.10.26 2019.10.25 Power Sensor R&S NRP-Z11 101919 2018.10.13 2019.10.12 Power Sensor Agilent E9301A MY41497725 2018.10.13 2019.10.12 hygrothermograph MiEO HH660 N/A 2018.10.15 2019.10.14 ISSUED BY Shenzhen STS Test Services Co., Ltd. 2.<Justification of the extended calibration> Referring to KDB 865664 D01, if dipoles are verified in return loss<-20dB, (within 20% of prior calibration),and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head 750 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -25.42 - 55.1 - 2018.08.15 -23.45 -7.75 55.84 0.74 2019.8.14 -23.25 -0.85 56.98 1.14 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 750 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 750 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -27.21 - 51.3 - 2018.08.15 -26.44 -2.82 51.50 0.20 2019.08.14 -26.17 -1.02 52.89 1.39 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 750 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 835 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -28.11 - 51.6 - 2018.08.15 -27.05 -3.77 54.69 3.09 2019.08.14 -26.41 -2.37 52.62 -2.07 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 835MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 835 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -23.87 - 49.0 - 2018.08.15 -22.21 -6.95 52.59 3.59 2019.08.14 -24.25 9.19 52.65 0.06 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 835MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 1800 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -29.51 - 46.7 - 2018.08.16 -25.32 -14.2 45.24 -1.46 2019.08.15 -26.39 4.23 44.94 -0.30 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1800 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 1800 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -24.59 - 48.8 - 2018.08.16 -24.95 1.46 45.42 -3.38 2019.08.15 -26.77 7.29 46.31 0.79 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1800 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 1900 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -23.68 - 51.2 - 2018.08.16 -25.00 5.57 47.12 -4.08 2019.08.15 -23.79 -4.84 48.62 1.50 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Head 1900 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Body 1900 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -20.22 - 48.8 - 2018.08.16 -23.26 15.03 47.11 -1.79 2019.08.15 -24.15 3.83 48.71 1.60 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. <Dipole Verification Data> Body 1900 MHz ISSUED BY Shenzhen STS Test Services Co., Ltd. Head 2450 MHz Date of Measurement Return Loss (dB) Delta (%) Impedance Delta(ohm) 2017.08.15 -26.00 - 46.1 - 2018.08.16 -29.56 13.69 47.53 1.43 2019.08.16 -28.39 -3.96 48.46 0.93 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior…

Text truncated - open the document above for the full version.

Sun Cupid Technology (HK) Ltd. TCBJ FORM-4 Issued by: TCB Administrator Revision 6 12/06/10 2019.12.06 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Smart phone / X6 /FCC ID: 2ADINS5702L) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the • Schematics • Block diagram • Operation description • Tune up Procedure • Part List These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. required to be submitted with this application be permanently withheld from public review. Please contact me if there is any information you may need. Sincerely, Name: Danny Sit Signature:

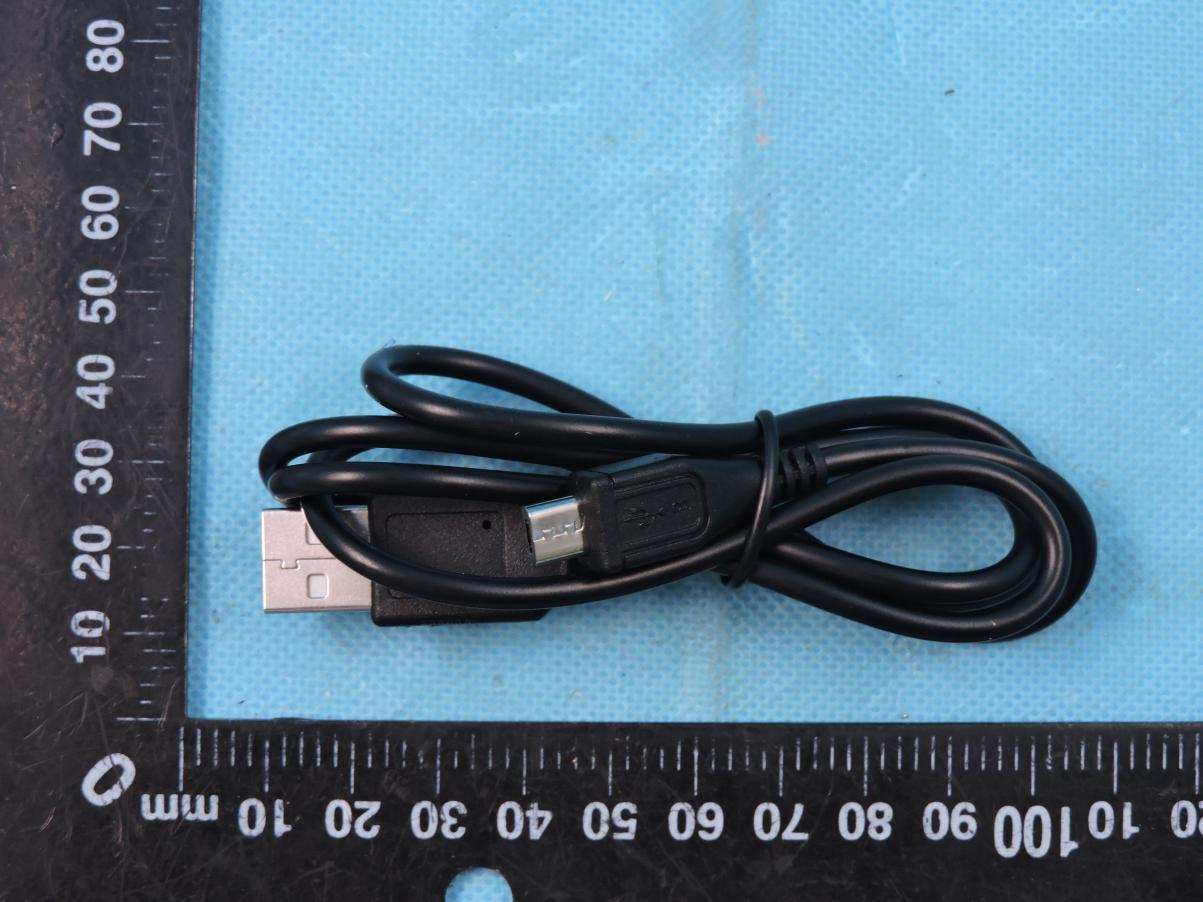

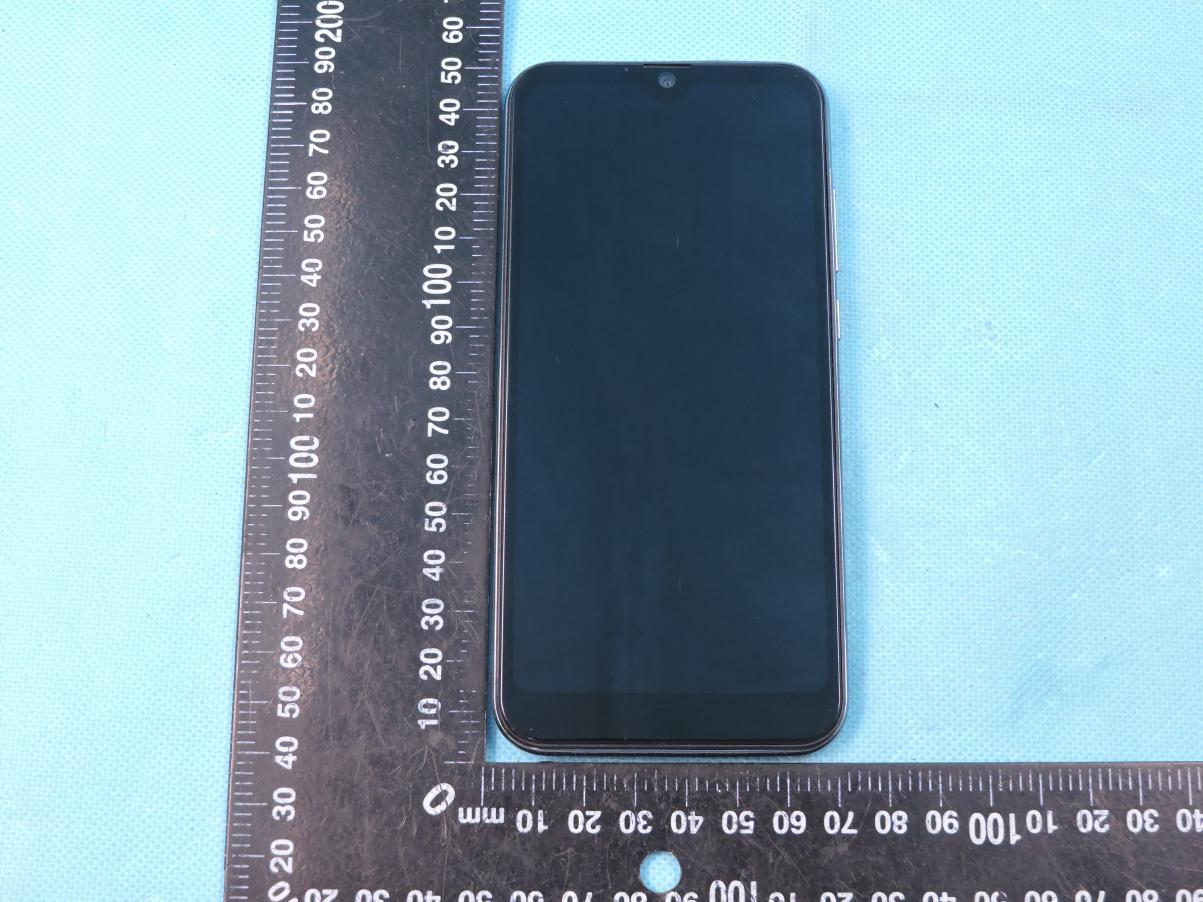

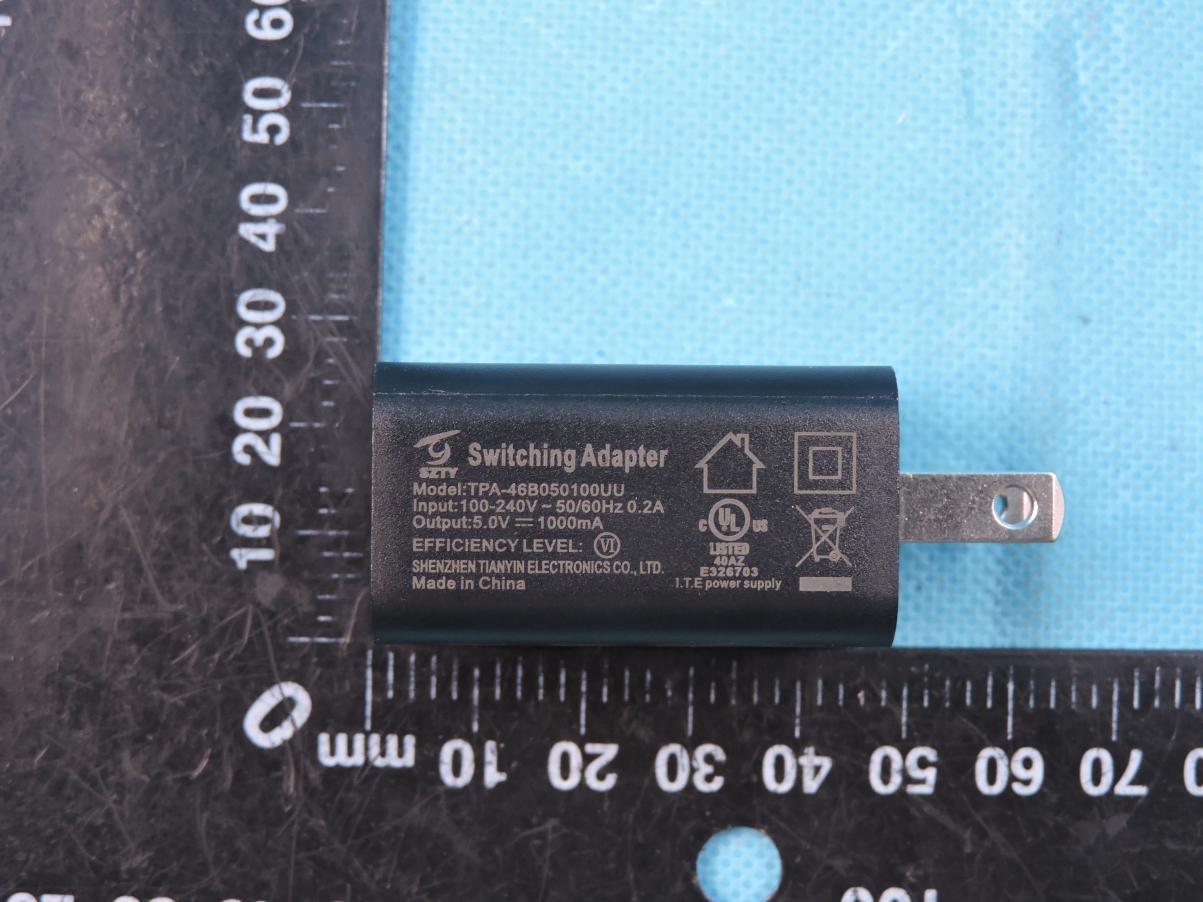

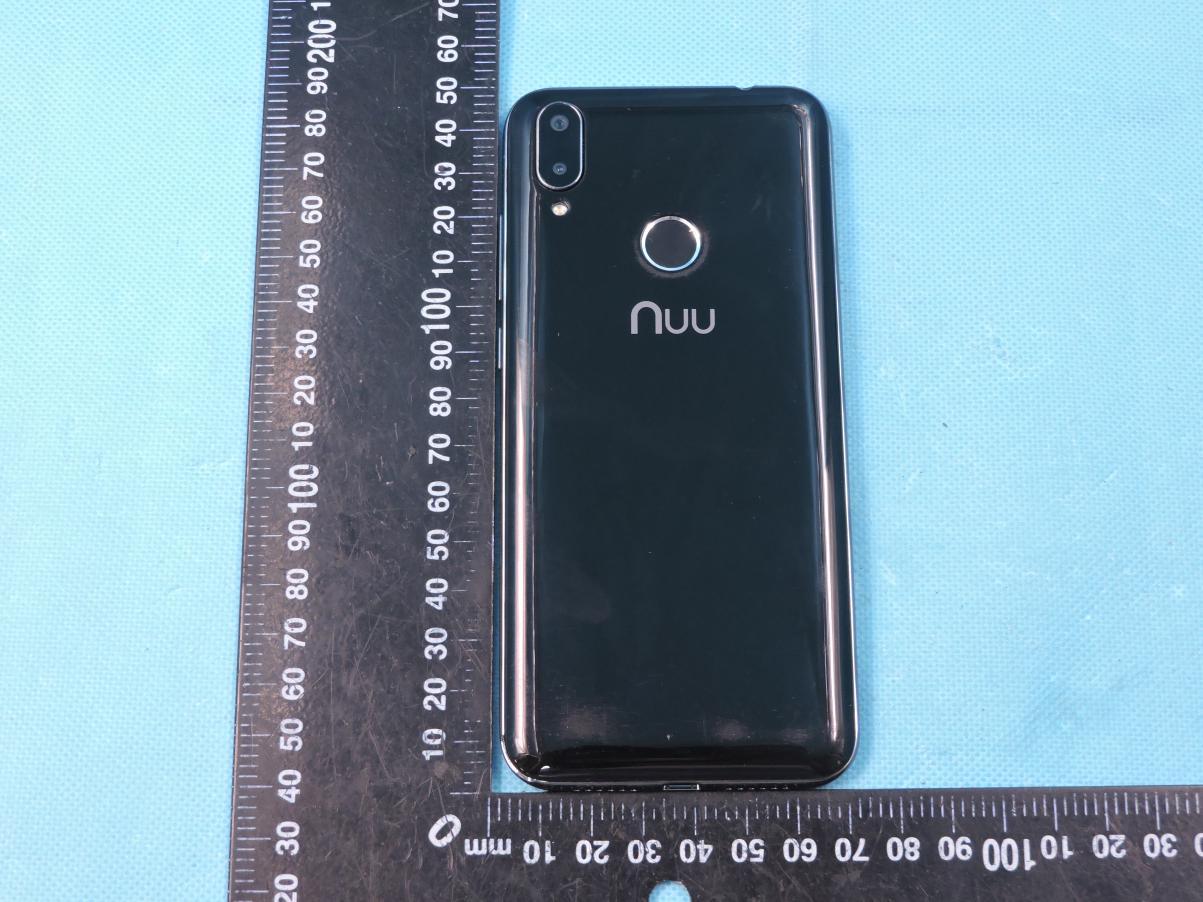

Page 1 of 5 Report No.: STS1911194 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: X6mini Photo 1 Photo 2 Page 2 of 5 Report No.: STS1911194 Photo 3 Photo 4 FM Antenna Port(Use Earphone) Page 3 of 5 Report No.: STS1911194 Photo 5 Photo 6 Page 4 of 5 Report No.: STS1911194 Photo 7 Photo 8 Page 5 of 5 Report No.: STS1911194 Photo 9

FCC Label Smart phone Model name: X6 FCC ID: 2ADINS5702L This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 1 of 6 Report No.: STS1911194 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: X6mini Photo 1 Photo 2 LTE RX Antenna BT/WIFI/GPS Antenna GSM/WCDMA/LTE Antenna Page 2 of 6 Report No.: STS1911194 Photo 3 Photo 4 Page 3 of 6 Report No.: STS1911194 Photo 5 Photo 6 Page 4 of 6 Report No.: STS1911194 Photo 7 Photo 8 Page 5 of 6 Report No.: STS1911194 Photo 9 Photo 10 Page 6 of 6 Report No.: STS1911194 Photo 11

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS1911194H01 Issued for Sun Cupid Technology (HK) Ltd. 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon, Hong Kong, China. Product Name: Smart phone Brand Name: NUU Model Name: X6 Series Model: N/A FCC ID: 2ADINS5702L Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Head: 0.446 W/kg Body: 1.253 W/kg S T L A B S Page 2 of 110 Report No.: STS1911194H01 Test Report Certification Applicant’s name ................. : Sun Cupid Technology (HK) Ltd. Address ................................. : 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon, Hong Kong, China. Manufacture's Name ............ : Sun Cupid Technology (HK) Ltd. Address ................................. : 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon, Hong Kong, China. Product description Product name ........................ : Smart phone Brand name ......................... : NUU Model name ......................... : X6 Series Model .......................... : N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ............................................ : Date (s) of performance of tests ............. : 13 Nov. 2019~20 Nov. 2019 Date of Issue ........................................... : 21 Nov. 2019 Test Result ............................................... : Pass Testing Engineer : ( Aaron Bu) Technical Manager : (Jason Lu) Authorized Signatory : (Vita Li) Page 3 of 110 Report No.: STS1911194H01 Table of Contents 1.General Information 5 1.1 EUT Description 5 1.2 Test Environment 7 1.3 Test Factory 7 2.Test Standards And Limits 8 3. SAR Measurement System 9 3.1 Definition Of Specific Absorption Rate (SAR) 9 3.2 SAR System 9 4. Tissue Simulating Liquids 12 4.1 Simulating Liquids Parameter Check 12 5. SAR System Validation 14 5.1 Validation System 14 5.2 Validation Result 15 6. SAR Evaluation Procedures 16 7. EUT Antenna Location Sketch 17 7.1 SAR test exclusion consider table 18 8. EUT Test Position 19 8.1 Define Two Imaginary Lines On The Handset 19 8.2 Hotspot mode exposure position condition 20 9. Uncertainty 21 9.1 Measurement Uncertainty 21 9.2 System validation Uncertainty 22 10. Conducted Power Measurement 23 10.1 Test Result 23 10.2 Tune-up Power 40 10.3 SAR Test Exclusions Applied 44 11. EUT And Test Setup Photo 45 11.1 EUT Photo 45 11.2 Setup Photo 48 12. SAR Result Summary 54 12.1 Head SAR 54 12.2 Body-worn and Hotspot SAR 56 12.3 repeated SAR measurement 60 13. Equipment List 63 Appendix A. System Validation Plots 64 Appendix B. SAR Test Plots 88 Appendix C. Probe Calibration And Dipole Calibration Report 110 Page 4 of 110 Report No.: STS1911194H01 Revision History Rev. Issue Date Report No. Effect Page Contents 00 21 Nov. 2019 STS1911194H01 ALL Initial Issue Note: Format version of the report -V01 Page 5 of 110 Report No.: STS1911194H01 1.General Information Environmental evaluation measurements of specific absorption rate (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 1.1 EUT Description Product Name Smart phone Brand Name NUU Model Name X6 Series Model N/A FCC ID 2ADINS5702L Model Difference N/A Battery Rated Voltage: 3.8V; Charge Limit: 4.35V; Capacity: 2800mAh Device Category Portable Product stage Production unit RF Exposure Environment General Population / Uncontrolled IMEI 354707100100348/78 354707100100355/78 868969010014520/78 Hardware Version E557_MAIN_PCB_V1.2 Software Version 9052NUU-S5702L-AM-P-MV03203-02 Frequency Range GSM 850:824.2~848.8MHz PCS1900:1850.2~1909.8MHz WCDMA Band II:1852.4~1907.6MHz WCDMA Band V:826.4~846.6MHz LTE Band 2:1850.7~1909.3MHz LTE Band 4:1710.7~1754.3MHz LTE Band 5:824.7~848.3MHz LTE Band 7:2502.5~2567.5MHz LTE Band 12:699.7~715.3MHz LTE Band 17:706.5~713.5MHz WLAN 802.11b/g/n(HT20):2412~2462MHz WLAN 802.11n(HT40):2422~2452MHz Bluetooth:2402~ 2480MHz GPS: 1575.42MHz FM: 87.5 MHz~108 MHz Page 6 of 110 Report No.: STS1911194H01 Max. Reported SAR(1g): (Limit:1.6W/kg) Band Mode Head (W/kg) Body Worn and Hotspot(W/kg) PCE GSM 850 0.419 0.447 PCE GSM 1900 0.230 0.563 PCE WCDMA Band II 0.426 0.774 PCE WCDMA Band V 0.326 0.369 PCE LTE Band 2 0.430 0.742 PCE LTE Band 4 0.446 1.253 PCE LTE Band 5 0.315 0.310 PCE LTE Band 7 0.440 0.823 PCE LTE Band 12 0.109 0.183 PCE LTE Band 17 0.101 0.155 DTS 2.4G WLAN 0.281 0.131 DTS Bluetooth Note 0.334 0.167 1-g Sum SAR 0.780 1.420 FCC Equipment Class Licensed Portable Transmitter Held to Ear (PCE) Part 15 Spread Spectrum Transmitter (DSS) Digital Transmission System (DTS) Operating Mode: GSM: GSM Voice; GPRS; EGPRS Class 12 WCDMA:RMC,HSDPA,HSUPA Release 6 LTE:QPSK,16QAM WLAN: 802.11 b/g/n(HT20/40) Bluetooth: 5.0+EDR (GFSK +π/4DQPSK+8DPSK) BLE Antenna Specification: GSM,WCDMA,LTE: PIFA Antenna BT,WLAN: PIFA Antenna SIM Card Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Hotspot Mode: Support DT…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District,Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TEST REPORT Report No:STS1911194W04 Issued for Sun Cupid Technology (HK) Ltd. 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon, Hong Kong, China. Product Name: Smart phone Brand Name: NUU Model Name: X6 Series Model: N/A FCC ID: 2ADINS5702L Test Standard: FCC Part 15.247 S T L A B S Page 2 of 58 Report No.: STS1911194W04 TEST RESULT CERTIFICATION Applicant’s Name ................. : Sun Cupid Technology (HK) Ltd. Address ................................. : 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon, Hong Kong, China. Manufacture's Name ............ : Sun Cupid Technology (HK) Ltd. Address ................................. : 16/F, CEO Tower, 77 Wing Hong St, Cheung Sha Wan, Kowloon, Hong Kong, China. Product Description Product Name ....................... : Smart phone Brand Name ........................ : NUU Model Name .......................... : X6 Series Model ......................... : N/A Test Standards ..................... : FCC Part15.247 Test Procedure ...................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 12 Nov. 2019 ~ 21 Nov. 2019 Date of Issue .......................................... : 26 Nov. 2019 Test Result.............................................. : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sunday Hu) Authorized Signatory : (Vita Li) Page 3 of 58 Report No.: STS1911194W04 Table of Contents 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.5 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 TEST PROCEDURE 15 3.3 TEST SETUP 15 3.4 EUT OPERATING CONDITIONS 15 3.5 TEST RESULTS 16 4. RADIATED EMISSION MEASUREMENT 18 4.1 RADIATED EMISSION LIMITS 18 4.2 TEST PROCEDURE 20 4.3 TEST SETUP 21 4.4 EUT OPERATING CONDITIONS 21 4.5 FIELD STRENGTH CALCULATION 22 4.6 TEST RESULTS 23 5. CONDUCTED SPURIOUS & BAND EDGE EMISSION 36 5.1 LIMIT 36 5.2 TEST PROCEDURE 36 5.3 TEST SETUP 36 5.4 EUT OPERATION CONDITIONS 36 5.5 TEST RESULTS 37 6. POWER SPE…

Text truncated - open the document above for the full version.
