2ADIZ-X45Mobile Phone

START‐UP GUIDE 2 1. Assembling 1.1. Installing/ removing the battery 1) Installing the battery With the top of battery (the terminal with pole) facing right toward the contacting points in the battery compartment, press the bottom of battery slightly until it enters into place; Slide battery cover forward along the side slot until it clicks into place. 2) Removing the battery Long press end key to switch the phone off; Slide downward the battery cover; Use your nail to lightly lift the battery away. 1.2. Charging the battery Your phone is powered by a rechargeable battery. When the battery is weak, the battery sensor informs you. At this time, you need charge the battery. When the battery becomes too weak for the phone to operate, it switches off automatically. 1) Open the cover of the multifunction jack on the top of the device. 2) Plug the small end of the travel adapter into the multifunction jack. 3) Plug the large end of the travel adapter into a power outlet. 4) When the battery is fully charged, unplug the travel adapter from the power outlet. 5) Unplug the travel adapter from the device. 6) Close the cover to the multifunction jack. Note: (a) During charging, the phone can operate as usual. But the charging time increases. (b) Use only approved chargers and cables. Unauthorized chargers or cables can cause batteries to explode or damage your device. (c) While the device is charging, the touch screen may not function due to an unstable power supply. If this happens, disconnect the charger from the device. 1.3. T‐Flash card use 1.3.1. Installing/Removing T‐Flash card This mobile supports the T‐Flash card feature. Make sure that the T‐Flash card has already inserted into mobile. Make contacting points downwards. Ensure the angled corner is positioned correctly and slide the card into the carrier. 1.4. Inserting/Removing the SIM card 3 When you subscribe to a cellular service, you will receive a Subscriber Identity Module (SIM) card with subscription details, such as your personal identification number (PIN) and optional services. Contacting points downwards, Ensure the angled corner is positioned correctly and slide the card into the carrier; Note: (a) Be careful when handling, inserting or removing the SIM card, friction or bending may damage SIM card. (b) If left unused, keep SIM card out of the reach of small children. (c) Keep SIM card away from static, dusty and water. (d) When inserting or removing SIM card, always make sure that the phone is switched off before you remove the battery. Or the SIM card memory might be damaged. 1.5. Power On or Off Make sure the battery is already inserted: 1) Power On: Press and hold the POWER key to turn on the phone. After power on, the phone searches for your network automatically. Some SIM card is protected by the PIN number, if you are asker for inputting the PIN number, please enter it. 2) Power Off: Press and hold the POWER key until the power‐off image display. Note: (a) PIN is provided by your service provider. If the PIN is entered incorrectly three times, the SIM card is barred. (b) If the phone asks for an unlock code when switched on, enter the unlock code. 2. Phone Appearance and Keys 2.1. Physical Impression Please refer to the image on the gift box. 2.2. Keys specification Home While on any application or screen, press to return to the Home screen. Press and hold to open the recent applications window. Menu Press to open a list of actions that you can do on the current screen or dialog box. Back Press to go back to the previous screen, or to close a dialog box, menu, or the notifications panel. Volume Press upwards or downwards to increase or decrease the volume. Slide down the key fully to enter vibrate mode. Power 4 Long press to power on the mobile. While not on a call, press and hold to open the phone options menu that allows you to turn off or switch your device to silent or airplane mode. Press to lock the screen. Press the key and volume down key to capture the screen. 2.3. Use the touch screen Your device’s touch screen lets you easily select items or perform functions. Learn basic actions to use the touch screen. To avoid scratching the touch screen, do not use sharp tools. Do not allow the touch screen to come into contact with other electrical devices. Electrostatic discharges can cause the touch screen to malfunction. Do not allow the touch screen to come into contact with water. The touch screen may malfunction in humid conditions or when exposed to water. A quick and easy way to interact with the Home screen and the whole interface of your device is by touch. Basically, the following are the types of actions, called finger gestures, which you would do when interacting with your device: Touch: When you want to select items such as icons and options or press on‐screen buttons, simply touch them with your finger. Apply some pressure with your finger pad when touching them on the screen. Slide: To slide means to drag your finger vertically or horizontally across the screen. Touch and hold: Touch an item and hold it for more than 2 seconds to open a pop‐up option list. Drag: Touch and hold your finger with some pressure before you start to drag. When the item magnifies and the device vibrates, drag your finger to any part of the screen to move the item, or drag to the Trash button to delete the item. While dragging, do not release your finger until you have reached the target position. Double touch: Touch twice quickly with your finger to zoom in or out while viewing photos or web pages. 2.4. Lock or unlock the screen 2.4.1. Lock the screen To lock, press POWER key. To save battery power, the device automatically turns off the screen and locked when you leave it idle after a certain period of time. 2.4.2. Rotate the screen The phone can detect direction by a built‐in motion sensor. If you rotate the phone, the screen interface will be rotated with mobile phones automatically. 2.4.3. Unlock the screen 1) Press the POWER …

Text truncated - open the document above for the full version.

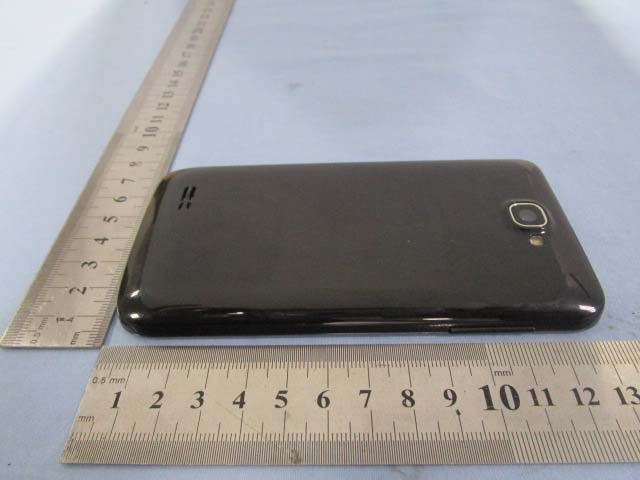

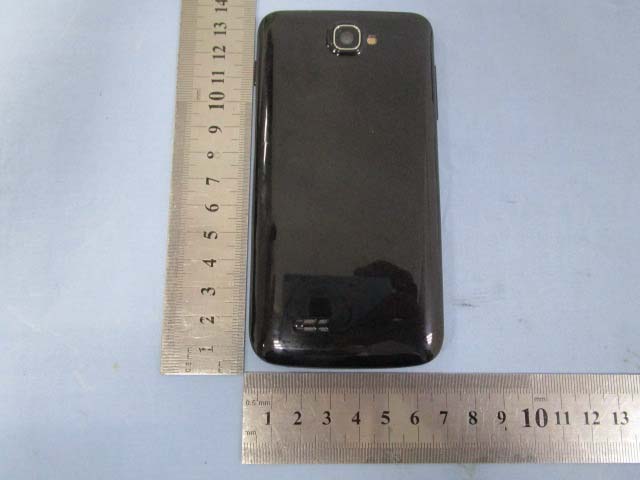

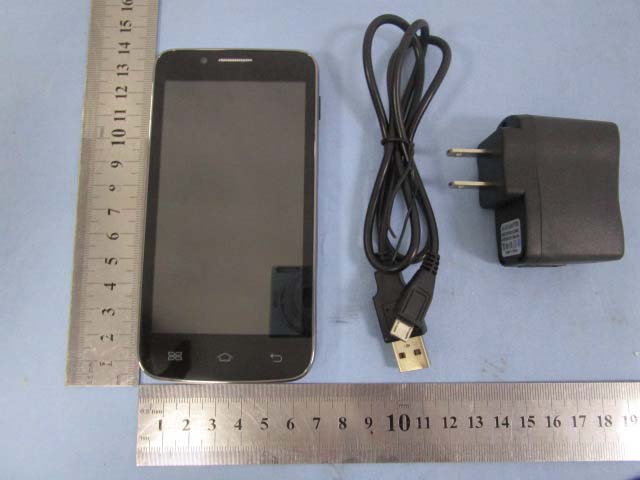

XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 FCC PART 22H&24E EUT View 3 EUT View 4 XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 FCC PART 22H&24E EUT View 5 EUT View 6 XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 FCC PART 22H&24E EUT View 7

XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADIZ-X45 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADIZ-X45 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 GSM/WCDMA Ant. WIFI/BT/GPS/FM Ant. XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E EUT Housing and Board View 3 Solder Board-Component View 1 XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E Solder Board-Component View 2 Solder Board-Component View 3 XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E Solder Board-Component View 4 Solder Board-Component View 5

Ref : ACR.88.1.13.SATU.A Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C. (518101), CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 09/13 EP168 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 03/21/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 3/28/2014 Checked by : Jérôme LUC Product Manager 3/28/2014 Approved by : Kim RUTKOWSKI Quality Manager 3/28/2014 Customer Name Distribution : SEM Test Compliance Service Co., Ltd. Issue Date Modifications A 3/28/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ................................................................................................. 4 2 Product Description ................................................................................................ 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ............................................................................................. 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty ...................................................................................... 5 5 Calibration Measurement Results ........................................................................... 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ................................................................................................ 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 09/13 EP168 Product Condition (new / used) new Frequency Range of Probe 0.7 GHz-3GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.225 M Dipole 2: R2=0.235 M Dipole 3: R3=0.229 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with …

Text truncated - open the document above for the full version.

XPX TECHNOLOGY CO., LTD Model: X45 Report No.: STR14108214H Page 1 of 171 SAR Report FCC SAR Measurement and Test Report For XPX TECHNOLOGY CO., LTD Rm689B, Huafa 411 Bldg. Huafa N. Road, Futian, Shenzhen, China FCC ID: 2ADIZ-X45 FCC Rules: FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 KDB 865664 D01 v01r03 KDB 865664 D02 v01r01 Product Description: Mobile Phone Tested Model: X45 Report No.: STR14108214H Tested Date: 2014-11-03 to 2014-11-08 Issued Date: 2014-11-11 Tested By: Lucy Wei / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. XPX TECHNOLOGY CO., LTD Model: X45 Report No.: STR14108214H Page 2 of 171 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 5 1.3 Test Methodology ................................................................................................................................................ 5 1.4 Test Facility ......................................................................................................................................................... 5 2. Summary of Test Results .......................................................................................................................................... 6 3. Specific Absorption Rate (SAR) ................................................................................................................................ 7 3.1 Introduction .......................................................................................................................................................... 7 3.2 SAR Definition ..................................................................................................................................................... 7 4. SAR Measurement System ........................................................................................................................................ 8 4.1 The Measurement System .................................................................................................................................. 8 4.2 Probe ................................................................................................................................................................... 8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 18 7.2 Cheek Position .................................................................................................................................................. 19 7.3 Tilted Position .................................................................................................................................................... 19 7.4 Body Position .................................................................................................................................................... 20 7.5 EUT Antenna Position ..............................................................…

Text truncated - open the document above for the full version.

XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 PAGE 1 OF 104 FCC PART 22H&24E FCC Part 22H & 24E Measurement and Test Report For XPX TECHNOLOGY CO., LTD Rm689B, Huafa 411 Bldg. Huafa N. Road, Futian, Shenzhen, China FCC ID: 2ADIZ-X45 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: Mobile Phone Tested Model: X45 Report No.: STR14108214I-1 Tested Date: 2014-10-31 to 2014-11-10 Issued Date: 2014-11-11 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I-1 PAGE 2 OF 104 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 8 3. RF EXPOSURE ......................................................................................................................................................... 9 3.1 STANDARD APPLICABLE ......................................................................................................................................... 9 3.2 TEST RESULT.......................................................................................................................................................... 9 4. RF OUTPUT POWER ............................................................................................................................................ 10 4.1 STANDARD APPLICABLE ....................................................................................................................................... 10 4.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 10 4.3 TEST PROCEDURE ................................................................................................................................................. 10 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 11 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 5. PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER ............................................................................. 19 5.1 STANDARD APPLICABLE ....................................................................................................................................... 19 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 19 5.3 TEST PROCEDURE ................................................................................................................................................. 19 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 19 5.5 SUMMARY OF TEST RESULTS ............................................................................................................................... 20 6. EMISSION BANDWIDTH ..................................................................................................................................... 22 6.1 STANDARD APPLICABLE ....................................................................................................................................... 22 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 22 6.3 TEST PROCEDURE ................................................................................................................................................. 22 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 22 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 23 7. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................................... 43 7.1 STANDARD APPLICABLE ....................................................................................................................................... 43 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 43 7.3 TEST PROCEDURE …

Text truncated - open the document above for the full version.

XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Spurious Radiation Test Setup (9kHz to 30MHz) Spurious Radiation Test Setup (30MHz to 1G) XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E Spurious Radiation Test Setup (Above1G) Extreme Condition Test Setup XPX TECHNOLOGY CO., LTD Model: X45 REPORT NO.: STR14108214I -1 FCC PART 22H&24E Mobile Communication Test Setup
