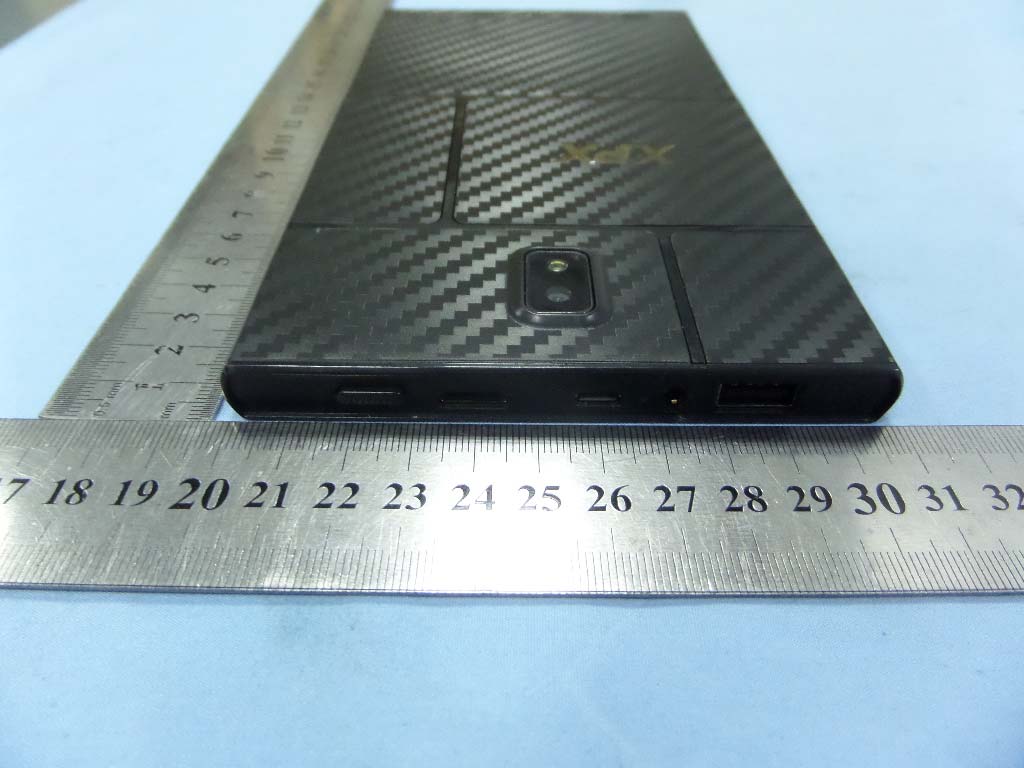

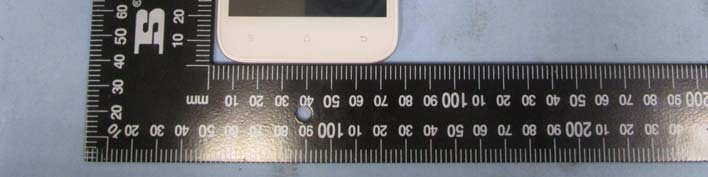

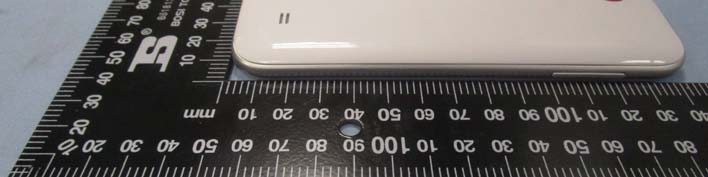

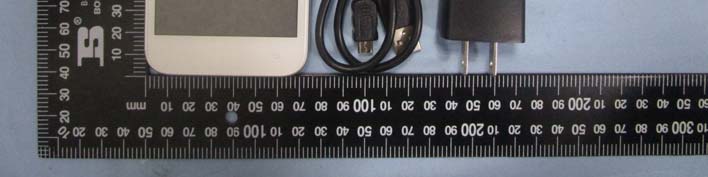

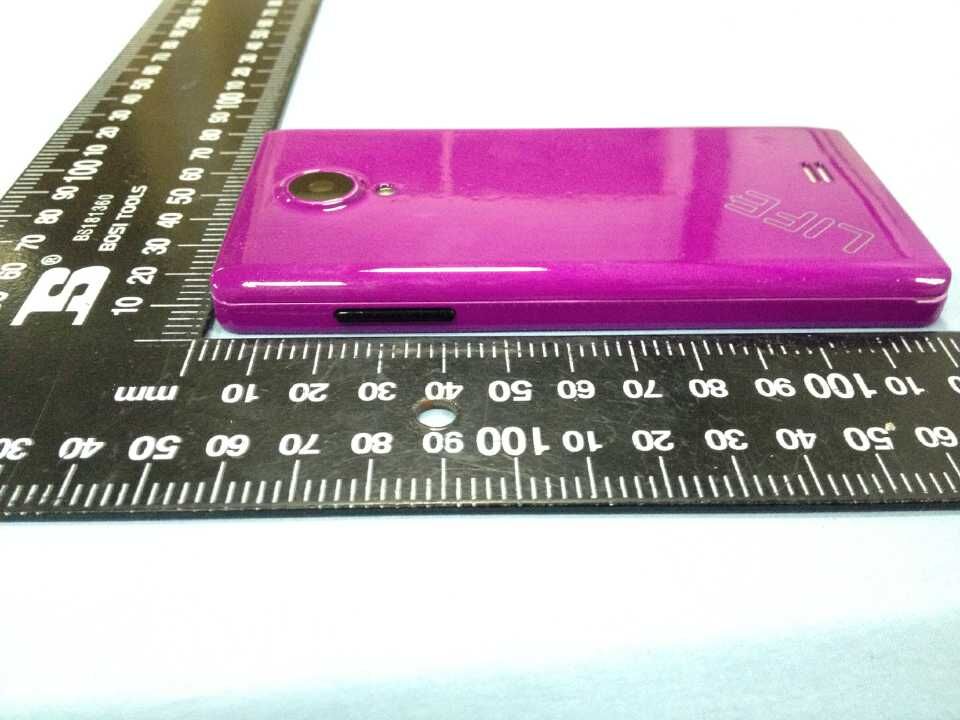

XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EUT View 3 EUT View 4 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EUT View 5 EUT View 6 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EUT View 7

XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADIZ-X50 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADIZ-X50 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 WIFI/BT Ant. GSM/WCDMA Ant. GPS Ant. XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EUT Housing and Board View 3 Solder Board-Component View 1 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E Solder Board-Component View 2 Solder Board-Component View 3 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E Solder Board-Component View 4 Solder Board-Component View 5 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E Solder Board-Component View 6 Solder Board-Component View 7 XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E Solder Board-Component View 8

Tune up procedure Tune up procedure shall be over the power range or at specific operating power levels. 1. It must provide an operational voltage (3.4 ~ 4.2V DC) to turn on the device and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator ( CMU 200) measures the Mobile Phone device specific RF characteristics. 3. The maximum gains of each individual device are adjusted until the target value met. Tune‐up Power Mode Frequency Bands Tune‐up Power GSM GSM850 32.0dBm±1dB GSM1900 28.0dBm±1dB GPRS GPRS850(1 slots) 32.0dBm±1dB GPRS850(2 slots) 30.5dBm±1dB GPRS850(3 slots) 28.5dBm±1dB GPRS850(4 slots) 26.5dBm±1dB GPRS1900(1 slots) 27.5dBm±1dB GPRS1900(2 slots) 25.5dBm±1dB GPRS1900(3 slots) 24.0dBm±1dB GPRS1900(4 slots) 21.5dBm±1dB EDGE EDGE850(1 slots) 27.0dBm±1dB EDGE850 (2 slots) 26.5dBm±1dB EDGE850 (3 slots) 25.5dBm±1dB EDGE850 (4 slots) 23.5dBm±1dB EDGE1900(1 slots) 24.0dBm±1dB EDGE1900 (2 slots) 22.5dBm±1dB EDGE1900 (3 slots) 21.0dBm±1dB EDGE1900 (4 slots) 18.5dBm±1dB WCDMA Band V RMC 22.0dBm±1dB HSDPA 19.5dBm±1dB HSUPA 20.0dBm±1dB WCDMA Band II RMC 21.5dBm±1dB HSDPA 19.5dBm±1dB HSUPA 20.0dBm±1dB WIFI 2.4GHz 15.0dBm±1dB BT 2.4GHz 6.5dBm±1dB Then these appropriate gain settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a CMU 200 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

XPX TECHNOLOGY CO., LTD Model: X50 Report No.: STR14118118H Page 1 of 171 SAR Report FCC SAR Measurement and Test Report For XPX TECHNOLOGY CO., LTD Rm689B, Huafa 411 Bldg. Huafa N. Road, Futian, Shenzhen, China FCC ID: 2ADIZ-X50 FCC Rules: FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 KDB 865664 D01 v01r03 KDB 865664 D02 v01r01 Product Description: Mobile Phone Tested Model: X50 Report No.: STR14118118H Tested Date: 2014-12-01 to 2014-12-03 Issued Date: 2014-12-04 Tested By: Lucy Wei / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. XPX TECHNOLOGY CO., LTD Model: X50 Report No.: STR14118118H Page 2 of 171 SAR Report TABLE OF CONTENTS 1. General Information ................................................................................................................................................... 3 1.1 Product Description for Equipment Under Test (EUT) ......................................................................................... 3 1.2 Test Standards .................................................................................................................................................... 5 1.3 Test Methodology ................................................................................................................................................ 5 1.4 Test Facility ......................................................................................................................................................... 5 2. Summary of Test Results .......................................................................................................................................... 6 3. Specific Absorption Rate (SAR) ................................................................................................................................ 7 3.1 Introduction .......................................................................................................................................................... 7 3.2 SAR Definition ..................................................................................................................................................... 7 4. SAR Measurement System ........................................................................................................................................ 8 4.1 The Measurement System .................................................................................................................................. 8 4.2 Probe ................................................................................................................................................................... 8 4.3 Probe Calibration Process ................................................................................................................................. 10 4.4 Phantom ............................................................................................................................................................ 11 4.5 Device Holder .................................................................................................................................................... 11 4.6 Test Equipment List ........................................................................................................................................... 12 5. Tissue Simulating Liquids ....................................................................................................................................... 13 5.1 Composition of Tissue Simulating Liquid ........................................................................................................... 13 5.2 Tissue Dielectric Parameters for Head and Body Phantoms ............................................................................. 14 5.3 Tissue Calibration Result ................................................................................................................................... 15 6. SAR Measurement Evaluation ................................................................................................................................ 16 6.1 Purpose of System Performance Check ............................................................................................................ 16 6.2 System Setup .................................................................................................................................................... 16 6.3 Validation Results .............................................................................................................................................. 17 7. EUT Testing Position ............................................................................................................................................... 18 7.1 Define Two Imaginary Lines on The Handset .................................................................................................... 18 7.2 Cheek Position .................................................................................................................................................. 19 7.3 Tilted Position .................................................................................................................................................... 19 7.4 Body Position .................................................................................................................................................... 20 7.5 EUT Antenna Position ..............................................................…

Text truncated - open the document above for the full version.

Ref : ACR.88.1 .13.SATU.A Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C. (518101), CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 09/13 EP168 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 03/21/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 2/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 3/28/2014 Checked by : Jérôme LUC Product Manager 3/28/2014 Approved by : Kim RUTKOWSKI Quality Manager 3/28/2014 Customer Name Distribution : SEM Test Compliance Service Co., Ltd. Issue Date Modifications A 3/28/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 3/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ................................................................................................. 4 2 Product Description ................................................................................................ 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ............................................................................................. 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty ...................................................................................... 5 5 Calibration Measurement Results ........................................................................... 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ................................................................................................ 10 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 4/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 09/13 EP168 Product Condition (new / used) new Frequency Range of Probe 0.7 GHz-3GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.225 M Dipole 2: R2=0.235 M Dipole 3: R3=0.229 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.88.1.13.SATU.A Page: 5/10 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid, with…

Text truncated - open the document above for the full version.

XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 PAGE 1 OF 112 FCC PART 22H&24E FCC Part 22H & 24E Measurement and Test Report For XPX TECHNOLOGY CO., LTD Rm689B, Huafa 411 Bldg. Huafa N. Road, Futian, Shenzhen, China FCC ID: 2ADIZ-X50 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: Mobile Phone Tested Model: X50 Report No.: STR14118118I-1 Tested Date: 2014-11-12 to 2014-11-24 Issued Date: 2014-11-25 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM. Test Technology Co., Ltd. XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 PAGE 2 OF 112 FCC PART 22H&24E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 8 3. RF EXPOSURE ......................................................................................................................................................... 9 3.1 STANDARD APPLICABLE ......................................................................................................................................... 9 3.2 TEST RESULT.......................................................................................................................................................... 9 4. RF OUTPUT POWER ............................................................................................................................................ 10 4.1 STANDARD APPLICABLE ....................................................................................................................................... 10 4.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 10 4.3 TEST PROCEDURE ................................................................................................................................................. 10 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 11 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 5. PEAK-TO-AVERAGE RADIO (PAR) OF TRANSMITTER ............................................................................. 19 5.1 STANDARD APPLICABLE ....................................................................................................................................... 19 5.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 19 5.3 TEST PROCEDURE ................................................................................................................................................. 19 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 19 5.5 SUMMARY OF TEST RESULTS ............................................................................................................................... 20 6. EMISSION BANDWIDTH ..................................................................................................................................... 22 6.1 STANDARD APPLICABLE ....................................................................................................................................... 22 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 22 6.3 TEST PROCEDURE ................................................................................................................................................. 22 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 22 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 23 7. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL ............................................................................... 43 7.1 STANDARD APPLICABLE ....................................................................................................................................... 43 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 43 7.3 TEST PROCEDURE …

Text truncated - open the document above for the full version.

XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Spurious Radiation Test Setup (9kHz to 30MHz) Spurious Radiation Test Setup (30MHz to 1G) XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E Spurious Radiation Test Setup (Above1G) Extreme Condition Test Setup XPX TECHNOLOGY CO., LTD Model: X50 REPORT NO.: STR14118118I-1 FCC PART 22H&24E Mobile Communication Test Setup
