2ADJQ-VRF-039AFamily book RF remote controller

Cubee Hypermedia Inc. VRF-039A Family book RF remote controller Data Sheet Rev. 1.0 2014/11/25 Cubee Hypermedia Inc. All Rights Reserved. This information contained herein is the ex clusive property of Vistar and shall not be distributed, reproduced, or disclosed in whole or in part without permission of Vistar. Cubee Hypermedia Inc. http://www.cubee.is. VRF-039A Record of Revisions Revision No. Date Page Description Ver. 1.0 Nov./25/2013 First Draft VRF-039A 1.General Product Description VRF-039A is a dual mode remote control with RF and IR protocol. RF protocol provides ultra-low energy consumption and prolongs the battery life. In addition, it is equipped with 39 control buttons. 2. Start to use VRF-039A 2-1 Install battery VRF-039A-MI19 powered by 2 pcs AAA batteries. For use, please follow the below instruction to install the batteries. a)Push out and open the battery cover at back. b)Install two AAA batteries into the battery compartment accordingly. Please pay your attention on the battery polarity which is already marked in the compartment. VRF-039A 3.Function Description No. Symbol Fuction No. Symbol Fuction 1 Up 7 recording 2 Down 8 information 3 Left 9 TV 4 Right 10 video chat 5 OK 11 shopping 6 back/ home 12 calendar VRF-039A No. Symbol Fuction No. Symbol Fuction 13 photo album 25 number9 14 vedio album 26 mute 15 27 number0 16 28 back 17 number1 29 CH- 18 number2 30 CH+ 19 number3 31 VOL- 20 number4 32 VOL+ 21 number5 33 TV power 22 number6 34 Power 23 number7 24 number8 4. Paring VRF-039A had been pre-paired with the host box dongle in the factory. VRF-039A Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - - - Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connnedted. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.

Cubee Hypermedia Inc. No.1-1, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan DATE : 2014-11-24 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADJQ - VRF-039A Product Name: Family book RF remote controller Request for Confidentiality Pu rsuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schemat i cs Block diagram  Op eration desc ription Thes e materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors.

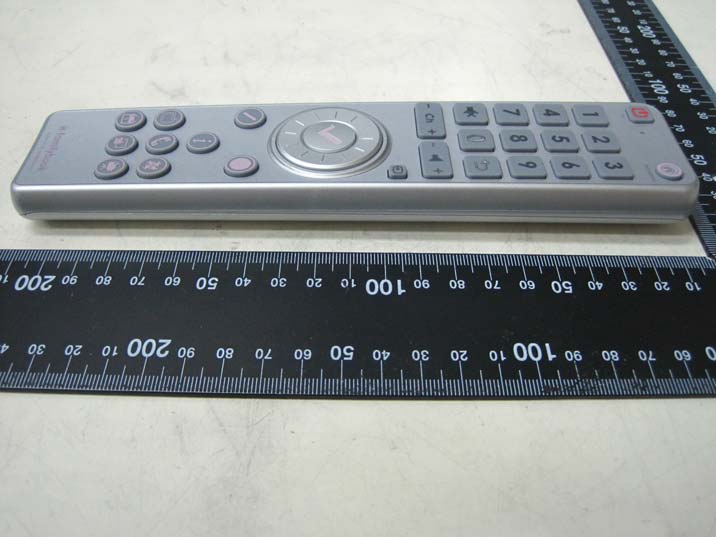

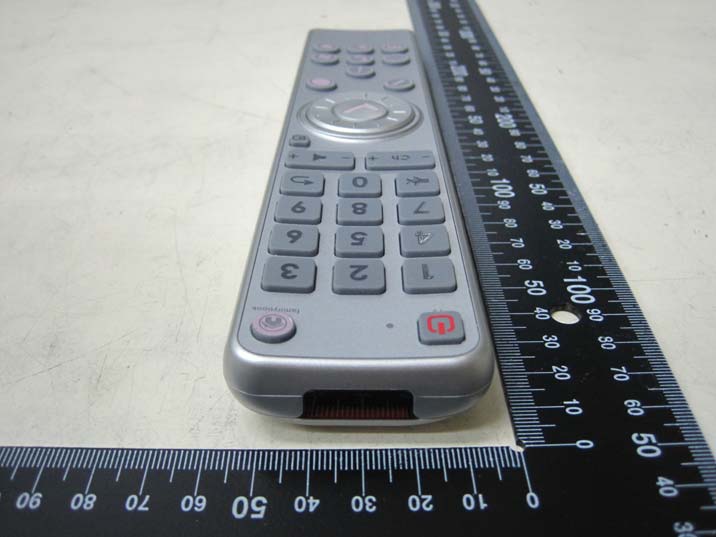

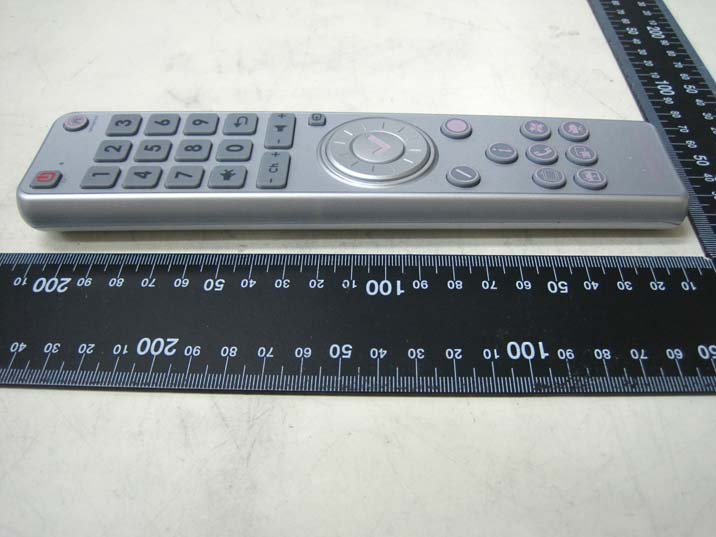

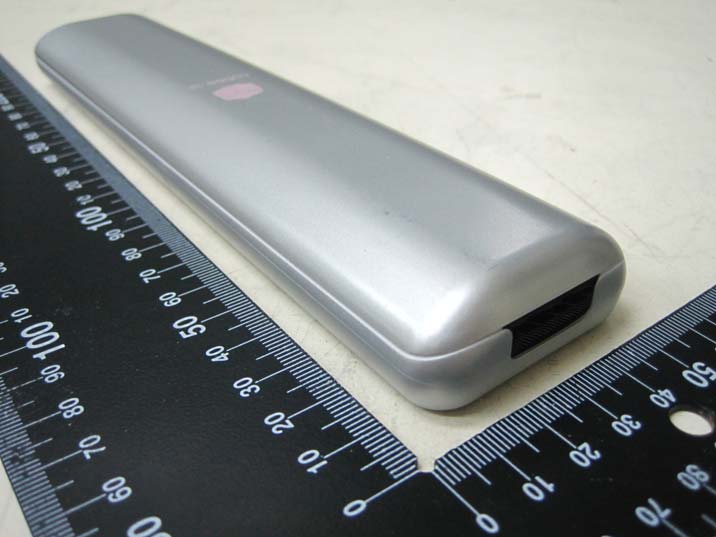

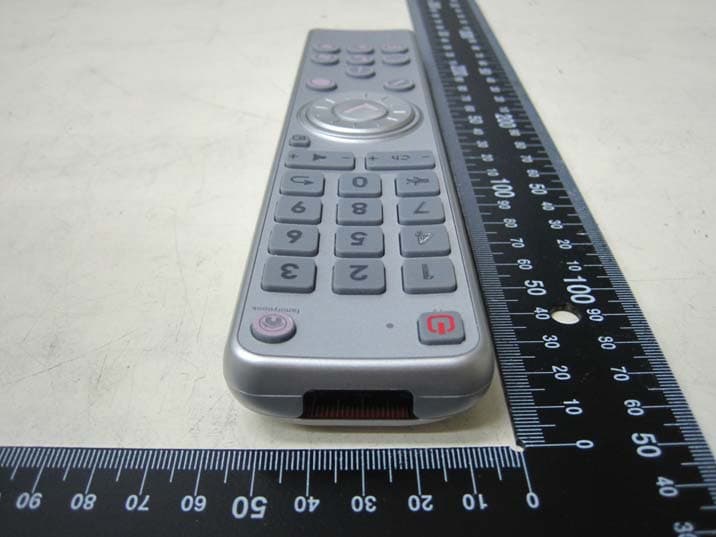

HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 36 of 41 8 Photographs of the EUT Front View of the EUT Rear View of the EUT HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 37 of 41 Side View of the EUT -1 Side View of the EUT -2 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 38 of 41 Side View of the EUT -3 Side View of the EUT -4 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 39 of 41 Side View of the EUT -5 Side View of the EUT -6

HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 40 of 45 Inside View of the EUT -1 Inside View of the EUT -2 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 41 of 45 Front View of the PCB Clear view of Front PCB-1 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 42 of 45 Clear view of Front PCB-2 Clear view of Front PCB-3 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 43 of 45 Clear view of Front PCB-4 Rear View of the PCB HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 44 of 45 Clear view of Rear PCB-1 Clear view of Rear PCB-2 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 45 of 45 Clear view of Rear PCB-3

Cubee Hypermedia Inc. No. 1-1, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Product description: Family book RF remote controller Model No: VRF-039A FCC ID: 2ADJQ-VRF-039A The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : Family book RF remote controller will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: HA140801-RA and the accompanying calculations: According to KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g SAR test exclusion thresholds for 100MHz to 6GHz at test separation distances of 50mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)]≦3.0 for 1-g SAR, where Field Strength : 85.81 dBuV/m Ant. Gain : 1.08 dBi; Ant Numeric Gain : 1.282331. max. power of channel, including tune-up tolerance: { [10 (Field Strength/20) /10 6 x3] 2 /30 x Ant Numeric Gain }x1000 mW = 0.0892 mW min. test separation distance: 5 mm Frequency: 2.406 GHz (0.0892 mW/5mm)x √2.406GHz= 0.02766984 <3 Result of Calculation: The result of calculation is far below 3 . Therefore, SAR test is not required. Company: Cubee Hypermedia Inc. Address: No. 1-1, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan. Date: Dec. 18, 2014 By:

HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 1 of 45 FCC COMPLIANCE TEST REPORT Technical Statement of Conformity in accordance with 47 CFR Part 15 Subpart C The product Equipment Under Test ： Family book RF remote controller Model Number ： VRF-039A Product Series ： N/A Report Number ： HA140801-RA Issue Date ： 24-Nov-2014 Test Result ： Compliance is produced by Cubee Hypermedia Inc. No. 1-1, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan. HongAn TECHNOLOGY CO., LTD. NO.15-1, CWEISHUH KENG, CWEIPIN VILLAGE, LINKOU, TAIPEI COUNTY, TAIWAN, R. O. C. TEL: +886-2-26030362 FAX: +886-2-26019259 E-mail: [email protected] BSMI Registration No.: SL2-IN-E-0023, SL2-A1-E-0023, FCC Designation No.: TW1071 SL2-IS-E-0023, SL2-R1-E-0023, TAF Accreditation No.: 1163 SL2-R2-E-0023, SL2-L1-E-0023 VCCI Registration No.: R-2156, C-2329, T-219 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 2 of 45 Contents 1 General Description 6 1.1 Description of EUT 6 1.2 Test Instruments 7 1.3 Auxiliary Equipments 8 1.4 EUT SETUP 8 1.5 Identifying the Final Test Mode 8 1.6 Final Test Mode (Worst Case) 9 1.7 Condition of Power Supply 9 1.8 EUT Configuration 9 1.9 Test Methodology 9 1.10 General Test Procedures 9 1.11 Modification 9 1.12 FCC Part 15.205 restricted bands of operations 10 1.13 Qualification of Test Facility 10 2 Power line Conducted Emission Measurement 11 2.1 Test Instruments 11 2.2 Test Arrangement and Procedure 11 2.3 Limit (§ 15.207) 11 2.4 Test Result 11 3 20 dB Bandwidth of the Emission 12 3.1 Test Instruments 12 3.2 Test Arrangement and Procedure 12 3.3 Test Result 12 4 Radiated Emission Test 16 4.1 Test Instruments 16 4.2 Test Arrangement and Procedure 16 4.3 Limit of Field Strength of Fundamental (§ 15.249) 17 4.4 Limit of Spurious Emission (§ 15.209) 17 4.5 Test Result 17 5 Out of Band Emission Test 28 5.1 Test Instruments 28 5.2 Test Arrangement and Procedure 28 5.3 Limit of Field Strength of Fundamental (§ 15.249(d)) 28 5.4 Test Result 28 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 3 of 45 6 Antenna requirement 33 6.1 Limit (§ 15.203) 33 6.2 Test Result 33 7 Photographs of the Tests 34 7.1 Radiated Disturbances Emission Test (Below 1G) 34 7.2 Radiated Disturbances Emission Test (Above 1G) 35 8 Photographs of the EUT 36 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 4 of 45 Test Result Certification Applicant ： Cubee Hypermedia Inc. Address of Applicant ： No. 1-1, Jihu Rd., Neihu Dist., Taipei City 114, Taiwan. Manufacturer ： Vistar Technology Inc. Address of Manufacturer ： 2F.-5, No. 504, Yuanshan Rd., Zhonghe Dist., New Taipei City 235, Taiwan. Trade Name ： N/A Equipment Under Test ： Family book RF remote controller Model Number ： VRF-039A Product Series ： N/A FCC ID ： 2ADJQ-VRF-039A Filing Type ： Certification Sample Received Date ： 21-Oct-2014 Test Standard ： FCC Part 15 Subpart C §15.249 Deviations from standard test methods & any other specifications : NONE Remark: 1. This report details the results of the test carried out on one sample. 2. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.203, 15.207, 15.209, 15.249. 3. This report applies to the above sample only and shall not be reproduced in part without written approval of HongAn Technology Co., Ltd.. Documented by: Kay Wang/ ADM. Dept Staff 2014-11-24 Tested by: Eason Hsieh / ENG. Dept. Staff 2014-10-28 Approved by: Date: Peter Chin / Section Manager 2014-11-24 HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 5 of 45 Summary of Test Result Test Item Applicable Standard Test Result 1 Antenna Requirement FCC part 15 subpart C §203 Compliance 2 Conducted limits FCC part 15 subpart C §207 Compliance 3 Radiated emission limits FCC part 15 subpart C §209 Compliance 4 Field Strength FCC part 15 subpart C §249(a) Compliance 5 Band-edge measurement FCC part 15 subpart C §249(d) Compliance 6 20dB Bandwidth FCC part 15 subpart C §215 Compliance HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 6 of 45 1 General Description 1.1 Description of EUT Equipment Under Test : Family book RF remote controller Model Number of EUT : VRF-039A Product Series : N/A Power Supply : DC 3V; AAA battery x2 Frequency Range : 2406~2475 MHz Number of Channels : 16 Channels Carrier Frequency of Each Channel : 2406 MHz, 2410 MHz, 2414 MHz, 2418 MHz, 2424 MHz, 2428 MHz, 2433 MHz, 2437 MHz, 2443 MHz, 2449 MHz, 2452 MHz, 2457 MHz, 2466 MHz, 2469 MHz, 2472 MHz, 2475 MHz Antenna Specification : Printed Antenna/ Gain: 1.08 dBi Modulation Technique : GFSK Specification : Dimensions : 20.8 cm (L) X 5 cm (W) X 2.2 cm (H) Weight : 120 g Function：The EUT is a wireless remote controller. ※For more detail specification, please refer to the User Manual. HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 7 of 45 1.2 Test Instruments 1.2.1. Instruments Used for Measurement HA1 Instrument Name Manufacture Mode Model Number Serial NumberLast Cal. Date Next Cal. Date RF Amplifier AR 15S1G3 306578 11-AUG-2014 11-AUG-2015 EMI Receiver R&S ESCI 100615 03-MAR-2014 03-MAR-2015 Spectrum Analyzer R&S FSL6 100323 11-JUN-2014 11-JUN-2015 Spectrum Analyzer Advantest R3172 101202158 24-JUN-2014 24-JUN-2015 Preamplifier WIRELESS FPA-6592G 060009 09-JUL-2014 09-JUL-2015 Preamplifier HD HD17187 004 04-AUG-2014 04-AUG-2015 Bilog Antenna TESEQ CBL6111D 25769 03-MAR-2014 03-MAR-2015 Bilog Antenna Schaffner CBL6112B 2860 12-AUG-2014 12-AUG-2015 Double-Ridged Waveguide Horn EMCO 3115 9912-5992 04-MAY-2014 04-MAY-2015 Te m p . & Humidity Chamber Giant Force GTH-150-20-SP -AR MMA0907-01222-JUL-2014 22-JUL-2015 Horn Antenna (18-40GHz) Com-Power AH-840 101042 03-Jul-2014 03-Jul-2015 …

Text truncated - open the document above for the full version.

HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 34 of 41 7 Photographs of the Tests 7.1 Radiated Disturbances Emission Test (Below 1G) Front View HongAn TECHNOLOGY CO., LTD. Report No.: HA140801-RA FCC Test Report Page 35 of 41 7.2 Radiated Disturbances Emission Test (Above 1G) Front View
