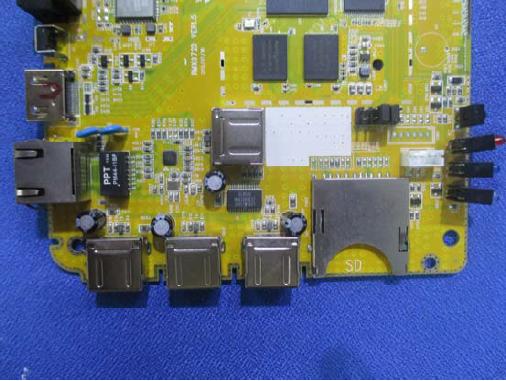

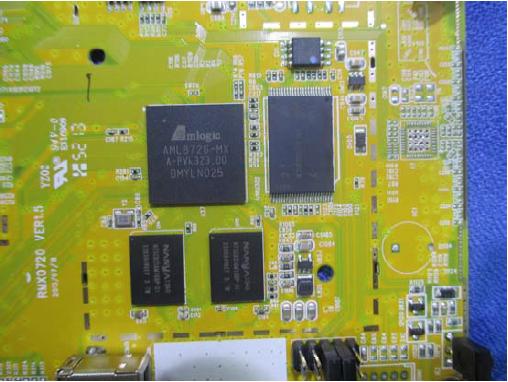

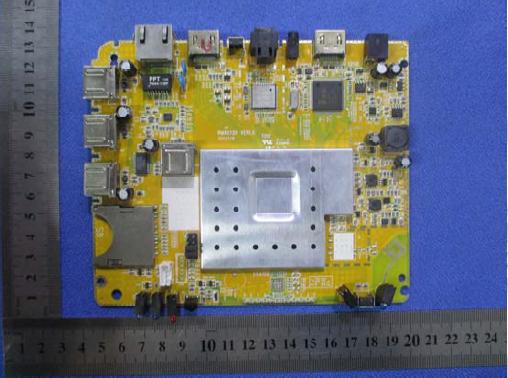

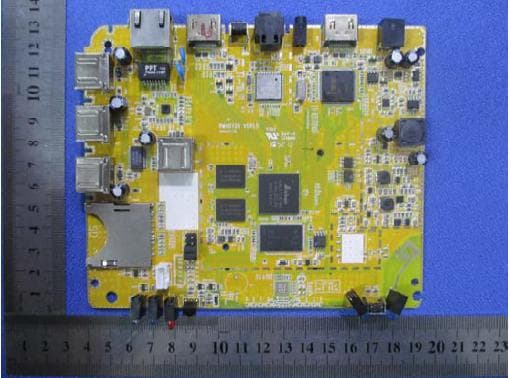

2ADJQ14A11G7Familybook

1 Familybook User’s Guide 2 Contents 1. Safety Information, P3-4 1.1 Warning, P3 1.2 Precautions, P3 1.3 Handling Cautions, P4 2. Introduction, P5-7 2.1 Package Contents, P5 2.2 Product Features, P5 2.3 Remote Controller, P6 2.4 Setup Connection, P7 2.5 Display when Power Up, P7 3. Settings, P8-15 3.1 WiFi, P8 3.2 Ethernet, P8 3.3 Date Usage, P9 3.4 More..., P9 3.5 Sound, P10 3.6 Display, P11 3.7 Storage, P12 3.8 Apps, P12 3.9 Accounts & sync, P12 3.10 Security, P13 3.11 Language & input, P13 3.12 Backup & reset, P14 3.13 Date & time, P14 3.14 Accessibility, P14 3.15 Developer options, P15 3.16 About MadiaBox, P15 4. Apps Install & Uninstall, P16 5. Firmware Update , P17 6. Trouble Shooting/FAQ , P18 7. Repairs , P19 8. Specification , P20 9. Trademark Notice , P21 3 1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. --Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 1.2 Precautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1.2.1 Read these instructions. 1.2.2 Keep these instructions. 1.2.3 Heed all warnings. 1.2.4 Follow all instructions. 1.2.5 DO NOT use this apparatus near water. 1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth. 1.2.7 DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. 1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. 4 1.2.9 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over. 1.2.12 Unplug this apparatus during lightning storms or when unused for long period of time. 1.2.13 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 1.3 Handling Cautions 1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus. 1.3.2 To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. 1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading a socket can cause it to overheat, resulting in a fire. 1.3.4 Before connecting other components to this player, be sure to turn them off. 1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke, turn off the power switch immediately and disconnect the power plug from the wall outlet. Then, contact the nearest customer service center for technical assistance. Do not use the product. Using the product as it is may cause a fire or an electric shock. 5 2. Introduction 2.1 Package Contents Familybook Dual Core Platnium User’s Guide HDMI Cable Optional Cable RJ45 Network Cable,Fiber Optical Cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 12V, 1.5A 2.2 Product Features  HDMI input support  Dual Band module built-in  ARM CORTEX A9 x 2, 1.5GHz, RAM is 1G,built in 4G flash memory  Powered by Android 4.1 OS  Built in 802.11b/g/n WIFI module, wireless Internet access  USB interface, support mobile HDD, wired/wireless mouse and keyboard  RJ45 10/100M Ethernet interface  Support 1080P video playback  HDMI video output, connect to HDTV for HD video playback  Support weather, calendar, and desktop clock gadgets  Support 2.4G/5G wireless motion Remote Controller  Support Flash Player 10.2 for hardware decoding, Flash 11.1 for software decoding ,play back online video  Support music player, picture player and more family entertainment  Support SD card, 3 USB ports and Google Chrome browser and virtual private network access  App Installer for application installation from USB/SD card  Bluetooth 4.0 optionally 6 2.3 Remote Controller Note: Button Battery 2025 3V insert with correct polarity (+/-). 7 2.4 Setup Connection Place Familybook on a flat platform near …

Text truncated - open the document above for the full version.

DATE: 2015-1-23 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADJQ14A11G7 Product Name: Familybook Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2015-1-23 By: Hanjun Lin Signature Printed Title: Manager On behalf of: Cubee Hypermedia Inc. Telephone: 886-2-2657-6666

Cubee Hypermedia Inc. 1-1 Jihu Road Neihu District TaiPei Date:2015-1-23 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD This letter is to ascertain that We, Cubee Hypermedia Inc. Product: Familybook Model: Familybook Genesis 1 The device is in the process of being granted under the FCC DOC. All the test will be performed at the FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature: Client’s name / title: Hanjun Lin/ Manager Contact information / address: 1-1 Jihu Road Neihu District TaiPei TEL: 886-2-2657-6666 FAX: 886-2-2657-6666 E-mail: [email protected] All the test will be performed at the FCC recognized and authorized MRA test lab.

Familybook Model: Familybook Genesis 1 Rating: DC12V, 1.5A FCC ID: 2ADJQ14A11G7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Cubee Hypermedia Inc.

Label location

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2412 MHz 9.60dBm（9.12mW） output power] (9.12mW /5mm) ·[√2.412(GHz)]= 2.83 <3 for 1-g SAR Then SAR evaluation is not required

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Part 15.247 Report Reference No......................: CTL1411252830-WF01-1 Compiled by ( position+printed name+signature) .: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .: Test Engineer Happy Guo Approved by ( position+printed name+signature) .: Manager Tracy Qi Date of issue.....................................: Jan. 27, 2015 Test Laboratory Name...................: Shenzhen CTL Testing Technology Co., Ltd. Address ............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Cubee Hypermedia Inc. Address ............................................: 1-1 Jihu Road Neihu District TaiPei Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Familybook FCC ID.......................................: 2ADJQ14A11G7 Trade Mark ....................................... : N/A Model/Type reference ......................: Familybook Genesis 1 Wi-Fi Work frequency ................................: 802.11b/g/n(20MHz): 2412~2462MHz Type of modulation ...........................: 802.11b DSSS, 802.11g/n: OFDM Data Rate .........................................: 802.11b: 1/2/5.5/11 Mbps 802.11g: 6/9/12/18/24/36/48/54 Mbps 802.11n: up to 65 Mbps Antenna Gain ...................................: 1.5 dBi Antenna type ....................................: Internal Result ............................................... : Positive V1.0 Page 2 of 82 Report No.: CTL1411252830-WF01-1 T E S T R E P O R T Test Report No. : CTL1411252830-WF01-1 Jan. 27, 2015 ______________________________________________________________________________________________ Date of issue Equipment under Test : Familybook Model /Type : Familybook Genesis 1 Applicant : Cubee Hypermedia Inc. Address : 1-1 Jihu Road Neihu District TaiPei Manufacturer : Cubee Hypermedia Inc. Address : 1-1 Jihu Road Neihu District TaiPei Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 82 Report No.: CTL1411252830-WF01-1 Contents 1. TEST STANDARDS................................................................. 4 2.SUMMARY............................................................................ 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.NOTE 6 2.7.Related Submittal(s) / Grant (s) 6 2.8.Modifications 6 3. TEST ENVIRONMENT ............................................................. 7 3.1.Address of the test laboratory 7 3.2.Test Facility 7 3.3.Environmental conditions 7 3.4.Configuration of Tested System 7 3.5.Statement of the measurement uncertainty 8 3.6.Equipments Used during the Test 9 3.7.Summary of Test Result 10 4. TEST CONDITIONS AND RESULTS.......................................... 11 4.1.Conducted Emissions Test 11 4.2.Radiated Emission Test 14 4.3.6dB Bandwidth Measurement 21 4.4.Maximum Peak Output Power 28 4.5.Band Edge Measurement 30 4.6.Power Spectral Density Measurement 55 4.7.Spurious RF Conducted Emission 62 4.8.Operation Frequency Range of 20dB Bandwidth 72 4.9.Antenna Requirement 75 5. TEST SETUP PHOTOS OF THE EUT ........................................ 76 6.EXTERNAL AND INTERNAL PHOTOS OF THE EUT ..................... 78 V1.0 Page 4 of 82 Report No.: CTL1411252830-WF01-1 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. ANSI C63.4-2009 KDB Publication No. 558074 D01 v03r02 Guidance on Measurements for Digital Transmission Systems ANSI C63.10-2013: V1.0 Page 5 of 82 Report No.: CTL1411252830-WF01-1 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Jan. 22, 2015 Testing commenced on : Jan. 22, 2015 Testing concluded on : Jan. 26, 2015 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ƽ 120V / 60 Hz ƻ 115V / 60Hz ƻ 12 V DC ƻ 24 V DC ƻ Other (specified in blank below) Description of the test mode IEEE 802.11b/g/n(HT20): Thirteen channels are provided to the EUT, but only eleventh channels used for USA. Channel Frequency(MHz)ChannelFrequency(MHz) 1 241282447 2 241792452 3 2422102457 4 2427112462 5 2432 6 2437 7 2442 2.3. Short description of the Equipment under Test (EUT) Familybook, support 802.11b/g/n. For more details, refer to the user’s manual of the EUT. Serial number: Prototype V1.0 Page 6 of 82 Report No.: CTL1411252830-WF01-1 2.4. EUT operation mode Test Mode: 1. Test program used to control the EUT for staying in continuous transmitting. Channel low (2412MHz), mid (2437MHz) and high (2462MHz) for 802.11b/g/n(HT20)…

Text truncated - open the document above for the full version.
