2ADK3XO-9929Wireless Earbuds

| 01 | 05 | 03 | 07 | 02 | 06 | 04 | 08 FCC ID:2ADK3XO-9929 Braavos 2 True Wireless auto pair earbuds Instruction Manual Hello! This is your instruction manual to help create the best possible experience with this cool product. EarbudsPower CaseCharging Cable Magnetic contact recharging: when placed in the charging case, the earbuds will begin to charge automatically. The LED light of the case will turn blue and the earbud LED will turn red when charging. ** Make sure the earbud LED turns RED to confirm charging has begun.** Multifunction Button Microphone/Earbud LED Ear tips Charging LED1. 2. 3. Type-C input Wireless Charging Receiver 5. 6. 4. • • The LED lights on the case and earbuds will switch off when charging is complete. • Safety Precautions ContentsCharging ** The battery isolator on both earbuds needs to be removed in order to be charged. Be sure to charge the devices completely before initial use.** 1. Charging the earbuds Use the Type-C cable to connect to an adapter or computer to charge the power case. When charging the power case, the LED light will flash RED. • • Once fully charged, the power case LED will turn solid RED.• 2. Charging the power case | 09| 11 **Wireless charger is NOT included** Place the charging case (earbuds are placed in case, front side of charging case on top) on wireless charging pad. • • Remove both earbuds from the case. They will begin to pair automatically. • You will hear a voice prompt say “Power On”. The earbuds will now both emit a sound informing you that the earbuds are paired. • If the pairing is successful, the main earbud will flash RED and BLUE while the secondary earbud will slowly flash BLUE. • Now activate Bluetooth on your mobile device. If the pairing is successful, only one “Braavos 2” pairing name will appear. 7. Activate Voice Assistant: Press the multifunction button for 2 seconds. You will hear a beeping sound to indicate that your Voice Assistant/Siri is activated and awaiting your commands. When charging the power case LED will flash RED.• Once fully charged, the power case LED will turn solid RED. • 3. Charging the power case wirelessly Stereo earbud usage 1. Pairing: First time • Select “Braavos 2” from your Bluetooth function. • When you hear “Connected”, you will be successfully connected to your Bluetooth. The earbuds are now ready to be used. • Previously paired earbuds connected automatically when power is switched ON. 2. Search and Pairing • Press the multifunction button on the right or left earbud to play/pause your audio. • If you want to change the volume, you must use the connected device. • Double press the right ear multifunction button to go to the next track and double press the left button to go to the previous track. 6. Playing Audio WARNING–When using this product, basic precautions should always be followed, including the following: Read the instructions fully before using the product. 1. The unit will only achieve full performance after 2 or 3 completed charge and discharge cycles. 2. Do not overcharge your case. The unit may become hot under excessive use. Remove your case once it is fully charged. Never charge your case for more than 7 hours at a time. 3. To reduce the risk of injury, close supervision is required when the product is used near children. 4. Do not expose the device to moisture. 5. Do not use the device in excess of its output rating. 6. Overloaded outputs above the rating may result in a risk of fire or injury. 7. Do not use the device if damaged or modified. 8. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. 9. Do not disassemble the device. Take the device to a qualified technician if service or repair is required. Incorrect reassembly may result in a risk of fire or injury. Safety Precautions 1. Pairing • Remove the earbuds from the power case. You will hear a voice prompt “Power On” and the earbud will flash RED and BLUE. • Open your Bluetooth options, switch on Bluetooth and select the pairing name “Braavos 2”. • If pairing is successful, you will hear the voice prompt “Connected”. The earbuds will slowly flash BLUE. • If you would like to sync the earbuds, simply remove the other earbud from the case. The earbuds will pair automatically. 2. Power ON/OFF • Power ON: Remove your earbuds from the charging case. • Power OFF: Replace your earbud in the charging case or press and hold the multifunction button for 5 seconds. 3. Once the earbud is successfully connected with your device, you can listen to audio. 4. Answer/End calls: Press the multifunction button once to answer an incoming call and once again to end the call. 5. Reject a call: Press and hold the multifunction button to reject an incoming call. 6. Music: Short press the button to pause the music or play the music. Single earbud usage • Press the multifunction button for 2 seconds. You will hear a beeping sound to indicate that your Voice. • Assistant/Siri is activated and awaiting your commands. 7. Activate Voice Assistant: • If you have trouble pairing your earbuds, turn off your Bluetooth. • Place both earbuds back into the charged power case. • Now remove the earbuds and follow the instructions under “Pairing Both Earbuds”. Resetting your earbuds Remove your earbuds from the charging case or press and hold the multifunction button for 3 seconds. 3. Power ON Replace your earbuds in the charging case or press and hold the multifunction button for 5 seconds. 4. Power OFF • Answer/End Call: Press the multifunction button once to answer an incoming call and once again to end the call. • Reject a call: Press and hold the multifunction button to reject an incoming call. 5. Calling Charging time Bluetooth Range Mic sensitivity Playing Time 1hr and 15mins (from 0-100) Specifications 10 m -42+/-3db 6 hrs Items Earbud Technical Specs IssueReasonSolution Troubleshooting Charging time1.5 hrs (from 0-100%) SpecificationsItems Power Case Technical Specs Mobile devices…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-4-27> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ADK3XO-9929 XO-9929 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Sam Shen/Sales Company: XING DA INTERNATIONAL ELECTRONICS LIMITED Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong China Phone: (86) 769-83454636 Fax: (86) 769-83345348 E-Mail: [email protected]

XING DA INTERNATIONAL ELECTRONICS LIMITED #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-4-27 To whom it may concern: We, XING DA INTERNATIONAL ELECTRONICS LIMITED the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ADK3XO-9929 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Sam Shen/Sales Company: XING DA INTERNATIONAL ELECTRONICS LIMITED Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan, Guang Dong China Phone: (86) 769-83454636 Fax: (86) 769-83345348 E-Mail: [email protected]

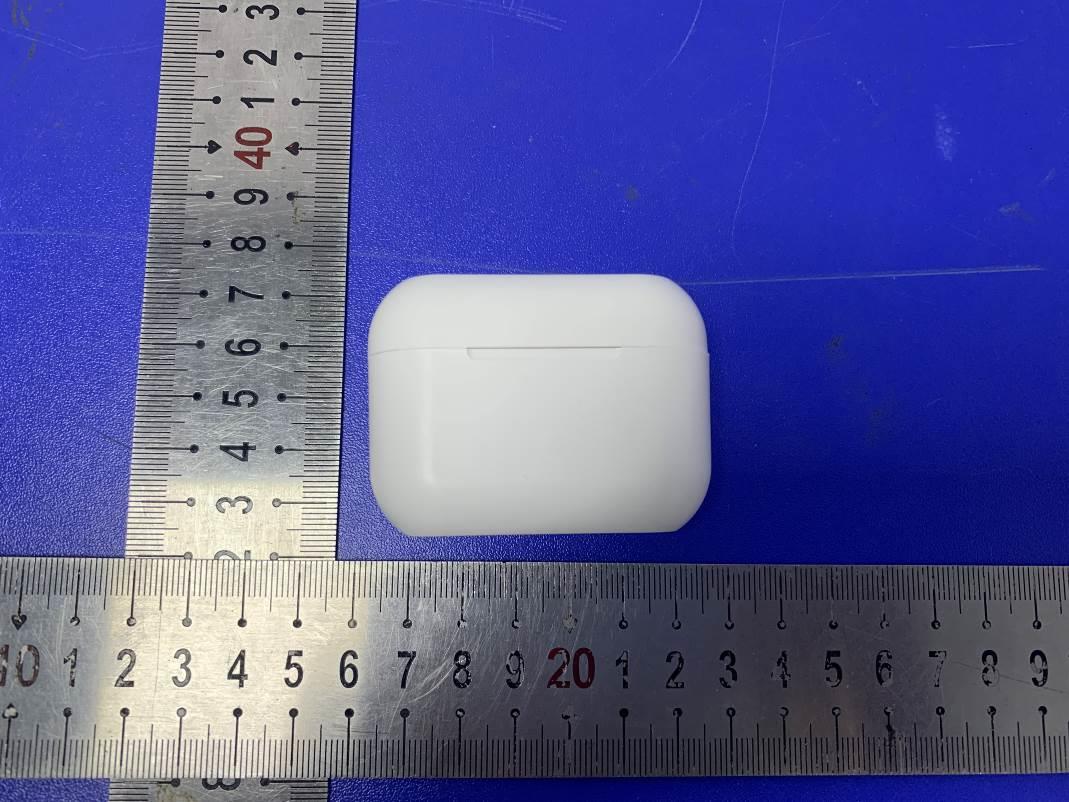

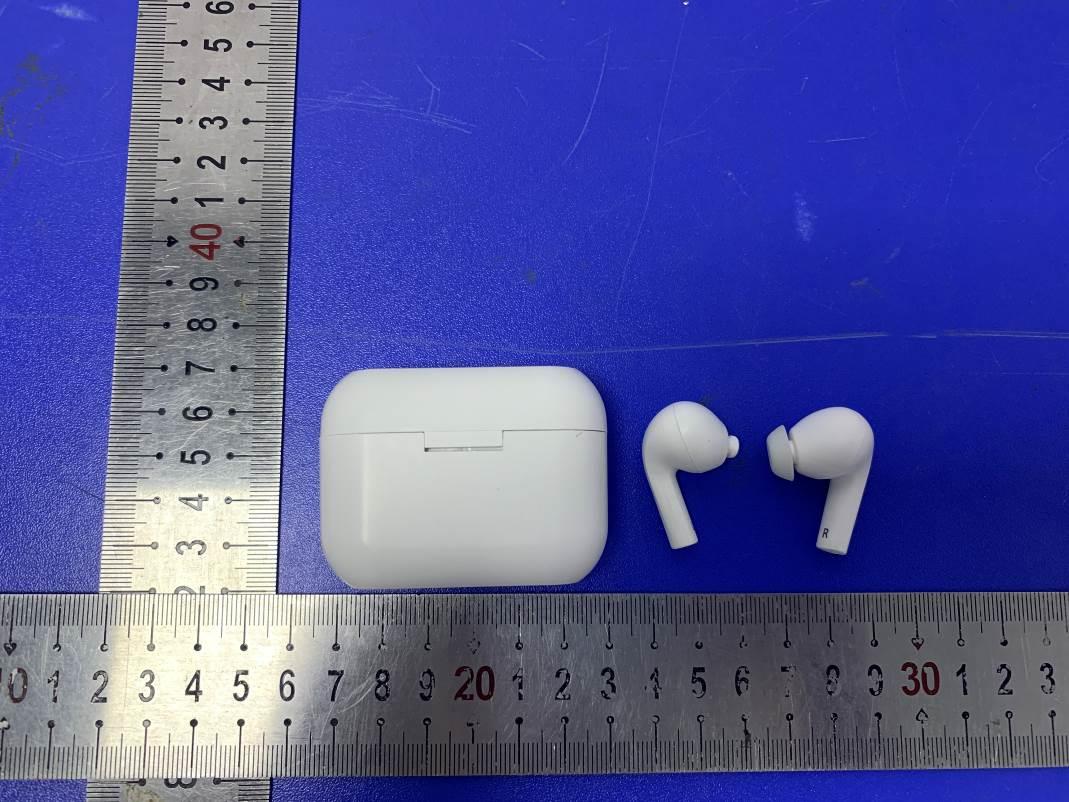

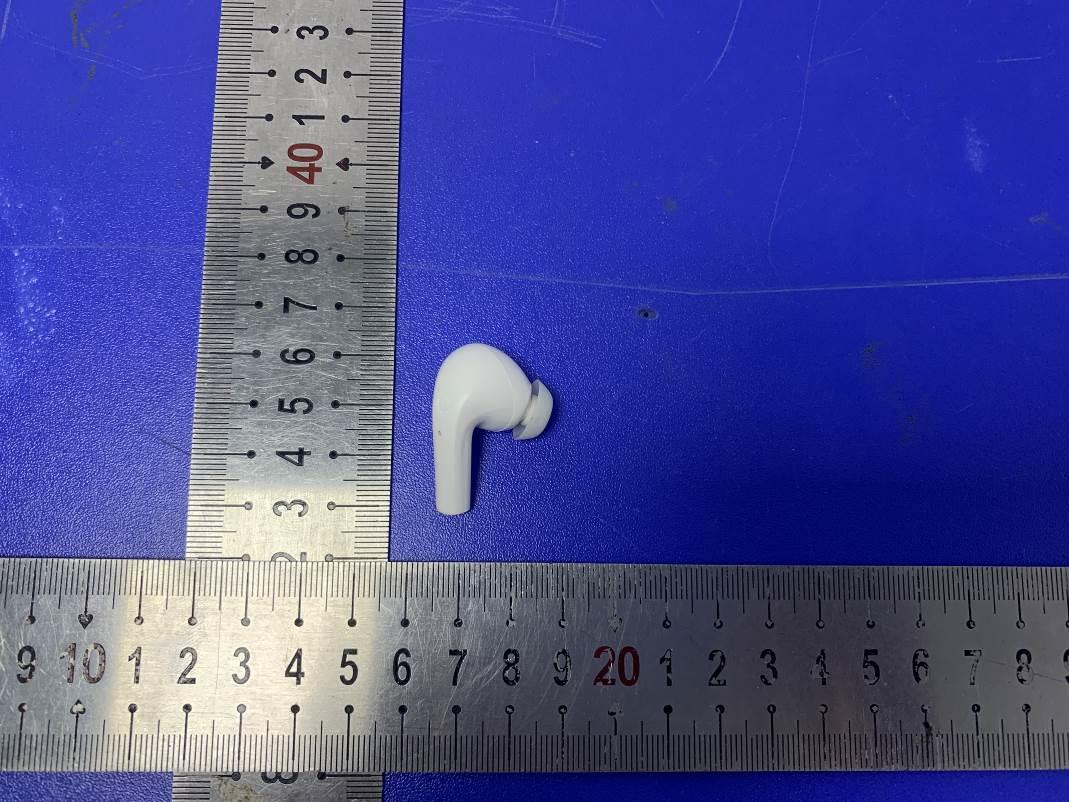

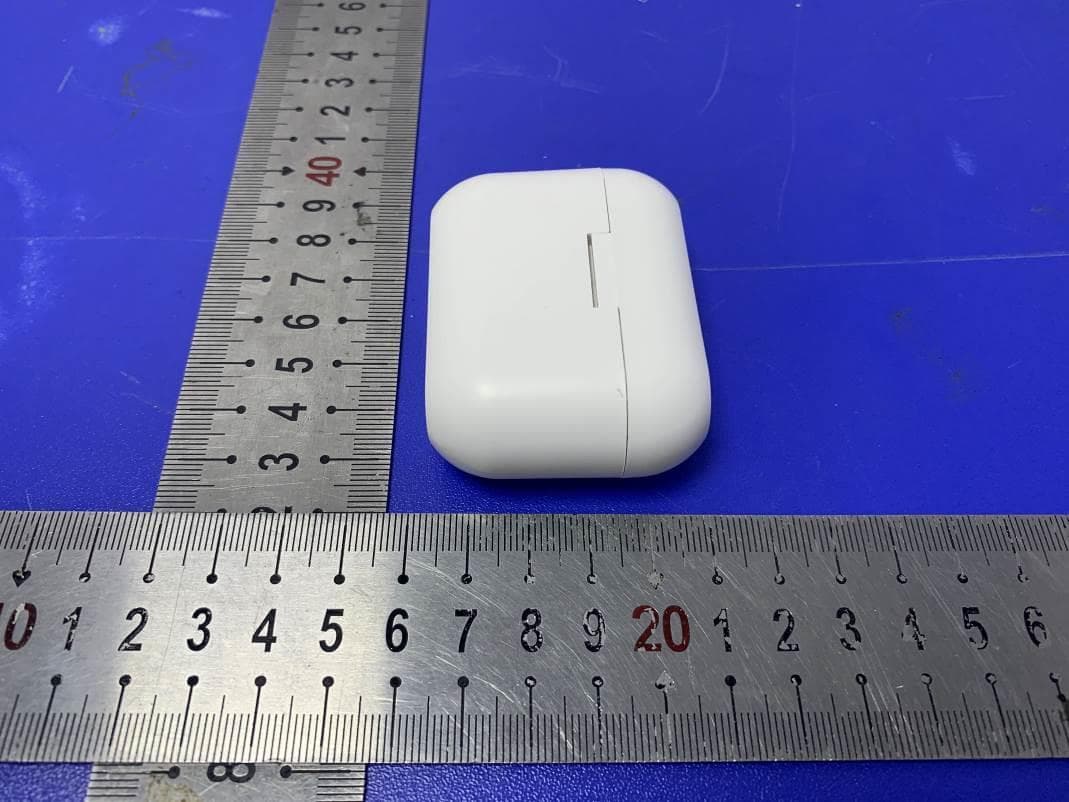

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.0cm*W1.0cm Label Location FCC ID: 2ADK3XO-9929

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 5 Fig. 6 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2ADK3XO-9929 Product name Wireless Earbuds Test Model XO-9929 Model List No. XO-9929 Power Supply Box Input: DC 5V Headset: DC 3.7V by Li-ion Battery(40mAh) Charging case: DC 3.7V by Li-ion Battery(400mAh) Bluetooth 2402-2480MHz Channel Number 79 channels for Bluetooth V5.1(BT Classical) Channel Spacing 1MHz for Bluetooth V5.1(BT Classical) Modulation Type GFSK, π/4-DQPSK for V5.1(BT Classical) Antenna Type Internal Antenna Antenna Gain -0.58 dBi(Max.) Hardware version V31 Software version 1.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable 2. Evaluation Method According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results 4.1 Test Setup Block Diagram 4.2 Test Equipment Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 Power Meter R&S NRVS 100444 2021-06-21 2 Power Sensor R&S NRV-Z81 100458 2021-06-21 Remark: all calibration period of equipment list is one year. 4.3 Test Procedure The EUT was directly connected to the power meter and antenna output port as show in the block diagram Test Setup; Setup EUT work at duty cycle more than 98%; Read power sensor values in RMS detector; SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 BT Mode Channel Frequency(MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -2.169 39 2441 -1.867 78 2480 -2.194 π/4DQPSK 0 2402 -1.299 39 2441 -0.984 78 2480 -1.303 5. Manufactur…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 1 of 34 Appendix A RF Test Data for BT V5.1(BDR/EDR) (Conducted Measurement) Product Name: Wireless Earbuds Trade Mark: N/A Test Model: XO-9929 Environmental Conditions Temperature: 25  C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -2.169 21 PASS MCH -1.867 21 PASS HCH -2.194 21 PASS π/4DQPSK LCH -1.299 21 PASS MCH -0.984 21 PASS HCH -1.303 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 2 of 34 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 3 of 34 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 4 of 34 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 5 of 34 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9545 Not Specified PASS MCH 0.9544 Not Specified PASS HCH 0.9555 Not Specified PASS π/4DQPSK LCH 1.281 Not Specified PASS MCH 1.282 Not Specified PASS HCH 1.282 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 6 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 7 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 8 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 9 of 34 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.992 0.637 PASS MCH 1.010 0.637 PASS HCH 1.170 0.637 PASS π/4DQPSK LCH 1.062 0.855 PASS MCH 0.986 0.855 PASS HCH 1.024 0.855 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 10 of 34 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 11 of 34 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 12 of 34 π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 13 of 34 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 14 of 34 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 15 of 34 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 16 of 34 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 17 of 34 π/4DQPSK _2DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 18 of 34 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -2.599 -37.599 -22.599 PASS MCH -2.404 -37.554 -22.404 PASS HCH -2.582 -37.015 -22.582 PASS π/4DQPSK LCH -2.626 -38.145 -22.626 PASS MCH -2.329 -37.834 -22.329 PASS HCH -2.609 -37.816 -22.609 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 19 of 34 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 20 of 34 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 21 of 34 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 22 of 34 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 23 of 34 π/4DQPSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 24 of 34 π/4DQPSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 25 of 34 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Frequency [MHz] Carrier Power [dBm] Frequency Hopping Max Spurious Level [dBm] Limit [dBm] Verdict GFSK LCH 2402 -2.570 Off -48.237 -22.57 PASS -2.161 On -48.910 -22.16 PASS HCH 2480 -2.581 Off -43.124 -22.58 PASS -2.568 On -43.775 -22.57 PASS π/4DQPSK LCH 2402 -2.542 Off -49.522 -22.54 PASS -2.123 On -48.835 -22.12 PASS HCH 2480 -2.678 Off -42.832 -22.68 PASS -2.367 On -45.437 -22.37 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 26 of 34 Test Graphs GFSK/LCH/No Hop GFSK/LCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 27 of 34 GFSK/HCH/No Hop GFSK/HCH/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA Page 28 of 34 π/4DQPSK/LCH/No Hop π/4DQPSK/LCH/Hop SHENZHEN LCS COMP…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 35 FCC TEST REPORT FOR XING DA INTERNATIONAL ELECTRONICS LIMITED Wireless Earbuds Test Model: XO-9929 Prepared for : XING DA INTERNATIONAL ELECTRONICS LIMITED Address : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 22, 2021 Number of tested samples : 2 Sample number : 210413170A-1, 210413170A-2 Serial number : Prototype Date of Test : April 22, 2021 ~ April 25, 2021 Date of Report : April 27, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210413170AEA Date of Issue ................................... : April 27, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : XING DA INTERNATIONAL ELECTRONICS LIMITED Address ........................................... : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2019-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Wireless Earbuds Trade Mark ...................................... : N/A Test Model ...................................... : XO-9929 Ratings ............................................ : Box Input: DC 5V Headset: DC 3.7V by Li-ion Battery(40mAh) Charging case: DC 3.7V by Li-ion Battery(400mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Lh Li/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210413170AEA April 27, 2021 Date of issue Test Model........................... : XO-9929 EUT......................................... : Wireless Earbuds Applicant............................... : XING DA INTERNATIONAL ELECTRONICS LIMITED Address.................................. : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : XING DA INTERNATIONAL ELECTRONICS LIMITED Address................................... : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone............................... : / Fax.......................................... : / Factory................................... : XING DA INTERNATIONAL ELECTRONICS LIMITED Address................................... : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 April 27, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 Report No.: LCS210413170AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 35 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................ 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ...................................................................................................................... 6 1.3 External…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9929 _______________________________________________________________________________________________ 1.2. Photo of AC Mains Conducted Emissions Fig. 3
