2ADK3XO-9969UV box with wireless charger

Instruc on Manual READ ALL INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THIS MANUAL In t he Box • UV box with wireless charger (x1) •Power Cable (x1) •User Manual (x1) Safety Precau ons •This product is NOT a toy, keep aw ay from children and pets. •Only use the device according to the instructions in this manual. Never use the device for anything other than its intended purpose. •This device is NOT a substitute for proper medical equipment or attentio n. •ONLY use the sup plied power cable. •Do not open this product or attempt to repair the unit yourself if it is not working properly. Doing so risks fire, shock or injury. •The device contains a safety feature that powers it off automatically when the cover is opened. Do NOT disable this safety feature. Never allow UV-C light to shine in eyes or on skin. •W hen not in use, the device should be stored in a dry, cool location, away from sources of water or heat. •Do not expose device or power cable to extreme temperatures (heat or cold), open flames, humid or wet conditions. •Do not submerge in water. Do not use in a location where the device or power cable could fall into liquid. •Unplug the charging cable when not in use. Do not pull the charging cable to disconnect, or use the cable as a handle. •Do no use if device or power cable is damaged. If device or power cable is damaged, it MUST be serviced or replaced by the manufacture or its service agent before using agai n. •Do NOT place any metal object onto the charging pad. •Magnetic strip cards, including credit cards, phone cards, identification cards and boarding passes may be damaged by the magnetic field if placed on or near this device. •Do not place this device on or near a microwave or similar kitchen appliance. Product Co nne c n g to Power •Place the UVC chamber on a flat, solid, stable surface. •Plug the small connector of the included power cable into the power port on the back of the UVC chamber. •Plug t he large connector into a USB power source, such as the USB port on a computer or into a compatible 5V/2A USB adapter (not included) and plug into a wall socket. Using the UV Sani zer Set up the sanitizer & connect to power. Open the cover of the sanitizer from the front, and place the device you would like to clean inside of the sanitizer. Close the lid. The UV sanitizer has two sanitization modes: Fast Sani ze mode and Deep Sani ze mode. •Press t he [Power] button once to start Fast Sani ze. •Double press the [Power] button to start Deep Sani ze. •When Fast Sani ze mode is activated, the LED indicator on top will turn BLUE, and the sanitizer will sterilize for the next 90 seconds. When it is finished, the LED indicator will flash BLUE 3 times then will turn off. •When Deep Sani ze mode is activated, the LED indicator on top will turn GREEN, and the sanitizer will sterilize for the next 5 minutes. When it is finished, the LED indicator will flash GREEN for 3 times then will turn off. •The charging LED on the power case will flash RED when charging and stay solid RED when fully charged. Once the UV sanitizer completely finishes sanitizing, open the lid, flip your device over, and repeat the sanitization process again for the other side of your device. Cau on: This device is designed to limit human & animal exposure to UV-C light, as it is harmful to skin and eyes. This device is equipped with a safety feature that automatically shuts the UV-C light off when the lid is opened. Using Wireless Charging •Connect t o power. The wireless charging LED indicator will flash RED and BLUE 3 times, t hen turn RED to indicate the wireless charging is in standby mode. •Place your Qi enabled device on top of the cover. The wireless charging LED indicator will turn BLUE to indicate that your device is charging properly. •If your device does not begin to charge, try repositioning your device on the charging pad. You may need to remove your smartphone case to charge properly. •When your device is fully charged, the wireless charging LED indicato r will turn OFF. Dis connect and unplug the charging pad. Note on Safety Features: •The device will automatically power OFF whe n it is overheated, or when a metal object such as a coin is placed on the charging pad . The wire less charging LED indicator will flash BLUE to warn o f automati c shutoff. Tech Specifica ons Input 5V 1.5A Wireless ch arging output 5W FCC Information This device complies with Part 15 of the FCC Rules. Caution: Any changes or modifications not expressly approved could void the user’s authority to operate the equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 and part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved …

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-06-10> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ADK3XO-9969 XO-9969 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Client’s name / title : Sam Shen / Sales Company: XING DA INTERNATIONAL ELECTRONICS LIMITED Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Phone: 0769-83454636 Fax: 0769-83345348 E-mail: [email protected]

XING DA INTERNATIONAL ELECTRONICS LIMITED Add: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/06/10 To whom it may concern: We, XING DA INTERNATIONAL ELECTRONICS LIMITED the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ADK3XO-9969 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Sam Shen / Sales Company: XING DA INTERNATIONAL ELECTRONICS LIMITED Address: #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Phone: 0769-83454636 Fax: 0769-83345348 E-Mail: [email protected]

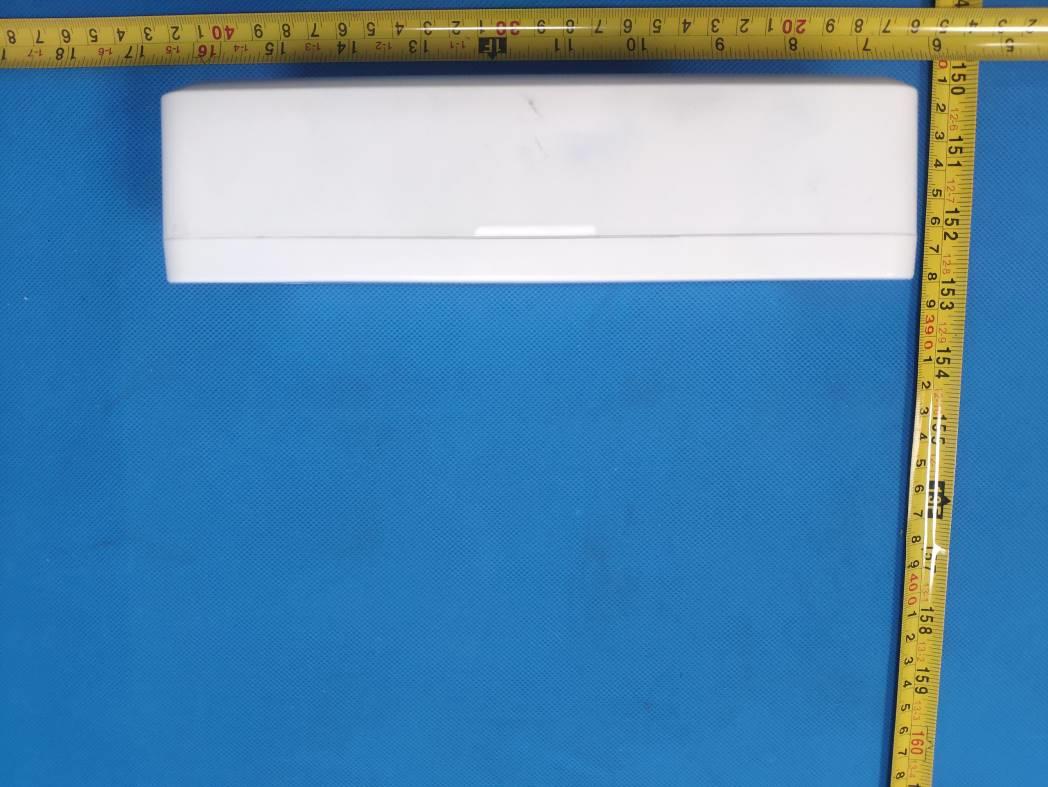

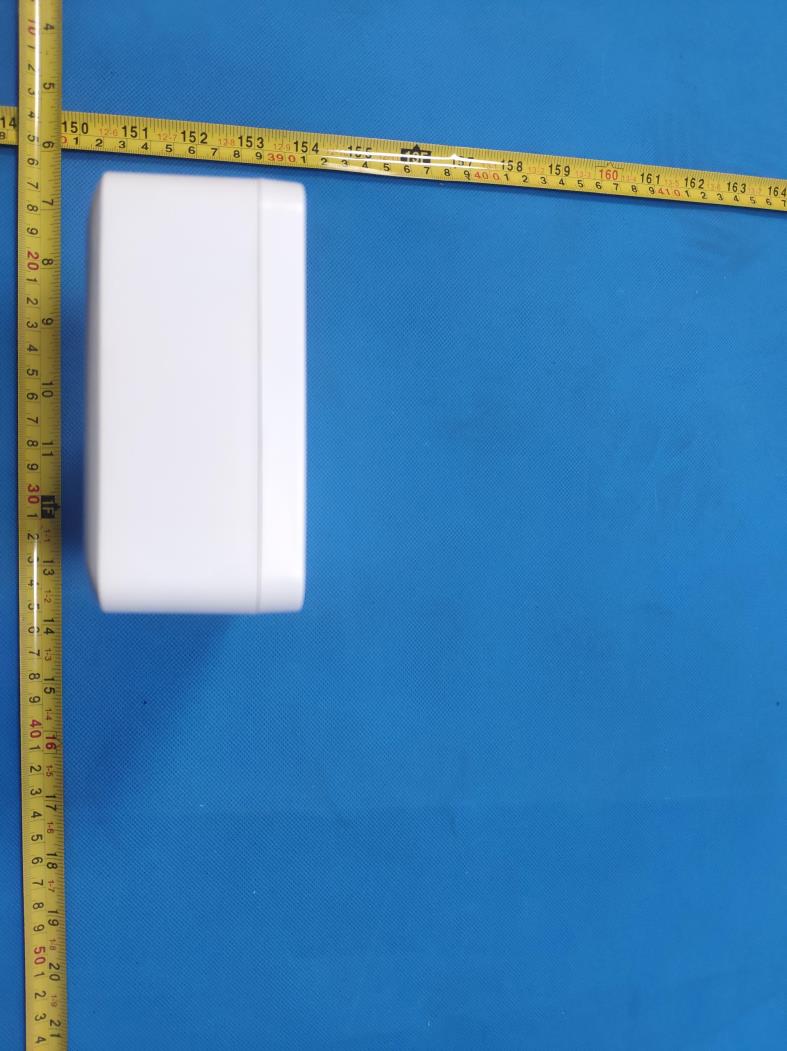

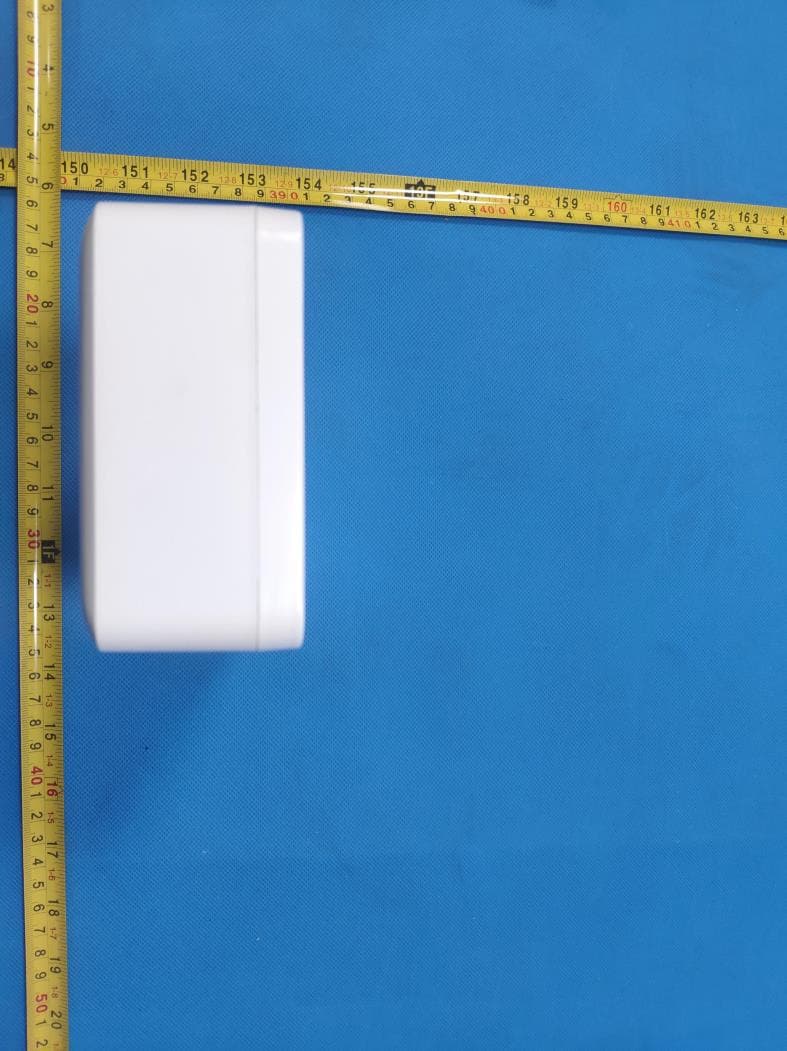

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

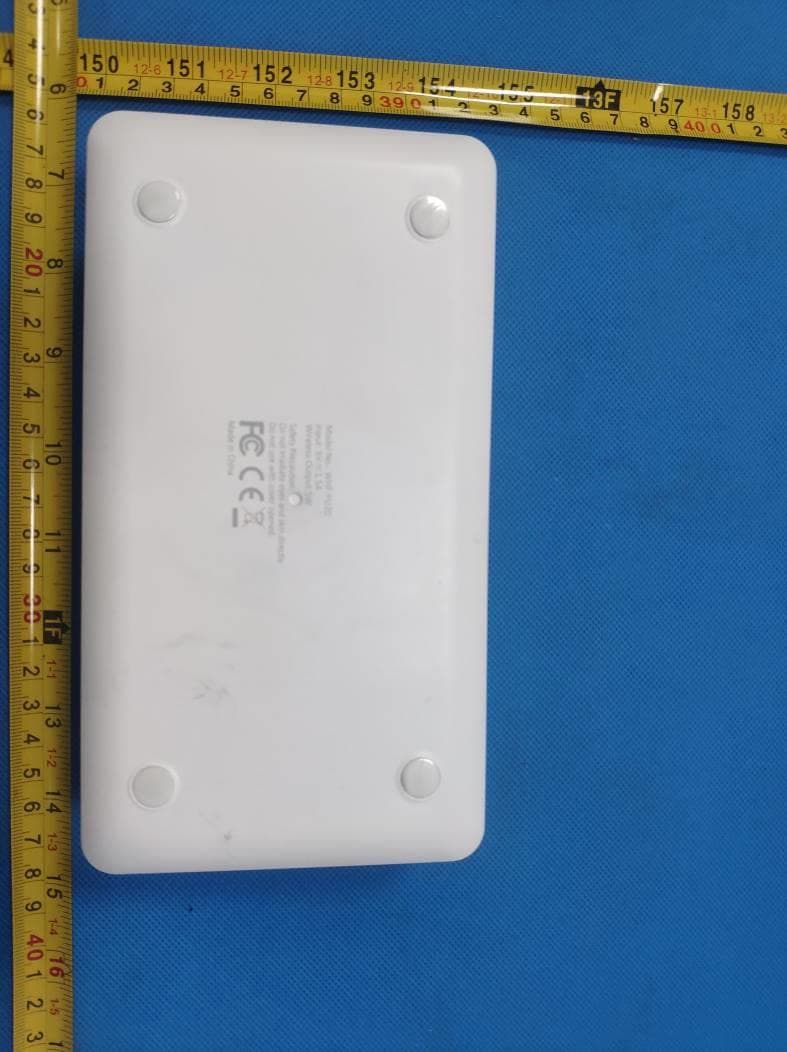

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Report No.: LCS200601104AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 40mm*W: 30mm Label Location Model No.: XO-9969 FCC ID: 2ADK3XO-9969 Input: 5V 1.5A Wireless Output: 5W Safety Precaution: Do not irradiate eyes and skin directly. Do not use with cover opened.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 Antenna(WPT) SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 RF Exposure Evaluation Report 1. Product Information FCC ID: 2ADK3XO-9969 Product Name UV box with wireless charger Model Number XO-9969 Power Supply Input: DC 5V 1.5A Output: DC 5V 1.0A Modulation Type CW (Continuous Wave) Frequency Range 110.0 - 205.0 KHz Maximum Rated Power of WPT 5 W WPT Operation Frequency 175.0 KHz Antenna Type Coil Antenna Hardware version XO-9918A V3 Software version W150C-970BBE Accessories iPhone 8 Plus Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 6) According to April 2018 TCB Workshop, No need to report E-field measurements. Only H-field required. Per KDB 447498 D01 Section 4.3.1 Standalone SAR test exclusion considerations; a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, 30 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following (also illustrated in Appendix B): 1) {[Power allowed at numeric threshold for 50 mm in step a)] + [(test separation distance – 50 mm)·(f(MHz)/150)]} mW, for 100 MHz to 1500 MHz 2) {[Power all…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Report No.: LCS200601104AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 21 FCC TEST REPORT FOR XING DA INTERNATIONAL ELECTRONICS LIMITED UV box with wireless charger Test Model: XO-9969 Prepared for : XING DA INTERNATIONAL ELECTRONICS LIMITED Address : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao'an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : June 03, 2020 Number of tested samples : 1 Sample No. : LCS200601104A-1 Serial number : Prototype Date of Test : June 03, 2020 ~ June 10, 2020 Date of Report : June 10, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Report No.: LCS200601104AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 21 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................. : LCS200601104AEA Date of Issue .................................. : June 10, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : XING DA INTERNATIONAL ELECTRONICS LIMITED Address .......................................... : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No...................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF..................................... : Dated 2020-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : UV box with wireless charger Trade Mark ..................................... : N/A Test Model ...................................... : XO-9969 Ratings ........................................... : Input: DC 5V 1.5A Output: DC 5V 1.0A Result ........................................... : Positive Compiled by: Supervised by: Approved by: Scent Hu/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Report No.: LCS200601104AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 21 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200601104AEA June 10, 2020 Date of issue Test Model........................ : XO-9969 EUT.................................... : UV box with wireless charger Applicant........................... : XING DA INTERNATIONAL ELECTRONICS LIMITED Address.............................. : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone.......................... : / Fax..................................... : / Manufacturer..................... : XING DA INTERNATIONAL ELECTRONICS LIMITED Address.............................. : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone.......................... : / Fax..................................... : / Factory.............................. : XING DA INTERNATIONAL ELECTRONICS LIMITED Address.............................. : #98 LiWu Swan Industrial District, Qiao Tou Town, Dong Guan City, Guang Dong, China Telephone.......................... : / Fax..................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Report No.: LCS200601104AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 21 Revision History Revision Issue Date Revisions Revised By 000 June 10, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 Report No.: LCS200601104AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 21 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1 DESCRIPTION OF DEVICE (EUT) ............................................................................................................................ 6 1.2 SUPPORT EQUIPMENT LIST ..................................................................................................................................... 6 1.3 EXTERNAL I/O CABLE .....................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADK3XO-9969 1.2. Photo of Power Line Conducted Emissions Measurement Fig. 3 Fig. 4 _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2
