2ADKM004PGame Controller Super Converter

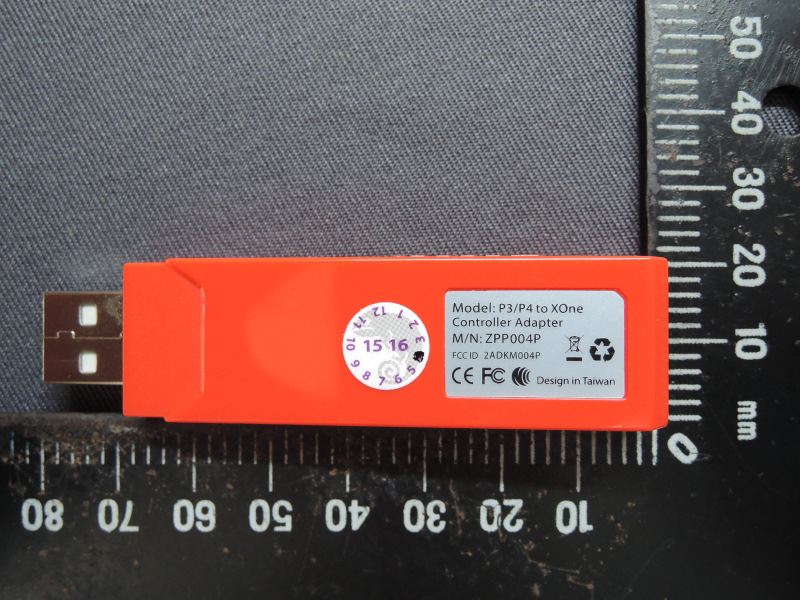

Appendix P Photo Documentation Page 1 of 2 10052123 001; 10052124 001; 10052125 001 Product: Brand Name: Game Controller Super Converters Brook Type Identification: Super PS3 Controller Converter for XBOX One(ZPPK002), Super PS3/PS4 Controller Converter for XBOX One(ZPP004P), Super XBOX360/XBOX One Controller Converter for XBOX One(ZPPK001) Appendix P Photo Documentation Page 2 of 2 10052123 001; 10052124 001; 10052125 001 Product: Brand Name: Game Controller Super Converters Brook Type Identification: Super PS3 Controller Converter for XBOX One(ZPPK002), Super PS3/PS4 Controller Converter for XBOX One(ZPP004P), Super XBOX360/XBOX One Controller Converter for XBOX One(ZPPK001)

Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 45 von 50 Page 45 of 50 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is <1mW, hence the EUT is excluded from SAR evaluation according to FCC KDB publication 447498 D01: Mobile Portable RF Exposure..

Test Report No.10052123 10052125 001 Appendix D: Radiated Spurious Emission Data (File: 10052123 10052125AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 10 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 22 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 34 Spurious Emissions, RX Mode, 1-18G .................................................................................................... 36 Spurious Emissions, RX Mode, 18-26G .................................................................................................. 42 Spurious Emissions, RX Mode, 30M-1G ................................................................................................. 48 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (GFSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 Radiated Bandedge (GFSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (8DPSK) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 Radiated Bandedge (8DPSK) High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 10 Spurious Emissions, TX Mode, 1-18G Service No.: 114031357-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/7/1 19:33:32 Applicant: Zeroplus Test Rating: DC 5V Product: Game Controller Super Converters Temp.( °C °C°C °C)/Hum.(%): 21.6(°C °C°C °C)/53% Model No.: ZPPK002 Test Engineer: Hugo Chang Test Mode: 1DH5-2402-TX Remark: softwave-1 Power=9 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.35 62.42 60.07 74.00 -13.93 peak 100 56 2 4804.000 -2.35 55.92 53.57 54.00 -0.43 AVG 100 56 3 6185.000 4.81 45.42 50.23 74.00 -23.77 peak 100 51 4 7206.000 5.78 44.05 49.83 74.00 -24.17 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 11 Service No.: 114031357-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/7/1 19:34:35 Applicant: Zeroplus Test Rating: DC 5V Product: Game Controller Super Converters Temp.(°C °C°C °C)/Hum.(%): 21.6(°C °C°C °C)/53% Model No.: ZPPK002 Test Engineer: Hugo Chang Test Mode: 1DH5-2402-TX Remark: softwave-1 Power=9 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4804.000 -2.35 50.97 48.62 74.00 -25.38 peak 2 6117.000 4.53 46.28 50.81 74.00 -23.19 peak 100 217 3 7206.000 5.78 43.71 49.49 74.00 -24.51 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 12 Service No.: 114031357-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/7/1 19:26:53 Applicant: Zeroplus Test Rating: DC 5V Product: Game Controller Super Converters Temp.(°C °C°C °C)/Hum.(%): 21.6(°C °C°C °C)/53% Model No.: ZPPK002 Test Engineer: Hugo Chang Test Mode: 1DH5-2441-TX Remark: softwave-1 Power=9 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.16 60.03 57.87 74.00 -16.13 peak 100 45 2 4882.000 -2.16 54.65 52.49 54.00 -1.51 AVG 100 45 3 6355.000 5.47 45.37 50.84 74.00 -23.16 peak 100 145 4 7323.000 6.13 43.86 49.99 74.00 -24.01 peak 0 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 13 Service No.: 114031357-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2015/7/1 19:30:25 Applicant: Zeroplus Test Rating: DC 5V Product: Game Controller Super Converters Temp.(°C °C°C °C)/Hum.(%): 21.6(°C °C°C °C)/53% Model No.: ZPPK002 Test Engineer: Hugo Chang Test Mode: 1DH5-2441-TX Remark: softwave-1 Power=9 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4882.000 -2.16 48.44 46.28 74.00 -27.72 peak 2 6066.000 4.34 45.49 49.83 74.00 -24.17 peak 100 81 3 7323.000 6.13 43.79 49.92 74.00 -24.08 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 14 Service No.: 114031357-NCC Test Distance: 3m Test Standard: NCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2015/7/1 19:39:32 Applicant: Zeroplus Test Rating: DC 5V Product: Game Controller Super Converters Temp.(°C °C°C °C)/Hum.(%): 21.6(°C °C°C °C)/53% Model No.: ZPPK002 Test Engineer: Hugo Chang Test Mode: 1DH5-2480-TX Remark: softwave-1 Power=9 No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4960.000 -1.97 58.31 56.34 74.00 -17.66 peak 100 45 2 4960.000 -1.97 51.95 49.98 54.00 -4.02 AVG 100 45 3 6185.000 4.81 45.18 49.99 74.00 -24.01 peak 100 132 4 7440.000 6.47 43.60 50.07 74.00 -23.93 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Song…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 2 von 50 Page 2 of 50 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 20DB BANDWIDTH RESULT: Passed 5.1.4 99% BANDWIDTH RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.1.7 FREQUENCY SEPARATION RESULT: Passed 5.1.8 NUMBER OF HOPPING FREQUENCY RESULT: Passed 5.1.9 TIME OF OCCUPANCY RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 3 von 50 Page 3 of 50 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST LABORATORY ................................................................................................ 6 2.2 TEST FACILITY ........................................................................................................ 6 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.4 TRACEABILITY ........................................................................................................ 8 2.5 CALIBRATION ......................................................................................................... 8 2.6 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 11 3.5 SUBMITTED DOCUMENTS ....................................................................................... 11 4. TEST SET-UP AND OPERATION MODES ................................................................... 12 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 12 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 12 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 13 4.5 TEST SETUP DIAGRAM .......................................................................................... 13 5. TEST RESULTS ..................................................................................................... 15 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 15 5.1.1 Antenna Requirement ................................................................................................................ 15 5.1.2 Peak Output Power .................................................................................................................... 16 5.1.3 20dB Bandwidth ......................................................................................................................... 20 5.1.4 99% Bandwidth .......................................................................................................................... 24 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 28 5.1.6 Spurious Emission ..................................................................................................................... 36 5.1.7 Frequency Separation ................................................................................................................ 37 5.1.8 Number of hopping frequency .................................................................................................... 39 5.1.9 Time of Occupancy .................................................................................................................... 41 5.2 MAINS EMISSIONS................................................................................................. 44 5.2.1 Mains Conducted Emissions ...................................................................................................... 44 Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 4 von 50 Page 4 of 50 6. SAFETY HUMAN EXPOSURE ................................................................................... 45 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 45 6.1.1 Electromagnetic Fields ............................................................................................................... 45 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 46 8. LIST OF TABLES ................................................................................................... 50 9. LIST OF PHOTOGRAPHS......................................................................................... 50 Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 5 von 50 Page 5 of 50 1. General Remarks 1.1 Complementary Materials The following attachments are integral parts of this test report: Appendix P: Photo Documentation (File Name: 10052125APPENDIX P) Appendix D: Test Resu…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 46 von 50 Page 46 of 50 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 47 von 50 Page 47 of 50 Photograph 2: Set-up for Spurious Emissions (Back View 1) Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 48 von 50 Page 48 of 50 Photograph 3: Set-up for Spurious Emissions (Back View 2) Photograph 4: Set-up for Conducted testing Produkte Products Prüfbericht - Nr.: Test Report No. 10052125 001 Seite 49 von 50 Page 49 of 50 Photograph 5: Set-up for for Mains Conducted testing Back Photograph 6: Set-up for for Mains Conducted testing Front
