2ADLJBEATMobile Phone

User Manual Model No.: Beat CONTENTS 1. Insert SIM card.........................................................................* 2 Remove and install the battery...............................................* 3. Call............................................................................................* 4. Locked and unlock the screen................................. ..................* 5. Enter the desktop................................................. ... ..................* 6. Manage contacts................................................ ... ..................* 7. Make a call......................................................... ... ..................* 8. Send message..................................................... ... ..................* 9. Write Email......................................................... ... ..................* 10. Photo and video.................................................. ... ..................* 11. Image viewer...................................................... ... ..................* 12. Music............................................................... ... ..................* 13. Internet............................................................ ... ..................* 14. View notifications............................................... ... ..................* 15. Multi task.......................................................... ... ..................* 16. Change wallpaper............................................... ... ..................* 17. Add desktop widget............................................. ... ..................* 18. File manager...................................................... ... ..................* Thank you for choosing our mobile phones. You can read the manual, a comprehensive understanding of the use of mobile phones and enjoy its perfect functionality and simple method of operation. 1. Insert SIM card 1. Power off the phone and remove other external power 2. Take off the back cover and remove the battery of the phone 3. Insert SIM card into the SIM card slot in the phone. 2. Remove and Install the battery The attached Li‐ion battery along with the phone can be used after unpacking. For the first three times, please use up the power and charger it fully for new battery to perform well Install the battery 1. Put the battery in the battery compartment, note that the metal end of the battery should be firstly inserted 2. Put on the back cover. Remove the Battery 1. Take off the back cover. 2. Put finger on the side finger grip, and then lift up the battery from the finger grip to remove the battery. 3. Call 1. Hold the Power key to power on the phone. The phone will automatically search for the network 2. When the phone is powered on, hold the Power key to power off the phone 4. Locked and unlock the screen To lock the screen, you only need to press the power button on the right side of the phone, then the phone enter sleep mode. To unlock the screen, you only need to press the power button again, then the phone enter operating mode. 5. Enter the desktop Unlock the screen and enter the desktop, all your applications will be displayed on the desktop. You can touch the icon to open the corresponding program, you can also press and drag the icon to sort. If you want to uninstall the application, drag the icon to the trash at the top. 6. Manage contacts Please select the import contacts mode for the first time, the phone support several import contacts mode. You can import contacts in SIM card or SD card; also you can set the synchronization account, or create a new contact directly. 7. Make a call You can make calls directly from the desktop which can also be used to search for contacts. 8. Send Message Write a message, you can add one or more recipients. Text, pictures, facial expressions, contact information, audio and video are supported for the message content. 9. Write email After you have set your email account, you can write and send you email, and you can get the notification when new email arrived. 10. Photo and video Launch the camera to take pictures. continuous shooting, timing, effects, etc. are supported. To record video, you just need to switch camera to video mode. 11. Image viewer Gallery application supports folder path, or you can double‐click to zoom through a single picture, you can slide left or right to the next picture. 12. Music Music application supports online music through the internet. 13. Internet Browser support double‐click or sliding to scale webpage. fast access to frequently used sites through site navigation. Support multi‐tab, click the tab to switch pages. 14. View Notifications When you have a new phone call, message or some other notification information, you can slide down from the status bar to see the notification details. 15. Multi task Phone supports multiple tasks running simultaneously, you only need to long press the home button in unlock state. 16. Change wallpaper You can change lock screen wallpaper or desktop wallpaper. 17. Add desktop widget To add a desktop gadget you can long press the empty area on the desktop. 18. File manager Through file manager, you can get the current usage of mobile phone memory card. File manager support quick browsing through classified documents, or manage files by path. also, remote file management capabilities are supported through WIFI from the remote computer. Company: Xwireless LLC Address: 11426 Rockville pike, Rockville Md. Contact Person: Paul Greene TEL: 001‐3014124412 E‐mail: [email protected] FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types mobile phone (FCC ID: 2ADLJBEAT) has also been tested against this SAR limit. The highest reported SAR values for head, body‐worn accessory, product specific (wireless router), and simultaneous transmission conditions are 0.77 W/kg, 0.64 W/kg , 1.21 W/kg, and 1.33 W/kg respe…

Text truncated - open the document above for the full version.

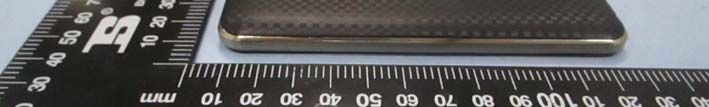

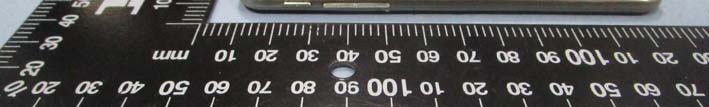

Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EUT View 3 EUT View 4 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EUT View 5 EUT View 6 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EUT View 7

Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADLJBEAT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E EUT Housing and Board View 3 Solder Board-Component View 1 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E Solder Board-Component View 2 Solder Board-Component View 3 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-1 FCC PART 22H&24E Antenna View 1 WIFI/BT Antenna GSM/WCDMA Antenna

Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 PAGE 1 OF 16 FCC PART 15B FCC Part 15B Measurement and Test Report For Xwireless LLC 11426 Rockville pike, Rockville Md FCC ID: 2ADLJBEAT Test Rule(s): FCC Part 15 Subpart B Product Description: Mobile Phone Tested Model: Beat Report No.: STR15018110I-5 Tested Date: 2015-01-13 to 2015-01-27 Issued Date: 2015-01-27 Tested By: Lebron Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 PAGE 2 OF 16 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND OPERATION MODE ...................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. CONDUCTED EMISSIONS .................................................................................................................................... 7 3.1 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 3.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 3.3 TEST PROCEDURE ................................................................................................................................................... 7 3.4 BASIC TEST SETUP BLOCK DIAGRAM ..................................................................................................................... 7 3.5 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 8 3.6 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................................... 8 3.7 CONDUCTED EMISSIONS TEST DATA ...................................................................................................................... 8 4. RADIATED EMISSIONS ....................................................................................................................................... 11 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................................ 11 4.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 11 4.3 TEST PROCEDURE ................................................................................................................................................. 11 4.4 TEST RECEIVER SETUP ......................................................................................................................................... 12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 12 4.6 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 4.7 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 12 Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 PAGE 3 OF 16 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Xwireless LLC Address of applicant: 11426 Rockville pike, Rockville Md Manufacturer: Xwireless LLC Address of manufacturer: 11426 Rockville pike, Rockville Md General Description of EUT Product Name: Mobile Phone Trade Name: / Model No.: Beat Adding Model(s): / The EUT is GSM850/900/DCS1800/PCS1900, WCDMA Band II/V, Mobile Phone. the Mobile Phone is intended for speech and Multimedia Message Service (MMS) transmission. It is equipped with GPRS class 12 for GSM850 and GSM1900 and Bluetooth, Wi-Fi, GPS and camera functions. For more information see the following datasheet Note: The test data is gathered from a production sample provided by the manufacturer. Technical Characteristics of EUT Rated Voltage: 5.0V Rated Current: 500mA Rated Power: / Power Adapter Model: Beat Lowest Internal Frequency: 32.768KHz Highest Internal Frequency: 1.2GHz Classification of ITE: Class B Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 PAGE 4 OF 16 FCC PART 15B 1.2 Test Standards The following report is prepared on behalf of the Xwireless LLC in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine c…

Text truncated - open the document above for the full version.

Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Charging & playing mode Radiation Emission Test Setup (9 kHz to 30MHz) Charging & playing mode Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 FCC PART 15B Downloading mode Radiation Emission Test Setup (30MHz to 1GHz) Charging & playing mode Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 FCC PART 15B Downloading mode Radiation Emission Test Setup (above 1GHz) Charging & playing mode Xwireless LLC Model: Beat REPORT NO.: STR15018110I-5 FCC PART 15B Downloading mode
