User Manual FCC ID: 2ADLJPQWERTY The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Basic Information ................................................................................................ 3 Brief Introduction ..................................................................................................... 3 Safety Notice ............................................................................................................. 3 Cleaning and Maintaining ........................................................................................ 3 Before Using ........................................................................................................ 3 SIM ........................................................................................................................... 3 Phone Unlock ........................................................................................................... 3 SIM Unlock ............................................................................................................... 4 Function menu Introduction ............................................................................... 4 File manager ............................................................................................................ 4 Phonebook ................................................................................................................ 4 Fun ............................................................................................................................ 5 MRP Store ............................................................................................................. 5 Games ................................................................................................................... 5 Facebook .............................................................................................................. 5 Yahoo .................................................................................................................... 5 Twitter .................................................................................................................. 6 Google .................................................................................................................. 6 Call center ................................................................................................................ 6 Call history ........................................................................................................... 6 Call settings .......................................................................................................... 7 Messaging ................................................................................................................. 8 Write message ...................................................................................................... 8 Inbox ..................................................................................................................... 8 Drafts .................................................................................................................... 9 Outbox .................................................................................................................. 9 Sent messages ....................................................................................................... 9 Service messages .................................................................................................. 9 SMS settings ......................................................................................................... 9 Multimedia ................................................................................................................ 9 Camera ................................................................................................................. 9 Image viewer ...................................................................................................... 10 Video recorder .................................................................................................... 10 Video player ....................................................................................................... 10 Audio palyer ....................................................................................................... 10 Sound recorder ................................................................................................... 11 FM radio ............................................................................................................. 11 Organizer ................................................................................................................ 11 Calculator ........................................................................................................... 11 Bluetooth ............................................................................................................ 12 Calendar ............................................................................................................. 12 Alarm .................................................................................................................. 12 Settings ................................................................................................................... 12 Phone settings ..................................................................................................... 12 Security settings ................................................................................................. 14 Network settings ................................................................................................. 14 Connectivity ...............................................…

Text truncated - open the document above for the full version.

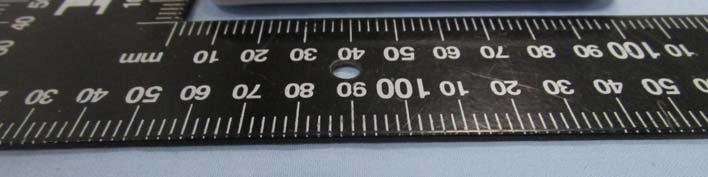

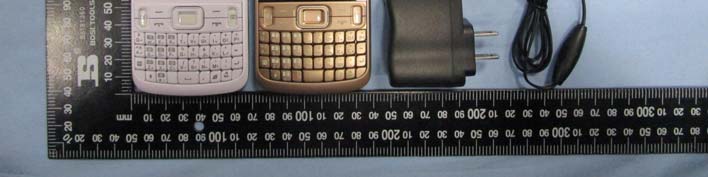

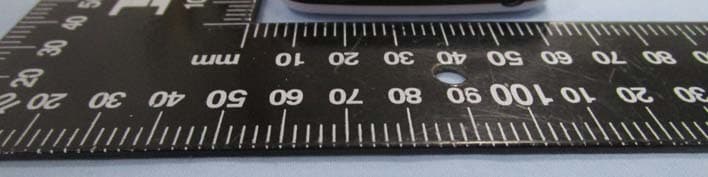

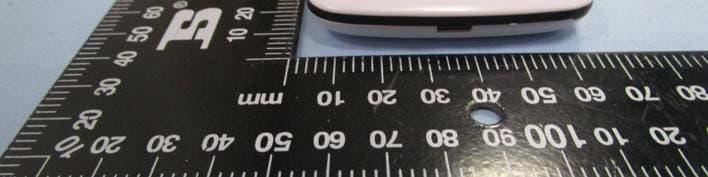

Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EUT View 3 EUT View 4 Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EUT View 5 EUT View 6 Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EUT View 7

Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: 2ADLJQWERTY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E EUT Housing and Board View 3 Solder Board-Component View 1 GSM Ant. BT Ant. Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E Solder Board-Component View 2 Solder Board-Component View 3 Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-1 FCC PART 22H&24E Solder Board-Component View 4

Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-3 PAGE 1 OF 16 FCC PART 15B FCC Part 15B Measurement and Test Report For Xwireless LLC 11426 Rockville pike, Rockville Md FCC ID: 2ADLJQWERTY Test Rule(s): FCC Part 15 Subpart B Product Description: mobile phone Tested Model: qwerty Report No.: STR15018255I-3 Tested Date: 2015-01-28 to 2015-02-09 Issued Date: 2015-02-09 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy So / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-3 PAGE 2 OF 16 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND OPERATION MODE ...................................................................................................................... 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. CONDUCTED EMISSIONS .................................................................................................................................... 7 3.1 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 3.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 3.3 TEST PROCEDURE ................................................................................................................................................... 7 3.4 BASIC TEST SETUP BLOCK DIAGRAM ..................................................................................................................... 7 3.5 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 8 3.6 SUMMARY OF TEST RESULTS/PLOTS ...................................................................................................................... 8 3.7V CONDUCTED EMISSIONS TEST DATA ................................................................................................................... 8 4. RADIATED EMISSIONS ....................................................................................................................................... 11 4.1 MEASUREMENT UNCERTAINTY ............................................................................................................................ 11 4.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 11 4.3 TEST PROCEDURE ................................................................................................................................................. 11 4.4 TEST RECEIVER SETUP ......................................................................................................................................... 12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 12 4.6 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 12 4.7 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 13 Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-3 PAGE 3 OF 16 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: Xwireless LLC Address of applicant: 11426 Rockville pike, Rockville Md Manufacturer: Xwireless LLC Address of manufacturer: 11426 Rockville pike, Rockville Md General Description of EUT Product Name: mobile phone Trade Name: / Model No.: qwerty Hardware Version: P6041_MB_V2.0 Software Version: qwerty20150129 IMEI: 865378020042044 Battery: BL-4C/800mAh Device Category: Portable Device Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Rated Voltage: AC120V/60Hz; Battery: DC 3.7V Rated Current: / Rated Power: / Power Adapter Model: QWERTY INPUT:AC100-260V 50/6Hz;OUTPUT:DC5V-500mA Lowest Internal Frequency: 32.768KHz Highest Internal Frequency: 40MHz Classification of ITE: Class B Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-3 PAGE 4 OF 16 FCC PART 15B 1.2 Test Standards The following report is prepared on behalf of the Xwireless LLC in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 15, Subpart B, and section 15.205, 15.107, and 15.109 rules. Maintenance of compliance is …

Text truncated - open the document above for the full version.

Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-3 FCC PART 15B EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Charging &Playing Radiation Emission Test Setup (9 kHz to 30MHz) Charging &Playing &Camera Xwireless LLC Model: qwerty REPORT NO.: STR15018255I-3 FCC PART 15B Radiation Emission Test Setup (30MHz to 1GHz) Charging &Playing &Camera Radiation Emission Test Setup (above 1GHz) Charging &Playing &Camera
