2ADLX-MM0110113MSensor Module

0 i3 Micro Module Edge-AI enabled Wireless Sensor Module for Condition based Monitoring Oct. 2023 &RS\ULJKWš7'.&RUSRUDWLRQ$OOULJKWVUHVHUYHG 0 1. Overview In many industrial applications, there is a need to prevent anomalies in machinery and equipment to minimize downtime. Productivity and efficiency can be improved by predicting problems, rather than reacting only after breakdowns have occurred. TDK i3 Micro Module - Ultracompact, battery-powered wireless multi-sensor module - was designed to facilitate this type of predictive maintenance in any kind of industrial applications. It achieves vibration sensing at almost any desired location without physical constraints such as wiring. This accelerates the prediction of anomalies in machinery and equipment, enabling an ideal implementation of Condition based Monitoring (CbM). Monitoring through real-time visualized empirical equipment data instead of relying on manpower and scheduled maintenance, understanding the health of machinery and equipment to help extend uptime, and minimizing downtime by preventing unexpected failures - all contribute to establishing an ideal predictive maintenance system. &RS\ULJKWš7'.&RUSRUDWLRQ$OOULJKWVUHVHUYHG 0 2. Key features • Edge AI enabled anomaly detection • Embedded algorithm for vibration monitoring • Sensors: accelerometer, temperature • Wireless connectivity: BLE and mesh network • USB interface • Replaceable battery • PC software for data collection, AI training, and visualization 3. Main applications • Factory automation •Robotics • HVAC equipment and filter monitoring 0 4. Target specifications •i3 Micro Module USB Type-C LED indicator ItemSpecification Communication interface WirelessMesh / Bluetooth low energy WiredUSB Communication range (Line of sight) Mesh< 40m (Sensor <-> Sensor, Network Controller) Bluetooth low energy< 10m (Sensor <-> Network Controller) Operating condition Power SupplyReplaceable battery (CR2477) / USB Battery life2 years (1 hour of report interval) Operating Temperature-10 to 60degC Mechanical specifications Dimension55.7 x 41.0 x 20.0 Ingress protectionIP54 Mounting TypeScrew M3 x 2 Sensor – Vibration 3-Axis Accelerometer ʸ2g, ʸ4g, ʸ8g,ʸ16g Frequency RangeDC to 2kHz Sampling rateUp to 8kHz Output KPIsMin, Max, Peak-to-Peak, Standard deviation, RMS Data streamingOnly supported in USB and Bluetooth low energy Sensor – Temperature Measuring Range-10 to 60degC Accuracy ʸ1degC (10 to 30degC) ʸ2degC (<10degC, >30degC) 0 5. Outline dimension •i3 Micro Module 0 6. Software CbM Studio is a PC software that can be used with the i3 Micro Module and provides the following features to make it easy to start implementing Condition based Monitoring. •System requirements •Supported function ItemRequirement OSWindows 10, 64bit RAM16GB HardwareUSB 2.0 port Sensor interface Recording raw data Deployment of trained AI model AI inference operation USB ططط Mesh ط Bluetooth low energy ططط &E06WXGLR •Sensor configuration •Recording streaming data for AI training •Feature analysis of streaming data •Training of AI model •Deployment of trained AI model •Collecting & exporting sensor data •Visualizing received sensor data •Visualizing mesh network status 0 7. Battery replacement „How to install the battery 1. Insert the battery (CR2477) with the positive side (+) face up. Caution: Do not insert the battery with the polarities in the wrong direction. Hold the battery with claws. 2. Close the back cover by pressing down. 3. LED Indicator (Red/Green) lights up for a couple of seconds after turning on the power switch inside. If not, please make sure the polarity of the battery. „How to remove the battery 1. Remove the back cover by using this concave. 2. Remove the old battery by using this concave. 3. LED Indicator (Red/Green) lights up for a couple of seconds after turning on the power switch inside. If not, please make sure the polarity of the battery. „Important • Do not use such a metal tweezer or a screwdriver when removing the battery. • The supplied battery is for trial use. This battery can run out faster. 0 8. Safety precautions IMPORTANT SAFETY INFORMATION To assure the correct use of the product basic safety measures should always be followed including the warnings and cautions listed in this instruction manual. ̨Warning *Warning: Improper use may result in death or serious injury. • Do not throw the battery into fire. The battery may explode. • Please stop using this product immediately, if there is strange smell or smoke from the unit. • Keep the unit out of the reach of young children. • Do not subject the unit to extreme temperatures, humidity, moisture, or direct sunlight. Internal condensation due to severe change in temperature may cause malfunction. • In high temperature or low temperature environment, battery life may be extremely short due to the characteristics of the battery used. ̨Caution *Caution: Improper use may result in minor or moderate injury to the user or damage to the equipment. • Do not use the unit in the field of strong electromagnetic waves and static electricity. • Do not insert the battery with the polarities in the wrong direction. • Always use the type of battery indicated. • Remove the battery from this unit when you are not going to use it for a long period of time (approximately 3 months or more) • Do not replace the battery during the wireless communication. „Precautions for Correct Use • Do not disassemble or modify the unit. • Do not subject the unit to strong shocks, drop it, step on it. • Do not immerse the USB connector section in water. The external connector opening is not waterproof. Do not wash it or touch it with wet hands. Be careful that water does not get into the unit. • Depending on the surrounding environment and the mounting position, the measured characteristic may vary. The measured values must be treated as a reference. (1) Do not subject the unit to extreme temperatures, humidity, moisture, or direct sunlight…

Text truncated - open the document above for the full version.

August 21, 2023

© [Legal Entity] A TDK Group Company y YYYY [Department] y [MM/YY] y 12 [Presentation topic] y [Chapter title] ► strictly confidential 10. External Pictures Front Bottom To p Left Right Back

© [Legal Entity] A TDK Group Company YYYY [Department][MM/YY]1 [Presentation topic][Chapter title] ► strictly confidential Label and Location FCC ID Location • The FCC ID is labeled on the packing box of this product and is described in the user manual. The FCC ID cannot be printed on six sides of this product in a font size larger than 4 pt for the following three reasons. Three reasons • The FCC ID may disappear on the top side if chemicals is splashed because this product is used in a factory. • The FCC ID cannot be printed on four sides because they are curve. • The FCC ID cannot be printed on the bottom side because there is no space.

© [Legal Entity] A TDK Group Company YYYY [Department][MM/YY]1 [Presentation topic][Chapter title] ► strictly confidential PositionDescription 1Blank (Item Label) 2Blank 3Blank (Manufacturing Label) 4 Manufacturer, Product Name, Appearance diagram 5 Statement, Bar code mark Manufacturer, Country of origin 6FCC ID, Certification mark Package position: No.5 QR Code (Link to the Web Manual) Visit our website for the Web Manualat: https://product.tdk.com/. TDK Corporation MADE IN JAPAN Package position: No.6 FCC ID : 2ADLX-MM0110113M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Perchlorate Material – special handing may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate. Package 1 4 2 3 5 6 Website QR Code

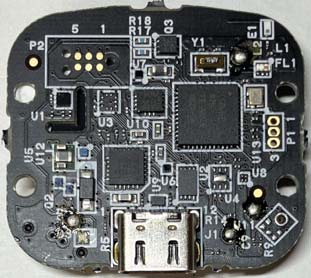

© [Legal Entity] A TDK Group Company y YYYY [Department] y [MM/YY] y 13 [Presentation topic] y [Chapter title] ► strictly confidential 11. Internal Pictures Wireless MCU on the PCB (Top) Wireless MCU Around antenna USB Connector Wireless MCU on the PCB Wireless MCU on the PCB (Bottom)

Test report No. : 15008849S Page : 1 of 22 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 EMI TEST REPORT Test Report No.:15008849S CustomerTDK Corporation Description of EUT Sensor Module Model Number of EUT i3 Micro Module FCC ID 2ADLX-MM0110113M Test Regulation FCC Part 15 Subpart B, Class A Test Result Complied (Refer to SECTION 3) Issue Date October 17, 2023 Remarks- Representative test engineer Approved by Yasumasa Owaki Engineer Kazutaka Takeyama Leader CERTIFICATE 1266.03 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 21.0 Test report No. : 15008849S Page : 2 of 22 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 15008849S Revision Test report No. Date Revised Contents - ( Original)15008849S October 17, 2023 - •This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. •Th e results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.) •This sample tested is in compliance with the limits of the above re gulation. •The test results in this test report are traceable to the national or international standa rds. •Th is test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. •This test re port covers EMC technical requirements. I t does not cover administrative issues such as Manual or non-EMC test related Requirements. (if applicab le) •Th e all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab. •The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accred ited. •Th e information provided from the customer for this report is identified in Sectio n 1. •For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test report No. : 15008849S Page : 3 of 22 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation IEEE Institute of Electrical and Electronics Engineers AAN Asymmetric Artificial Network IF Intermediate Frequency AC Alternating Current ILAC International Laboratory Accreditation Conference AM Amplitude Modulation ISED Innovation, Science and Economic Development Canada AMN Artificial Mains Network ISN Impedance Stabilization Network Amp, AMP Amplifier ISO International Organization for Standardization ANSI American National Standards Institute JAB Japan Accreditation Board Ant, ANT Antenna LAN Local Area Network AP Access Point LCL Longitudinal Conversion Loss ASK Amplitude Shift Keying LIMS Laboratory Information Management System Atten., ATT Attenuator LISN Line Impedance Stabilization Network AV Average MRA Mutual Recognition Arrangement BPSK Binary Phase-Shift Keying N/A Not Applicable BR Bluetooth Basic Rate NIST National Institute of Standards and Technology BT Bluetooth NS No signal detect. BT LE Bluetooth Low Energy NSA Normalized Site Attenuation BW BandWidth OBW Occupied BandWidth C.F Correction Factor OFDM Orthogonal Frequency Division Multiplexing Cal Int Calibration Interval PER Packet Error Rate CAV CISPR AV PK Peak CCK Complementary Code Keying P LT long-term flicker severity CDN Coupling Decoupling Network POHC(A) Partial Odd Harmonic Current Ch., CH Channel Pol., Pola. Polarization CISPR Comite International Special des Perturbations Radioelectriques PR-ASK Phase Reversal ASK Corr. Correction P ST short-term flicker severity CPE Customer premise equipment QAM Quadrature Amplitude Modulation CW Continuous Wave QP Quasi-Peak DBPSK Differential BPSK QPSK Quadrature Phase Shift Keying DC Direct Current r.m.s., RMS Root Mean Square DET Detector RBW Resolution BandWidth D-factor Distance factor RE Radio Equipment Dmax maximum absolute voltage change during an observation period REV Reverse DQPSK Differential QPSK RF Radio Frequency DSSS Direct Sequence Spread Spectrum RFID Radio Frequency Identifier DUT Device Under Test RNSS Radio Navigation Satellite Service EDR Enhanced Data Rate RSS Radio Standards Specifications e.i.r.p., EIRP Equivalent Isotropically Radiated Power Rx Receiving EM clamp Electromagnetic clamp SINAD Ratio of (Signal + Noise + Distortion) to (Noise + Distortion) EMC ElectroMagnetic Compatibility S/N Signal to Noise ratio EMI ElectroMagnetic Interference SA, S/A Spectrum Analyzer EMS ElectroMagnetic Susceptibility SABS South African Bureau of Standards EN European Norm SANS South African National Standards e.r.p., ERP Effective Radiated Power SG Signal Generator ETSI European Telecommunications Standards Institute SVSWR Site-Voltage Standing Wave Ratio EU European Union THC(A) Total Harmonic Current EUT Equipment Under Test THD(%) Total Harmonic Distortion Fac. Factor TR, T/R Test Receiver FCC Federal Communications Commission Tx Transmitting FHSS Frequency Hopping Spread Spectrum VBW Video BandWidth FM Frequency Modulation Ve r t . Ve r t i c a l Freq. Frequency WLAN Wireless LAN FSK Frequency Shift Keying xDSL Generic term for all types of DSL technology (DSL: Digital Subscriber Line) Fund Fundamental FWD Forward GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard I/O Input/Output IEC International Electrotechnical Commission Test report No. : 15008849S Page : 4 of 22 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 Japan / +81-463-50-6400…
