2ADMF-HC06bluetooth module

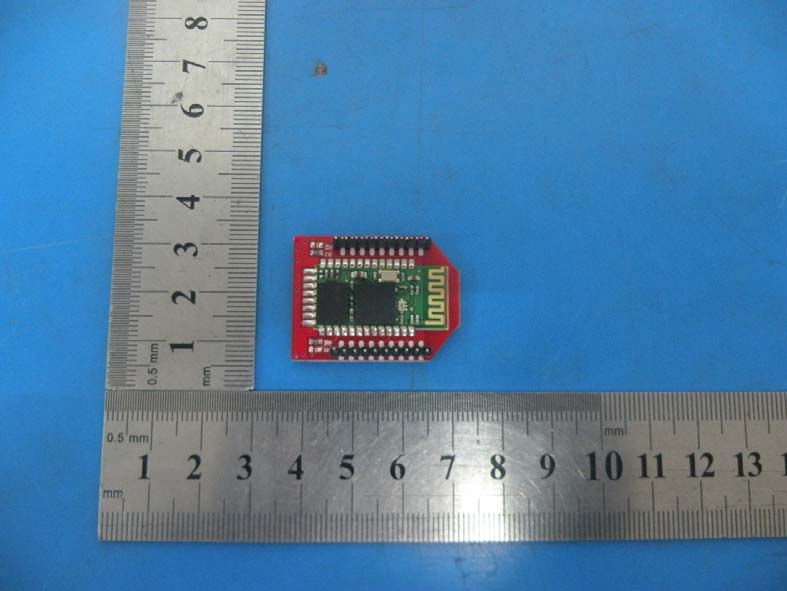

Contents 1. Product’s picture 2. Feature 3. Pins description 4. The parameters and mode of product 5. Block diagram 6. Debugging device 7. Characteristic of test 8. Test diagram 9. AT command set bluetooth module 1. Product’s picture Specifications： Microprocessor CSR BC417 PCB size 33.7mm * 25.2mm * 1.6mm Indicators PWR State Power supply 3.3V DC Communication Protocol UART Bluetooth2.0 RoSH Yes Bluetooth Bee is an easy to use Bluetooth SPP module compatible with existing Xbee sockets. 2. Feature Wireless transceiver Sensitivity (Bit error rate) can reach -80dBm. - +6d. Function description (perfect Bluetooth solution)
Has an EDR module; and the change range of modulation depth::2Mbps-3Mbps
Has a build-in 2.4GHz antenna; user needn’t test antenna.
Has the external 8Mbit FLASH
Can work at the low voltage (3.1V~4.2V). The current in pairing is in the range of 30～40mA.
The current in communication is 8mA.
Standard HCI Port (UART or USB)
USB Protocol: Full Speed USB1.1, Compliant With 2.0
This module can be used in the SMD.
It’s made through RoHS process.
The board PIN is half hole size.
Has a 2.4GHz digital wireless transceiver.
Bases at CSR BC04 Bluetooth technology.
Has the function of adaptive frequency hopping.
Small (27mm×13mm×2mm)
Peripherals circuit is simple.
It’s at the Bluetooth class 2 power level.
Storage temperature range: -40 °C - 85°C，work temperature range: -25 °C - +7
Any wave inter Interference: 2.4MHz，the power of emitting: 3 dBm.
Bit error rate: 0. Only the signal decays at the transmission link, bit error may be example, when RS232 or TTL is being processed, some signals may decay. Low power consumption Has high-performance wireless transceiver system Low Cost Application fields:
Bluetooth Car Handsfree Device
Bluetooth GPS
Bluetooth PCMCIA , USB Dongle
Bluetooth Data Transfer Software
CSR 3. Pins description 4. The parameters and mode of product 5. Block diagram HC-04/06 master device has a function of remembering the last paired slave device. As a master device, it will search the last paired salve device until the connection is built. But if the WAKEUP bottom is pressed, HC-04/06 will lose the memory and research the new slave device. 6. Debugging device 6.1 Device PC, hardware ，3.15V DC power supply, Shielding， Bluetooth Test box. 6.2 Software 7. Characteristic of test 8. Test diagram 9. AT command set The way to the AT command mode: supply power to the module, it will enter to the AT mode if it needn’t pair. The interval of command is about 1 second. Default parameter: Baud rate:9600N81, ID: linvor, Password:1234 1. Test communication Send: AT (please send it every second) Back: OK 2. Reset the Bluetooth serial baud rate Send: AT+BAUD1 Back: OK1200 Send: AT+BAUD2 Back: OK2400 ...... 1---------1200 2---------2400 3---------4800 4---------9600 (Default) 5---------19200 6---------38400 7---------57600 8---------115200 9---------230400 A---------460800 B---------921600 C---------1382400 PC can’t support the baud rate lager than 115200. The solution is: make the MCU have higher baud rate (lager than 115200) through programming, and reset the baud rate to low level through the AT command. The baud rate reset by the AT command can be kept for the next time even though the power is cut off. 3. Reset the Bluetooth name Send: AT+NAMEname Back: OKname Parameter name: Name needed to be set (20 characters limited) Example: Send: AT+NAMEbill_gates Back: OKname Now, the Bluetooth name is reset to be “bill_gates” The parameter can be kept even though the power is cut off. User can see the new Bluetooth name in PDA refresh service. (Note: The name is limited in 20 characters.) 4. change the Bluetooth pair password Send: AT+PINxxxx Back:OKsetpin Parameter xxxx: The pair password needed to be set, is a 4-bits number. This command can be used in the master and slave module. At some occasions, the master module may be asked to enter the password when the master module tries to connect the slave module (adapter or cell-phone). Only if the password is entered, the successful connection can be built. At the other occasions, the pair can be finish automatically if the master module can search the proper slave module and the password is correct. Besides the paired slave module, the master can connect the other devices who have slave module, such as Bluetooth digital camera, Bluetooth GPS, Bluetooth serial printer etc. Example: Send: AT+PIN8888 Back: OKsetpin Then the password is changed to be 8888, while the default is 1234. This parameter can be kept even though the power is cut off. 5. No parity check ( The version, higher than V1.5, can use this command ) Send: AT+PN (This is the default value) Back: OK NONE 6. Set odd parity check ( The version, higher than V1.5, can use this command ) Send: AT+PO Back: OK ODD 7. Set even parity check( The version, higher than V1.5, can use this command ) Send: AT+PE Back: OK EVEN This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2ADMF-HC06 or Contains FCC ID: 2ADMF-HC06 ” when the module is installed inside another …

Text truncated - open the document above for the full version.

Differences Description We Shenzhen KEYES DIY Robot Co.,Ltd state: Product name: bluetooth module Model: keyes HC-06, keyes hc-05, FUNDUINO HC-06, FUNDUINO hc-05 All model’s the function, software and electric circuit are the same , only with a product model named different. A total station in the list structure, circuit, component configuration is exactly the same as the models except for the OEM needs change model name Signature: Date: November 18, 2014 Name: Mr Zuo Title: General Manager Telephone: 0755-23200269 Email: [email protected] Company: Shenzhen KEYES DIY Robot Co.,Ltd Address: Room1601 Jingxing Building, Changyong Road, Long Hua Xin Qu District, Shenzhen, China.

Limited ModularapprovalDeclarationlett er We ˈ ShenzhenKEYESDIYRobotCo.,Ltdapplylimitedmodularapprovalfor  ProductName: bluetoothmodule Model:keyesHC06,keyeshc05,FUNDUINOHC0 6,FUNDUINOhc05 FCCID:2ADMFHC06 According to KDB 996369 D01 Module Equip Auth Guide v01r04 and  15.212 requirement:  1)Theradioelementsmusthavetheradiofrequencycircuitryshielded.Physical componentsandtuningcapacitor(s)maybelocatedexternaltotheshield,butmust beonthemoduleassembly; Answer ˖NoˈNo shielding for both side . 2)The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; Answer˖Ye s ˗All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer˖Ye s ˗A low drop out regulator is used for modular power supply regulation. 4)The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer˖Ye s ˗Device is equipped with PCB antenna. (5)The module must demonstrate compliance in a stand-alone configuration; Answer˖Ye sˈdistance between modular and all AEs are bigger than 10cm ˈrefer to setup photo.  (6) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); Answer˖Yes˗The modular has a permanent fixed label, and below statement was listed in the Users Manual;The host device must be labelled to display the FCCID of the moduleContains FCC ID:2ADMF-HC06 (7)The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer˖Yes˗The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8)The module must comply with RF exposure requirements Answer ˖Y es. Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual. Shenzhen KEYES DIY Robot Co.,Ltd 2014-11-21

November 18, 2014 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Certification Technology Service Co., Ltd. Address: 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen KEYES DIY Robot Co.,Ltd. Address: Room1601 Jingxing Building, Changyong Road, Long Hua Xin Qu District, Shenzhen, China. ( applicant name and address). Signature: Name Mr Zuo Position General Manager Company Name Shenzhen KEYES DIY Robot Co.,Ltd Address Room1601 Jingxing Building, Changyong Road, Long Hua Xin Qu District, Shenzhen, China. Tel 0755-23200269 Fax 0755-23200269 Email [email protected]

November 18, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADMF-HC06____ Product Name: _ bluetooth module _ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics Long-term confidential • Block diagram Long-term confidential • Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Dated this: November 18, 2014 By: Mr Zuo Title: General Manager Company Name: Shenzhen KEYES DIY Robot Co., Ltd Telephone: 0755-23200269 Fax: 0755-23200269 Email: [email protected]

12mm 4mm FCC ID:2ADMF-HC06

Label Location

ANTENNA

FCC ID: 2ADMF-HC06 RF EXPOSURE TEST FCC ID: 2ADMF-HC06 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: 2ADMF-HC06 BT 2.1+EDR Channel Frequency (MHz) PK Output Power (dBm) PK Output Power (mW) Limit (dBm) CH39 (GFSK) 2441 2.28 1.69 30 CH78 (π/4 DQPSK) 2480 1.57 1.44 30 CH78 (8-DPSK) 2480 1.52 1.42 30 The BT max. output power is 2.28dBm=1.69mW, Frequency is 2.441GHz So (1.69/5)* √2 .441=0.527≤ 3.0 Note: √2.441 =1.562 Conclusion: No SAR is required.

Shenzhen Certification Technology Service Co., Ltd. 2F, Building B, East Area of Nanchang Second Industrial Zone, Gushu 2 nd Road, Bao'an District, Shenzhen 518126, P.R. China FCC ID: 2ADMF-HC06 Page 1 of 71 TEST REPORT FCC ID: 2ADMF-HC06 Applicant : Shenzhen KEYES DIY Robot Co.,Ltd Address : Room1601 Jingxing Building, Changyong Road, Long Hua Xin Qu District, Shenzhen, China. Equipment Under Test (EUT): Name : bluetooth module Model : keyes HC-06, keyes hc-05, FUNDUINO HC-06, FUNDUINO hc-05 In Accordance with: FCC PART 15, SUBPART C: 2013 (Section 15.247) Report No : CST-TCB141028057 Date of Test : November 05- 14, 2014 Date of Issue : November 17, 2014 Test Result: PA S S In the configuration tested, the EUT complied with the standards specified above Authorized Signature ___________________________ (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.: CST-TCB141028057 FCC ID: 2ADMF-HC06 Page 2 of 71 Contents 1.General Information ............................................................................................................... 4 1.1.Description of Device (EUT) ...............................................................................4 1.2.Accessories of device (EUT) ...............................................................................4 1.3.Test Lab information ............................................................................................4 2.Summary of test ...................................................................................................................... 5 2.1.Summary of test result .........................................................................................5 2.2.Assistant equipment used for test .........................................................................5 2.3.Block Diagram .....................................................................................................6 2.4.Test mode .............................................................................................................6 2.5.Test Conditions .....................................................................................................6 2.6.Measurement Uncertainty (95% confidence levels, k=2) ....................................6 2.7.Test Equipment .....................................................................................................7 3.Maximum Peak Output power .............................................................................................. 8 3.1.Limit .....................................................................................................................8 3.2.Test Procedure ......................................................................................................8 3.3.Test Setup .............................................................................................................8 3.4.Test Result ............................................................................................................8 4.Bandwidth ................................................................................................................................ 9 4.1.Limit .....................................................................................................................9 4.2.Test Procedure ......................................................................................................9 4.3.Test Result ............................................................................................................9 5.Carrier Frequency Separation ............................................................................................. 13 5.1.Limit ...................................................................................................................13 5.2.Test Procedure ....................................................................................................13 5.3.Test Result ..........................................................................................................13 6.Number Of Hopping Channel .............................................................................................. 17 6.1.Limit ...................................................................................................................17 6.2.Test Procedure ....................................................................................................17 6.3.Test Result ..........................................................................................................17 7.Dwell Time ............................................................................................................................. 20 7.1.Test limit ............................................................................................................20 7.2.Test Procedure ....................................................................................................20 7.3.Test Results ........................................................................................................20 8.Radiated emissions ................................................................................................................ 26 8.1.Limit ...................................................................................................................26 8.2.Bloc…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup in Chamber
