2ADMY2-4GHZAB5016RRemote Control Locomotive

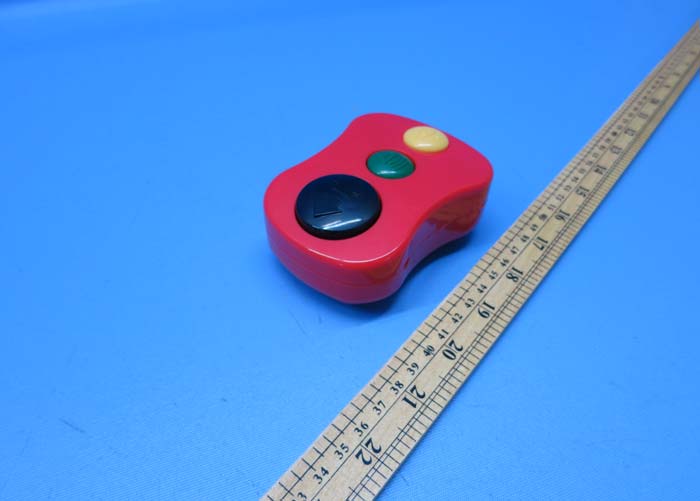

INTERTEK TESTING SERVICE Report No.: 14110970HKG-001 Equipment Photographs Model : AB5016(FCC) AB5016ZR(IC) (External) FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR

INTERTEK TESTING SERVICE Report No.: 14110970HKG-001 Equipment Photographs Model : AB5016(FCC) AB5016ZR(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR INTERTEK TESTING SERVICE Report No.: 14110970HKG-001 Equipment Photographs Model : AB5016(FCC) AB5016ZR(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR INTERTEK TESTING SERVICE Report No.: 14110970HKG-001 Equipment Photographs Model : AB5016(FCC) AB5016ZR(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR

Technical Description The brief circuit description is listed as below: 1) U1 acts as 2.4GHz RF Module (x2453). 2) U2 acts as DC/DC Boost Converter (ME2108). 3) Y1 acts as Crystal for U1. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 77.7 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Controller) for a RC Train. The EUT is powered by DC3.0V (2X1.5V AA batteries). The operating frequencies are 2425MHz, 2445MHz, and 2465MHz. After pairing with the train, the train can be controlled to run forward and backward. There are also a light and a sound buttons on the EUT, which can control the light and the sound for the train. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 77.7 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 80.7dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.035mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.035mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.465) mW = 9.55 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

TX -A - 副本.sch-1 - Mon Nov 24 22:53:49 2014 TITLE: DRAWN: Document No.: REV:A4 程程程程 : SIZE:A4 SHEET:1 OF1 CUSTOMER: FORWARD BACKWARD LED Sound NC 2*AA Vout VSS CE Lx S2 1 ANTP 2 ANTN 3 IREE 4 VDD 5 PA7 6 PA6 7 PA5/R 8 PA3 9 PA4 10 PA0 11 VDD3 12 XC1 13 XC2 14 DVDD 15 GND 16 VDDP U1 ANT L1 4.7NH Y1 16MHz C10 475 C9 33p C8 22p C1 104 R2 22K C6 104 R3 10K S7 S8 S9 3V C12 0.1UF C11 0.1UF C2 4.7P C3 1P C7 1.5P L2 3.9NH C5 NC C4 1pF R1 1M R4 10K R5 10K R6 10K C14 0.5pF D1 1N5817 L3 47uH C1510UF D2 1N4148 D5 1N4148 D3 1N4148 D4 1N4148 D6 1N4148 R7 1M C13 4.7uF 3.3V 3.3V x2453 ME2108ME2108C3.3

lntertek Val ued Quality. DellverÊd, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accr€d¡ted th¡s laÞoratory (HOKLAS 005 - TEST) und€r HOKLAS for spec¡fc laboratory Êctivities ss llsted ¡n tho HOKLAS d¡reclory of accredited laboratories. TEST REPORT Report No.: I 4l I 0970HKG-001 Branford Limited Application For Certification (Original Grant) (FCC lD: 2ADMY?4GHZAB5OI 6R) (lC: I 257 2A4GzAB50l 6ZR) Transceiver (Remote) Prepared 9nd Checked by: Approved by: / Wong Kwok Yeung, Kenneth Lead Engineer lnlertok'g stsndsrd Tomg snd cond¡tions €n b€ oblgin€d at our Thie rcport shell nol b€ reproduced, except in full Thìs ropori is lor th€ exclusiv€ us€ of lnterlsk's Clienl ond is prcvided pursuenl lo th€ agr€emenl botreon lnterl€k and its Client lntortoKs roeponsibility and l¡ab¡llty are limited to tho toms end @nditions of the agrssment lntertek sssumes no l¡abilily to any party, olhor than lo thE Cl¡€nt in a@rdâncs wilh th€ agroem€nl, lor any lose, exp€ns6 or dEmsgE o@sloned by tho uso ol tÀis reporl, Only tho Cl¡ent is sulhorizod to p€mit @py¡ng or d¡slributlon ol th¡8 report €nd lhen only ln lts entlroly Any u9o ol lho lnlorlek nsmð gr one of its marks for the galo or advort¡somnt of the tosted matorisl, producl or seryiæ musl frsl be spproved ¡n witing by lnlorlek, The obseryåt¡ons and l6sl r€sult3 ln lh¡s r€porl aro rel6v.nt only to lhE ssmple tostod. Th¡s r€port by itself doos not ¡mply thst th€ målorial, product, or seryiæ ¡9 or has ev€r Þoen under an lnlgrlok ærl¡føtion progmm lntertek Testing Services Hong Kong Ltd. 2/F,, Gamsnt Centre, 576 Caslle P€ak Roed, Kowloon, Hong Kong. Tel: (852) 2'173 8888 Fax: (852) 2785 5487 Website: www.hk.interlek-sllssmko.com SupervisorDate: Decembe¡22,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-001 i FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Branford Limited Grantee Address: 15th Floor, Railway Plaza, 39 Chatham Road South, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Ringo Chan Tel: (852) 2368-0613 Fax: (852) 2368-2087 e-mail: N/A Manufacturer: Ningbo Jida Mfg. & Trading Co., Ltd. Manufacturer Address: 1 Xing Yong Road, Ningbo, P.R. China. Brand Name: Maison Joseph Battat FCC Model: AB5016 IC Model: AB5016ZR Type of EUT: Transceiver (Remote) Description of EUT: Remote Control Locomotive Serial Number: N/A FCC ID / IC: 2ADMY2-4GHZAB5016R / 12572A-4GZAB5016ZR Date of Sample Submitted: November 25, 2014 Date of Test: November 25, 2014 to December 09, 2014 Report No.: 14110970HKG-001 Report Date: December 22, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-001 ii FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 / RSS-210 A2.9 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-001 iii FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement U…

Text truncated - open the document above for the full version.

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-001R1 i FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Branford Limited Grantee Address: 15th Floor, Railway Plaza, 39 Chatham Road South, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Ringo Chan Tel: (852) 2368-0613 Fax: (852) 2368-2087 e-mail: N/A Manufacturer: Dong Guan Guan Ting Toys Co., Ltd. Manufacturer Address: 36# YinHu Road, JiaoYiTang, TangXia Town, DongGuan City, Guangdong, China Brand Name: Maison Joseph Battat FCC Model: AB5016 IC Model: AB5016ZR Type of EUT: Transceiver (Remote) Description of EUT: Remote Control Locomotive Serial Number: N/A FCC ID / IC: 2ADMY2-4GHZAB5016R / 12572A-4GZAB5016ZR Date of Sample Submitted: November 25, 2014 Date of Test: November 25, 2014 to December 09, 2014 Report No.: 14110970HKG-001R1 Report Date: January 02, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-001R1 ii FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 / RSS-210 A2.9 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-001R1 iii FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Measurement Uncertainty ............................................................................. 2 2.5 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 4.0 Equipment Photographs ................................................................................ 8 5.0 Product Labelling........................................................................................... 8 6.0 Technical Specifications................................................................................ 8 7.0 Instruction Manual ......................................................................................... 8 8.0 Miscellaneous Information ............................................................................ 9 8.1 Radiated Emission on the Bandedge ............................................................ 9 8.2 Discussion of Pulse Desensitization ............................................................ 11 8.3 Calculation of Average Factor ..................................................................... 11 8.4 Emissions Test Procedures ........................................................................ 13 8.5 Occupied Bandwidth................................................................................... 15 9.0…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14110970HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : AB5016(FCC) AB5016ZR(IC) FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR INTERTEK TESTING SERVICE Report No: 14110970HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : AB5016(FCC) AB5016ZR(IC) FCC ID: 2ADMY2-4GHZAB5016R IC: 12572A-4GZAB5016ZR
