2ADMY2-4GHZAB5016TRemote Control Locomotive

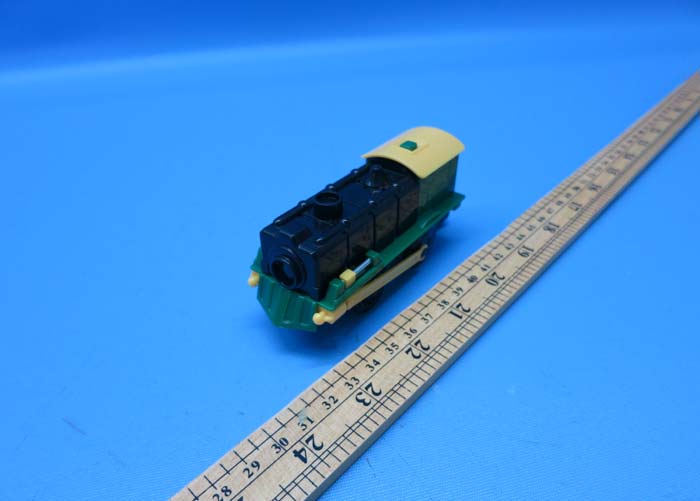

INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (External) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT

INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No.: 14110970HKG-002 Equipment Photographs Model : AB5016(FCC) AB5016ZT(IC) (Internal) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT

Technical Description The brief circuit description is listed as below: 1) U1 acts as 2.4GHz RF Module (x2453). 2) U2 acts as Sound IC (NY3P010BS8). 3) U3 acts as Driver Motor IC (xl9110s). 4) U4 acts as DC/DC Boost Converter (ME2108) 5) Y1 acts as Crystal for U1. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 81.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz transceiver (i.e. Train) for a RC Train. The EUT is powered by DC3.0V (2X1.5V AAA batteries). The operating frequencies are 2425MHz, 2445MHz, and 2465MHz. After pairing with controller, the train can be controlled to run forward and backward. There are also a light and a speaker on the EUT, which can be controlled by the controller’s light and sound buttons. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 81.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 84.3 dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.081mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =0.081mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.465) mW = 9.55 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

RX - 01.sch-1 - Tue Nov 25 00:12:40 2014 TITLE: DRAWN: Document No.: REV:A4 程程程程 : SIZE:A4 SHEET:1 OF1 CUSTOMER: F B 开始 Vout VSS CE Lx 2*AAA 3V 1 ANTP 2 ANTN 3 IREE 4 VDD 5 PA7 6 PA6 7 PA5/R 8 PA3 9 PA4 10 PA0 11 VDD3 12 XC1 13 XC2 14 DVDD 15 GND 16 VDDP U1 OA VCCVCC OB VSSIBIAVSS U3 C6104 M M1 ANT L1 8.2NH L2 4.7uH Y1 16MHz C5 475 C2 20p C4 20p C1 104 R2 22K D1 1N5817 L5 47uH C3 4.7UF C11 10uF/10V C10 10uF/10V C9 1OUF 1234 8765 U2 LED R4 33 SP C7 104 C12 104 R1 1M Q1 S8050 R3 4.7k R9 4.7k Q2 S8050 R10 1k R5 10K D2 1N5819 R7 10K R8 1M D3 1N5819 C15104C14104 C13 4.7uF R11 4.7 C8 1OUF T1 600uH EN 3.3V LED 3V PA7 PA7 EN LED 3V X2453 XL9110s xl9110s NY3P010BS8 ME2108 ME2108C3.3

Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-002R1 i FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Branford Limited Grantee Address: 15th Floor, Railway Plaza, 39 Chatham Road South, Tsim Sha Tsui, Kowloon, Hong Kong. Contact Person: Ringo Chan Tel: (852) 2368-0613 Fax: (852) 2368-2087 e-mail: N/A Manufacturer: Dong Guan Guan Ting Toys Co., Ltd. Manufacturer Address: 36# YinHu Road, JiaoYiTang, TangXia Town, DongGuan City, Guangdong, China Brand Name: Maison Joseph Battat FCC Model: AB5016 IC Model: AB5016ZT Type of EUT: Transceiver (Train) Description of EUT: Remote Control Locomotive Serial Number: N/A FCC ID / IC: 2ADMY2-4GHZAB5016T / 12572A-4GZAB5016ZT Date of Sample Submitted: November 25, 2014 Date of Test: November 25, 2014 to December 09, 2014 Report No.: 14110970HKG-002R1 Report Date: January 02, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-002R1 ii FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Radiated Emission Radiated Emission on the Bandedge 15.249 / RSS-210 A2.9 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110970HKG-002R1 iii FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description............................................................. 2 3.0 Emission Results ................................................................................................ 3 3.1 Field Strength Calculation .................................................................................. 3 3.2 Radiated Emission Configuration Photograph .................................................... 4 3.3 Radiated Emission Data .................................................................................... 4 4.0 Equipment Photographs ..................................................................................... 8 5.0 Product Labelling................................................................................................ 8 6.0 Technical Specifications..................................................................................... 8 7.0 Instruction Manual .............................................................................................. 8 8.0 Miscellaneous Information ................................................................................. 9 8.1 Radiated Emission on the Bandedge ................................................................. 9 8.2 Discussion of Pulse Desensitization ................................................................. 11 8.3 Calculation of Average Factor .......................................................................... 11 8.4 Emissions Test Procedures ..........................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14110970HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : AB5016(FCC) AB5016ZT(IC) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT INTERTEK TESTING SERVICE Report No: 14110970HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : AB5016(FCC) AB5016ZT(IC) FCC ID: 2ADMY2-4GHZAB5016T IC: 12572A-4GZAB5016ZT
