2ADNQFTF31BTInfrared Thermometer

- 1 - Instruction for Use lnfrared Thermometer (No contact Type) FT-F31-BT, FT-F32-BT , FT-F41-BT, FT-F42-BT FT-F31, FT-F32, FT-F41, FT-F42 - 2 - FT-F31-BT& FT-F31 FT-F41-BT& FT-F41 INFRARED THERMOMETER (FT-F31, FT-F32, FT-F41, FT-F42, FT-F31-BT,FT-F32-BT, FT-F41-BT, FT-F42-BT) Operating Instruction Please read carefully before use. DESCRIPTION 1. Table of Contents 1. Product Listing 2. Product Overview 3. Outline Drawing 4. The Definition of Symbols 5. Measuring 6. Battery Voltage Display & Replacement 7. Operation Precautions 8. Precaution for Measuring Temperature 9. Product Specification 10. Common question concerning forehead temperature 2. Product Overview This infrared Thermometer measure the temperature. It can get more quick and accurate from human forehead temperature. This product has the following advantages: 1). Easy to Clean the Probe 2). High speed & Accuracy scan the reading of temperature. 3). Convenience, Only one key operation. 4). FT-F31, FT-F31-BT, FT-F32, FT-F32-BT have 12 memories FT-F41, FT-F41-BT, FT-F42, FT-F42-BT have 32 memories 5). Last measured temperature data displayed, when you turn on the power. 3. Outline Drawing - 3 - FT-F32-BT & FT-F32 FT-F42-BT & FT-F42 4. The Definition of Symbols Reading Display Forehead Measuring mode Ambient Temperature Measuring mode Celsius Scale Fahrenheit Scale Low Battery Last Memorized Temperature Display 5. Measuring 1.）No Contact Type Forehead Measuring mode：(Figure5.1B) ●Turn on the “power” button key of the IR Thermometer and then all displayed segments appear briefly as like on(Figure 5.2B);the displayed screen appears last measured temperature data, please see on (Figure 5.3B),after few seconds automatically change to the Forehead Measuring Mode “ ” symbol appear on the displayed screen and the temperature unit “ ”or “” blink then it’s ready to measure.(see on Figure 5.4B). ●Take IR thermometer to aim at the forehead about 5 to 10 CM distance then press the “SCAN” button key about one second then you will hear long “Bi--” sound. It is finished the - 4 - measurement in the meantime ,the measured temperature data appears on the displayed screen (Figure 5.5B)。 ●Before your measuring ,please keep your forehead dry and cleanly. ●When the temperature unit “” or “” blink then you can process for next measurement. ●If you don’t use again, the power will be automatically switch off within 60 seconds.(for FT-F31,FT-F32); switch off within 10 seconds.(for FT-F41,FT-F42) Figure 5.1B Figure 5.2B Figure 5.3B Figure 5.4B Figure 5.5B 2）Ambient Temperature Measuring mode:(Figure 5.1C) ●Press the “power” button to turn on the IR Thermometer and then all display segments appear briefly as like on(Figure 5.2C),the displayed screen appear last measured temperature data, please see on (Figure 5.3C),after few seconds automatically change to the Ambient Temperature Measuring Mode “ ” symbol appear on the display and the temperature unit “ ”or “” blink then it’s ready to measure, please see on (Figure 5.4C). ●Take IR thermometer to aim at the target about 5 to 10 CM distance then press the “SCAN” button key about one second then you will hear long “Bi--” sound that it’s finished the measurement in the meantime the measured temperature data appear on the displayed screen (Figure 5.5C)。 ●When the temperature unit “ ” or “” blink on the displayed screen again then you can process for next measurement. ●If you don’t use again, the power will automatically switch off within 60 seconds.(for FT-F31,FT-F32); switch off within 10 seconds.(for FT-F41,FT-F42) Figure 5.1C Figure 5.2C Figure 5.3C Figure 5.4C Figure 5.5C 3）“” and“”adjust (Suitable for FT-F31, FT-F31-BT) ●On power off condition, press the “SCAN” button key about 5 seconds until the displayed screen appears “ - - -”to blink 3 times then displays “” or “” temperature unit . In this condition, press the “SCAN” button key again to adjust “ ””or “” and then it is set up ready for use。 - 5 - “” and“”adjust (Suitable for FT-F32，FT-F32-BT) ●On power off condition, press the “SCAN” button about 10 seconds until the displayed screen appears “ - - -” and “” or “” temperature unit blinks . In this condition, press the “SCAN” button key again to adjust “ ””or “” and then it is set up ready for use. “” and“”adjust (Suitable for FT-F41，FT-F41-BT, FT-F42,FT-F42-BT) ● Adjust the switch to human temperature symbol “ ” or ambient temperature symbol “” measurement by manual adjustment to the corresponding button on the device. 4）Measuring function switch (Suitable for FT-F31,FT-F31-BT,FT-F41,FT-F41-BT , FT-F42,FT-F42-BT) ● Adjust the switch to human temperature symbol “ ” or ambient temperature symbol “ ” measurement by manual adjustment. 5）Memory recall ●12 memories recall (for FT-F31, FT-F31-BT, FT-F32, FT-F32-BT) ●Press “SCAN” button to display “---M” on the displayed screen, in the power off condition and then memory recall displays. ●Press again “SCAN” button key to display previous memory in order and the memory will recall in one second. 32 memories recall (For FT-F41, FT-F41-BT, FT-F42, FT-F42-BT) ●Press “M” button to display previous memory in order and the memory will recall in one second. (For FT-F41, FT-F41-BT, FT-F42, FT-F42-BT) ●Press “Power” button key to be out of memory recall and then enter process condition to measure. 6. Battery Voltage Display & Replacement ●LOW battery: The low battery symbol will be shown at the lower batter on the displayed screen during the low battery power. Replace the battery as soon as possible. However you can continue to use it on short time. (Figure 6.1) Figure 6.1 ●Replace battery: 1). Open battery cover, remove the old battery out. - 6 - 2). Insert new batteries inside the bottom, please be careful the batteries polarity. 7. Operation Precautions 1). Please insert the battery into the bracket when do you use the IR Thermometer on first time. 2). Please keep the probe clean after you used the IR Thermometer. 3). Please keep the IR Thermometer dry and never imme…

Text truncated - open the document above for the full version.

Fudakang Industrial Co., Ltd Address :No.8 Yinghe Road, Yuanjiangyuan Management Zone, Changping Town, Dongguan City, Guangdong Province ,China Tel: 86-769-81098181 Fax: 86-769-81098187 Website: www.fudakang.com Email: [email protected] Request for Confidentiality Date: 2015/06/29 Subject: Confidentiality Request for: FCC ID 2ADNQFTF31BT Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Fudakang Industrial Co., Ltd has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Bob Yu (Signature/Title 3 ) (Print name)

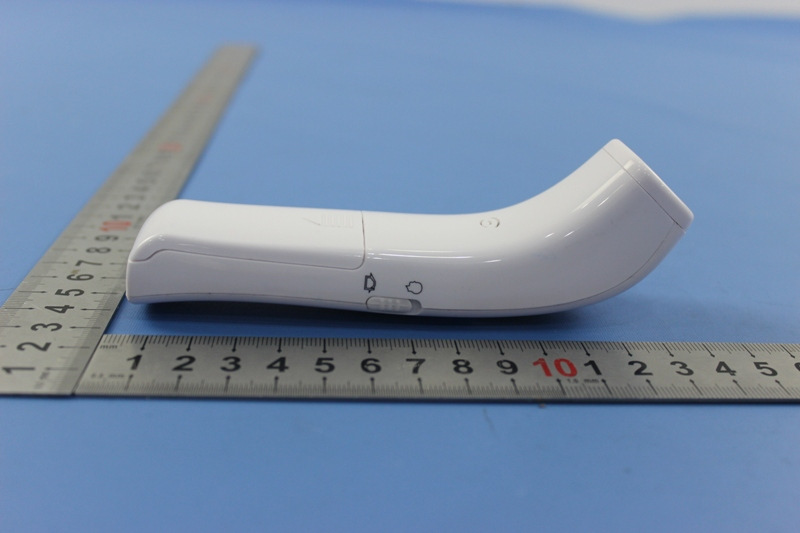

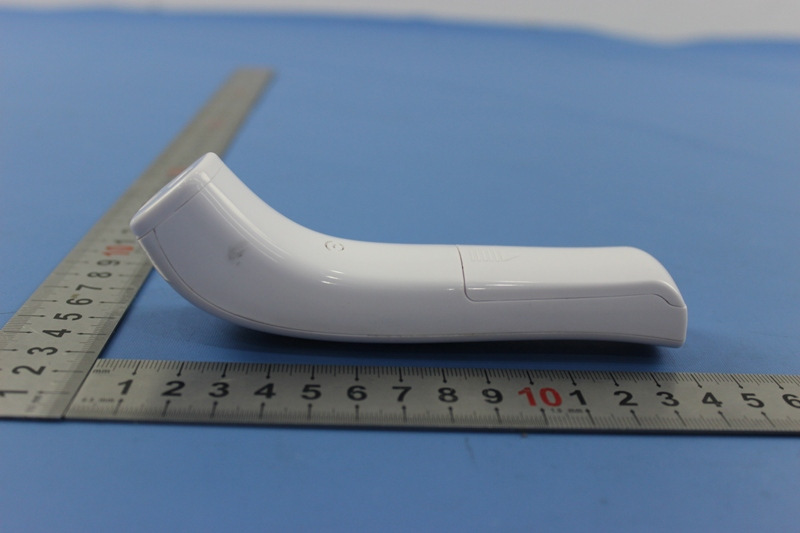

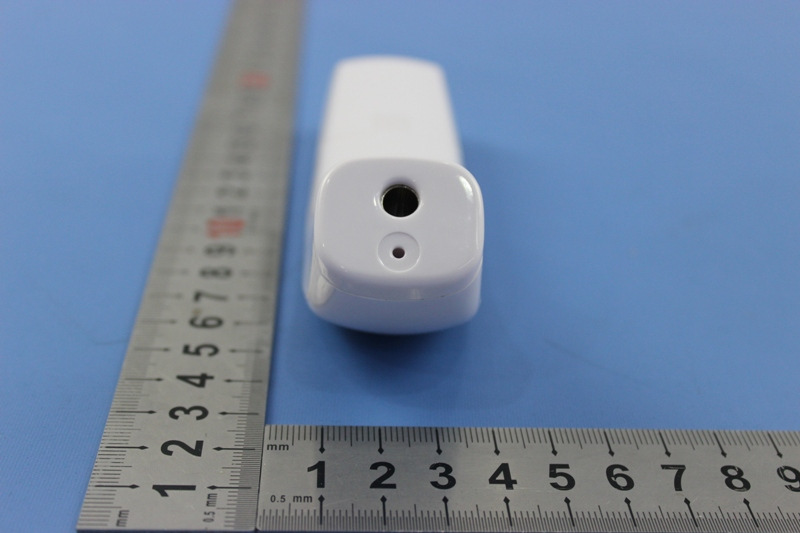

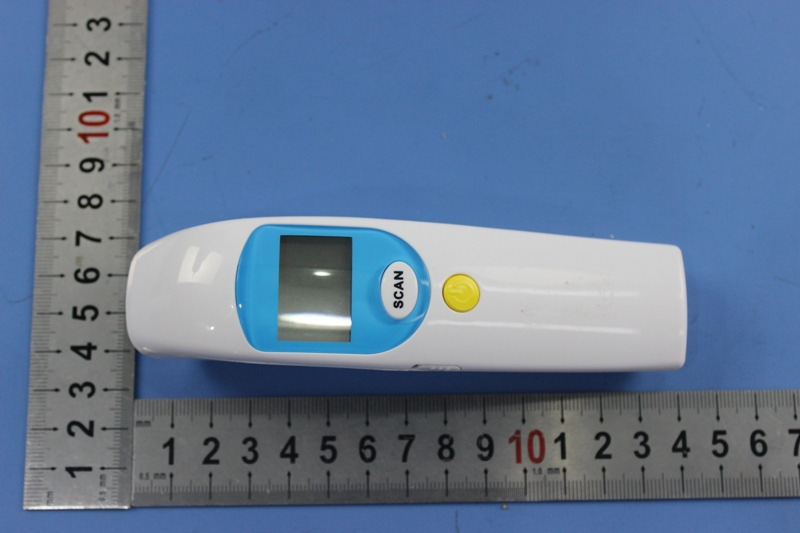

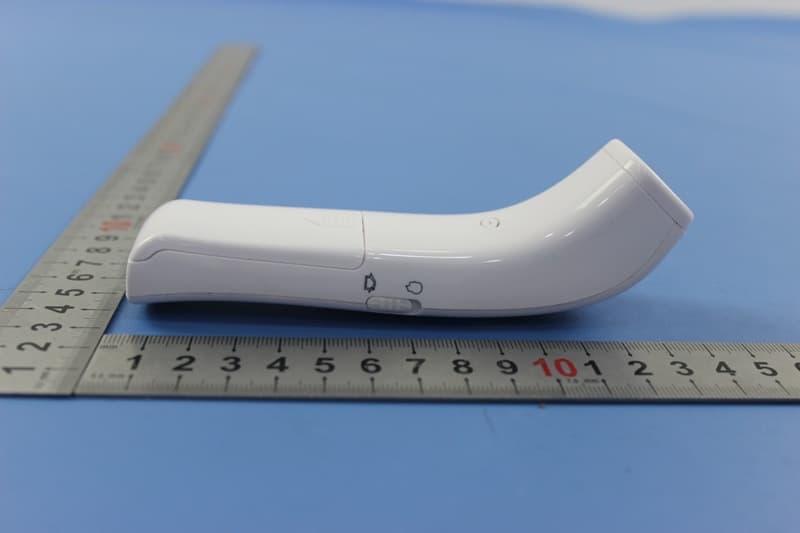

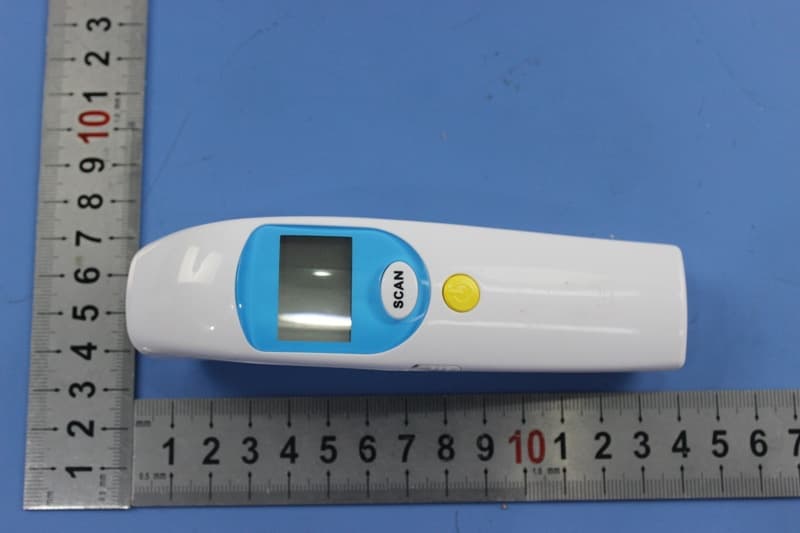

Photographs - EUT Constructional Details Test model No.: FT-F31-BT

Photographs - EUT Constructional Details Test model No.: FT-F31-BT

UnitQ'ty PCS1 PCS1 PCS1 PCS2 PCS4 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 21 PCS1 PCS3 PCS2 PCS4 PCS1 PCS1 PCS1 PCS1 PCS7 PCS2 PCS2 PCS2 ItemPart No.MaterialDescription FT-F31-BT BOM 1 1D-D25031-01LED (FT-F31) OD3mm,High blue light (HG-302UB4CCP) 2 3 2B-Y20154-01 BeepOD 20mm 1L-292412-02LCD ET_LCD 29*24 (888.8 display) 4 5 2W-A28022-04Wire(Black) 80*2*2mm,OD 1.0mm Black 2W-A28022-03Wire(Red) 80*2*2mm,OD 1.0mm RED 6 7 3P-FF3129-01Battery cover(FT-F31) ABS 2X-K12D07-02Slip type Switch K12D07 DIP 90 degree (for FT-F31) 8 9 3P-FF3149-02Buttom case(FT-F31) ABS 3P-FF3139-01Upper case (FT-F31) ABS 10 11 3P-FF3169-03Top cover (FT-F31) ABS 3P-FF3164-02Power button(FT-F31) ABS 12 13 3P-FF3169-05 Probe fixed base (FT- F31) ABS 3P-FF3169-04 Probe fixed cover (FT- F31) ABS 14 15 3P-FF3169-07 Measuring button(FT- F31) ABS 3P-FF3169-06 Slip swicth cover (FT- F31) ABS 18 19 4C-S15910-01"+" Spring(+)(FT-F11) size 9*14.5*1.5 16 17 3R-C28233-01Bus bar L28.5*W2.0*H3.3mm,P=0.1 3R-D40202-01Suspension cutton single glue size:18*80*2mm 3R-X38630-01 Anti slip mat OD 6mm T3.0 25 25.1 23 24 7Z-CBF310-12FT-F31-BT COB with BT FT-F31-BT COB with Blue Tooth 20 22 4C-S70910-01"-" Spring (FT-F11) size 9*14.5*1.5 4S-S15050-01Screw OD 1.5*5mm 4C-S20938-01"+/-" spring (FT-F11) 0A-BF1154-01MCU IC U1 HM104 DICE package (AKX) 4S-S20050-01Screw OD 2*5mm 4S-S20060-01 25.2 25.3 0C-B24C02-01SMD IC HTL24C02,SO-8 1C-D10725-03Capacitor 100uF/ ± 20% 10V 4*7mm DIP 25.4 25.5 1C-S10450-03SMD Capactor 0.1uF ±10% 50V Y5V 0603(100nF) 1C-S10516-01SMD Capactor 1uF ±10% 16V 0805 25.6 25.7 1C-S22050-01SMD Capactor 22p F ±5% 50V 0603C 1C-S10616-02SMD Capactor 10uF +10/-10% X7R 16V 0805 Screw OD 2*6mm size 21*9.7*1.5mm 第 1 页，共 2 页 UnitQ'ty ItemPart No.MaterialDescription FT-F31-BT BOM PCS1 PCS1 PCS1 PCS1 PCS1 PCS2 PCS1 PCS2 PCS1 PCS1 PCS1 PCS2 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 PCS1 M0.072 PCS1 PCS1 PCS1 25.8 25.9 1R-S10230-01SMD Resistor 1K ±1% 0603R 1P-F31122-04 FT-F31-BT PCB (BT version) FT-F31-BT PCB(Blue Tooth version) 60.1*29.4*1.2mm Version：5432-FT-F31-BT4 25.10 25.11 1R-S10430-01SMD Resistor 100K ±1% 0603R 1R-S10330-01SMD Resistor 10KΩ ±1% 0603R 25.12 25.13 1R-S20125-01SMD Resistor 200Ω ±5% 0603 1R-S10521-01SMD Resistor 1MΩ ±5% 0603 25.14 25.15 1R-S3003B-01SMD Resistor 30Ω 5% 0603 1R-S20430-01SMD Resistor 200KΩ ±1% 0603 25.16 Thermopile Modular(buttom)(FT- F31) Copper plating nickal ,OD 8*16.2mm 2W-A25022-04Jumping Wire (Green) 50*2*2mm,OD 1.0mm,Green 3R-X14000-01Heating tube OD 1.4mm 25.17 1T-P85502-01Transitor SOT 23 8550(2TY) PNP型 hfe=200-350 25.18 25.19 1Y-040003-02Crystal 4.0MHz ф3*8MM DIP 20PF 2S-TD13XA-01SMD Button TD-13XA 2W-A25022-02Wire (Black) 50*2*2mm,OD 1.0mm,black 2W-A25022-03Jumping Wire(Blue) 50*2*2mm,OD 1.0mm,blue 1S-WFTF41-02 Thermopile10TP583T Thermopile (Ishizuka) 2W-A25022-01Wire (Red) 50*2*2mm,OD 1.0mm,RED 1R-S40430-01SMD Resistor 402KΩ ±1% 0603 29 5L-FDF310-03Display cover(FT-F31) Acrylic (PMMA) 27 28.5 28.6 28.7 28.8 28 28.1 28.2 28.3 28.4 7Z-SFBT41-01BT Modular Blue tooth modular SL02_V1 8Z-FDF31C-02Thermopile Modular FT-F31Thermopile Modular 4C-A19596-01 Thermopile Modular(up)(FT-F31) Aluminum,OD 95*96mm main body 4C-A28016-02 第 2 页，共 2 页

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150600347905 Page: 1 of 6 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1506003479CR (GZME1506000492ME) Applicant: FUDAKANG INDUSTRIAL CO.,LTD. Manufacturer: FUDAKANG INDUSTRIAL CO.,LTD. Factory: FUDAKANG INDUSTRIAL CO.,LTD. Product Name: Infrared Thermometer Model No.(EUT): FT-F31-BT Add Model No.: FT-F31;FT-F42-BT;FT-F42 Trade Mark: FDK FCC ID: 2ADNQFTF31BT Standards: 47 CFR Part 1.1307 (2014) 47 CFR Part 2.1093 (2014) KDB447498D01 General RF Exposure Guidance v05r02 Date of Receipt: 2015-06-26 Date of Test: 2015-07-03 to 2015-07-13 Date of Issue: 2015-07-20 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600347905 Page: 2 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-07-20 Original Authorized for issue by: Tested By 2015-07-13 (Eric Fu) /Project Engineer Date Prepared By 2015-07-20 (Vivi Zhou) /Clerk Date Checked By 2015-07-20 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600347905 Page: 3 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are ret…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150600347904 Page: 1 of 60 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No.: SZEM1506003479CR (GZME1506000492ME) Applicant: FUDAKANG INDUSTRIAL CO.,LTD. Manufacturer: FUDAKANG INDUSTRIAL CO.,LTD. Factory: FUDAKANG INDUSTRIAL CO.,LTD. Product Name: Infrared Thermometer Model No.(EUT): FT-F31-BT Add Model No.: FT-F31;FT-F42-BT;FT-F42 Trade Mark: FDK FCC ID: 2ADNQFTF31BT Standards: 47 CFR Part 15, Subpart C (2014) Date of Receipt: 2015-06-26 Date of Test: 2015-07-03 to 2015-07-13 Date of Issue: 2015-07-20 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600347904 Page: 2 of 60 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-07-20 Original Authorized for issue by: Tested By 2015-07-13 (Eric Fu) /Project Engineer Date Prepared By 2015-07-20 (Vivi Zhou) /Clerk Date Checked By 2015-07-20 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150600347904 Page: 3 of 60 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Test Summary Test Item Test Requirement Test me…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test model No.: FT-F31-BT 1.1 Radiated Emission 1.2 Radiated Spurious Emission
