2ADOI-SP932LBluetooth Speaker

Aux cable embedded Micro-USB for charging Microphone X Button/Power Button X LED Vol- Button Bluetooth Button Vol+ Button Bluetooth LED SUMMARY SPORTS JACKETSBIKE MOUNT KITX-BASS™LIGHTSHOW CONNECTIONS AUTO ON Quick Guide Standing sideway Hiking Tran former TM One The TranXformer 1 will automatically turn on when expanded TranXformer 1 is the ultimate pocket speaker. With its patented expandable design, the TranXformer 1 produces a decent sound with the best bass in its class while maintaining a height of only 1 3/4 inch when collapsed. The sports jacket can be put on to the top of the unit for carrying. This provides a different look. It can also support the TranXformer 1 to stand sideway. The TranXformer 1 incorporates a few technologies in order to ‘break the sound barrier’ in such a compact unit. With the X-Bass™ structure, the TranXformer triples the airspace to lower the resonance frequency for a full low (120-200Hz). Secondly, a custom-made passive radiator helps to boost a deep low (80-120Hz). In addition, active equalization is used to provide a smooth mid and a clear high. And finally, a 2-inch dual-magnet/dual-coil driver with 5 watts RMS delivers the most powerful and balanced sound in its class. (SP932) FIRST-TIME SETUP ® The TranXformer 1 needs to be paired with your mobile device first. When first switched on, the TranXformer 1 will enter paring mode automatically. The Bluetooth LED will be flashing quickly during paring. Please turn on Bluetooth via Settings, then select ‘X-1’ when it appears on the device list. To enter paring mode for other devices, please hold down the Bluetooth button for over 3 seconds until the Bluetooth LED flashes quickly. Bluetooth X - 1 Bike mount kit is included for easy mounting and dismounting of the TranXformer 1 to a bike. AUTO OFF When there is no Bluetooth or Aux in signals for over 5 minutes, the TranXformer 1 will automatically switch off to preserve battery power. To turn it on again, please press the X button. POWRER BUTTON Holding down the X button for 1 second will toggle the unit on and off. BLUETOOTH SPEAKER Pressing the Bluetooth button briefly will pause/platy the music player. You can use the Vol+ and Vol- button to adjust the volume. HANDS-FREE CALL When the phone rings, pressing the Bluetooth button once will answer the call in hands-free speaker phone mode. When the phone is idle, pressing the Bluetooth button twice will redial the number. BATTERY The unit has a 1000mAh Li-Polymer rechargeable battery. When battery is low, the LED will flash in red. You can charge the unit via the micro-USB port. The charging time is about 3 hours. The average play time is 6 hours. You can monitor the battery usage on your mobile device. There are three modes for the Lightshow. Pressing the X button briefly will toggle between the 3 modes. 1) On – the colors and brightness of the lights are synchronized with the music. If the music is turned down, the lights will go dark. 2) Ambient Light - Lightshow is on when the music level is above 50%. The light will breathe in different color when the music is turned down. 3) Off – No light at all. 2” high performance driver Expanded chamber Custom-made passive speaker NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.  Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo conditions: (1)thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation.  Changesormodificationstothisunitnotexpressly approvedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatetheequipment. In order to comply with RF exposure requirements, a minimum all persons distance of 5mm must be maintained between the antenna and

SMARTV LTD ROOM, 1207, 33 WANG YIP STREET WEST, YUEN LONG,NT, Hong Kong TEL: +852 2803 2078 FAX: +852 2803 2079 Date (06/05/2015) TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2ADOI-SP932L Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, SMARTV LTD hereby requests permanent confidential treatment of information accompanying this application as outlined below: 1.Schematics 2.Bill of Materials/Parts List 3.Block Diagrams 4.Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Michael Cheung/Manager Telephone Number: +852 2803 2078 Email: [email protected]

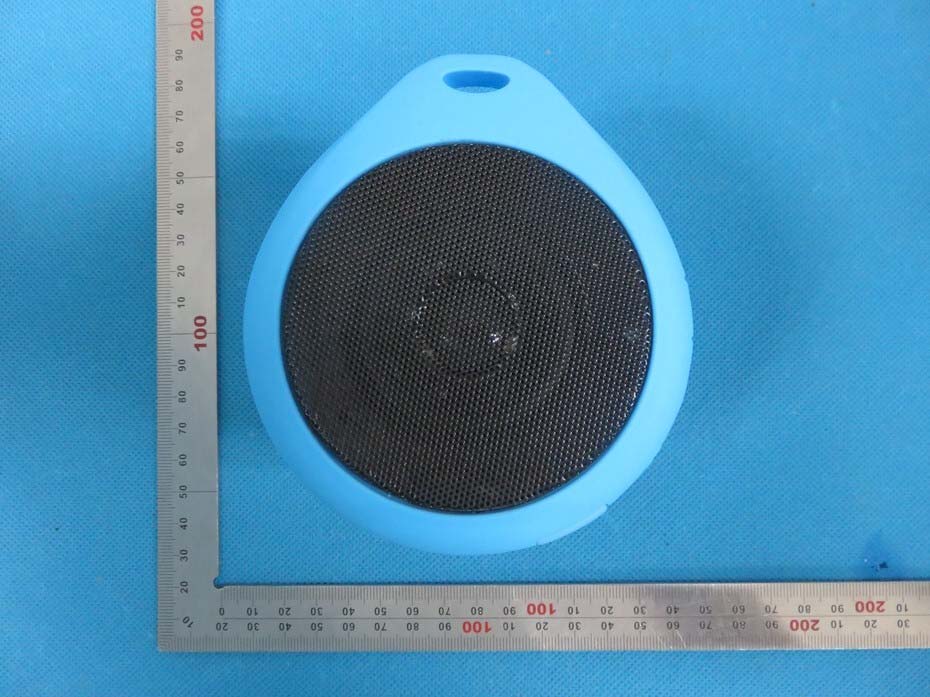

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT OPEN VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ADOI-SP932L

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF Exposure evaluation Product Description:Bluetooth Speaker Model Number: SP932 FCC ID: 2ADOI-SP932L According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=97.66 dBuv/m=0.076V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.076x3) 2 /(30x1)=0.001733W=1.73mW The result is rounded to one decimal place for comparison Worse case is as below: [2441MHz -1.73mW output power] (1.73mW /5mm) .[√2.441(GHz)]= 0.54<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 50 FCC Test Report Report No.: AGC01723141102FE03 FCC ID : 2ADOI‐SP932L APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Speaker BRAND NAME : N/A MODEL NAME : SP932 CLIENT : SMARTV LTD DATE OF ISSUE : Apr.29,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01723141102FE03 Page 2 of 50 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Apr.29,2015 Valid Original Report Report No.: AGC01723141102FE03 Page 3 of 50 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 3. MEASUREMENT UNCERTAINTY........................................................................................ 6 4. DESCRIPTION OF TEST MODES ........................................................................................ 6 5. SYSTEM TEST CONFIGURATION ...................................................................................... 7 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 7 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 7 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 7 6. TEST FACILITY .................................................................................................................... 8 7 ALL TEST EQUIPMENT LIST ............................................................................................... 8 8. RADIATED EMISSION ......................................................................................................... 9 8.1TEST LIMIT ..................................................................................................................................... 9 8.2. MEASUREMENT PROCEDURE ................................................................................................ 10 8.3. TEST SETUP .............................................................................................................................. 12 8.4. TEST RESULT(Worst modulation:GFSK) ................................................................................... 14 9. BAND EDGE EMISSION .................................................................................................... 27 9.1. MEASUREMENT PROCEDURE ................................................................................................ 27 9.2 TEST SETUP ............................................................................................................................... 27 9.3 RADIATED TEST RESULT(Worst modulation:GFSK) ................................................................. 28 10. 20DB BANDWIDTH .......................................................................................................... 32 10.1. MEASUREMENT PROCEDURE .............................................................................................. 32 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................... 32 10.3. LIMITS AND MEASUREMENT RESULTS ................................................................................ 32 11. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 39 11.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 39 11.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................. 39 11.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 40 11.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 40 11.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ....................................................... 41 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 43 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 44 Report No.: AGC01723141102FE03 Page 4 of 50 1. VERIFICATION OF CONFORMITY Applicant SMARTV LTD Address ROOM, 1207, 33 WANG YIP STREET WEST, YUEN LONG, NT, HONG KONG Manufacturer SHENZHEN SMARTV TECHNOLOGIES LTD Address 4TH FLOOR, BLOCK A, NO.1 XINGUI ROAD, TONGSHENG, DALANG, LONGHUA DISTRICT, SHENZHEN, CHINA Product Designation Bluetooth Speaker Brand Name N/A Test Model SP932 Date of test Apr.27,2015 to Apr.28,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Service(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Water Zuo Apr.29,2015 Checked By Forrest Lei Apr.29,2015 Authorized By Solger Zhang Apr.29,2015 Report No.: AGC01723141102FE03 Page 5 of 50 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency 2.402 G…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
