2ADPENNC014Direct Plug-in Z-Wave Repeater

www.tuv.com Test Report No.: 14037786 001 Appendix 5 page 8 of 9 1.6 User Manual www.tuv.com Test Report No.: 14037786 001 Appendix 5 page 9 of 9

www.tuv.com Test Report No.: 14037786 001 Appendix 3 page 2 of 2 External View External View

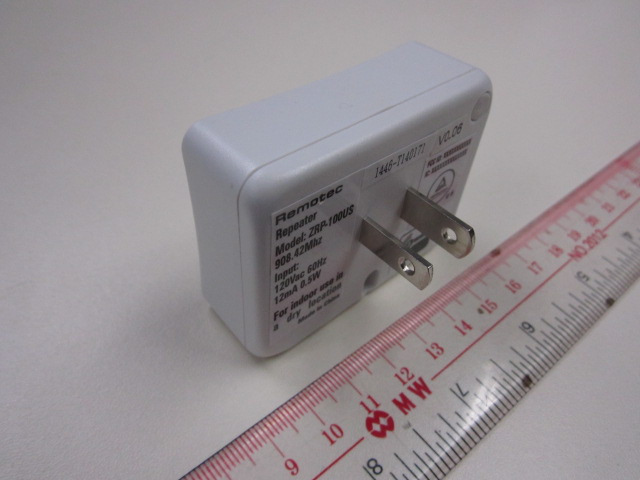

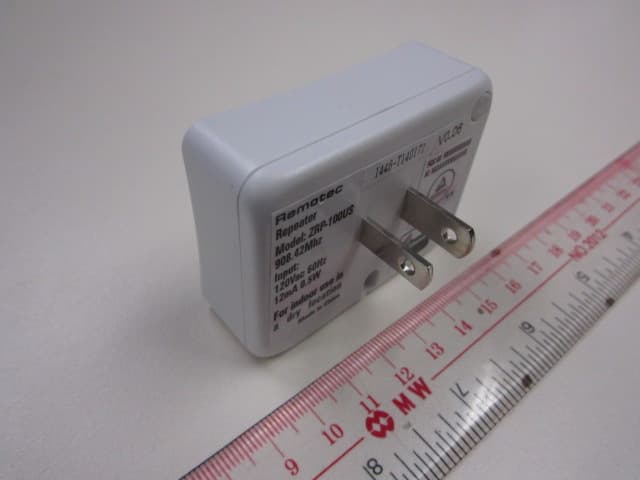

www.tuv.com Test Report No.: 14037786 001 Appendix 5 page 2 of 9 1.1 FCCID Label Artwork The yellow oval shows the location of the Rating Label

www.tuv.com Test Report No.: 14037786 001 Appendix 4 page 2 of 3 Internal View Internal View www.tuv.com Test Report No.: 14037786 001 Appendix 4 page 3 of 3 Internal View Internal View

www.tuv.com Test Report No.: 14037786 001 Date: 22.01.2015 page 2 of 13 Table of Content Page Cover Page ..........................................................................................1 Table of Content ..........................................................................2 Test Summary ................................................................................................................ 4 Product information....................................................................................................... 5 Manufacturers declarations ....................................................................................................................... 5 Product function and intended use ........................................................................................................... 5 Submitted documents ................................................................................................................................. 5 Independent Operation Modes .................................................................................................................. 5 Related Submittal(s) Grants ....................................................................................................................... 5 Remark ......................................................................................................................................................... 5 Test Set-up and Operation Mode .................................................................................. 6 Principle of Configuration Selection ......................................................................................................... 6 Test Operation and Test Software ............................................................................................................. 6 Special Accessories and Auxiliary Equipment ......................................................................................... 6 Countermeasures to achieve EMC Compliance ....................................................................................... 6 Test Methodology .......................................................................................................... 7 Radiated Emission ...................................................................................................................................... 7 Field Strength Calculation .......................................................................................................................... 7 List of Test and Measurement Instruments ................................................................. 8 Results FCC Part 15 – Subpart C ................................................................................. 9 Subclause 15.203 – Antenna Information ....................................................................... Pass ................. 9 Subclause 15.207 – Conducted Emission on AC Mains ................................................ Pass ................. 9 Subclause 15.215 (c) – 20 dB Bandwidth ........................................................................ Pass ............... 10 Subclause 15.249 (a) – Radiated Emission (Fundamental and Harmonics) ................ Pass ............... 10 Subclause 15.205, 15.249 (d) – Spurious Radiated Emissions ..................................... Pass ............... 11 Results FCC Part 15 – Subpart B ............................................................................... 12 Subclause 15.107 – Conducted Emission on AC Mains ................................................ Pass ............... 12 Subclause 15.109 – Spurious Radiated Emissions ....................................................... Pass ............... 13 Appendix 1 – Test Results 15 pages www.tuv.com Test Report No.: 14037786 001 Date: 22.01.2015 page 3 of 13 Appendix 2 – Test Setup Photos 3 pages Appendix 3 – EUT External Photos 2 pages Appendix 4 – EUT Internal Photos 3 pages Appendix 5 – Label, Operational Description, Block, Schematics and User Manual 9 pages Appendix 6 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14037786 001 Date: 22.01.2015 page 4 of 13 Test Summary Conducted Emissions Result: Pass 20dB bandwidth Result: Pass Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass www.tuv.com Test Report No.: 14037786 001 Date: 22.01.2015 page 5 of 13 Product information Manufacturers declarations Transceiver Operating frequency range 908.42 MHz Type of modulation GFSK Number of channels 1 Type of antenna Integral Power level fix Connection to public utility power line No Nominal voltage V nor : 120Vac Product function and intended use The equipment under test (EUT) is a Z-wave transceiver operating at 908.42 MHz. It is powered by 120 Vac. FCC ID: 2ADPENNC014 Models Product description NNC014, NND032, NND033, 9614+02000- 1UID, 9614+02000-2UID, 9614+02000- 3UID, F-BW8140US-0001, F-BW8141US- 0001, ZRP-100NA, ZRP-110NA Z-wave Repeater Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Independent Operation Modes The basic operation modes are: - Z-wave communication link maintained with data transfer. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. The receiving portion is authorized under the verification procedure. Remark - None. www.tuv.com Test Report No.: 14037786 001 Date: 22.01.2015 page 6 of 13 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been te…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 1 of 15 Appendix 1 Test Results www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 2 of 15 Conducted Emission TX frequency: 908.42MHz AC mains Neutral 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 3 of 15 TX frequency: 908.42MHz AC Mains Live 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 4 of 15 RX Mode AC Mains Neutral 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 5 of 15 RX Mode AC Mains Live 0 10 20 30 40 50 60 70 80 150k 300 400 500 800 1M2M3M 4M 5M 6 8 10M20M30M Level in dBμV Frequency in Hz Conducted Emission (150 kHz - 30 MHz) FCC Part 15 Class B Voltage on Mains QP FCC Part 15 Class B Voltage on Mains AV www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 6 of 15 20dB Bandwidth Tx frequency: 908.42MHz A 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz 908.357 MHz Att 10 dB 908.357 MHz * 908.357 MHz Ref -30 dBm 908.357 MHz Center 908.42 MHz 908.357 MHz Span 500 kHz 908.357 MHz 50 kHz/ 908.357 MHz 1 PK 908.357 MHz MAXH 908.357 MHz * 908.357 MHz RBW 10 kHz 908.357 MHzVBW 30 kHz 908.357 MHz SWT 5 ms 908.357 MHz -130 -120 -110 -100 -90 -80 -70 -60 -50 -40 -30 908.357 MHz 1 Marker 1 [T1 ] -39.58 dB m 908.401000000 MHz 2 Marker 2 [T1 ] -59.86 dBm 908.357000000 MHz 3 Marker 3 [T1 ] -59.61 dBm 908.504000000 MHz MARKER 2 908.357 MHz Comment: test print Date: 16.DEC.2014 13:56:15 www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 7 of 15 Radiated Emission Tx frequency: 908.42MHz 9k – 30MHz www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 8 of 15 Tx frequency: 908.42MHz 30MHz – 1000MHz (Horizontal) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 9 of 15 Tx frequency: 908.42MHz 30MHz – 1000MHz (Vertical) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 10 of 15 Tx frequency: 908.42MHz 1GHz – 10GHz (Horizontal) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 11 of 15 Tx frequency: 908.42MHz 1GHz – 10GHz (Vertical) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 12 of 15 Rx mode 30MH – 1GHz (Horizontal) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 13 of 15 Rx mode 30MH – 1GHz (Vertical) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 14 of 15 Rx mode 1GHz – 5GHz (Horizontal) www.tuv.com Test Report No.: 14037786 001 Appendix 1 page 15 of 15 Rx mode 1GHz – 5GHz (Vertical)

www.tuv.com Test Report No.: 14037786 001 Appendix 6 page 1 of 2 Appendix 6 RF Exposure Information www.tuv.com Test Report No.: 14037786 001 Appendix 6 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBm) Output power(mW) 908.42 -11.0 0.079 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√ f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation 25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (0.079/5)*√0.908 = 0.015 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14037786 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14037786 001 Appendix 2 page 3 of 3 Setup for radiated emission Setup for conducted emission
