2ADPF-05224339GHOST Aerial

Please refer to relevant regulations of the International Civil Aviation Organization, local airspace control and UAV management rules. Other- wise it may incur liabilities for violation of laws or regulations. Once this product is used, it will be assumed that the user has acknowledged and accepted all the contents of this statement. Users will be held accountable for their actions or any direct or indirect consequences caused by incompliance with the aviation restrictions of this manual. Aviation Restrictions Reminder Reading Instructions Symbols Suggested Use Video GHOST Basic Introduction Parts List Preparation Battery G-Box GHOST Propeller Prop guard Gimbal Landing Gears Camera GHOST APP Voice Package GHOST APP The interface Flight Pre-flight Examination Flight Environment Flight Safety Caution during Flight After-sales Contents 02 03 04 06-22 23-26 27-28 Reminder Black Box Each GHOST drone contains a black box which records all flight information and working parameters of the engine, which is used for flying tests and accidence analysis. Operation Please be careful when using the GHOST. The product contains sensitive electronic components. Fall, damage or exposure to water may break the GHOST. Modification/Mounting If you need to modify GHOST or mount other devices on GHOST, please consult our customer service. Users will be held accountable for any conse- quences caused by modification or mounting without permission. Repair Please do not disassemble or try repairing the GHOST, which may cause damage to the GHOST or even injure yourself. If it is broken, malfunctions or gets exposed to liquids, please contact EHANG or its authorized dealers. Battery Please do not dismantle, squeeze, strike, burn, drop or tread on EHANG batteries. Avoid short circuit or exposing the battery terminal to metals. Do not use the battery at a temperature above 60 degrees Celsius. Please use the original GHOST charger. Please store the battery out of children’s reach and keep it dry. Storage If GHOST and its parts are left idle for a while, please take out the battery and store it in a dry, dark environment free from dampness, molds and electro- magnetic interference (EMI). 02 Suggested Use EHANG has a video and the following instructions teaching users how to operate GHOST in order to make sure that you have a pleasant experience with our product. 1.Video Website: www.ghost-drone.com 2.Disclaimer Website: www.ghost-drone.com 3.Quick-start Manual:To help you start easily and quickly 4.GHOST Aerial Advanced Manual: To provide detailed instructions Video Please visit our website www.ghost-drone.com to learn how to use GHOST from the video. Symbols Do not operateAttention neededTips Reading Instructions 03 GHOST Aerial Plus GHOST is a quadcopter completely controlled by a smartphone APP. It is equipped with an advanced flight controller and the intelligent mobile device can provide functions of flight directing, BVR flight and following. It is easy to operate. With GHOST, flying is no longer a privilege. Please check the contents of the box before using. GHOST (with two pairs of propellers and four prop guards) G-Box (with charging cable) Battery and battery charger (with two charging cables) NumberItemPicture 1 2 3 4 Introduction Parts List 04 Gimbal and camera 5 Landing gear, screwdriver, and eight 2.0 screws 1.2 Charging Battery type: LiPo Charging: The indicators of 1S, 2S and 3S are the number of batteries being charged; 1A, 2A and 3A are the current. The higher the value is, the faster the battery will be fully charged. State:When the red indicator is on, the battery is being charged. When the green indicator is on, the battery is fully charged. 1.1 About the Battery It is a charge-discharge, lithium polymer battery specially designed for GHOST products, with a capacity of 5400mAh, cell voltage of 11.1v and an XT60 connector. The battery must be charged with the original charger provided by EHANG. BatteryCharger Please make sure the following devices are fully charged before using GHOST. 1.Battery 05 Preparation Battery G-Box 1.4 Attention Needed 1 ) Please examine if there is any tear, damage or deformation on the battery; 2) Battery temperature is high immediately after use. Don’t start charging until the battery cools down to room temperature; 3) Do not leave the battery charged unattended. If abnormal charging situa- tion occurs, please stop charging the battery at once; if you cannot attend the battery, remove the battery from the charger in case of unpredictable danger; 4) Do not place or charge the battery in the sun. Temperature higher than 35ď might damage the battery or affect its performance; 5) Store the battery out of children’s reach. Please keep the battery away from source of water and fire; 6) Avoid storing fully charged battery. It is suggested to use the battery within 24 hours after it is fully charged; if you determine not to use the battery for a long period of time, keep its electric voltage between 11.4V and 11.6V (single cell between 3.8V and 3.85V) ; 7) Do not apply external force on the battery; do not drop the battery from high places; do not disassemble or modify the battery; 8) Please replace the battery with new one if it bulges; 9) Please do not charge the battery for over three hours. 1.3 Put in the Battery Put GHOST on level ground and connect it to battery cable. When the flicker frequency is lowered (5 seconds per flicker), push the battery into the com- partment in the right direction and make sure the battery is tightly stuck. Close the cover and keep a safe distance (5 meters). Connect your smart- phone to G-Box through Bluetooth, which makes it easier to unlock the smartphone APP and avoids unlock failure. If the battery is not tightly stuck, there will be poor contact with power source or failure to obtain battery information, which may affect flight safety or cause unsuccessful take-off. 06 Preparation 2.G-Box 2.1 About G-Box G-Box is a communication device spe…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 5/21/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ADPF-05224339 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Guangzhou Ehang Intelligent Technologies Co., Ltd. Contact person: Weipeng Su Title: Manager

Floor 4, Vice‐building, Grand View of the World,Aoti Road, Tianhe District, Guangzhou City,Guangdong Province,China TEL: 86‐755‐82706316 FAX: 86‐755‐82706316 May 19, 2015 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ADPF-05224339 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Guangzhou Ehang Intelligent Technologies Co., Ltd. Contact person: Weipeng Su Title: Manager

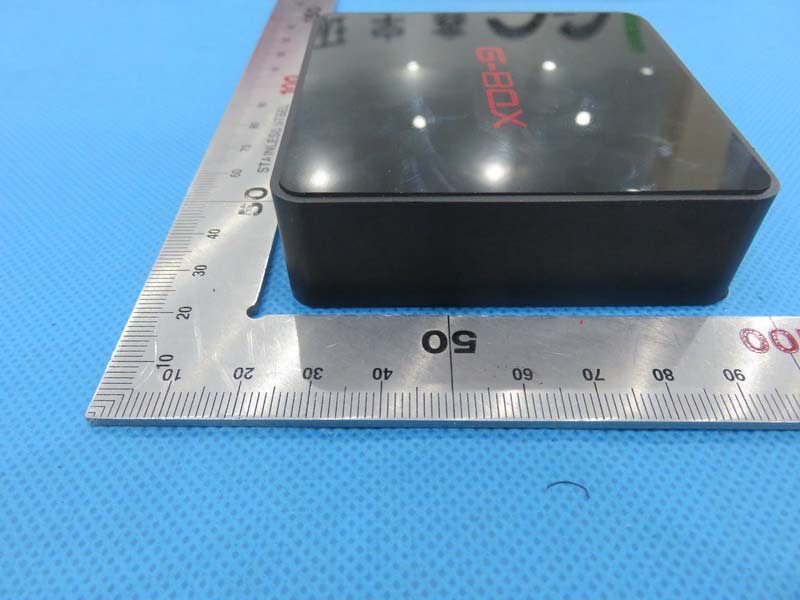

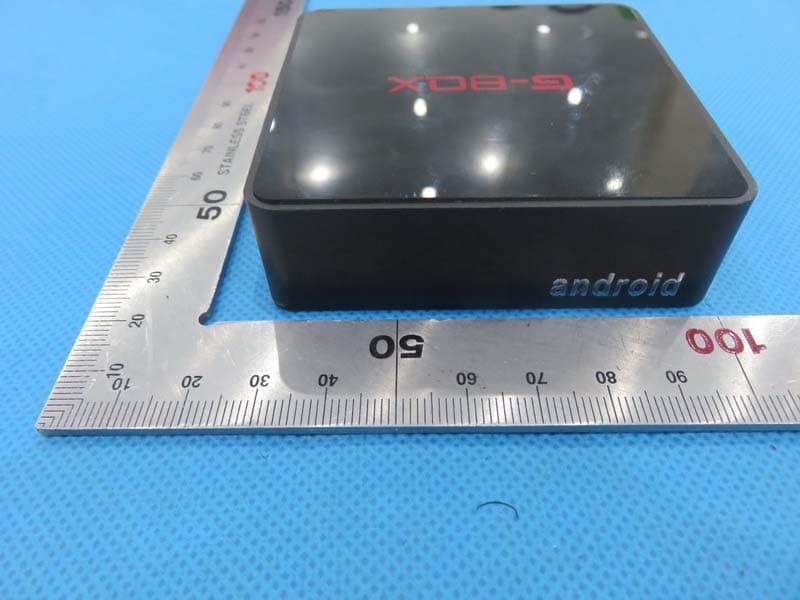

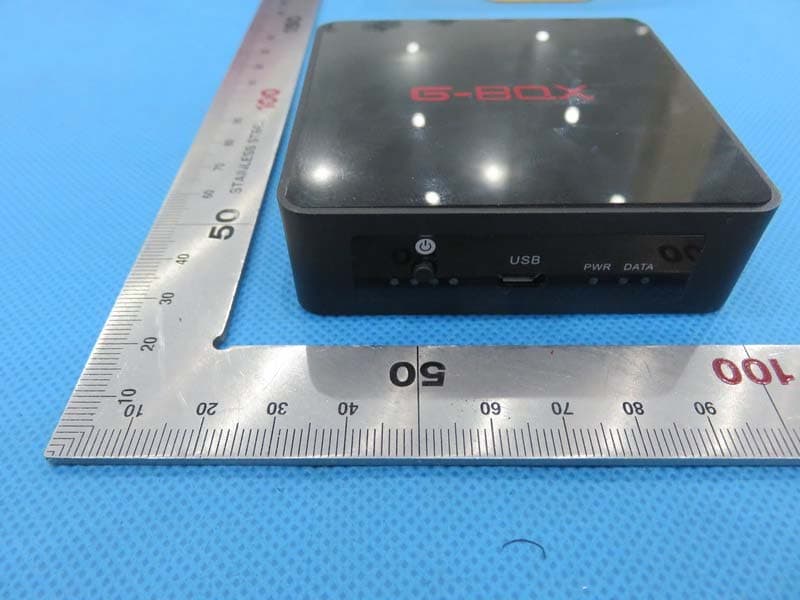

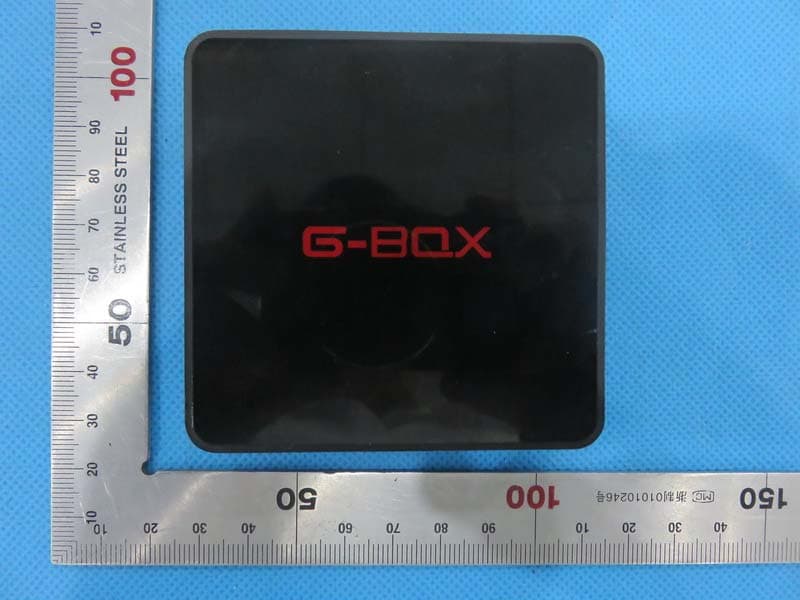

External Photos TOP VIEW BOTTOM VIEW LEFT VIEW RIGHT VIEW OF SAMPLE FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE

FCC ID Label Location FCC ID: 2ADPF-05224339

Internal Photos INTERNAL PHOTO-1 INTERNAL PHOTO-2 BT Moudule Antenna 2.4G Module Antenna INTERNAL PHOTO-3 INTERNAL PHOTO-4 INTERNAL PHOTO-5 INTERNAL PHOTO-6

Floor 4, Vice-building, Grand View of the World,Aoti Road, Tianhe District, Guangzhou City,Guangdong Province,China TEL: 86-755-82706316 FAX: 86-755-82706316 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: GHOST Aerial,GHOST Basic FCC ID: 2ADPF-05224339 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: Component Antenna Gain of the antenna: 2.41 dBi Frequency range: 2405.5-2475 MHz Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 2 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Guangzhou Ehang Intelligent Technologies Co., Ltd. Address: Floor 4, Vice-building, Grand View of the World, Aoti Road, Tianhe District City: Guangzhou City, Guangdong Province ZIP / Postal code: N/A Country: China Place: Shenzhen Date: May 19,2015 Signature:

RF Exposure evaluation Product Description:BOX Model Number: GHOST Aerial,GHOST Basic FCC ID: 2ADPF-05224339 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=102.28dBuv/m=0.13V/m,d=3m,g t =0.68 P t =（E x d） 2 /（30 x g t ）=(0.13x3) 2 /(30x0.68)=0.0075W=7.5mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -7.5mW output power] (7.5mW /5mm) .[√2.402(GHz)]= 2.32<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

Page 1 of 34 FCC Test Report Report No.: AGC02607150302FE03 FCC ID : 2ADPF‐05224339 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : BOX BRAND NAME : GHOST MODEL NAME : GHOST Aerial GHOST Basic CLIENT : Guangzhou EHang Intelligent Technologies Co., Ltd. DATE OF ISSUE : May.06,2015 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC02607150302FE03 Page 2 of 34 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / May.06,2015Valid Original Report Report No.: AGC02607150302FE03 Page 3 of 34 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ...................................................................................... 4 2. GENERAL INFORMATION .................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS .......................................................................................... 5 4. DESCRIPTION OF TEST MODES ........................................................................................ 8 5. SYSTEM TEST CONFIGURATION ...................................................................................... 9 5.1. CONFIGURATION OF EUT SYSTEM .......................................................................................... 9 5.2. EQUIPMENT USED IN EUT SYSTEM ......................................................................................... 9 5.3. SUMMARY OF TEST RESULTS .................................................................................................. 9 6. TEST FACILITY .................................................................................................................. 10 7 ALL TEST EQUIPMENT LIST ............................................................................................. 10 8. RADIATED EMISSION ....................................................................................................... 11 8.1TEST LIMIT ................................................................................................................................... 11 8.2. MEASUREMENT PROCEDURE ................................................................................................ 12 8.3. TEST SETUP .............................................................................................................................. 14 8.4. TEST RESULT(Worst modulation: GFSK) .................................................................................. 16 9. BAND EDGE EMISSION .................................................................................................... 21 9.1. MEASUREMENT PROCEDURE ................................................................................................ 21 9.2 TEST SETUP ............................................................................................................................... 21 9.3 RADIATED TEST RESULT(Worst modulation: GFSK) ................................................................ 22 10. FCC LINE CONDUCTED EMISSION TEST ..................................................................... 24 10.1. LIMITS OF LINE CONDUCTED EMISSION TEST ................................................................... 24 10.2. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ................................................ 24 10.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST .............................. 25 10.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................ 25 10.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ...................................................... 26 APPENDIX A: PHOTOGRAPHS OF TEST SETUP ............................................................... 28 APPENDIX B: PHOTOGRAPHS OF EUT .............................................................................. 29 Report No.: AGC02607150302FE03 Page 4 of 34 1. VERIFICATION OF CONFORMITY Applicant Guangzhou EHang Intelligent Technologies Co., Ltd. Address Floor 4, Vice-building, Grand View of the World, Aoti Road, Tianhe District, Guangzhou City, Guangdong Province Manufacturer Guangzhou EHang Intelligent Technologies Co., Ltd. Address Floor 4, Vice-building, Grand View of the World, Aoti Road, Tianhe District, Guangzhou City, Guangdong Province Product Designation BOX Brand Name GHOST Test Model GHOST Aerial Series Model GHOST Basic Different Description All the same except the model name and color. Date of test Apr.28,2015 to May.05,2015 Deviation None Condition of Test Sample Normal Report Template AGCRT-US-BR/RF We hereby certify that: The above equipment was tested by Compliance Certification Services(Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.249. Prepared By Max Zhang May.06,2015 Checked By Kidd Yang May.06,2015 Authorized By Solger Zhang May.06,2015 Report No.: AGC02607150302FE03 Page 5 of 34 2. GENERAL INFORMATION 2.1. PRODUCT DESCRIPTION A major technical description of EUT is described as following Operation Frequency(2.4G Module) 2405.5-2475MHz Maximum field strength(2.4G Module) 89.50dBuV/m@3m(AV) Modulation(2.4G Module) FSK Number of channels(2.4G Module) 160 Antenna Gain(2.4G Module) 2.41dBi Antenna Designation(2.4G Module) Component Antenna (Met 15.203 Antenna requirement) Operation Frequency(BT Module) 2.402 GHz to 2.480GHz Maximum field strength(BT Module)…

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
