OperatingManual GHOSTDRONE2.0Aerial GHOSTDRONE2.0createdbyEHang,Inc. GHOSTDRONE2.0OperatingManualincludespackinglist,assembly,partsand specificationinformation. CongratulationsonpurchasingyournewGHOSTDRONE2.0! Forcustomerserviceandsupport,[email protected] orcontactourcustomerservicehotline:888-800-7056. www.ehang.com www.twitter.com/theghostdrone www.facebook.com/theghostdrone www.instagram.com/theghostdrone forum.ehang.com Thankyou,andenjoyyourGHOSTDRONE! TABLEOFCONTENTS Instroduction Diagram-------------------------------------------------03 PackingList---------------------------------------------03 Assembly Propellers-----------------------------------------------04 PropellerGuards---------------------------------------05 Camera--------------------------------------------------05 Gimbal---------------------------------------------------07 Accessories Battery---------------------------------------------------09 G-BOX---------------------------------------------------12 LEDIndicatorLightInstructions----------------------14 Specifications Specifications------------------------------------------15 FAQ FAQ------------------------------------------------------17 INTRODUCTION Withdual-sensorflightcontrollerandhighefficiencydynamicsystem,GHOSTDRONE2.0 securessaferandmorestableflight.ItssmartbatteryLCDscreendisplaysreal-time batterystatusinformation.OurGHOSTDRONE2.0Aerialversioncontainsthe3-axis gimbal,whichensuresthecameraalwayssteadyandstable,helpingyourecordthe excitingmomentsinyourlife. Diagram FrontIndicatorLight Motor SmartFlightBattery Gimbal AircraftBody Propeller LandingGear PackingList Aircraft*1Propeller*8PropellerGuard*4 BatteryCharger*1InfoPackage*1 G-BOX*1ToolKit*1 Note: ThetoolkitcontainsaUSBchargingcable,abatterychargingcable,awrench,ascrew driver,4vibrationdampenersand15screws. Extra4propellers,4vibrationdampersand3screwsareprovidedforfree. TheUSBcableisusedtochargetheG-BOXaswellasconnectingtheGHOSTDRONEtoa PCtoupdatetheaircraft’sfirmware. ASSEMBLY AircraftInstallthepropellersInstallthepropellerguardsInstallthecamera Propellers GHOSTDRONE2.0uses2-bladed8.5-inchself-tighteningpropellers.Propellernutshave twocolors,silverandblack.Eachindicatesdifferentrotatingdirections. IconExplanations LOCK:Tightenthepropellerinthisdirection. UNLOCK:Removethepropellerinthisdirection. Installation 1.Puttheaircraftupsidedownonsoftsurfacetoavoidscratches. 2.MatchthesilvernutpropellerswiththeLmotors(withsilvermotorshaft),andtighten thepropellersaccordingtotheLOCKinstructions. 3.AttachtheblacknutpropellerstotheRmotorsinthesameway. Disassembling Keepthemotordeadlockedinplacewithonehandandremovethepropelleraccording totheUNLOCKinstructions. PropellerGuards Itisoptionaltousethepropellerguards. Installation:Placetheguardsovertheaircraft.Usethescrewdrivertotightenthe3 screws. Disassembling:Unscrewthethreeholdingscrewsandremovetheguard. Note:Werecommendusingpropellerguardsinacomplexenvironment,suchascrowd, groupofbuildingsorobstacles. Camera ThegimbaliscompatiblewithGoPro3,GoPro3+,GoPro4andEHangcamera.Camerais notincludedinthebox. 1.Removethecameraguard.ConnectthegimbalblackplugwiththeCameraUSB interface. 2.UsethecameraguardtofixtheCameralens,andtightenthescrews. CompletedAssembly Gimbal Thegimbalispreassembledandreadytouse.Ifoneneedstodissemblethegimbal, refertothefollowinginstructions.ThegimbaliscompatiblewithGoPro3,GoPro3+, GoPro4andEHangcamera. Gimbalspareparts 3-AxisGimbal*1PlateAdapter*1AdapterCable*1CopperPillar*4Screw*4 GimbalAssembly 1.Puttheaircraftupsidedownonasoftsurfacetoavoidunnecessaryscratches,anduse ascrewdrivertotightenfourcopperpillarsonthebottomoftheaircraft. 2.ConnectthegimbalwiretotheP1interfaceontheplateadapter. PlateAdapterGimbalGimbalWireP1InterfacePlateAdapter 3.Mounttheplateadaptertothegimbalbyusingtwoscrews. ScrewBottomBoardoftheGimbalPlateAdapter(Upsidedown) 4.Fixthegimbalbasebytighteningtwoscrewsontheothertwocopperpillars. 5.ConnecttheplugoftheadaptercabletotheplateadapterP2interface.Connectthe otherendofthecabletotheaircraft. GimbalPlateAdapterAdapterCableAircraftCompletedAssembly ACCESSORIES Battery Improperuseofbatterymayleadtofire,explosionorotherdangers.Pleasebefamiliar withtheproductbeforeusing. The4SlithiumpolymerbatteryisspeciallydesignedfortheGHOSTDRONE2.0,with capacityof4500mAh,voltageof14.8V,charge-dischargemanagementfunctionalityand asmartdisplayscreen.ThebatteryshouldonlybechargedbyEHangcharger. BatteryStructuralDiagram LCDScreenPowerButtonIndicatorLight PoweringOn Pressthepowerbutton,thenpressandholdthebuttonagainin3secondsuntilthelast letter“G”oflogo“EHANG”appearsonthescreen.TheLEDindicatorlightturnsononce thebatteryisturnedon,referringtothediagrambelow. RemainingTotalVoltage BatteryRemainingCapacity BatteryCapacityPercentage MainInterface Note:Whenthebatteryispoweredoff,pressthepowerbuttontocheckthebatterylife. (Maininterfacewilldisplayfor3secondswhiletheLEDIndicatorlightstaysoffduring thewholeprocess.) Whenthebatteryispoweredon,pressthepowerbuttononcetoenterthesecondary interface,referringtothepicturebelow: ElectronicCurrent BatteryLifespanPercentage NumberofFullyCharge andDischargeCycle FourBatteryChamer’sVoltage SecondaryInterface PoweringOff Pressthepowerbutton,thenpressandholdagainuntilthe‘!’of‘SEEYOU!’sign disappearsonthescreen. BatteryCharging Connectthebatterytothecharger,andthenconnectthechargertoawallsocket(use theplugifnecessary).Onceconnectedsuccessfully,theLEDindicatorlightflashesslowly andthescreendisplayscurrentcapacitylevelasbelow: BatteryCapacityPercentage RemainingTimetoFullyChargetheBattery ChargingElectricCurrent RemainingTotalVoltage FourBatteryChamer’sVoltage ChargingInterface BatteryDischarging Whenthebatteryisdischarging,theLEDindicatorlightstaysonandthescreendisplays asbelow: RemainingBatteryCapacityPercentage RemainingDischargeTime DischargeInterface DischargingCurrent TotalVoltage AccumulatedDischargingTime LEDIndicatorLightInstructions Lowfrequencyflash(Green)Charging Highfrequencyflash(Green)Lowbattery SolidgreenWorki…

Text truncated - open the document above for the full version.

GuangzhouEHangIntelligentTechnologyCo.,Ltd. Date:Dec.02,2015 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 ToWhomItMayConcern: TheGuangzhouEHangIntelligentTechnologyCo.,Ltd.，theundersigned,hereby authorizesMr.WuXuewenfromShenzhenBalunTechnologyCo.,Ltd.,toacton thebehalfofGuangzhouEHangIntelligentTechnologyCo.,Ltd.solelyinmatters relatingtotheapplicationforanFCCequipmentauthorizationforFCCID: 2ADPF-GBO-200includingthesigningofdocumentsinconnectionwiththis Application.NecessaryactscarriedoutbyShenzhenBalunTechnologyCo.,Ltd. onourbehalfoftheGuangzhouEHangIntelligentTechnologyCo.,Ltd.in connectionwiththeApplicationshallhavethesameeffectasactsofthe GuangzhouEHangIntelligentTechnologyCo.,Ltd..TheGuangzhouEHang IntelligentTechnologyCo.,Ltd.alsoherebycertifythatnopartytothisapplication issubjecttoadenialofbenefits,includingFCCbenefits,pursuanttoSection5301 oftheAnti-DrugAbuseActof1988,21U.S.C.853(a). Thankyouforyourattentiontothismatter. YoursSincerely, YaodongJin

GuangzhouEHangIntelligentTechnologyCo.,Ltd. Date:Dec.02,2015 To:FederalCommunicationsCommission, Authorization&EvaluationDivision, 7435OaklandMillsRoad, Columbia,MD21046 Re:GuangzhouEHangIntelligentTechnologyCo.,Ltd. FCCID:2ADPF-GBO-200 FCCCertificationConfidentialityRequest Gentlemen: Thisletteristocomplywith47CFR0.457and0.459pertainingto confidentialitymaterial.GuangzhouEHangIntelligentTechnologyCo.,Ltd. requeststhatthefollowingdocumentsregardingthissubmissionforFCCID: 2ADPF-GBO-200bekeptconfidential: ExhibitTypeFileName BlockDiagramBlockDiagram.pdf CircuitdiagramCircuitdiagram.pdf OperationalDescriptionOperationalDescription.pdf Partlistbom.pdf Thosedocumentscontaindetailedsystemandequipmentdescription andrelatedinformationabouttheproductwhichGuangzhouEHangIntelligent TechnologyCo.,Ltd.considerstobeconfidentialproprietary,acustomdesignand, otherwise,notreleasabletothegeneralpublic.Sincethisdesignisabasisform whichfuturetechnologicalproductswillevolve,GuangzhouEHangIntelligent TechnologyCo.,Ltd.considersthisinformationwouldbeofbenefittoits competitors,andthatthedisclosureoftheinformationinthesedocumentswould givecompetitorsanunfairadvantageinthemarket. YoursSincerely, YaodongJin

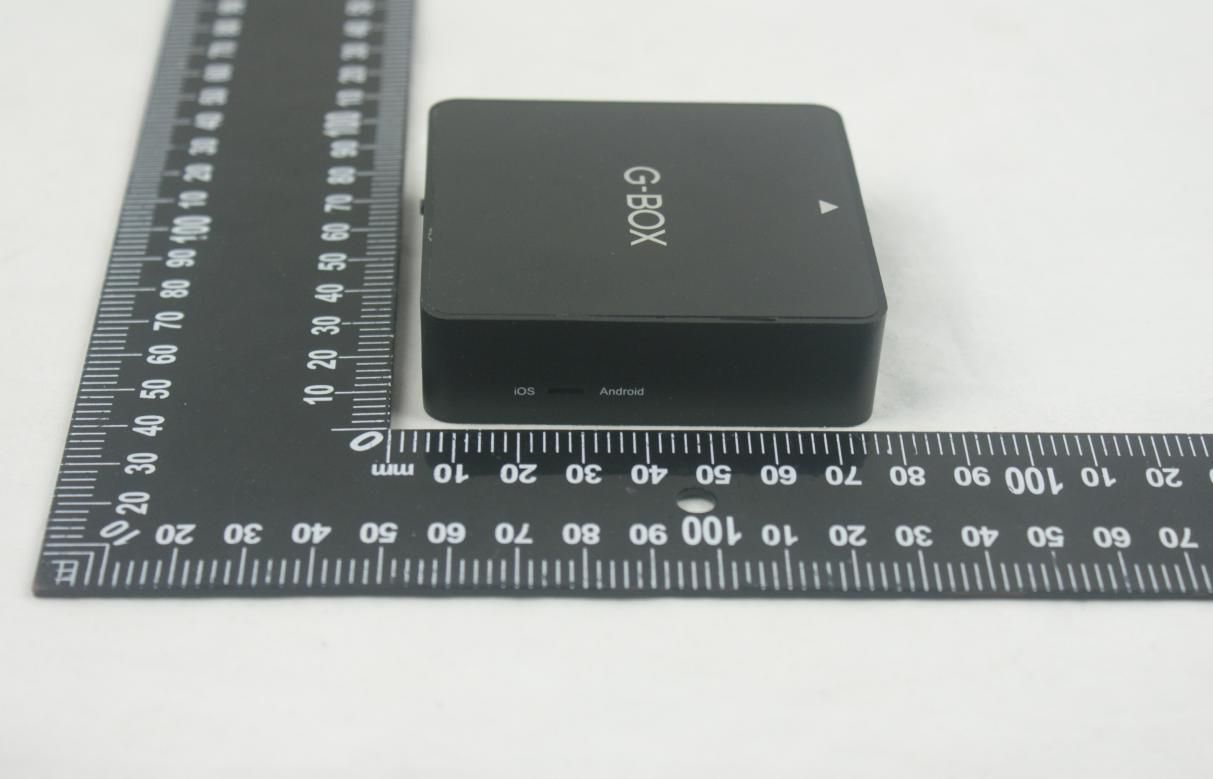

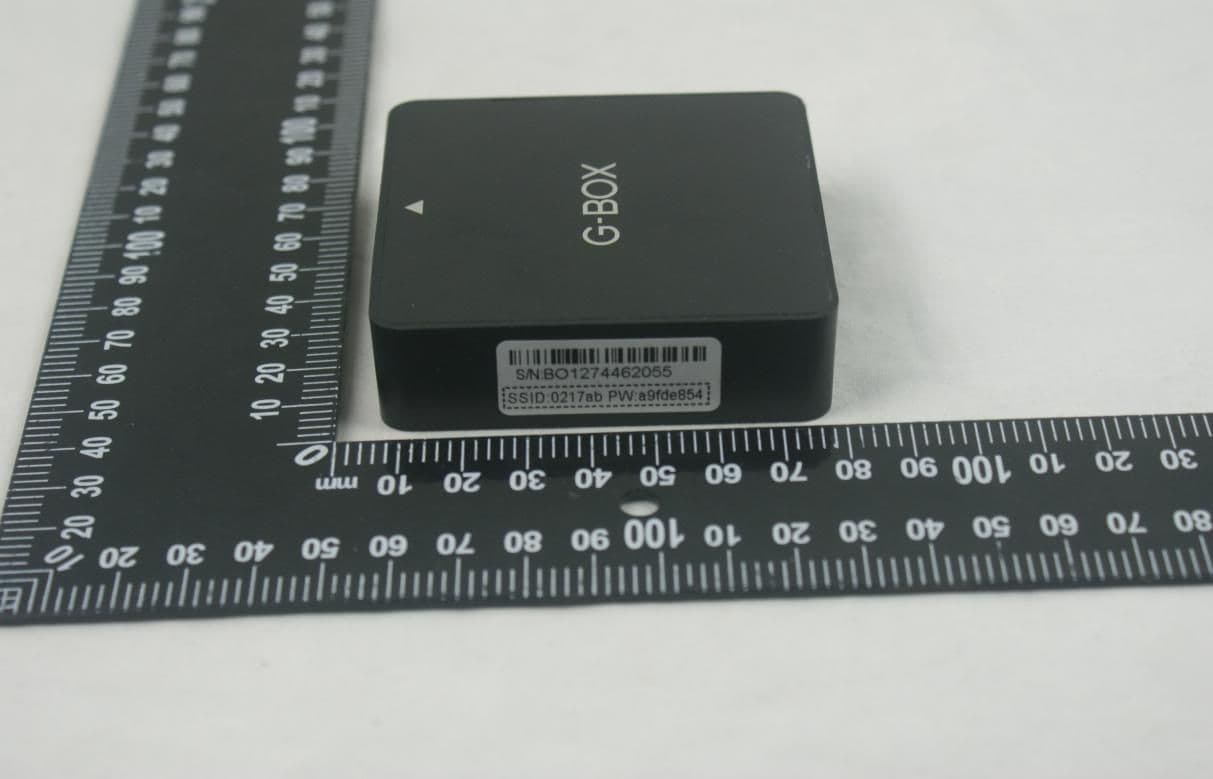

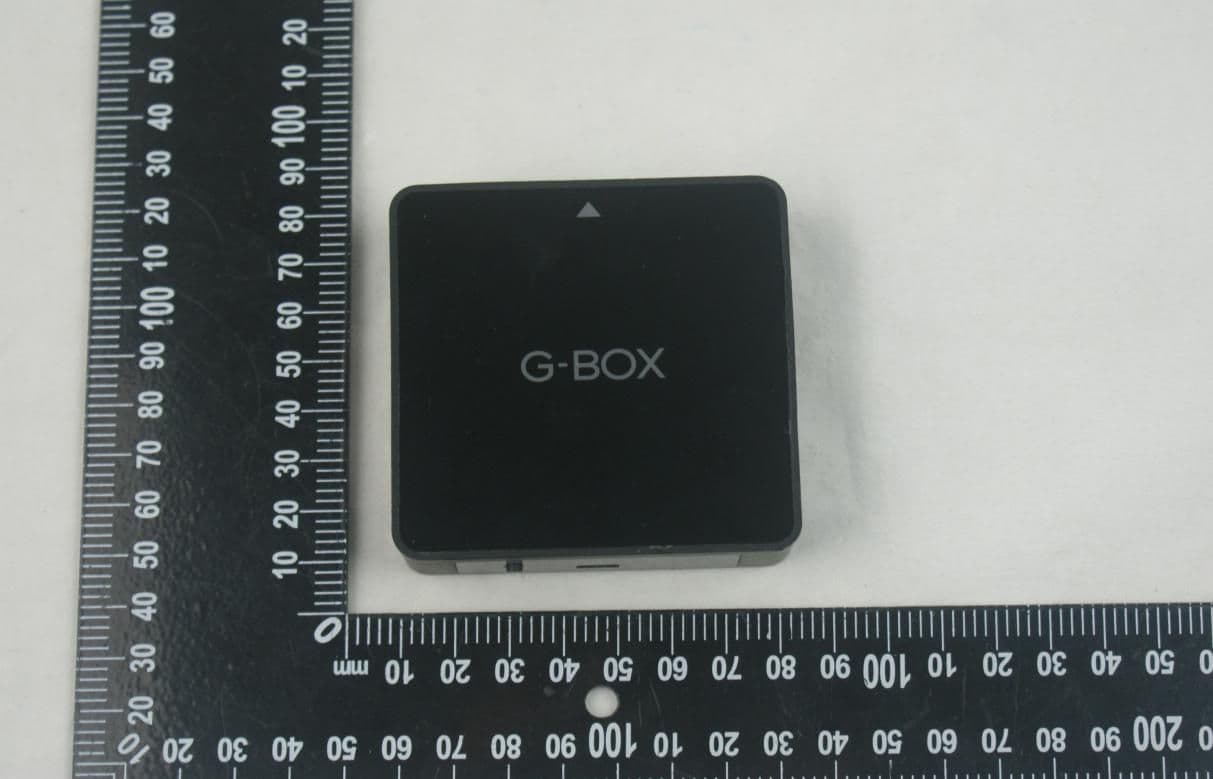

AnnexNo.:BL-SZ15C0010-AW 1 / 4 EUTEXTERNALPHOTOS THEFRONTOFEUT THEBACKOFEUT AnnexNo.:BL-SZ15C0010-AW 2 / 4 THELEFTOFEUT THERIGHTOFEUT AnnexNo.:BL-SZ15C0010-AW 3 / 4 THEUPOFEUT THEDOWNOFEUT AnnexNo.:BL-SZ15C0010-AW 4 / 4 THEPHOTOOFEUT

Label: Label_location:

AnnexNo.:BL-SZ15C0010-AI 1 / 8 EUTINTERNALPHOTOS EUTUNCOVERVIEW1 EUTUNCOVERVIEW2 AnnexNo.:BL-SZ15C0010-AI 2 / 8 EUTUNCOVERVIEW3 EUTUNCOVERVIEW4 AnnexNo.:BL-SZ15C0010-AI 3 / 8 MAINBOARDTOPVIEW1 MAINBOARDTOPVIEW2 PCBANTENNA PCBANTENNA WIFICHIP BTCHIP AnnexNo.:BL-SZ15C0010-AI 4 / 8 MAINBOARDBACKVIEW2 MAINBOARDTOPVIEW3 PIFAANTENNA1 PIFAANTENNA2 2.4GHzISMBandCHIP AnnexNo.:BL-SZ15C0010-AI 5 / 8 MAINBOARDBACKVIEW3 MAINBOARDTOPVIEW4 AnnexNo.:BL-SZ15C0010-AI 6 / 8 MAINBOARDBACKVIEW4 MAINBOARDTOPVIEW5 AnnexNo.:BL-SZ15C0010-AI 7 / 8 MAINBOARDBACKVIEW5 TheBatteryPhoto AnnexNo.:BL-SZ15C0010-AI 8 / 8 TheBatteryPhoto
