2ADR6ZIZ-LC315RXLED Controller

user manual Model name:ZIZ-LC315025 Turn on the Ac Transformer，Start the default state：Max brightness／No timer ／ Code function waiting for Remote. Press the Button on the LED light Body 3 Second，the light flashing ，Then press any key on the Remote turn off the light ，Done the RF Code match. Cut-down AC transformer ,the Battery Power supply Auto-start ,The default state: the minimum brightness,A bit difference with AC transformer supply. ◆ Press the button on the remote,the light ON/OFF control,and Restart all the function(timer/dimmer/brightness) ◆ 3H Press the button on the remote,timer on/off control,The light flash one time ,3H timer ON; The light flash two times ,3H timer OFF ◆ 6H Press the button on the remote,timer on/off control,The light flash one time ,6H timer ON; The light flash two times ,6H timer OFF ◆ Press the button on the remote , Level/2/3-cyclic dimmer On , choose your suitable brightness Remote diagram Note: The device has has no ad-hoc function. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes and modifications to this equipment. Such changes and modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct eth interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID:2ADR6ZIZ-LC315RX Manufcture:Eway Globallighting Technology Co.,Ltd

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Eway Globallighting Technology Co.,Ltd (Current Date) 2014.12.12 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Eway Globallighting Technology Co.,Ltd (client’s company name) hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: LED Controller model name: ZIZ-LC315025, ZIZ-LC315 FCC ID: 2ADR6ZIZ-LC315RX Sincerely, Client’s signature : Michael.Zhao Client’s name / title: manager Applicant company：Eway Globallighting Technology Co.,Ltd address：2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Eway Globallighting Technology Co.,Ltd 2014.12.12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADR6ZIZ-LC315RX We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Michael.Zhao Client’s name / title : manager Applicant company：Eway Globallighting Technology Co.,Ltd address：2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China

Differences Description We Eway Globallighting Technology Co.,Ltd state: Product： LED Controller Model Name： ZIZ-LC315025, ZIZ-LC315 Trade Name: N/A FCC ID: 2ADR6ZIZ-LC315RX The electrical circuit design, layout, components used and internal wiring for above models are identical, only the model name is different. Signatory Date 2014-12-22 Signature Name: Michael zhao Title: Manager Company: Eway Globallighting Technology Co.,Ltd Address: 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan To wn, Shenzhen,China

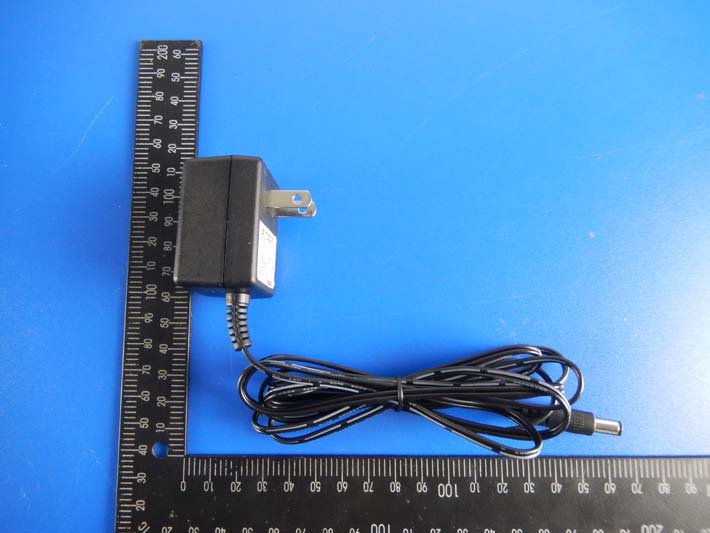

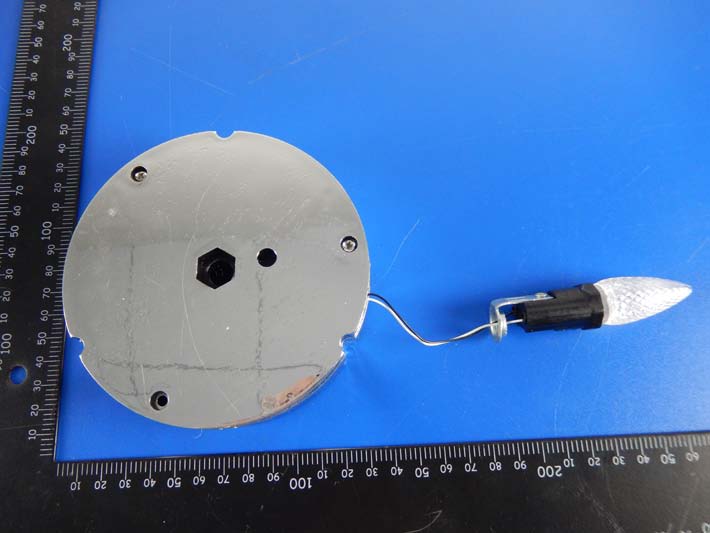

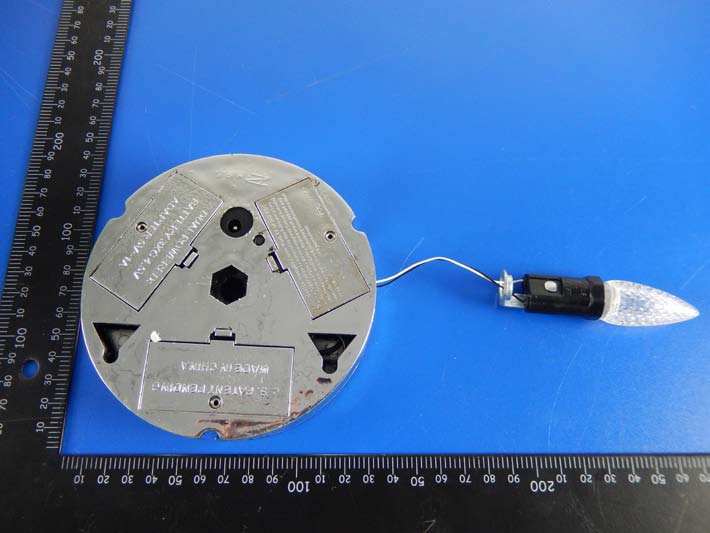

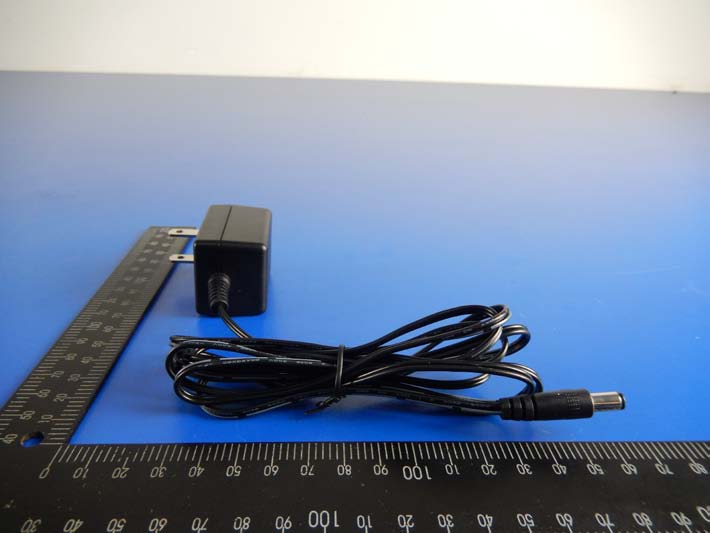

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 8 Photo 7

LED Controller Brand: N/A Model: ZIZ-LC315025 FCC ID: 2ADR6ZIZ-LC315RX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Lable

ANTENNA Photo 3

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 ANTENNA Photo 3

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No: STS1412014F02 Issued for Eway Globallighting Technology Co.,Ltd 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China Product Name: LED Controller Brand Name: N/A Model No.: ZIZ-LC315025 Series Model: ZIZ-LC315 FCC ID: 2ADR6ZIZ-LC315RX Test Standard: FCC Part 15B S T L A B S Page 2 of 22 Report No.: STS1412014F02 Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) TEST RESULT CERTIFICATION Applicant’s name .................... Eway Globallighting Technology Co.,Ltd Address .................................... 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China Manufacture's Name .............. Eway Globallighting Technology Co.,Ltd Address .................................... 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China Product description Product name ........................... LED Controller Band name ............................... N/A Model and/or type reference ..... ZIZ-LC315025 Standards ................................ FCC Part 15B Test procedure .......................... . ANSI C63.10-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test .............................. . Date of performance of tests ..... 01 Dec. 2014 ~09 Dec. 2014 Date of Issue ............................ . 10 Dec. 2014 Test Result ................................ .Pass Page 3 of 22 Report No.: STS1412014F02 Table of Contents Page 1. SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 4 1.2 MEASUREMENT UNCERTAINTY 4 2. GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS 7 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 10 3.1.3 DEVIATION FROM TEST STANDARD 10 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 11 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 15 3.2.5 EUT OPERATING CONDITIONS 16 3.2.6 TEST RESULTS 17 4. PHOTOS OF TEST SETUP 21 Page 4 of 22 Report No.: STS1412014F02 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: EMISSION Standard Item Result Remarks FCC 47 CFR Part 15 Subpart B (10-1-05 Edition) Conducted Emission PASS Meet Class B limit Radiated Emission PASS Meet Class B limit NOTE: (1)” N/A” denotes test is not applicable in this Test Report 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add.: 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 5 of 22 Report No.: STS1412014F02 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment LED Controller Trade Name N/A Model Name ZIZ-LC315025 Serial Model ZIZ-LC315 Model Difference They are different only for model name. Channel List Please refer to the Note 2. Adapter Input:AC 100-240V,50/60Hz,0.2A Output:DC 5V,1A Battery N/A Hardware version number -- Software versioning number -- Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 22 Report No.: STS1412014F02 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 RX Mode For Conducted Emission Final Test Mode Description Mode1 RX Model For Radiated Emission Final Test Mode Description Mode 1 RX Model Note: (1) Due to the different configuration and test, in this list only some worse mode. The worst test data of the worse modeis reported by this report. 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED E-1 EUT E-2 Adapter C-1 AC Page 7 of 22 Report No.: STS1412014F02 2.4 DESCRIPTION OF SUPPORT UNITS The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 LED Controller N/A ZIZ-LC3…

Text truncated - open the document above for the full version.

RX Setup photo conduction radiation L radiation H
