2ADR6ZIZ-LC315TXLED Controller

user manual Model name:ZIZ-LC315025 Turn on the Ac Transformer，Start the default state：Max brightness／No timer ／ Code function waiting for Remote. Press the Button on the LED light Body 3 Second，the light flashing ，Then press any key on the Remote turn off the light ，Done the RF Code match. Cut-down AC transformer ,the Battery Power supply Auto-start ,The default state: the minimum brightness,A bit difference with AC transformer supply. ◆ Press the button on the remote,the light ON/OFF control,and Restart all the function(timer/dimmer/brightness) ◆ 3H Press the button on the remote,timer on/off control,The light flash one time ,3H timer ON; The light flash two times ,3H timer OFF ◆ 6H Press the button on the remote,timer on/off control,The light flash one time ,6H timer ON; The light flash two times ,6H timer OFF ◆ Press the button on the remote , Level/2/3-cyclic dimmer On , choose your suitable brightness Remote diagram Note: The device has has no ad-hoc function. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes and modifications to this equipment. Such changes and modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct eth interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. * RF warning for Portable device: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. FCC ID:2ADR6ZIZ-LC315TX Manufcture:Eway Globallighting Technology Co.,Ltd

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 Eway Globallighting Technology Co.,Ltd (Current Date) 2014.12.12 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Eway Globallighting Technology Co.,Ltd (client’s company name) hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: LED Controller model name: ZIZ-LC315025, ZIZ-LC315 FCC ID: 2ADR6ZIZ-LC315TX Sincerely, Client’s signature : Michael.Zhao Client’s name / title: manager Applicant company：Eway Globallighting Technology Co.,Ltd address：2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen, China

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Eway Globallighting Technology Co.,Ltd 2014.12.12 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADR6ZIZ-LC315TX We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Michael.Zhao Client’s name / title : manager Applicant company：Eway Globallighting Technology Co.,Ltd address：2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China

Differences Description We Eway Globallighting Technology Co.,Ltd state: Product： LED Controller Model Name： ZIZ-LC315025, ZIZ-LC315 Trade Name: N/A FCC ID: 2ADR6ZIZ-LC315TX The electrical circuit design, layout, components used and internal wiring for above models are identical, only the model name is different. Signatory Date 2014-12-22 Signature Name: Michael zhao Title: Manager Company: Eway Globallighting Technology Co.,Ltd Address: 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China

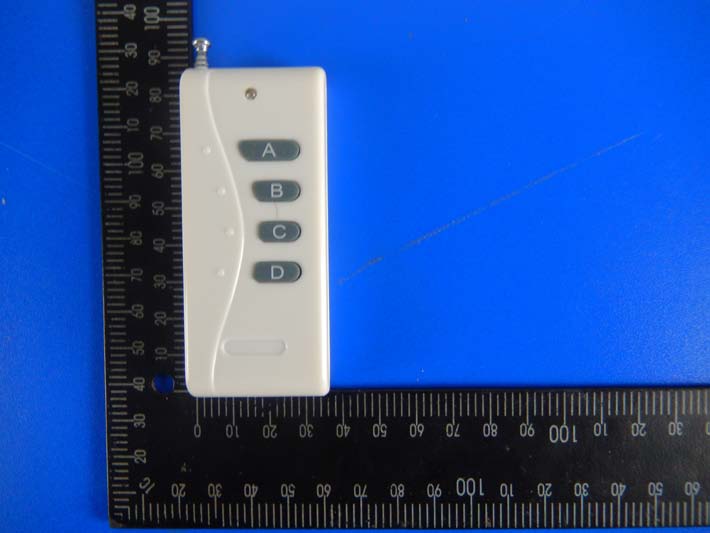

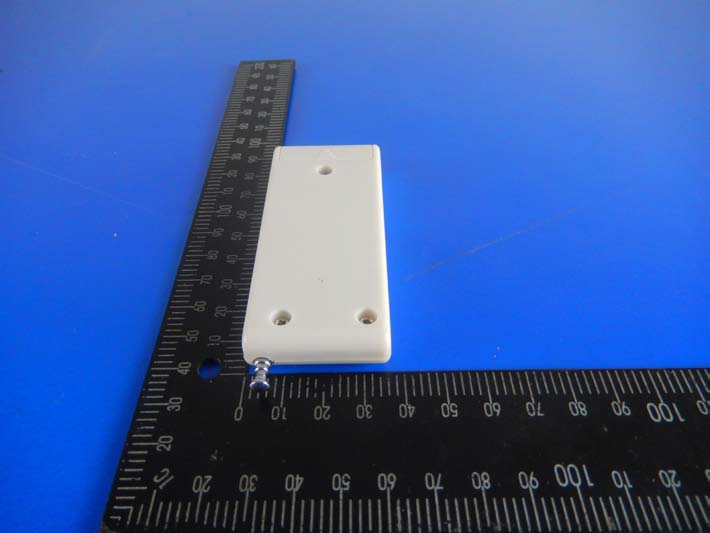

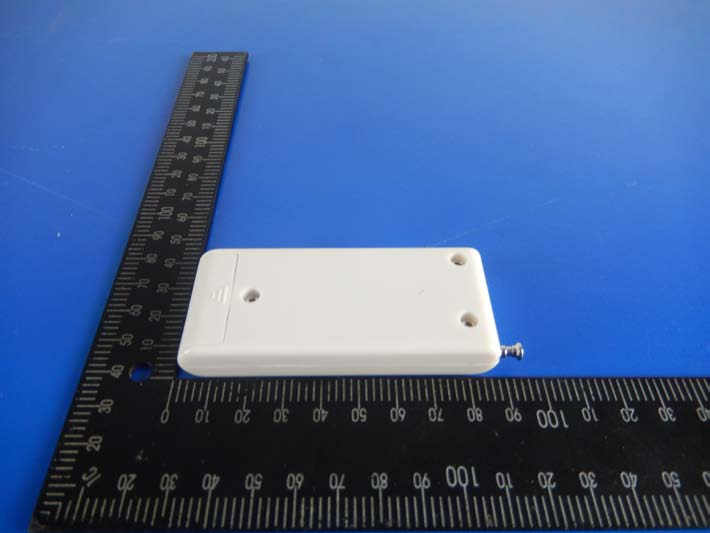

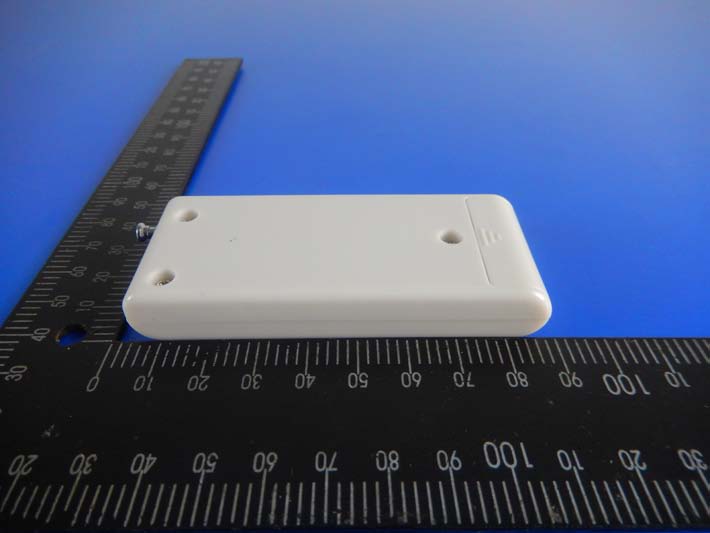

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

LED Controller Brand: N/A Model: ZIZ-LC315025 FCC ID: 2ADR6ZIZ-LC315TX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Lable

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 ANTENNA Photo 4 Photo 3

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC TEST REPORT Report No: STS1412014F01 Issued for Eway Globallighting Technology Co.,Ltd 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China Product Name: LED Controller Brand Name: N/A Model No.: ZIZ-LC315025 Series Model: ZIZ-LC315 FCC ID: 2ADR6ZIZ-LC315TX Test Standard: FCC Part 15.231 S T L A B S Page 2 of 29 Report No.: STS1412014F01 TEST RESULT CERTIFICATION Applicant’s name ................. : Eway Globallighting Technology Co.,Ltd Address ................................. : 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China Manufacture's Name ............ : Eway Globallighting Technology Co.,Ltd Address ................................. : 2F, A6Bldg, Silicon Valley Power Automotive Electronics Industry Park, Guanlan Town, Shenzhen,China Product description Product name ........................... : LED Controller Band name ................................ : N/A Model and/or type reference ............................. : ZIZ-LC315025 Ratings ................................... DC12V Standards ............................. : FCC Part 15.231 Test procedure ............................... : ANSI C63.10-2009 This device described above has been tested by STS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 01 Dec. 2014 ~09 Dec. 2014 Date of Issue.......................................... : 10 Dec. 2014 Test Result ............................................. : Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 29 Report No.: STS1412014F01 Table of Contents Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.1 DESCRIPTION OF TEST MODES 9 2.2 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3. EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 TEST SETUP 14 3.1.4 EUT OPERATING CONDITIONS 14 3.1.5 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 16 3.2.1 RADIATED EMISSION LIMITS 16 3.2.2 TEST PROCEDURE 17 3.2.3 DEVIATION FROM TEST STANDARD 17 3.2.4 TEST SETUP 18 3.2.5 EUT OPERATING CONDITIONS 19 3.2.6 TEST RESULTS 20 4. BANDWIDTH TEST 23 4.1 APPLIED PROCEDURES / LIMIT 23 4.2 TEST REQUIREMENTS 23 4.3 TEST PROCEDURE 23 4.4 TEST SETUP 23 4.5 EUT OPERATION CONDITIONS 23 4.6 TEST RESULTS 24 5. PERIODIC OPERATION 25 5.1 TEST PROCEDURE 25 5.2 TEST SETUP 25 5.3 EUT OPERATION CONDITIONS 25 5.4 TEST RESULTS 26 6. ANTENNA REQUIREMENT 28 Page 4 of 29 Report No.: STS1412014F01 Table of Contents Page 6.1 STANDARD REQUIREMENT 28 6.2 EUT ANTENNA 28 APPENDIX- PHOTOS OF TEST SETUP 29 Page 5 of 29 Report No.: STS1412014F01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.231) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.205(a)/15.209/ 15.231.(b) Radiated Spurious Emission PASS 15.231(b) Periodic Operation PASS 15.231(C) 20 dB Bandwidth PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 29 Report No.: STS1412014F01 1.1 TEST FACILITY Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China. FCC Registration No.: 842334; IC Registration No.: 12108A-1 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±3.18dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.71dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 29 Report No.: STS1412014F01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment LED Controller Trade Name N/A Model Name ZIZ-LC315025 Serial Model ZIZ-LC315 Model Difference They are different only for model name. Channel List Please refer to the Note 2. Frequency band 315MHz Battery Rated Voltage: 12V Hardware version number -- Software versioning number -- Connecting I/O Port(s) Please refer to the User's Manual Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 29 Report No.: STS1412014F01 2. Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 00 315 3. Table for Filed Antenna Ant Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A (Inner fixed) NA 0 Antenna (Inner fixed) The EUT antenna is integral Antenna. no antenna other than that furnished by the responsible party shall be used with the device. Page 9 of 29 Report No.: STS1412014F01 2.1 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was p…

Text truncated - open the document above for the full version.

TX Setup photo radiation L radiation H
