Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Hikvision Digital Technology Co., Ltd. Address No. 555 Qianmo Road, Binjiang District,Hangzhou 310052, China Grantee Code 2ADTD FCC ID 2ADTD-2DE2204IW Authorized Contact Name Xiuying Zhang Contact Email [email protected] Contact Phone +86-571-88075998 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020/6/4 Print Name: Xiuying Zhang Title: Senior Certification engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020/06/04 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-2DE2204IW To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-2DE2204IW LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

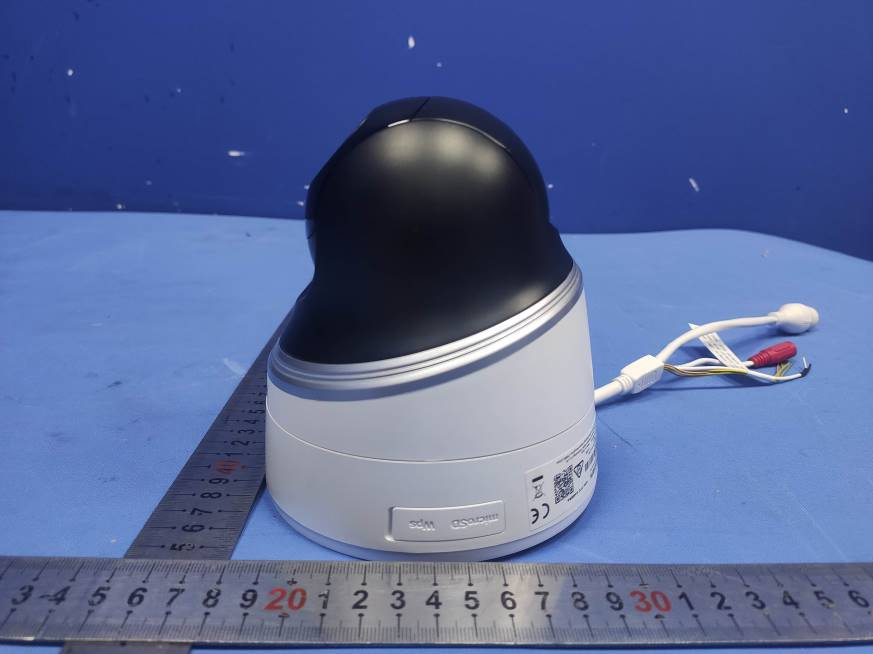

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: MINI PTZ CAMERA Model No.: DS-2DE2204IW-DE3/W SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 End

Label Location FCC Warning

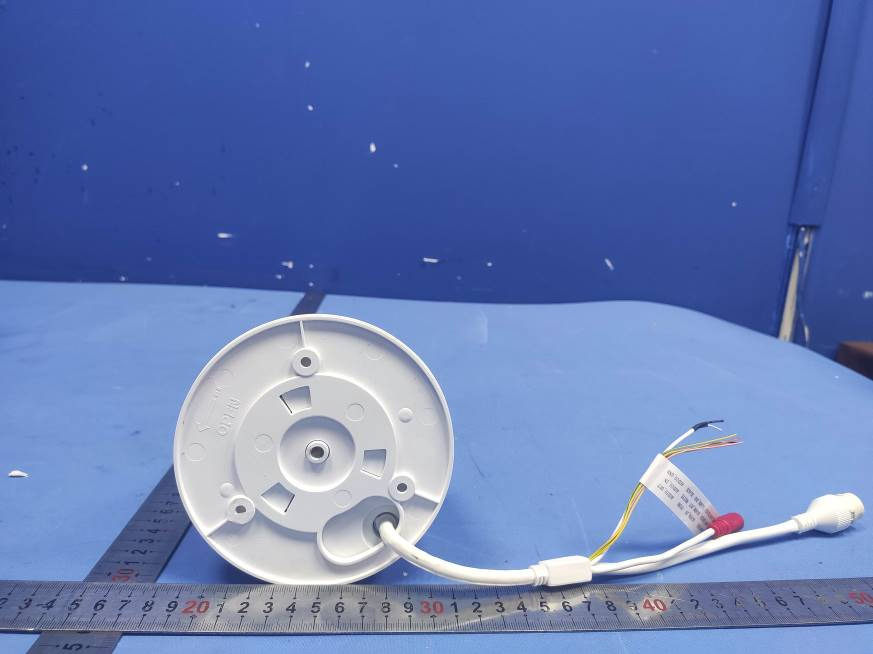

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 9 Page 1 of 9 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: MINI PTZ CAMERA Model No.: DS-2DE2204IW-DE3/W SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 9 Page 2 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 9 Page 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 9 Page 4 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 9 Page 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 9 Page 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 9 Page 7 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 9 Page 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 9 Page 9 of 9 E EE En nn nd dd d

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200500380402 Page: 1 of 9 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2005003804CR FCC ID: 2ADTD-2DE2204IW IC: 20199-2DE2204IW Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co.,Ltd Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co.,Ltd. 3. Chongqing Hikvision technology Co., Ltd. Address of Factory: 1.No.700,Dongliu Road,Binjiang District,Hangzhou Ctiy,Zhejiang,310052,China 2.No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County,Hangzhou,Zhejiang,310052,China. 3. No. 118, Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325,China Equipment Under Test (EUT): EUT Name: MINI PTZ CAMERA Model No.: DS-2DE2204IW-DE3/W Add Model No.: Refer Page 2 Trade mark: HIKVISION Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-05-25 Date of Test: 2020-05-25 to 2020-06-04 Date of Issue: 2020-06-10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Report No.: SHEM200500380402 Page: 2 of 9 For FCC Model No:DS-2DE2204IW-DE3/W,DS-2DE2402IW-DE3/W,DS-2DE2ABCDE-UVW/XYZ (The "A","B" ,"C" ,"D" ,"E" ,"U" "V" "W" "X" "Y" and "Z" in the model name mean: A=0-9,A-Z or blank; B=0-9,A-Z or blank; C=0-9,A-Z or blank; D=0-9,A-Z or blank; E=0-9,A-Z or blank; U= 0-9,A-Z or blank; V= 0-9,A-Z or blank; W= 0-9,A-Z or blank; X=0-9,A-Z or blank; Y=0-9,A-Z or blank; Z=0-9,A-Z or blank or "-" or "*" or "/") For IC Model No : DS-2DE2204IW-DE3/W,DS-2DE2402IW-DE3/W SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200500380402 Page: 3 of 9 Revision Record Version Description Date Remark 00 Original 2020-06-10 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200500380402 Page: 4 of 9 2 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 CONTENTS .............................................................................................................................................. 4 3 GENERAL INFORMATION ..................................................................................................................... 5 3.1 GENERAL DESCRIPTION OF E.U.T. ..................................................................................................... 5 3.2 TECHNICAL SPECIFICATIONS............................................................................................................... 5 3.3 TEST LOCATION.................................................................................................................................. 6 3.4 TEST FACILITY .................................................................................................................................... 6 4 TEST STANDARDS AND LIMITS .......................................................................................................... 7 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ....................................................................... 7 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ........................................................................... 7 5 MEASUREMENT AND CALCULATION ................................................................................................ 8 5.1 MAXIMUM TRANSMIT POW ER ............................................................................................................... 8 5.2 MPE CALCULATION ............................................................................................................................ 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200500380402 Page: 5 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V or PoE(802.3af,DC 36-57V) 0.35A Serial Number: E09120063 Firmware Version: IPD_R7_EN_STD_5.6.15_200402 3.2 Technical Specifications Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Antenna Gain: 1.28dBi Antenna Type: Integral Antenna Channel Spacing: 5MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200500380402 Page: 6 of 9 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Appendix A for SHEM200500380401 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 12.420 12.570 98.81 0.05 2437 SISO 1 12.410 12.590 98.57 0.06 2462 SISO 1 12.420 12.550 98.96 0.05 802.11g 2412 SISO 1 2.064 2.228 92.64 0.33 2437 SISO 1 2.034 2.142 94.96 0.22 2462 SISO 1 2.036 2.204 92.38 0.34 802.11n(HT20) 2412 SISO 1 1.921 2.073 92.67 0.33 2437 SISO 1 1.892 2.033 93.06 0.31 2462 SISO 1 1.920 2.072 92.66 0.33 802.11n(HT40) 2422 SISO 1 0.916 1.073 85.37 0.69 2437 SISO 1 0.917 1.065 86.10 0.65 2452 SISO 1 0.916 1.065 86.01 0.65 1.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 10.076 ≥0.5 PASS 2437 SISO 1 9.573 ≥0.5 PASS 2462 SISO 1 10.075 ≥0.5 PASS 802.11g 2412 SISO 1 16.432 ≥0.5 PASS 2437 SISO 1 16.412 ≥0.5 PASS 2462 SISO 1 16.417 ≥0.5 PASS 802.11n(HT20) 2412 SISO 1 17.606 ≥0.5 PASS 2437 SISO 1 17.636 ≥0.5 PASS 2462 SISO 1 17.629 ≥0.5 PASS 802.11n(HT40) 2422 SISO 1 35.806 ≥0.5 PASS 2437 SISO 1 35.665 ≥0.5 PASS 2452 SISO 1 35.487 ≥0.5 PASS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Span using in PSD(MHz) Span using in Power(MHz) Test Result (MHz) 1.5*BW(MHz) 802.11b 2412 SISO 1 10.076 15.114 16 23 2437 SISO 1 9.573 14.360 16 23 2462 SISO 1 10.075 15.113 16 23 802.11g 2412 SISO 1 16.432 24.648 25 26 2437 SISO 1 16.412 24.618 25 26 2462 SISO 1 16.417 24.626 25 26 802.11n(HT20) 2412 SISO 1 17.606 26.409 27 28 2437 SISO 1 17.636 26.454 27 28 2462 SISO 1 17.629 26.444 27 28 802.11n(HT40) 2422 SISO 1 35.806 53.709 54 55 2437 SISO 1 35.665 53.498 54 55 2452 SISO 1 35.487 53.231 54 56 Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 15.089 Only for Report Use 2437 SISO 1 15.089 Only for Report Use 2462 SISO 1 15.080 Only for Report Use 802.11g 2412 SISO 1 16.921 Only for Report Use 2437 SISO 1 16.972 Only for Report Use 2462 SISO 1 17.102 Only for Report Use 802.11n(HT20) 2412 SISO 1 18.066 Only for Report Use 2437 SISO 1 18.041 Only for Report Use 2462 SISO 1 18.088 Only for Report Use 802.11n(HT40) 2422 SISO 1 36.529 Only for Report Use 2437 SISO 1 36.624 Only for Report Use 2452 SISO 1 36.764 Only for Report Use 2.2 Test Graph - 6dB Bandwidth SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2.3 Test Graph - 99% Occupied Bandwidth SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 16.69 30 PASS 2437 SISO 17.28 30 PASS 2462 SISO 17.57 30 PASS 802.11g 2412 SISO 17.55 30 PASS 2437 SISO 17.98 30 PASS 2462 SISO 18.13 30 PASS 802.11n(HT20) 2412 SISO 16.20 30 PASS 2437 SISO 16.30 30 PASS 2462 SISO 16.41 30 PASS 802.11n(HT40) 2422 SISO 14.41 30 PASS 2437 SISO 14.45 30 PASS 2452 SISO 14.88 30 PASS 3.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -9.03 ≤8 PASS 2437 SISO -9.09 ≤8 PASS 2462 SISO -8.13 ≤8 PASS 802.11g 2412 SISO -15.53 ≤8 PASS 2437 SISO -14.99 ≤8 PASS 2462 SISO -15.37 ≤8 PASS 802.11n(HT20) 2412 SISO -16.41 ≤8 PASS 2437 SISO -17.04 ≤8 PASS 2462 SISO -16.95 ≤8 PASS 802.11n(HT40) 2422 SISO -21.79 ≤8 PASS 2437 SISO -21.45 ≤8 PASS 2452 SISO -20.71 ≤8 PASS 4.2 Test Graph SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -14.02 PASS 2437 SISO 1 Refer to test graph -14.02 PASS 2462 SISO 1 Refer to test graph -14.02 PASS 802.11g 2412 SISO 1 Refer to test graph -20.71 PASS 2437 SISO 1 Refer to test graph -20.71 PASS 2462 SISO 1 Refer to test graph -20.71 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -22.63 PASS 2437 SISO 1 Refer to test graph -22.63 PASS 2462 SISO 1 Refer to t…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200500380401 Page: 1 of 72 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2005003804CR FCC ID： ：： ： 2ADTD-2DE2204IW IC : 20199-2DE2204IW Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co.,Ltd Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co.,Ltd. 3. Chongqing Hikvision technology Co., Ltd. Address of Factory: 1.No.700,Dongliu Road,Binjiang District,Hangzhou Ctiy,Zhejiang,310052,China 2.No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County,Hangzhou,Zhejiang,310052,China. 3. No. 118, Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325,China Equipment Under Test (EUT): EUT Name: MINI PTZ CAMERA Model No.: DS-2DE2204IW-DE3/W,DS-2DE2402IW-DE3/W,DS-2DE2ABCDE- UVW/XYZ (The "A","B" ,"C" ,"D" ,"E" ,"U" "V" "W" "X" "Y" and "Z" in the model name mean: A=0-9,A-Z or blank; B=0-9,A-Z or blank; C=0-9,A-Z or blank; D=0-9,A-Z or blank; E=0-9,A-Z or blank; U= 0-9,A-Z or blank; V= 0- 9,A-Z or blank; W= 0-9,A-Z or blank; X=0-9,A-Z or blank; Y=0-9,A-Z or blank; Z=0-9,A-Z or blank or "-" or "*" or "/") ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISION Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 Amendment 1 Date of Receipt: 2020-05-25 Date of Test: 2020-05-25 to 2020-06-04 Date of Issue: 2020-06-10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200500380401 Page: 2 of 72 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only For FCC Model No:DS-2DE2204IW-DE3/W,DS-2DE2402IW-DE3/W,DS-2DE2ABCDE-UVW/XYZ (The "A","B" ,"C" ,"D" ,"E" ,"U" "V" "W" "X" "Y" and "Z" in the model name mean: A=0-9,A-Z or blank; B=0-9,A-Z or blank; C=0-9,A-Z or blank; D=0-9,A-Z or blank; E=0-9,A-Z or blank; U= 0-9,A-Z or blank; V= 0-9,A-Z or blank; W= 0-9,A-Z or blank; X=0-9,A-Z or blank; Y=0- 9,A-Z or blank; Z=0-9,A-Z or blank or "-" or "*" or "/") For IC Model No : DS-2DE2204IW-DE3/W,DS-2DE2402IW-DE3/W SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200500380401 Page: 3 of 72 Revision Record Version Description Date Remark 00 Original 2020-06-10 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technica…
