2ADTD-D0710031Wireless Dual-Tech AM Curtain Detector

Diagram References ENGLISH User Manual Specification Appearance Scan the QR code for more information and operation help. 1. Tamper Switch2. Mode Switch 3. Power Switch Note: when the low voltage message appears there will be at least 30 days of use. I. Check signal strength. II. Install the device. Anti-Masking Alarm Installation Enrollment 4. Indicator Alarm: Microwave Triggered: Masked: Fault: PIR Triggered: Ceiling mounting Wall mounting Mounting with the general mounting plate. Mounting with L-mounting plate. Detection Range Wall Mount：10m Ceiling Mount：5m Auto SensitvityYes Pet Immunity Wall Mount：12Kg Ceiling Mount：None Microwave Frequency24GHz (24.15 to 24.25GHz) Tamper ProtectionFront,Rear LED Indicators Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm) Operation Temperature -10°C to 55°C (14°Fto 131°F） -10 °C to 40 °C (14 °F to 104 °F) Certified Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Operation Humidity10% to 90% Mounting Height2 to 3.5m Dimension (WxHxD)29.2 mm x 134.4 mm x 39.5 mm Weight120g Transmission Frequency433 MHz RF range1 km (free space) Battery TypeCR123A × 2 (included) Standard Battery Life5 Years Low Battery Voltage2.45 V Current Max. current: 24mA Quiescent current: 25uA BracketL-shaped adapter included ©2021 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (https://www.hikvision.com/). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product. and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners. Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the RE Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:www.recyclethis.info BATTERY CAUTION replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); – disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion; – leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and – a battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas Chemical burning danger Do not swallow the battery. Keep new and used batteries away from the children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Risk of …

Text truncated - open the document above for the full version.

Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declaration of Authorization We Name: Hangzhou Hikvision Digital Technology Co., Ltd. Address: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: Wireless Dual-Tech AM Curtain Detector FCC ID: 2ADTD-D0710031 Model: DS-PDC10DM-EG2-WB Brand: HIKVISION Sincerely, _________________ Name: Long Cheng Position: Date: 2021-07-07

Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declaration of Conformity We Name: Hangzhou Hikvision Digital Technology Co., Ltd. Address: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declare that: Product: Wireless Dual-Tech AM Curtain Detector FCC ID: 2ADTD-D0710031 Model: DS-PDC10DM-EG2-WB Brand: HIKVISION Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, _________________ Name: Long Cheng Position: Date: 2021-07-07

Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Declaration letter For our business issue and marketing requirement, we would like to list different model number as following: Model No.: DS-PDC10DM-EG2-WB, DS-PDC10DM-EG2-WBUHK, DS-PDC10DM-EG2-WBCKV, DS-PDC10DM-EG2-WBUVS, DS-PDC10DM-EG2-WBKVO, DS-PDC10DM-EG2-WBHUN Model Difference: The model differences are only for marketing purpose, all the schematics is identical. _____________________ Name: Long Cheng Position: Date: 2021-07-07

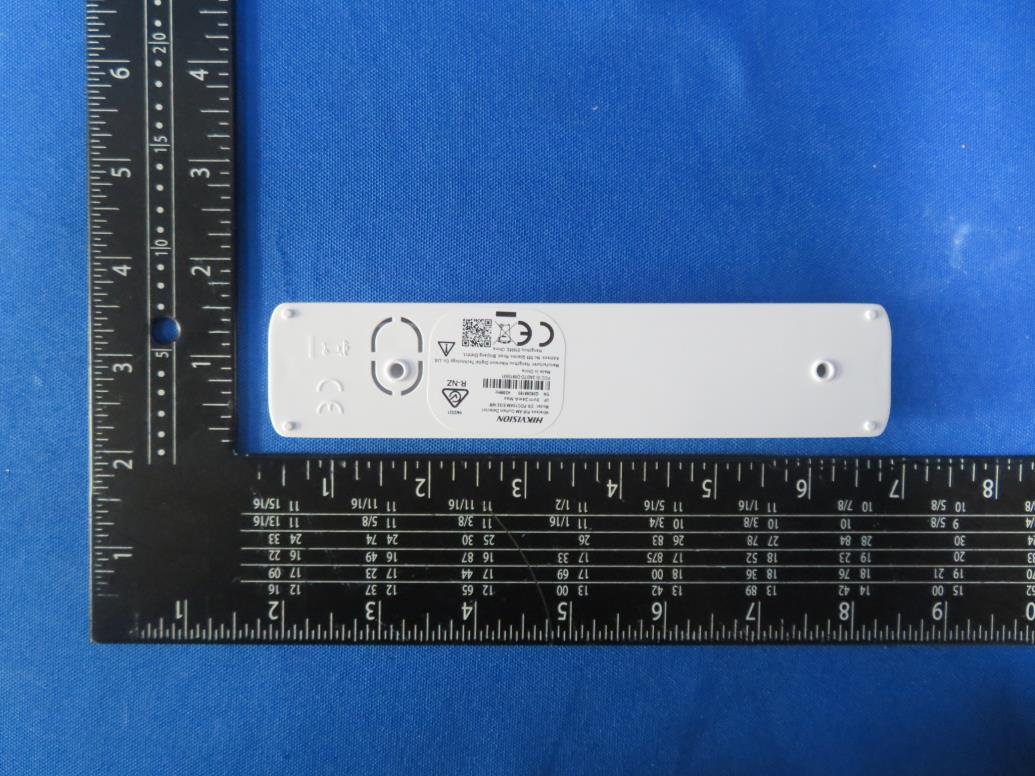

Report No.: 2104RSU070-UE 1 of 3 External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2104RSU070-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2104RSU070-UE 3 of 3 (5) EUT Photo (6) EUT Photo Label Here

Label and Label Location

Report No.: 2104RSU070-UE 1 of 4 Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2104RSU070-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2104RSU070-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2104RSU070-UE 4 of 4 (7) EUT Photo (8) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2104RSU070-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 07-26-2021 1 of 29 FCC ID: 2ADTD-D0710031 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Application Type: Certification Product: Wireless Dual-Tech AM Curtain Detector Model No.: DS-PDC10DM-EG2-WB Brand Name: HIKVISION FCC Classification: Part 15 Remote Control/Security Device Transceiver (DSR) FCC Rule Part(s): Part 15.231 Test Procedure(s): ANSI C63.10-2013 Test Date: July 21 ~ 25, 2021 Reviewed By: Kevin Guo Approved By: Robin Wu MEASUREMENT REPORT FCC PART 15.231 The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2013. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2104RSU070-U1 2 of 29 Revision History Report No. Version Description Issue Date Note 2104RSU070-U1 Rev. 01 Initial Report 08-06-2021 Valid Report No.: 2104RSU070-U1 3 of 29 CONTENTS Description Page 1. GENERAL INFORMATION ...................................................................................................... 5 1.1. Applicant ........................................................................................................................ 5 1.2. Manufacturer .................................................................................................................. 5 1.3. Testing Facility ............................................................................................................... 5 1.4. Product Infomation ......................................................................................................... 6 1.5. Radio Specification ........................................................................................................ 6 1.6. Working Frequencies ..................................................................................................... 6 1.7. Test Mode ...................................................................................................................... 6 1.8. Test System Connnection Diagram ................................................................................ 7 1.9. Description of Test Software .......................................................................................... 7 1.10. Test Environment Condition ........................................................................................ 7 2. ANTENNA REQUIREMENTS .................................................................................................. 8 3. TEST EQUIPMENT CALIBRATION DATE .............................................................................. 9 4. MEASUREMENT UNCERTAINTY ......................................................................................... 11 5. TEST RESULT ....................................................................................................................... 12 5.1. Summary ..................................................................................................................... 12 5.2. Conducted Emission .................................................................................................... 13 5.2.1. Test Limit .................................................................................................................. 13 5.2.2. Test Setup................................................................................................................. 13 5.2.3. Test Result ................................................................................................................ 13 5.3. Radiated Emissions ..................................................................................................... 14 5.3.1. Test Limit .................................................................................................................. 14 5.3.2. Test Procedure Used ................................................................................................ 15 5.3.3. Test Setting ............................................................................................................... 16 5.3.4. Test Setup................................................................................................................. 17 5.3.5. Test Results .............................................................................................................. 19 5.4. 20dB Bandwidth ........................................................................................................... 22 5.4.1. Test Limit .................................................................................................................. 22 5.4.2. Test Procedure used ................................................................................................. 22 5.4.3. Test Setting ............................................................................................................... 22 5.4.4. Test Setup................................................................................................................. 22 5.4.5. Test Result ................................................................................................................ 23 5.5. Transmission Time ....................................................................................................... 24 5.5.1. Test Limit .................................................................................................................. 24 5.5.2. Test Procedure ......................................................................................................... 24 5.5.3. Test Setting .......................................................................................…

Text truncated - open the document above for the full version.

Report No.: 2104RSU070-UT 1 of 1 RF Test Setup Photo Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for Above 1GHz
