2ADTD-DS2DE3AMINI PTZ CAMERA

Network PTZ Camera·Quick Start Guide i Network PTZ Camera Quick Start Guide Network PTZ Camera·Quick Start Guide i Quick Start Guide © 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as “Hikvision”), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual, any information contained herein. About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (http://www.hikvision.com). Please use this Manual with the guidance and assistance of professionals trained in supporting the Product. Trademarks Acknowledgement and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned are the properties of their respective owners. LEGAL DISCLAIMER Network PTZ Camera·Quick Start Guide ii TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD Network PTZ Camera·Quick Start Guide iii PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. 05051920200602 Network PTZ Camera·Quick Start Guide iv Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive Network PTZ Camera·Quick Start Guide v 2015/35/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information, please see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information, please see: www.recyclethis.info. Industry Canada ICES-0…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Hikvision Digital Technology Co., Ltd. Address No. 555 Qianmo Road, Binjiang District Hangzhou 310052, China Grantee Code 2ADTD FCC ID 2ADTD-DS2DE3A Authorized Contact Name Xiuying Zhang Contact Email [email protected] Contact Phone +86-571-88075998 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020/09/25 Print Name: Xiuying Zhang Title: Senior Certification engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 09/15/2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-DS2DE3A To who m it may concern: We , th e undersigned, hereb y authorize Par lam Zhan to act on ou r behal f in all manners relat ing to application fo r equipment authorization wit h respect to th e FC C ID abov e, including signing of all documents relatin g to th ese matt ers. Any and al l act s carrie d ou t by th e agent on our behalf shal l have the same effec t as acts of our own. We , th e undersigned, hereb y certif y tha t we ar e no t subject to a denial of feder al benefits, tha t includes FC C benefits, purs uant to Secti on 5301 of the Anti-Drug Abu se Ac t of 198 8, 21 U.S. C. 853(a). Wher e ou r agent si gns the application for certification on ou r behalf , I acknowledge that all responsibility for complying wit h the ter ms an d condit ions for Certification, as specifi ed by SG S Nort h America, Inc. , still resi des wit h Hangzhou Hikvision Digit al Technology Co. , Ltd. Thi s authorization is vali d unt il furthe r writte n not ice fro m th e applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-DS2DE3A LO NG TER M CONFIDENTIALITY Pursu ant to 47 CFR Secti on 0.45 9 and 0.457 of the commission’s rule s, th e appli cant hereb y request confidential treatment of th e documents list ed belo w, associated wit h th e certification application referenced above. Schematic(s) Bloc k Diagrams Operational Descriptions Th e documents abov e contai n proprietary information not releas ed to th e public . Publi c disclosure of this information ma y prov e harmful to the business of th e applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

Hangzhou Hikvision Digital Technology Co., Ltd. Current Date : 2020-09-15 To : SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Hangzhou Hikvision Digital Technology Co., Ltd.) HEREBY DECLARED THAT Product Description MINI PTZ CAMERA Model No. DS-2DE3A400BW-DE/W-UHK;DS-2DE3A400BW-DE/W-CKV;DS-2DE3A400B W-DE/W-HUN;DS-2DE3A400BW-DE/W-KVO;DS-2DE3A400BW-DE/W-UVS;D S-2DE3ABCDEF-UVW/XYZ (each symbol of A,B,C,D,E,F,U,V,W,X,Y or Z maybe 0-9,A-Z or blank or "-"or "*" or "/"; "-" maybe "-" or blank; "/" maybe "/" or blank) Manufacturer’s Name Hangzhou Hikvision Digital Technology Co., Ltd. Manufacturer’s Address No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China *Except that the model number and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. Model No. (型号): DS-2DE3A400BW-DE/W Manufacturer’s Name (生产商名称): Hangzhou Hikvision Digital Technology Co., Ltd. Manufacturer’s Address（生产商商地址): No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Sincerely, Signature (签字): Printed Name (姓名): Xiuying Zhang Position/Title (职位): Senior Certification engineer Contact Number (联系电话): +86-571-88075998

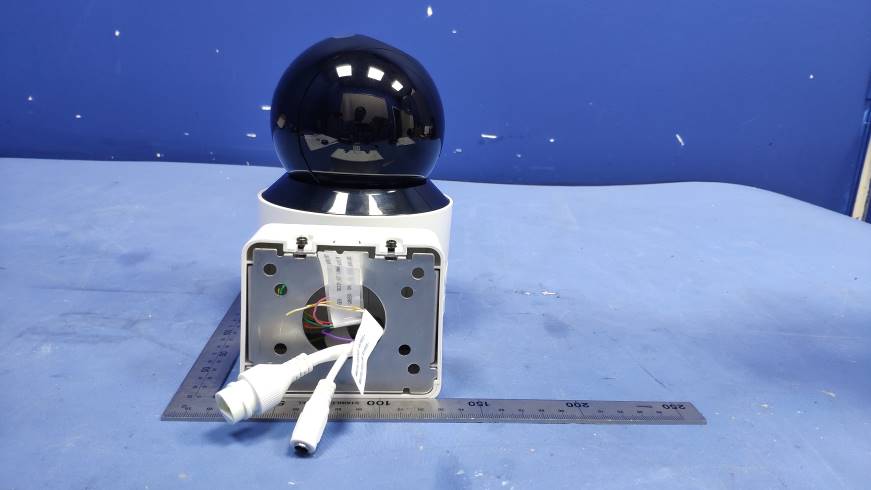

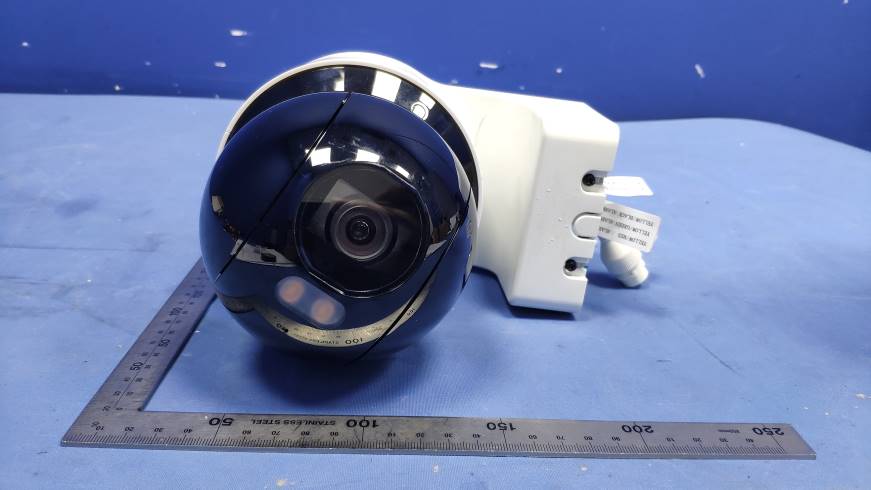

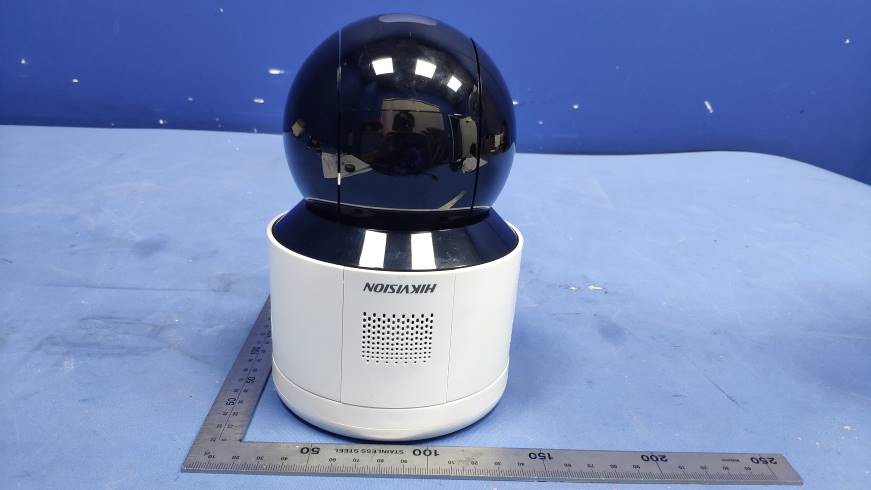

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 3 Page 1 of 3 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Equipment Under Test (EUT): Product Name: MINI PTZ CAMERA Model No.: DS-2DE3A400BW-DE/W SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 3 Page 2 of 3 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 3 Page 3 of 3 END

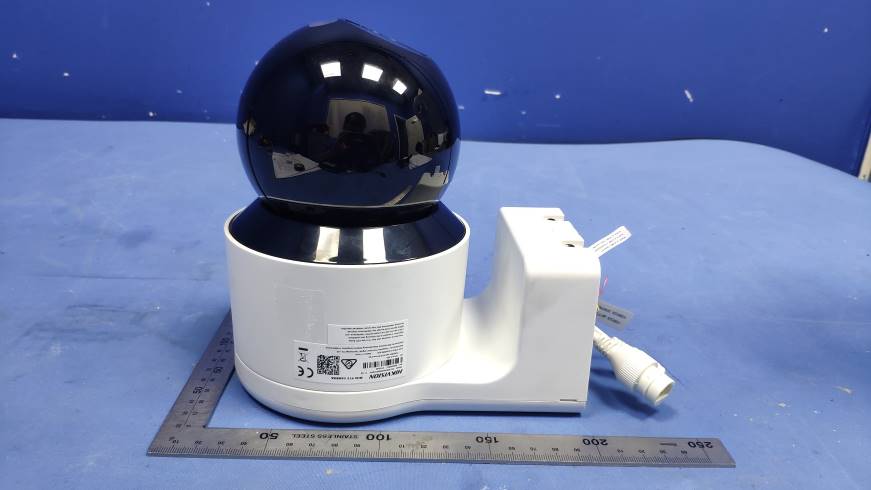

Model: DS-2DE3A400BW-DE/W Label Location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 12 Page 1 of 12 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Equipment Under Test (EUT): Product Name: MINI PTZ CAMERA Model No.: DS-2DE3A400BW-DE/W SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 12 Page 2 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 12 Page 3 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 12 Page 4 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 12 Page 5 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 12 Page 6 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 12 Page 7 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 12 Page 8 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 12 Page 9 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 10 of 12 Page 10 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 11 of 12 Page 11 of 12 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 12 of 12 Page 12 of 12 E EE En nn nd dd d

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900756302 Page: 1 of 9 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2009007563CR FCC ID: 2ADTD-DS2DE3A IC: 20199-DS2DE3A Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Chongqing Hikvision technology Co.,Ltd Address of Factory: 1.No.700, Dongliu Road, Binjiang District, Hangzhou Ctiy,Zhejiang, 310052, China 2.No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County, Hangzhou,Zhejiang,310052,China 3.No.118,Haihang Road, Area C, Jianqiao Industrial Park, Dadukou Diatrict,Chongqing,401325,China Equipment Under Test (EUT): EUT Name: MINI PTZ CAMERA Model No.: DS-2DE3A400BW-DE/W Add Model No.: DS-2DE3A400BW-DE/W-UHK;DS-2DE3A400BW-DE/W-CKV;DS- 2DE3A400BW-DE/W-HUN;DS-2DE3A400BW-DE/W-KVO;DS- 2DE3A400BW-DE/W-UVS;DS-2DE3ABCDEF-UVW/XYZ (each symbol of A,B,C,D,E,F,U,V,W,X,Y or Z maybe 0-9,A-Z or blank or "-"or "*" or "/"; "-" maybe "-" or blank; "/" maybe "/" or blank) Trade mark: HIKVISION Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102:Issue 5(March 2015) Date of Receipt: 2020-09-12 Date of Test: 2020-09-12 to 2020-09-25 Date of Issue: 2020-09-27 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900756302 Page: 2 of 9 For FCC: DS-2DE3A400BW-DE/W;DS-2DE3A400BW-DE/W-UHK; DS-2DE3A400BW-DE/W-CKV;DS-2DE3A400BW-DE/W-HUN;DS-2DE3A400BW-DE/W- KVO;DS-2DE3A400BW-DE/W-UVS; DS-2DE3ABCDEF-UVW/XYZ(each symbol of A,B,C,D,E,F,U,V,W,X,Y or Z maybe 0-9,A-Z or blank or "-"or "*" or "/"; "-" maybe "-" or blank; "/" maybe "/" or blank) For IC : DS-2DE3A400BW-DE/W SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900756302 Page: 3 of 9 Revision Record Version Description Date Remark 00 Original 2020-09-27 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900756302 Page: 4 of 9 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 4 3 GENERAL INFORMATION........................................................................................................................... 5 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 5 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 5 3.3 TEST LOCATION ....................................................................................................................................... 6 3.4 TEST FACILITY .......................................................................................................................................... 6 4 TEST STANDARDS AND LIMITS ............................................................................................................... 7 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 7 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ............................................................................. 7 5 MEASUREMENT AND CALCULATION .................................................................................................... 8 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 8 5.2 MPE CALCULATION ................................................................................................................................. 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900756302 Page: 5 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V by adapter Serial Number: E52195631 Firmware Version: V5.5.26 build 200622 3.2 Technical Specifications Antenna Gain: Antenna 1:2.94dBi, Antenna 2:5.2dBi Directional gain:7.15 dBi Antenna Type: Antenna 1: PIFA Antenna Antenna 2: PIFA Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200900756302 Page: 6 of 9 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests …

Text truncated - open the document above for the full version.

Appendix A for SHEM200900756301 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 100.000 100.000 100.00 0.00 2437 SISO 1 100.000 100.000 100.00 0.00 2462 SISO 1 100.000 100.000 100.00 0.00 802.11g 2412 SISO 1 100.000 100.000 100.00 0.00 2437 SISO 1 100.000 100.000 100.00 0.00 2462 SISO 1 100.000 100.000 100.00 0.00 802.11n(HT20) 2412 MIMO 1 100.000 100.000 100.00 0.00 2437 MIMO 1 100.000 100.000 100.00 0.00 2462 MIMO 1 100.000 100.000 100.00 0.00 802.11n(HT40) 2422 MIMO 1 100.000 100.000 100.00 0.00 2437 MIMO 1 100.000 100.000 100.00 0.00 2452 MIMO 1 100.000 100.000 100.00 0.00 1.2 Test Graph 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 10.080 ≥0.5 PASS 2 10.082 ≥0.5 PASS 2437 SISO 1 10.087 ≥0.5 PASS 2 10.099 ≥0.5 PASS 2462 SISO 1 10.096 ≥0.5 PASS 2 10.099 ≥0.5 PASS 802.11g 2412 SISO 1 16.625 ≥0.5 PASS 2 16.591 ≥0.5 PASS 2437 SISO 1 16.629 ≥0.5 PASS 2 16.608 ≥0.5 PASS 2462 SISO 1 16.628 ≥0.5 PASS 2 16.612 ≥0.5 PASS 802.11n(HT20) 2412 MIMO 1 17.842 ≥0.5 PASS 2 17.821 ≥0.5 PASS 2437 MIMO 1 17.838 ≥0.5 PASS 2 17.851 ≥0.5 PASS 2462 MIMO 1 17.839 ≥0.5 PASS 2 17.846 ≥0.5 PASS 802.11n(HT40) 2422 MIMO 1 36.542 ≥0.5 PASS 2 36.519 ≥0.5 PASS 2437 MIMO 1 36.520 ≥0.5 PASS 2 36.539 ≥0.5 PASS 2452 MIMO 1 36.542 ≥0.5 PASS 2 36.516 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 15.074 Only for Report Use 2 15.093 Only for Report Use 2437 SISO 1 15.078 Only for Report Use 2 15.091 Only for Report Use 2462 SISO 1 15.079 Only for Report Use 2 15.098 Only for Report Use 802.11g 2412 SISO 1 17.033 Only for Report Use 2 16.899 Only for Report Use 2437 SISO 1 17.041 Only for Report Use 2 16.904 Only for Report Use 2462 SISO 1 17.053 Only for Report Use 2 16.906 Only for Report Use 802.11n(HT20) 2412 MIMO 1 18.028 Only for Report Use 2 18.047 Only for Report Use 2437 MIMO 1 18.030 Only for Report Use 2 18.046 Only for Report Use 2462 MIMO 1 18.029 Only for Report Use 2 18.027 Only for Report Use 802.11n(HT40) 2422 MIMO 1 36.719 Only for Report Use 2 36.682 Only for Report Use 2437 MIMO 1 36.673 Only for Report Use 2 36.708 Only for Report Use 2452 MIMO 1 36.663 Only for Report Use 2 36.708 Only for Report Use 2.2 Test Graph - 6dB Bandwidth 2.3 Test Graph - 99% Occupied Bandwidth 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 Ant 2 Total 802.11b 2412 SISO 17.70 16.70 / 30 PASS 2437 SISO 17.67 17.09 / 30 PASS 2462 SISO 17.71 17.66 / 30 PASS 802.11g 2412 SISO 18.06 17.97 / 30 PASS 2437 SISO 18.15 18.48 / 30 PASS 2462 SISO 17.98 18.87 / 30 PASS 802.11n(HT20) 2412 MIMO 16.88 16.37 19.64 28.85 PASS 2437 MIMO 16.94 16.72 19.84 28.85 PASS 2462 MIMO 16.83 17.35 20.11 28.85 PASS 802.11n(HT40) 2422 MIMO 15.04 15.05 18.06 28.85 PASS 2437 MIMO 15.01 15.37 18.20 28.85 PASS 2452 MIMO 15.58 15.67 18.64 28.85 PASS 3.2 Test Graph 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 Ant 2 Total 802.11b 2412 SISO -14.86 -15.83 / ≤8 PASS 2437 SISO -14.88 -15.44 / ≤8 PASS 2462 SISO -14.84 -14.85 / ≤8 PASS 802.11g 2412 SISO -18.08 -18.13 / ≤8 PASS 2437 SISO -18.04 -17.68 / ≤8 PASS 2462 SISO -18.18 -17.08 / ≤8 PASS 802.11n(HT20) 2412 MIMO -19.21 -19.82 -16.74 ≤6.85 PASS 2437 MIMO -19.05 -19.06 -16.38 ≤6.85 PASS 2462 MIMO -18.73 -18.36 -15.53 ≤6.85 PASS 802.11n(HT40) 2422 MIMO -21.17 -21.13 -18.14 ≤6.85 PASS 2437 MIMO -21.75 -20.75 -18.50 ≤6.85 PASS 2452 MIMO -19.99 -20.62 -17.75 ≤6.85 PASS 4.2 Test Graph

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200900756301 Page: 1 of 81 In the configuration tested, the EUT complied with the standards specified above. Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2009007563CR FCC ID: 2ADTD-DS2DE3A IC: 20199-DS2DE3A Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co.,Ltd Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Chongqing Hikvision technology Co.,Ltd Address of Factory: 1.No.700, Dongliu Road, Binjiang District, Hangzhou Ctiy,Zhejiang, 310052, China 2.No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County, Hangzhou,Zhejiang,310052,China 3.No.118,Haihang Road, Area C, Jianqiao Industrial Park, Dadukou Diatrict,Chongqing,401325,China Equipment Under Test (EUT): EUT Name: MINI PTZ CAMERA Model No.: DS-2DE3A400BW-DE/W;DS-2DE3A400BW-DE/W-UHK;DS- 2DE3A400BW-DE/W-CKV;DS-2DE3A400BW-DE/W-HUN;DS- 2DE3A400BW-DE/W-KVO;DS-2DE3A400BW-DE/W-UVS;DS- 2DE3ABCDEF-UVW/XYZ (each symbol of A,B,C,D,E,F,U,V,W,X,Y or Z maybe 0-9,A-Z or blank or "-"or "*" or "/"; "-" maybe "-" or blank; "/" maybe "/" or blank) ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISION Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 Amendment 1 Date of Receipt: 2020-09-12 Date of Test: 2020-09-12 to 2020-09-25 Date of Issue: 2020-09-27 Test Result: Pass* SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200900756301 Page: 2 of 81 For FCC: DS-2DE3A400BW-DE/W;DS-2DE3A400BW-DE/W-UHK; DS-2DE3A400BW-DE/W-CKV;DS-2DE3A400BW-DE/W-HUN;DS-2DE3A400BW-DE/W-KVO; DS-2DE3A400BW-DE/W-UVS; DS-2DE3ABCDEF-UVW/XYZ (each symbol of A,B,C,D,E,F,U,V,W,X,Y or Z maybe 0-9,A-Z or blank or "-"or "*" or "/"; "-" maybe "-" or blank; "/" maybe "/" or blank) For IC : DS-2DE3A400BW-DE/W SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200900756301 Page: 3 of 81 Revision Record Version Description Date Remark 00 Original 2020-09-27 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM200900756301 Page: 4 of 81 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) RSS-Gen Clause 6.8 N/A Customer Declaration Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.207 RSS-Gen Clause 8.8 ANSI C63.10 (2013) Section 6.2 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) RSS-247 Clause 5.2(a) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247(b)(3) RSS-247 Clause 5.4(d) ANSI C63.10 (2013) Section 11.9.1 Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247(e) RSS-247 Clause 5.2(b) ANSI C63.10 (2013) Section 11.10.2 Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.13.3.2 Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.11 Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.10.5 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.209 & 15.247(d) RSS-247 Section 3.3 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.4,6.5,6.6 Pass 99% Bandwidth - RSS-Gen Section 6.7 ANSI C63.10 Section 6.9.3 Pass Declaration of EUT Family Grouping: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model DS-2DE3A400BW-DE/W was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report …

Text truncated - open the document above for the full version.
