DS-K1100 Series Card Reader Installation Manual UD.6L0206A1004A01 1 Regulatory information FCC information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. 2 Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact the dealer. This manual is applicable to the following models: Series Models Description DS-K1101 Series DS-K1101M MIFARE card reader (without keypad) DS-K1101MK MIFARE card reader (with a keypad) DS-K1101C CPU card reader (without keypad) DS-K1101CK CPU card reader (with a keypad) DS-K1102 Series DS-K1102M MIFARE card reader (without keypad) DS-K1102MK MIFARE card reader (with a keypad) DS-K1102C CPU card reader (without keypad) DS-K1102CK CPU card reader (with a keypad) DS-K1103 Series DS-K1103M MIFARE card reader (without keypad) DS-K1103MK MIFARE card reader (with a keypad) DS-K1103C CPU card reader (without keypad) DS-K1103CK CPU card reader (with a keypad) DS-K1104 Series DS-K1104M MIFARE card reader (without keypad) DS-K1104MK MIFARE card reader (with a keypad) DS-K1104C CPU card reader (without keypad) DS-K1104CK CPU card reader (with a keypad) This manual is a kind of guide only for reference and may contain several technically inaccurate points or printing errors, and the content is subject to change without notice. The updates will be added into the new version of this manual. We will readily improve or update the products or procedures described in the manual. There may be differences between real object. The real product should be considered as final. 3 Chapter 1 Preventive and Cautionary Tips To guarantee the card reader works properly, please read and obey the notes below.
If the card reader is powered by the controller, the power supply distance is recommended to be no longer than 100m. If the distance is longer than 100m, you are advised to power the card reader by external 12V (range: -%10 ~ +%10) DC power supply, which is nonswitched and linear.
To guarantee the communication between the controller and the card reader, you must use RVVP cable above 0.5 to connect them.
If the card reader is installed outside or in environment easy to permeable, it is advisable to install a waterproof shield.
If you need to install several card readers, the distance among them must over 30cm.
To reduce the noise in long distance transmission, the shield of cable should connect to the GND of both controller and card reader terminal. Chapter 2 Introduction DS-K1100 series card reader is a kind of high-performance product, with a 32 bit high-speed processor. It communicates with access controller via either RS-485 protocol or Wiegand protocol. And a build-in tamper-proof module helps to protect card reader from malicious damage. As to the physical appearance, the PC+ABS material makes water proof and dust proof possible in poor environment. 4 2.1 Front View The front view of DS-K1101 series card reader is shown below: Figure 2-1 DS-K1101MK/DS-K1101CK Figure 2-2 DS-K1101M/DS-K1101C The front view of DS-K1102 series card reader is shown below: Figure 2-3 DS-K1102MK/DS-K1102CK Figure 2-4 DS-K1102M/DS-K1102C 5 The front view of DS-K1103 series card reader is shown below: Figure 2-5 DS-K1103MK/DS-K1103CK Figure 2-6 DS-K1103M/DS-K1103C The front view of DS-K1104 series card reader is shown below: Figure 2-7 DS-K1104MK/DS-K1104CK Figure 2-8 DS-K1104M/DS-K1104C 2.2 Rear View The rear view of card reader is shown below: 6 1 2 3 4 5 Figure 2-9 Rear View of DS-K1101 Series 1 3 4 5 Figure 2-10 Rear View of DS-K1102 Series 7 3 5 1 4 Figure 2-11 Rear View of DS-K1103 Series 4 5 3 1 Figure 2-12 Rear View of DS-K1104 Series 8 Table 2-1 Description of Rear View No. Name 1 Cable Interface of RS-485, Power, LED Control, etc. 2 Buzzer 3 Tamper-proof Module 4 DIP Switch 5 PSAM Card Slot (available for CPU card reader) 2.3 Side View The side view of card reader is shown below: Figure 2-13 DS-K1101 Series Figure 2-14 DS-K1102 Series 9 Figure 2-15 DS-K1103 Series Figure 2-16 DS-K1104 Series Chapter 3 Installation 3.1 Installing PSAM Card PSAM card slot is only available for CPU card reader. Insert the PSAM card into the slot according to the direction shown below. Figure 3-1 PSAM Card Slot 10 3.2 Introduction for DIP Switch The DIP switch module is shown below. The No. of DIP switch from left to right is 1 ~ 8. Figure 3-2 DIP Switch Module Table 3-1 Description of DIP Switch Icon Descr…

Text truncated - open the document above for the full version.

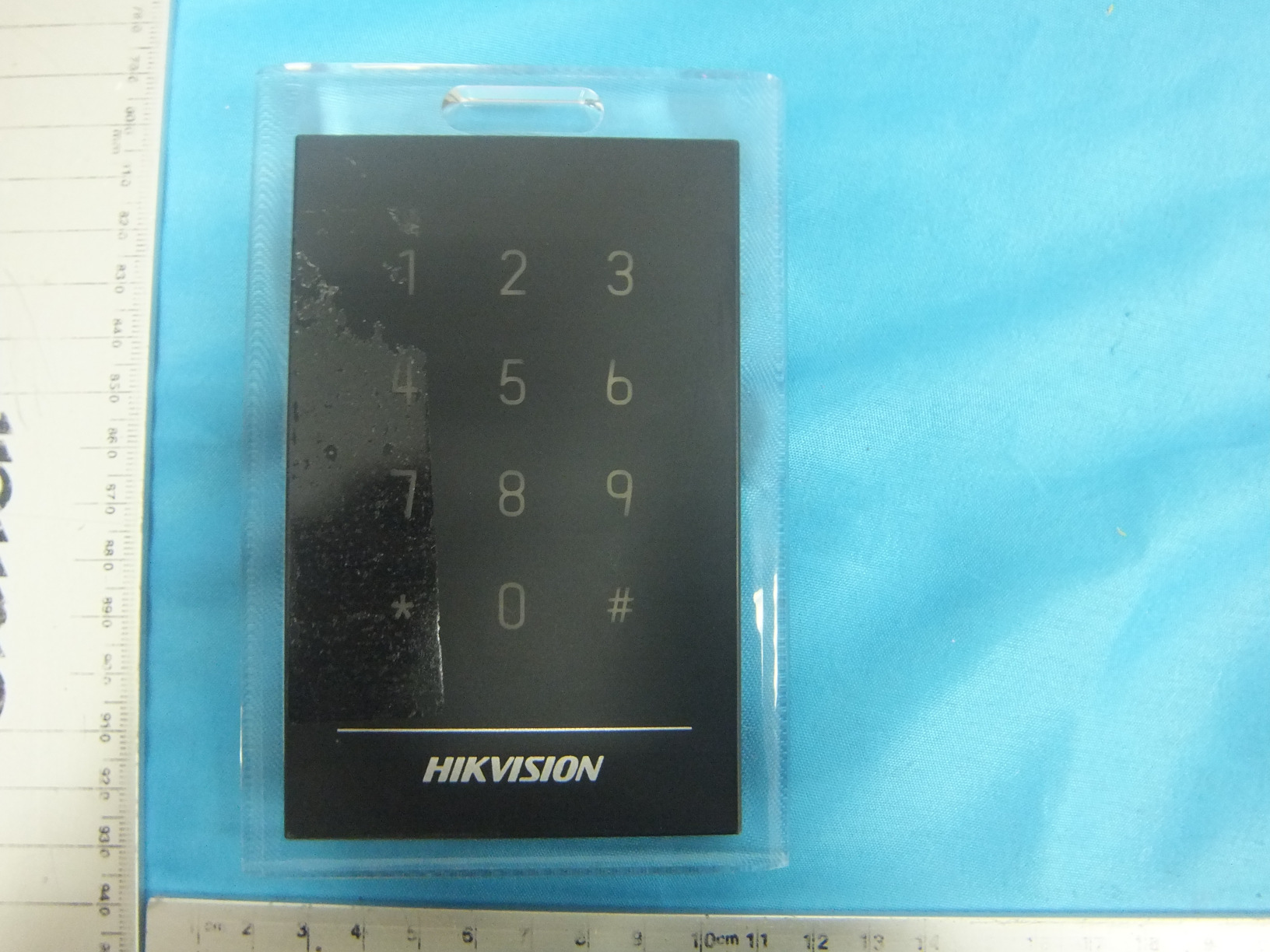

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 3 Page 1 of 3 DS-K1101CK_External Photos-FCC Application No.: SHEM1412003244RF Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: 700 Dongliu Road, Binjiang, Hangzhou, 310052 Zhejiang, China Equipment Under Test (EUT): Product Name: Card Reader Model No.: DS-K1101CK Add Model No.: DS-K1101MK, DS-K1101M, DS-K1102MK, DS-K1102M, DS-K1103MK, DS-K1103M, DS-K1104MK, DS-K1104M, DS-K1101C, DS-K1102C, DS-K1102CK, DS-K1103C, DS-K1103CM, DS-K1104C, DS-K1104CK, DS-K11ABCDVWXY FCC ID: 2ADTD-DSKIR SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 3 Page 2 of 3 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 EXTERNAL PHOTOS ........................................................................................ 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 3 Page 3 of 3 2 External Photos End

Label Size:25*40mm

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 6 Page 1 of 6 DS-K1101CK _Internal Photos-FCC Application No.: SHEM1412003244RF Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: 700 Dongliu Road, Binjiang, Hangzhou, 310052 Zhejiang, China Equipment Under Test (EUT): Product Name: Card Reader Model No.: DS-K1101CK Add Model No.: DS-K1101MK, DS-K1101M, DS-K1102MK, DS-K1102M, DS-K1103MK, DS-K1103M, DS-K1104MK, DS-K1104M, DS-K1101C, DS-K1102C, DS-K1102CK, DS-K1103C, DS-K1103CM, DS-K1104C, DS-K1104CK, DS-K11ABCDVWXY FCC ID: 2ADTD-DSKIR SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 6 Page 2 of 6 1 Contents Page 1 CONTENTS.......................................................................................................... 2 2 INTERNAL PHOTOS ......................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 6 Page 3 of 6 2 Internal Photos SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 6 Page 4 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 6 Page 5 of 6 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 6 Page 6 of 6 E EE En nn nd dd d

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM141200324402 Page: 1 of 21 Parlam Zhan E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Cover Page RF Test Report Application No.: SHEM1412003244RF Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. FCC ID: 2ADTD-DSKIR Equipment Under Test (EUT): NOTE: The following sample(s) was/were submitted and identified by the client as Product Name: Card Reader Model No.(EUT): DS-K1101CK Add Model No.: DS-K1101MK, DS-K1101M, DS-K1102MK, DS-K1102M, DS-K1103MK, DS- K1103M, DS-K1104MK, DS-K1104M, DS-K1101C, DS-K1102C, DS-K1102CK, DS-K1103C, DS-K1103CM, DS-K1104C, DS-K1104CK, DS-K11ABCDVWXY Standards: FCC PART 15 Subpart C: 2014 Date of Receipt: December 17, 2014 Date of Test: February 10, 2015 to March 30, 2015 Date of Issue: April 08, 2015 Test Result: Pass* *In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200324402 Page: 2 of 21 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 2 Version Revision Record Version Chapter Date Modifier Remark 00 / April 08, 2015 / Original Authorized for issue by: Engineer Eddy Zong Print Name Clerk Susie Liu Print Name Reviewer Keny Xu Print Name SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM141200324402 Page: 3 of 21 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 3 Test Summary Test Item Test Requirement Test Method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203 / PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10:2009 Section 6.2 PASS Emission Mas…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 Page 1 of 4 DS-K1101CK _Test Setup Photos-FCC Application No.: SHEM1412003244RF Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: 700 Dongliu Road, Binjiang, Hangzhou, 310052 Zhejiang, China Equipment Under Test (EUT): Product Name: Card Reader Model No.: DS-K1101CK Add Model No.: DS-K1101MK, DS-K1101M, DS-K1102MK, DS-K1102M, DS-K1103MK, DS-K1103M, DS-K1104MK, DS-K1104M, DS-K1101C, DS-K1102C, DS-K1102CK, DS-K1103C, DS-K1103CM, DS-K1104C, DS-K1104CK, DS-K11ABCDVWXY FCC ID: 2ADTD-DSKIR SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS ............................................................................................................................ 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................................... 3 2.1 Radiated Emission Test Setup ................................................................................... 3 2.2 Conducted Emission Test Setup ................................................................................ 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup Below 30MHz: 30MHz to 1GHz SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4 Page 4 of 4 2.2 Conducted Emission Test Setup End
