2ADTD-I0F2502NETWORK CAMERA

1x 1x 1x 1x 1x 1x 1x * 1.1 1.2 3.5 AB 1.3* 2.1 microSD Ø40mm Ø5.5mm A.1 A.2 Fixed Mini Dome Network Camera Quick Start Guide UD07732B-A Quick Start Guide About this Manual COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its sub- sidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or dis- tributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual. About this Manual This Manual is applicable to Fixed Mini Dome Network Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Please use this user manual under the guidance of professionals. Trademarks Acknowledgement and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PROD- UCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUP- TION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVA- CY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUP- PORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL REL- EVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information For products that support Wi-Fi or cellular data: (Marked with a “W”, “GLT”, “GLE”, “GLF”, “GE”, “GT” or “GW” in the Part C of a product model. Product Model Example: Part A-Part B-Part C. Part C is optional.) EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/ EU, the RoHS Directive 2011/65/EU, RE Directive 2014/53/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www. recyclethis.info. 2006/66/EC and its amendment 2013/56/EU (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip- ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: 1. Th…

Text truncated - open the document above for the full version.

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020-02-17 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-I0F2502 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. . This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-I0F2502 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

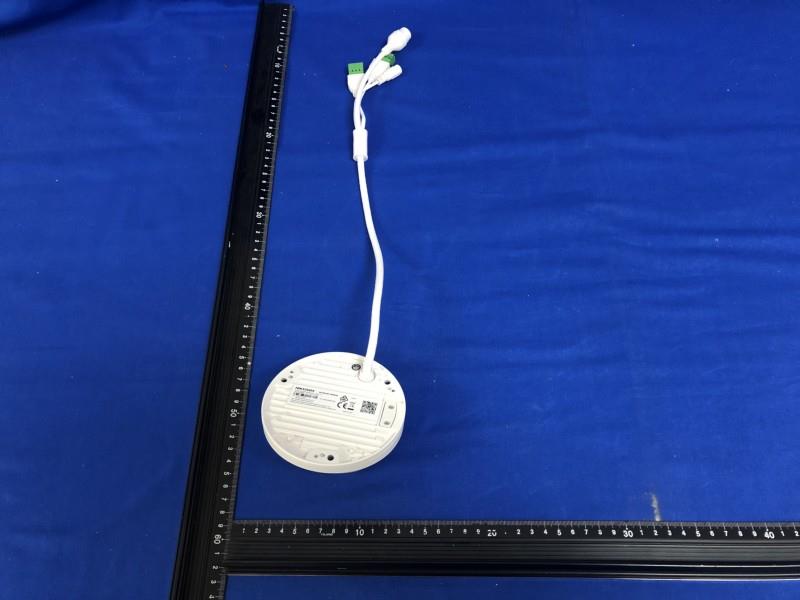

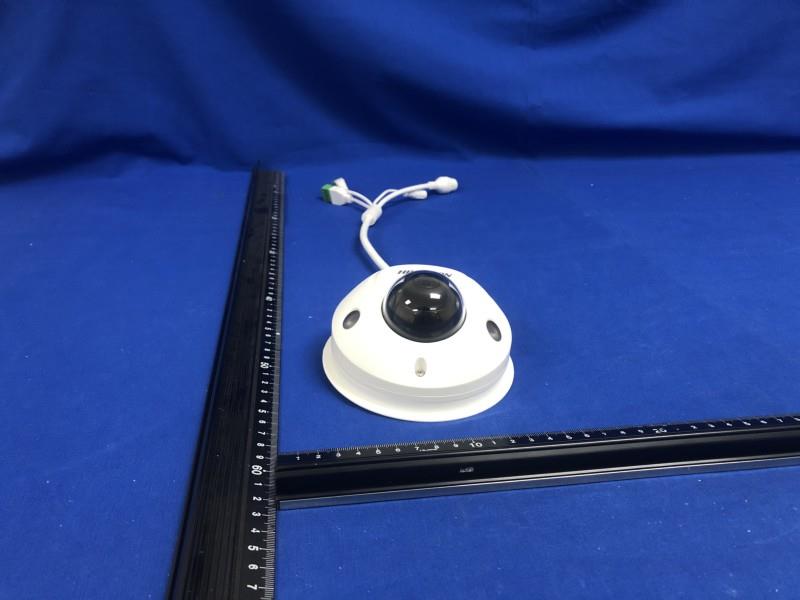

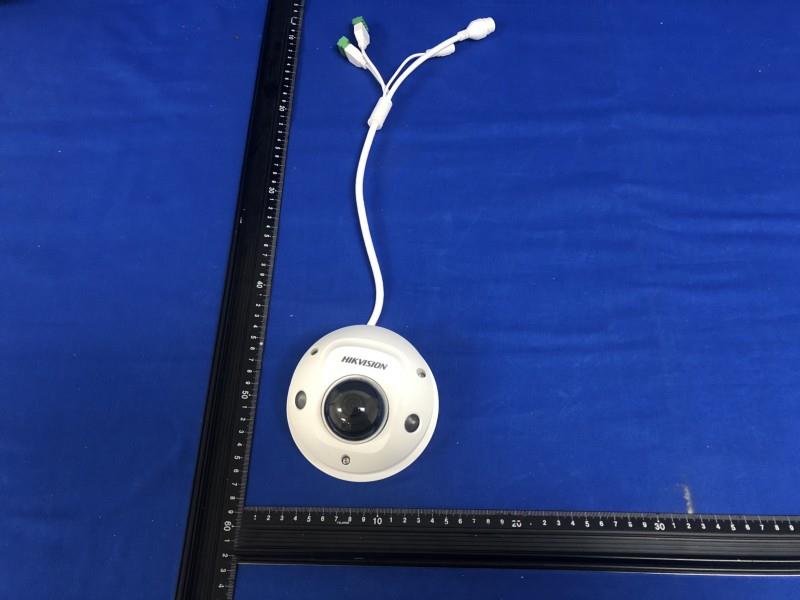

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 3 Page 1 of 3 External Photos Applicant: Hangzhou Hikvison Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052,China Equipment Under Test (EUT): Product Name: NETWORK CAMERA Model No.: DS-2CD2545FWD-IWS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 3 Page 2 of 3 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 3 Page 3 of 3 End

Label location FCC Warning

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 7 Page 1 of 7 Internal Photos Applicant: Hangzhou Hikvison Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052,China Equipment Under Test (EUT): Product Name: NETWORK CAMERA Model No.: DS-2CD2545FWD-IWS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 7 Page 2 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 7 Page 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 7 Page 7 of 7 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031602 Page: 1 of 9 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM2001000316CR FCC ID: 2ADTD-I0F2502 IC: 20199-I0F2502 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1. No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China 3. No. 555, Qianmo Road, Binjiang District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: NETWORK CAMERA Model No.: DS-2CD2545FWD-IWS Add Model No.: Refer to Page 2 Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-01-09 Date of Test: 2020-01-09 to 2020-01-20 Date of Issue: 2020-01-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031602 Page: 2 of 9 Model No.: For FCC model: DS-2CD2545FWD-IWS,DS-2CD2545FWD-IWSUHK,DS-2CD2545FWD-IWSCKV,DS-2CD2545FWD- IWSUVS,DS-2CD2545FWD-IWSKVO,DS-2CD2545FWD-IWSHUN,DS-2CD2525FWD-IWS,DS- 2CD2525FWD-IWSUHK,DS-2CD2525FWD-IWSCKV,DS-2CD2525FWD-IWSUVS,DS-2CD2525FWD- IWSKVO,DS-2CD2525FWD-IWSHUN,DS-2CD2525FWD-IW,DS-2CD2525FWD-IWUHK,DS-2CD2525FWD- IWCKV,DS-2CD2525FWD-IWUVS,DS-2CD2525FWD-IWKVO,DS-2CD2525FWD-IWHUN,DS- 2CD2535FWD-IWS,DS-2CD2535FWD-IWSUHK,DS-2CD2535FWD-IWSCKV,DS-2CD2535FWD- IWSUVS,DS-2CD2535FWD-IWSKVO,DS-2CD2535FWD-IWSHUN,DS-2CD2545FWD-IW,DS- 2CD2545FWD-IWUHK,DS-2CD2545FWD-IWCKV,DS-2CD2545FWD-IWUVS,DS-2CD2545FWD- IWKVO,DS-2CD2545FWD-IWHUN,DS-2CD2555FWD-IWS,DS-2CD2555FWD-IWSUHK,DS-2CD2555FWD- IWSCKV,DS-2CD2555FWD-IWSUVS,DS-2CD2555FWD-IWSKVO,DS-2CD2555FWD-IWSHUN,DS- 2CD2555FWD-IW,DS-2CD2555FWD-IWUHK,DS-2CD2555FWD-IWCKV,DS-2CD2555FWD-IWUVS,DS- 2CD2555FWD-IWKVO,DS-2CD2555FWD-IWHUN,DS-2CD2525FHWD-IWS,DS-2CD2525FHWD- IWSUHK,DS-2CD2525FHWD-IWSCKV,DS-2CD2525FHWD-IWSUVS,DS-2CD2525FHWD-IWSKVO,DS- 2CD2525FHWD-IWSHUN,DS-2CD2525FHWD-IW,DS-2CD2525FHWD-IWUHK,DS-2CD2525FHWD- IWCKV,DS-2CD2525FHWD-IWUVS,DS-2CD2525FHWD-IWKVO,DS-2CD2525FHWD-IWHUN,DS- 2CD2523G0-IWS,DS-2CD2523G0-IWSUHK,DS-2CD2523G0-IWSCKV,DS-2CD2523G0-IWSUVS,DS- 2CD2523G0-IWSKVO,DS-2CD2523G0-IWSHUN,DS-2CD2523G0-IW,DS-2CD2523G0-IWUHK,DS- 2CD2523G0-IWCKV,DS-2CD2523G0-IWUVS,DS-2CD2523G0-IWKVO,DS-2CD2523G0-IWHUN,DS- 2CD2543G0-IWS,DS-2CD2543G0-IWSUHK,DS-2CD2543G0-IWSCKV,DS-2CD2543G0-IWSUVS,DS- 2CD2543G0-IWSKVO,DS-2CD2543G0-IWSHUN,DS-2CD2543G0-IW,DS-2CD2543G0-IWUHK,DS- 2CD2543G0-IWCKV,DS-2CD2543G0-IWUVS,DS-2CD2543G0-IWKVO,DS-2CD2543G0-IWHUN,DS- 2CD2563G0-IWS,DS-2CD2563G0-IWSUHK,DS-2CD2563G0-IWSCKV,DS-2CD2563G0-IWSUVS,DS- 2CD2563G0-IWSKVO,DS-2CD2563G0-IWSHUN,DS-2CD2563G0-IW,DS-2CD2563G0-IWUHK,DS- 2CD2563G0-IWCKV,DS-2CD2563G0-IWUVS,DS-2CD2563G0-IWKVO,DS-2CD2563G0-IWHUN For IC model: DS-2CD2545FWD-IWS, DS-2CD2545FWD-IW, DS-2CD2525FWD-IWS, DS-2CD2525FWD- IW, DS-2CD2555FWD-IWS, DS-2CD2555FWD-IW, DS-2CD2525FHWD-IWS, DS-2CD2525FHWD-IW, DS- 2CD2535FWD-IWS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031602 Page: 3 of 9 Revision Record Version Description Date Remark 00 Original 2020-01-21 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100017803 Page: 4 of 9 2 Contents Page 1 COVER PAGE ................................................................................................................................................ 1 2 CONTENTS ..................................................................................................................................................... 4 3 GENERAL INFORMATION .......................................................................................................................... 5 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 5 3.2 TECHNICAL SPECIFICATIONS ......................................................................................................................... 5 3.3 TEST LOCATION ............................................................................................................................................. 6 3.4 TEST FACILITY ............................................................................................................................................... 6 4 TEST STANDARDS AND LIMITS ............................................................................................................... 7 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................ 7 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: .................................................................................... 7 5 …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Appendix SHEM200100031601 Power level setting using in test: Channel 802.11b 802.11g 802.11n(HT20) 1 38 48 48 6 38 48 48 11 38 48 48 Channel 802.11n(HT40) 3 46 6 46 9 46 1.6dB Bandwidth Test Mode Test Channel Ant EBW[MHz] Limit Verdict 11B 2412 Ant1 10.05 0.5 PASS 11B 2437 Ant1 10.06 0.5 PASS 11B 2462 Ant1 10.05 0.5 PASS 11G 2412 Ant1 16.55 0.5 PASS 11G 2437 Ant1 16.56 0.5 PASS 11G 2462 Ant1 16.56 0.5 PASS 11N20SISO 2412 Ant1 17.73 0.5 PASS 11N20SISO 2437 Ant1 17.74 0.5 PASS 11N20SISO 2462 Ant1 17.73 0.5 PASS 11N40SISO 2422 Ant1 36.14 0.5 PASS 11N40SISO 2437 Ant1 36.07 0.5 PASS 11N40SISO 2452 Ant1 36.32 0.5 PASS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 2.Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict 11B 2412 Ant1 14.95 --- PASS 11B 2437 Ant1 14.96 --- PASS 11B 2462 Ant1 14.96 --- PASS 11G 2412 Ant1 16.76 --- PASS 11G 2437 Ant1 16.77 --- PASS 11G 2462 Ant1 16.76 --- PASS 11N20SISO 2412 Ant1 17.82 --- PASS 11N20SISO 2437 Ant1 17.82 --- PASS 11N20SISO 2462 Ant1 17.83 --- PASS 11N40SISO 2422 Ant1 36.04 --- PASS 11N40SISO 2437 Ant1 36.02 --- PASS 11N40SISO 2452 Ant1 36.00 --- PASS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Occupied Bandwidth_11B_2412 Occupied Bandwidth_11B_2437 Occupied Bandwidth_11B_2462 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Occupied Bandwidth_11G_2412 Occupied Bandwidth_11G_2437 Occupied Bandwidth_11G_2462 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Occupied Bandwidth_11N20SISO_2412 Occupied Bandwidth_11N20SISO_2437 Occupied Bandwidth_11N20SISO_2462 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Occupied Bandwidth_11N40SISO_2422 Occupied Bandwidth_11N40SISO_2437 Occupied Bandwidth_11N40SISO_2452 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 3.Maximum conducted (average) output power Test Mode Test Channel Ant Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict 11B 2412 Ant1 14.07 0.00 14.07 30 PASS 11B 2437 Ant1 14.69 0.00 14.69 30 PASS 11B 2462 Ant1 14.75 0.00 14.75 30 PASS 11G 2412 Ant1 13.25 0.00 13.25 30 PASS 11G 2437 Ant1 13.89 0.00 13.89 30 PASS 11G 2462 Ant1 13.97 0.00 13.97 30 PASS 11N20SISO 2412 Ant1 13.23 0.00 13.23 30 PASS 11N20SISO 2437 Ant1 13.87 0.00 13.87 30 PASS 11N20SISO 2462 Ant1 13.95 0.00 13.95 30 PASS 11N40SISO 2422 Ant1 12.79 0.00 12.79 30 PASS 11N40SISO 2437 Ant1 12.51 0.00 12.51 30 PASS 11N40SISO 2452 Ant1 12.6 0.00 12.60 30 PASS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum conducted (average) output power_11N40SISO_2422_Ant1 Maximum conducted (average) output power_11N40SISO_2437_Ant1 Maximum conducted (average) output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 4.Maximum(average) power spectral density Test Mode Test Channel Ant Level [dBm/3kHz] 10log(1/x) Factor[dB] PSD[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -18.61 0.00 -18.61 8.00 PASS 11B 2437 Ant1 -18.01 0.00 -18.01 8.00 PASS 11B 2462 Ant1 -17.95 0.00 -17.95 8.00 PASS 11G 2412 Ant1 -21.22 0.00 -21.22 8.00 PASS 11G 2437 Ant1 -20.60 0.00 -20.60 8.00 PASS 11G 2462 Ant1 -20.42 0.00 -20.42 8.00 PASS 11N20SISO 2412 Ant1 -21.68 0.00 -21.68 8.00 PASS 11N20SISO 2437 Ant1 -21.03 0.00 -21.03 8.00 PASS 11N20SISO 2462 Ant1 -20.95 0.00 -20.95 8.00 PASS 11N40SISO 2422 Ant1 -25.17 0.00 -25.17 8.00 PASS 11N40SISO 2437 Ant1 -25.30 0.00 -25.30 8.00 PASS 11N40SISO 2452 Ant1 -25.33 0.00 -25.33 8.00 PASS SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum(average) power spectral density_11B_2412_Ant1 Maximum(average) power spectral density_11B_2437_Ant1 Maximum(average) power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum(average) power spectral density_11G_2412_Ant1 Maximum(average) power spectral density_11G_2437_Ant1 Maximum(average) power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum(average) power spectral density_11N20SISO_2412_Ant1 Maximum(average) power spectral density_11N20SISO_2437_Ant1 Maximum(average) power spectral density_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Maximum(average) power spectral density_11N40SISO_2422_Ant1 Maximum(average) power spectral density_11N40SISO_2437_Ant1 Maximum(average) power spectral density_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 5.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 4.35 -37.36 -25.65 PASS 11B 2462 Ant1 5.11 -53.05 -24.89 PASS 11G 2412 Ant1…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031601 Page: 1 of 62 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2001000316CR FCC ID: 2ADTD-I0F2502 IC: 20199-I0F2502 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1. Hangzhou Hikvision Technology Co., Ltd. 2. Hangzhou Hikvision Electronics Co., Ltd. 3, Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1. No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China. 3, No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): EUT Name: NETWORK CAMERA Model No.: Refer to Page 2 ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, April 2018 Date of Receipt: 2020-01-08 Date of Test: 2020-01-09 to 2020-01-20 Date of Issue: 2020-01-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031601 Page: 2 of 62 Model No.: For FCC model: DS-2CD2545FWD-IWS,DS-2CD2545FWD-IWSUHK,DS-2CD2545FWD-IWSCKV,DS-2CD2545FWD- IWSUVS,DS-2CD2545FWD-IWSKVO,DS-2CD2545FWD-IWSHUN,DS-2CD2525FWD-IWS,DS- 2CD2525FWD-IWSUHK,DS-2CD2525FWD-IWSCKV,DS-2CD2525FWD-IWSUVS,DS-2CD2525FWD- IWSKVO,DS-2CD2525FWD-IWSHUN,DS-2CD2525FWD-IW,DS-2CD2525FWD-IWUHK,DS-2CD2525FWD- IWCKV,DS-2CD2525FWD-IWUVS,DS-2CD2525FWD-IWKVO,DS-2CD2525FWD-IWHUN,DS-2CD2535FWD- IWS,DS-2CD2535FWD-IWSUHK,DS-2CD2535FWD-IWSCKV,DS-2CD2535FWD-IWSUVS,DS- 2CD2535FWD-IWSKVO,DS-2CD2535FWD-IWSHUN,DS-2CD2545FWD-IW,DS-2CD2545FWD-IWUHK,DS- 2CD2545FWD-IWCKV,DS-2CD2545FWD-IWUVS,DS-2CD2545FWD-IWKVO,DS-2CD2545FWD-IWHUN,DS- 2CD2555FWD-IWS,DS-2CD2555FWD-IWSUHK,DS-2CD2555FWD-IWSCKV,DS-2CD2555FWD- IWSUVS,DS-2CD2555FWD-IWSKVO,DS-2CD2555FWD-IWSHUN,DS-2CD2555FWD-IW,DS-2CD2555FWD- IWUHK,DS-2CD2555FWD-IWCKV,DS-2CD2555FWD-IWUVS,DS-2CD2555FWD-IWKVO,DS-2CD2555FWD- IWHUN,DS-2CD2525FHWD-IWS,DS-2CD2525FHWD-IWSUHK,DS-2CD2525FHWD-IWSCKV,DS- 2CD2525FHWD-IWSUVS,DS-2CD2525FHWD-IWSKVO,DS-2CD2525FHWD-IWSHUN,DS-2CD2525FHWD- IW,DS-2CD2525FHWD-IWUHK,DS-2CD2525FHWD-IWCKV,DS-2CD2525FHWD-IWUVS,DS- 2CD2525FHWD-IWKVO,DS-2CD2525FHWD-IWHUN,DS-2CD2523G0-IWS,DS-2CD2523G0-IWSUHK,DS- 2CD2523G0-IWSCKV,DS-2CD2523G0-IWSUVS,DS-2CD2523G0-IWSKVO,DS-2CD2523G0-IWSHUN,DS- 2CD2523G0-IW,DS-2CD2523G0-IWUHK,DS-2CD2523G0-IWCKV,DS-2CD2523G0-IWUVS,DS-2CD2523G0- IWKVO,DS-2CD2523G0-IWHUN,DS-2CD2543G0-IWS,DS-2CD2543G0-IWSUHK,DS-2CD2543G0- IWSCKV,DS-2CD2543G0-IWSUVS,DS-2CD2543G0-IWSKVO,DS-2CD2543G0-IWSHUN,DS-2CD2543G0- IW,DS-2CD2543G0-IWUHK,DS-2CD2543G0-IWCKV,DS-2CD2543G0-IWUVS,DS-2CD2543G0-IWKVO,DS- 2CD2543G0-IWHUN,DS-2CD2563G0-IWS,DS-2CD2563G0-IWSUHK,DS-2CD2563G0-IWSCKV,DS- 2CD2563G0-IWSUVS,DS-2CD2563G0-IWSKVO,DS-2CD2563G0-IWSHUN,DS-2CD2563G0-IW,DS- 2CD2563G0-IWUHK,DS-2CD2563G0-IWCKV,DS-2CD2563G0-IWUVS,DS-2CD2563G0-IWKVO,DS- 2CD2563G0-IWHUN For IC model: DS-2CD2545FWD-IWS, DS-2CD2545FWD-IW, DS-2CD2525FWD-IWS, DS-2CD2525FWD-IW, DS-2CD2555FWD-IWS, DS-2CD2555FWD-IW, DS-2CD2525FHWD-IWS, DS-2CD2525FHWD-IW, DS- 2CD2535FWD-IWS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031601 Page: 3 of 62 Revision Record Version Description Date Remark 00 Original 2020-01-21 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100031601 Page: 4 of 62 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Custome r Declarati on Radio Spectrum Matter Part Item Standard Method Requirement Result Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass 99% Bandwidth RSS-247 Issue 2, February 2017 ANSI C63.10 Section 6.9.3 RSS-Gen Section 6.7 Pass Frequency Stability - RSS-Gen Section 6.11 RSS-Gen Section 8.11 Pass Frequency stability req…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 Test Setup Photos-FCC Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: NETWORK CAMERA Model No.: DS-2CD2545FWD-IWS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 Conducted Emission Test Setup ....................................................................... 3 2.2 Radiated Emission Test Setup .......................................................................... 3 2.3 RF Conducted Test Setup ................................................................................. 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emission Test Setup 2.2 Radiated Emission Test Setup Below 30MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 Above 1GHz Zoom: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 2.3 RF Conducted Test Setup End
