2ADTD-I0M2Q01Network PT Camera

1 3 45 6 Appearance UD05573B Lens Name Description Status Indicator WPS/RESETWPS: Set Wi-Fi connection via WPS (Wi-Fi Protected Setup) function. RESET: Hold down the button for 4 seconds when the camera is running. Memory Card Slot For microSD card. If a memory card is used, video files will be stored in the memory card. You would need to initialize it in the Hik-Connect app. Micro USB for power supply, 5V . Plug the power cable into the power input interface to power on the camera. Steady red: The camera is starting up. Flashing blue: The camera is started, and is ready for Wi-Fi set-up. Steady blue: Wi-Fi configuration is completed and the camera is running properly. Flashing red: network communication is abnormal. 1 Install memory card (optional). Adjust the tilting position of the camera to expose the removable cover. . . . Quick Start Guide COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual. About this Manual The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Visit the company website (http://overseas.hikvision.com/en/) to get the manuals, client software, and developing tools. Please use this user manual under the guidance of professionals. Trademarks Acknowledgement and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Network Mini PT Camera Quick Start Guide 2 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement Microphone Silicone Gasket WPS/RESET Power Input Memory Card Slot Power Input Installation . Speaker This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU, Radio Equipment Directive 2014/53/EU. 2012/19/EU (WEEE directive): Products marked with this s…

Text truncated - open the document above for the full version.

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020-03-11 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-I0M2Q01 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-I0M2Q01 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

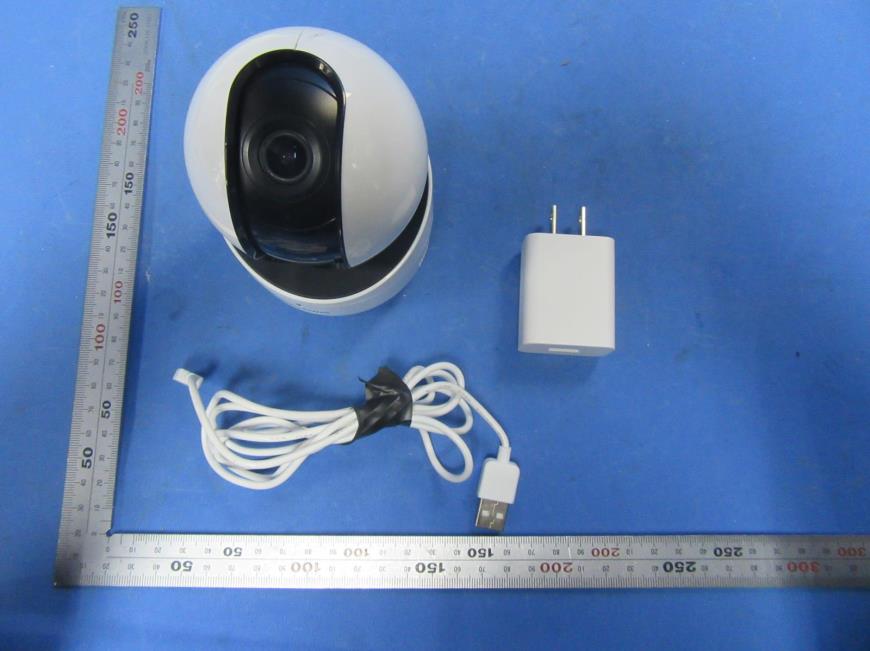

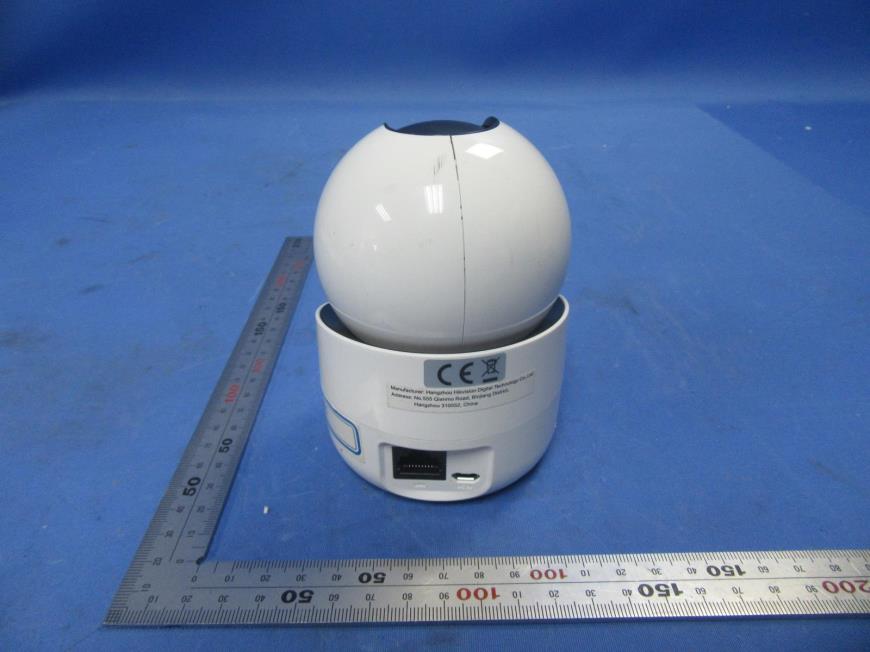

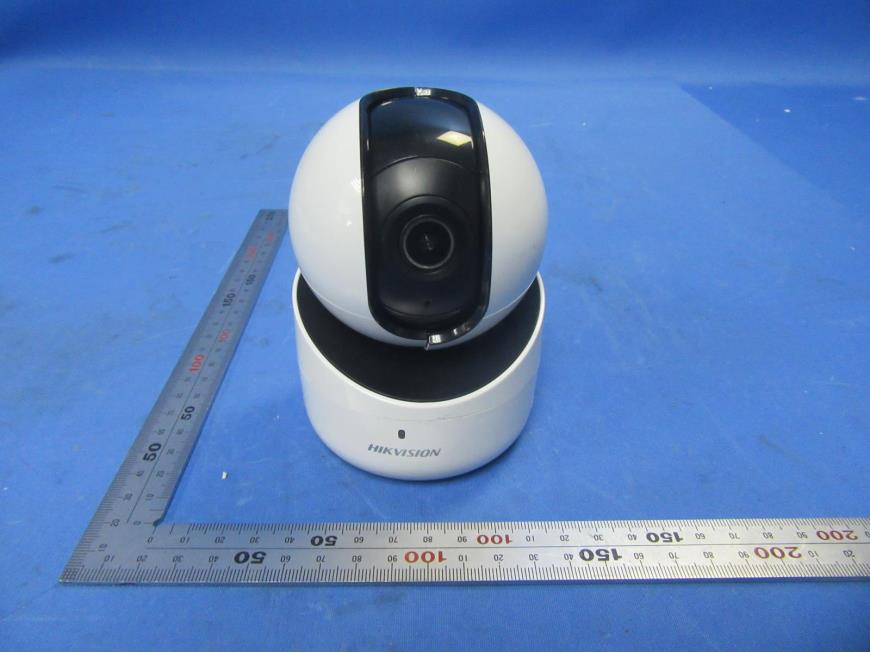

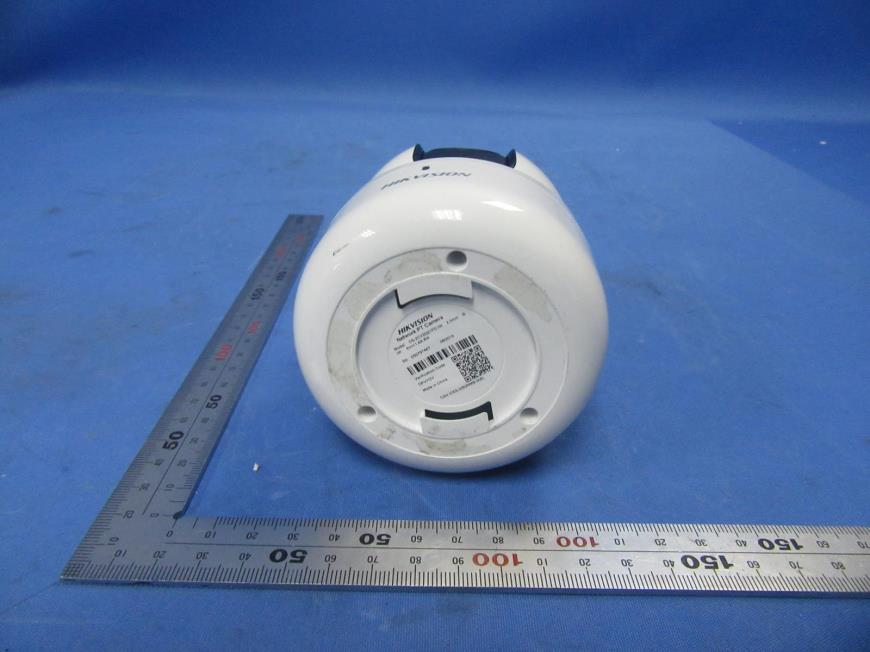

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Network PT Camera Model No.: DS-2CV2Q21FD-IW(2.0mm) SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 End

Label location FCC Warning

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 10 Page 1 of 10 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Network PT Camera Model No.: DS-2CV2Q21FD-IW(2.0mm) SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 10 Page 2 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 10 Page 3 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 10 Page 4 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 10 Page 5 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 10 Page 6 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 10 Page 7 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 10 Page 8 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 10 Page 9 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 10 of 10 Page 10 of 10 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934402 Page: 1 of 8 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM1912019344CR FCC ID: 2ADTD-I0M2Q01 IC: 20199-I0M2Q01 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1. Hangzhou Hikvision Technology Co., Ltd. 2. Hangzhou Hikvision Electronics Co., Ltd. 3. Chongqing Hikvision technology Co., Ltd. Address of Factory: 1. No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China 3. No. 118, Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325, China Equipment Under Test (EUT): EUT Name: Network PT Camera Model No.: DS-2CV2Q21FD-IW(2.0mm) Add Model No.: IPC-P120-D/W(2.0mm), HWC-P120-D/W(2.0mm) Trade mark: HIKVISION Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2019-12-02 Date of Test: 2019-12-05 to 2019-12-16 Date of Issue: 2019-12-26 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934402 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2019-12-26 / Authorized for issue by: Vincent Zhu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934402 Page: 3 of 8 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION ........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY ......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ............................................................................. 6 5 MEASUREMENT AND CALCULATION ..................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 7 5.2 MPE CALCULATION ................................................................................................................................. 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934402 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Product Description: DC 5V by adapter Model:HKC0115020-2B Input:100-240V-50/60Hz,0.5A Output:5V 2A Brand Name: AC 120V 60Hz Test Voltage: DC cable 1.5m for adapter 3.2 Technical Specifications Channel Spacing 5MHz Modulation Type 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz Antenna Gain Antenna 1:2.4dBi, Antenna 2:3.05dBi, MIMO:5.74dBi Antenna Type Antenna 1:Integral Antenna, Antenna 2: FPC Antenna SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934402 Page: 5 of 8 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (Certificate No. 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National Voluntary La…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934401 Page: 1 of 60 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM1912019344CR FCC ID: 2ADTD-I0M2Q01 IC: 20199-I0M2Q01 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1. Hangzhou Hikvision Technology Co., Ltd. 2. Hangzhou Hikvision Electronics Co., Ltd. 3. Chongqing Hikvision technology Co., Ltd. Address of Factory: 1. No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China 3. No. 118, Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325, China Equipment Under Test (EUT): EUT Name: Network PT Camera Model No.: DS-2CV2Q21FD-IW(2.0mm), IPC-P120-D/W(2.0mm), HWC-P120-D/W(2.0mm) ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISION Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, April 2018 Date of Receipt: 2019-12-02 Date of Test: 2019-12-05 to 2019-12-16 Date of Issue: 2019-12-26 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934401 Page: 2 of 60 Revision Record Version Description Date Remark 00 Original 2019-12-26 / Authorized for issue by: Vincent Zhu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934401 Page: 3 of 60 2 Test Summary Radio Spectrum Technical Requirement Item FCC Requirement IC Requirement Method Result Antenna Requirement 47 CFR Part 15, Subpart C 15.203 & 15.247(c) RSS-Gen Clause 6.8 N/A Customer Declaration Radio Spectrum Matter Part Item FCC Requirement IC Requirement Method Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.207 RSS-Gen Clause 8.8 ANSI C63.10 (2013) Section 6.2 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247a(2) RSS-247 Clause 5.2(a) ANSI C63.10 (2013) Section 11.8.1 Pass Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247(b)(3) RSS-247 Clause 5.4(d) ANSI C63.10 (2013) Section 11.9.2 Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247(e) RSS-247 Clause 5.2(b) ANSI C63.10 (2013) Section 11.10.3 Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.13.3.2 Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247(d) RSS-247 Clause 5.5 ANSI C63.10 (2013) Section 11.11 Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Section 3.3 & RSS- Gen Section 8.9 ANSI C63.10 (2013) Section 6.10.5 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Section 3.3 & RSS- Gen Section 8.9 ANSI C63.10 (2013) Section 6.4,6.5,6.6 Pass 99% Bandwidth - RSS-Gen Section 6.7 ANSI C63.10 Section 6.9.3 Pass Frequency Stability - RSS-Gen Section 8.11 RSS-Gen Section 6.11 Pass Frequency stability requested in RSS GEN S8.11 has been complied since the result of band edge can demonstrate. Note: Declaration of EUT Family Grouping: There are series models mentioned in this report and they are the similar in electrical and electronic characters. Only the model DS-2CV2Q21FD-IW(2.0mm) was tested since their differences are model number, trade name and appearance. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201934401 Page: 4 of 60 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY .....................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM191201934401 1.6dB Bandwidth Test Mode Test Channel EBW[MHz] Limit Verdict Ant1 Ant2 11B 2412 10.06 10.06 0.5 PASS 11B 2437 10.07 10.06 0.5 PASS 11B 2462 10.05 10.04 0.5 PASS 11G 2412 16.58 16.53 0.5 PASS 11G 2437 16.57 16.59 0.5 PASS 11G 2462 16.58 16.59 0.5 PASS 11N20SISO 2412 17.82 17.82 0.5 PASS 11N20SISO 2437 17.80 17.81 0.5 PASS 11N20SISO 2462 17.80 17.80 0.5 PASS 11N40SISO 2422 36.42 36.41 0.5 PASS 11N40SISO 2437 36.41 36.40 0.5 PASS 11N40SISO 2452 36.39 36.41 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant2 6dB Bandwidth_11B_2437_Ant2 6dB Bandwidth_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant2 6dB Bandwidth_11G_2437_Ant2 6dB Bandwidth_11G_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant2 6dB Bandwidth_11N20SISO_2437_Ant2 6dB Bandwidth_11N20SISO_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant2 6dB Bandwidth_11N40SISO_2437_Ant2 6dB Bandwidth_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test Mode Test Channel OBW[MHz] Limit[MHz] Verdict Ant1 Ant2 11B 2412 15.08 15.06 --- PASS 11B 2437 15.09 15.06 --- PASS 11B 2462 15.10 15.06 --- PASS 11G 2412 16.94 16.83 --- PASS 11G 2437 16.91 17.00 --- PASS 11G 2462 16.93 17.06 --- PASS 11N20SISO 2412 18.02 18.05 --- PASS 11N20SISO 2437 18.01 18.12 --- PASS 11N20SISO 2462 18.00 18.12 --- PASS 11N40SISO 2422 36.52 36.63 --- PASS 11N40SISO 2437 36.47 36.61 --- PASS 11N40SISO 2452 36.44 36.59 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412_Ant1 Occupied Bandwidth_11B_2437_Ant1 Occupied Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412_Ant1 Occupied Bandwidth_11G_2437_Ant1 Occupied Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412_Ant1 Occupied Bandwidth_11N20SISO_2437_Ant1 Occupied Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422_Ant1 Occupied Bandwidth_11N40SISO_2437_Ant1 Occupied Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412_Ant2 Occupied Bandwidth_11B_2437_Ant2 Occupied Bandwidth_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412_Ant2 Occupied Bandwidth_11G_2437_Ant2 Occupied Bandwidth_11G_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412_Ant2 Occupied Bandwidth_11N20SISO_2437_Ant2 Occupied Bandwidth_11N20SISO_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422_Ant2 Occupied Bandwidth_11N40SISO_2437_Ant2 Occupied Bandwidth_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict Ant1 Ant2 Ant1 Ant2 Ant1 Ant2 MIMO 11B 2412 15.01 11.7 0.00 0.00 15.01 11.7 NA 30 PASS 11B 2437 14.46 12.19 0.00 0.00 14.46 12.19 NA 30 PASS 11B 2462 13.99 11.87 0.00 0.00 13.99 11.87 NA 30 PASS 11G 2412 13.45 11.95 0.00 0.00 13.45 11.95 NA 30 PASS 11G 2437 13.58 12.37 0.00 0.00 13.58 12.37 NA 30 PASS 11G 2462 13.30 12.01 0.00 0.00 13.30 12.01 NA 30 PASS 11N20MIMO 2412 11.49 10.27 0.00 0.00 11.49 10.27 13.93 30 PASS 11N20MIMO 2437 11.79 10.75 0.00 0.00 11.79 10.75 14.31 30 PASS 11N20MIMO 2462 11.60 10.34 0.00 0.00 11.60 10.34 14.03 30 PASS 11N40MIMO 2422 9.44 8.25 0.00 0.00 9.44 8.25 11.90 30 PASS 11N40MIMO 2437 9.52 8.37 0.00 0.00 9.52 8.37 11.99 30 PASS 11N40MIMO 2452 9.30 7.86 0.00 0.00 9.30 7.86 11.65 30 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N40SISO_2422_Ant1 Maximum conducted (average) output power_11N40SISO_2437_Ant1 Maximum conducted (average) output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant2 Maximum conducted (average) output power_11B_2437_Ant2 Maximum conducted (average) output power_11B_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant2 Maximum conducted (average) output power_11…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11B_2412_Ant2 Band-edge for RF Conducted Emissions_11B_2462_Ant2 Band-edge for RF Conducted Emissions_11G_2412_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11G_2462_Ant2 Band-edge for RF Conducted Emissions_11N20SISO_2412_Ant2 Band-edge for RF Conducted Emissions_11N20SISO_2462_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11N40SISO_2422_Ant2 Band-edge for RF Conducted Emissions_11N40SISO_2452_Ant2 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6.RF Conducted Spurious Emissions Test Mode Test Channel StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict Ant1 Ant2 Ant1 Ant2 Ant1 Ant2 11B 2412 30 10000 100 300 4.80 2.04 -31.22 -41.52 <- 25.20 <- 27.96 PASS 11B 2412 10000 26000 100 300 4.801 2.044 -44.691 -44.406 <- 25.199 <- 27.956 PASS 11B 2437 30 10000 100 300 4.61 2.49 -34.51 -42.32 <- 25.40 <- 27.51 PASS 11B 2437 10000 26000 100 300 4.605 2.49 -45.056 -44.581 <- 25.395 <- 27.51 PASS 11B 2462 30 10000 100 300 4.16 2.16 -34.49 -43.31 <- 25.84 <- 27.84 PASS 11B 2462 10000 26000 100 300 4.16 2.157 -44.858 -43.526 <- 25.84 <- 27.843 PASS 11G 2412 30 10000 100 300 -1.11 -0.51 -39.04 -53.42 <- 31.11 <- 30.51 PASS 11G 2412 10000 26000 100 300 -1.114 -0.509 -43.629 -44.430 <- 31.114 <- 30.509 PASS 11G 2437 30 10000 100 300 -0.75 -2.12 -45.94 -53.91 <- 30.75 <- 32.12 PASS 11G 2437 10000 26000 100 300 -0.747 -2.116 -44.516 -44.767 <- 30.747 <- 32.116 PASS 11G 2462 30 10000 100 300 -0.97 -2.35 -45.70 -53.64 <- 30.97 <- 32.35 PASS 11G 2462 10000 26000 100 300 -0.972 -2.352 -43.635 -43.447 <…

Text truncated - open the document above for the full version.
