2ADTD-I0R2401IR NETWORK CAMERA

DS-2CD2446G2-I 4 MP AcuSense Fixed Cube Network Camera Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.  High quality imaging with 4 MP resolution  Excellent low-light performance with powered by DarkFighter technology  Clear imaging against strong backlight due to 120 dB WDR technology  Efficient H.265+ compression technology  Focus on human and vehicle classification based on deep learning  Provide real-time security via built-in two-way audio  Detect human body through passive infrared which is sensitive to body temperature (PIR)  Specification Camera Image Sensor 1/3" Progressive Scan CMOS Min. Illumination 2 mm: color: 0.006 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR 2.8 mm and 4 mm: color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Wide Dynamic Range 120 dB Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Lens Focal Length & FOV 2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1° 2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5° 4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7° Aperture 2 mm: F2.0 2.8 mm: F1.4 4 mm: F1.4 Lens Mount M12 DORI DORI 2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m 2.8 mm: D: 64.2 m, O: 25.5 m, R: 12.8 m, I: 6.4 m 4 mm: D: 77.4 m, O: 30.7 m, R: 15.5 m, I: 7.7 m Illuminator IR Range Up to 10 m Wavelength 850 nm Smart Supplement Light Yes Video Max. Resolution 2688 × 1520 Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed region for main stream and sub-stream Audio Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 Kbps to 192 Kbps (MP2L2)/8 Kbps to 320 Kbps (MP3) Network Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser PIR PIR Angle Horizontal: 90°, vertical: 80° PIR Range Up to 8 m Interface Built-in Microphone Yes Built-in Speaker Power: 1 W. Max. sound pressure level: 10 cm: 91 dB. On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB Hardware Reset Yes Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Event Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Scene change detection Deep Learning Function Face Capture Yes Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification General Linkage Method Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning Web Client Language 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, password reset via email, pixel counter Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25% PoE: 802.3af, Class 3 Power Consumption and Current 12 VDC, 0.5 A, max. 6.0 W PoE (802.3af, 36 V to 57 V), 0.13 A to 0.20 A, max. 7.0 W Power Interface Ø 5.5 mm coaxial power plug Camera Material Plastic Camera Dimension 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3") 2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1") Package Dimension 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") Camera Weight Approx. 120 g (0.3 lb.) With Package Weight Approx. 430 g (0.9 lb.) Approval EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN…

Text truncated - open the document above for the full version.

User Manual Network Camera Quick Start Guide Table of Contents ENGLISH....................................................................................................................................... 4 FRANÇAIS ................................................................................................................................. 10 DEUTSCH .................................................................................................................................. 15 ESPAÑ OL .................................................................................................................................. 20 ITALIANO .................................................................................................................................. 25 PORTUGUÊS ............................................................................................................................ 30 NEDERLANDS .......................................................................................................................... 35 ČEŠTINA .................................................................................................................................... 40 DANSK ....................................................................................................................................... 44 MAGYAR ................................................................................................................................... 49 POLSKI ....................................................................................................................................... 54 ROMÂNĂ .................................................................................................................................. 59 SLOVENČINA ........................................................................................................................... 64 BAHASA INDONESIA ............................................................................................................ 69 ျမန္မာ ........................................................................................................................................ 74 TÜ RKÇE ..................................................................................................................................... 82 РУССКИЙ.................................................................................................................................. 86 УКРАЇНСЬКА ........................................................................................................................... 92 1 Installation 4 0° ~ 75° 0° ~ 360° 0° ~ 360° 3 0° ~ 90° 0° ~ 360° 0° ~ 360° 0° ~ 360° 0° ~ 90° 0° ~ 360° 0° ~ 360° 0° ~ 360° 0° ~ 90° 2 1 2 5 T 10 T 10 0° ~ 360° 0° ~ 75° 0° ~ 355° T 10 6 0° ~ 360° 0° ~ 75° -30° ~ 30° 7 0° ~ 360° 0° ~ 355° 0° ~ 90° T 20 T 20 8 T 20 0° ~ 355° 0° ~ 75° 0° ~ 355° T 20 9 0° ~ 355° 0° ~ 355° 0° ~ 75° 3 Waterproof 5 1 2 3 4 6 Activate and Access Network Camera 4 English Note: The interface varies with the models. Please refer to the product datasheet for details. © 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as "Hikvision"), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual, any information contained herein. About this Manual The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (https://www.hikvision.com). Please use this user manual under the guidance of professionals. Trademarks Acknowledgement  and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.  Other trademarks and logos mentioned are the properties of their respective owners. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO Interface Description Interface Description LAN(PoE) Network interface, PoE supported ALARM IN Alarm input interface IN1 and GND1, IN2 and GND2 are two pairs of alarm inputs DC12V, AC24V Power input interface ALARM OUT Alarm output interface 1A and 1B, 2A and 2B, 3A and 3B are three pairs of alarm outputs MicroSD SD MicroSD card slot Insert the MicroSD card for local storage RS-485 D+ or D- connect to 485 RESET One-key reset button DC12V, GND / DC 12V_OUT Power output interface AUDIO IN Audio input interface BNC BNC/CVBS interface AUDIO OUT Audio output interface Grounding 5 WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISI…

Text truncated - open the document above for the full version.

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020/5/20 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Hangzhou Hikvision Digital Technology Co., Ltd. Contact Name: Xiuying Zhang Title of Person： Certification Engineer Address: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China

Hangzhou Hikvision Digital Technology Co., Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：2ADTD-I0R2401 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Hangzhou Hikvision Digital Technology Co., Ltd. Contact Name: Xiuying Zhang Title of Person: Senior Certification engineer Address: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Date:5/25/2021

Hangzhou Hikvision Digital Technology Co., Ltd. Address: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Confirmation Letter We, Hangzhou Hikvision Digital Technology Co., Ltd. The product: IR NETWORK CAMERA And model No.: DS-2CD2446G2-IW FCC ID: 2ADTD-I0R2401 DS-2CD2446G2-IWUHK,DS-2CD2446G2-IWCKV,DS-2CD2446G2-IWUVS,DS- 2CD2446G2-IWKVO,DS-2CD2446G2-IWHUN,DS-2CD2443G2-IW,DS-2CD2443G2- IWUHK,DS-2CD2443G2-IWCKV,DS-2CD2443G2-IWUVS,DS-2CD2443G2- IWKVO,DS-2CD2443G2-IWHUN have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with DS-2CD2446G2-IW.The difference lies only the model number and selling area . Contact Name: Xiuying Zhang Title of Person: Senior Certification engineer Date： 05/28/2021

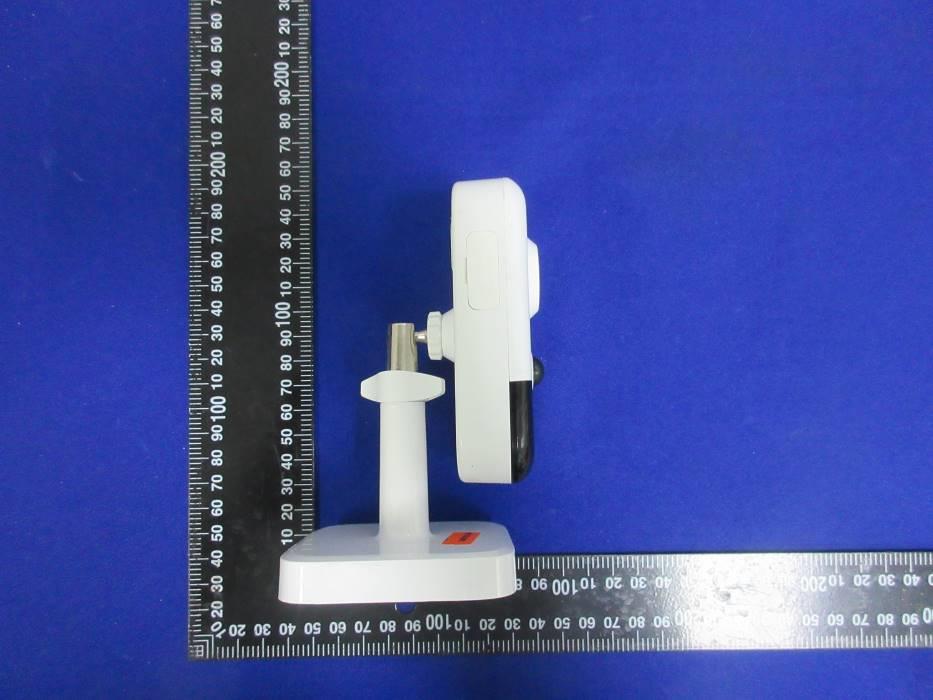

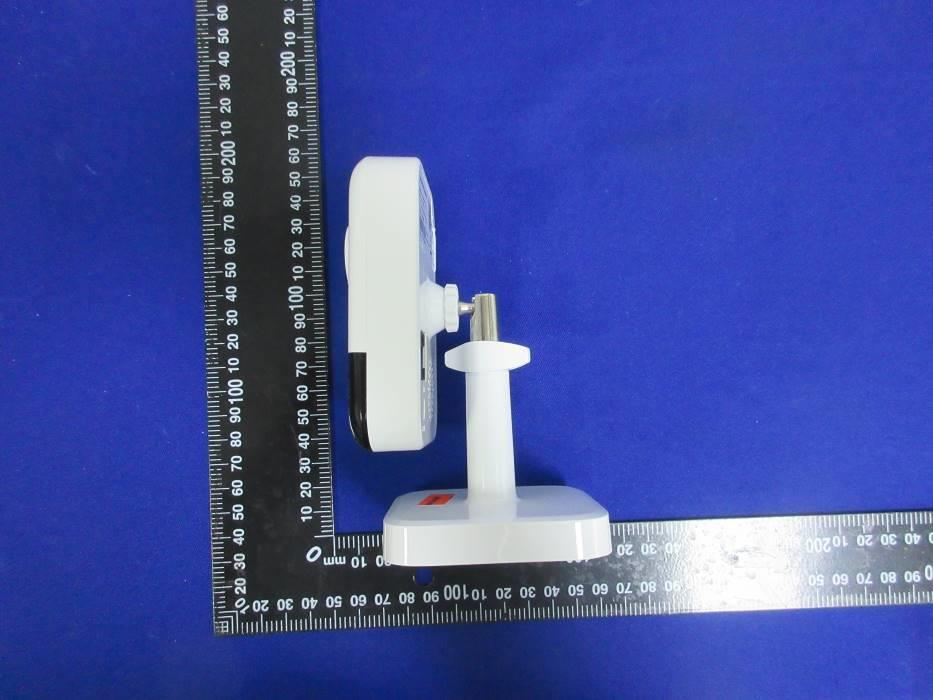

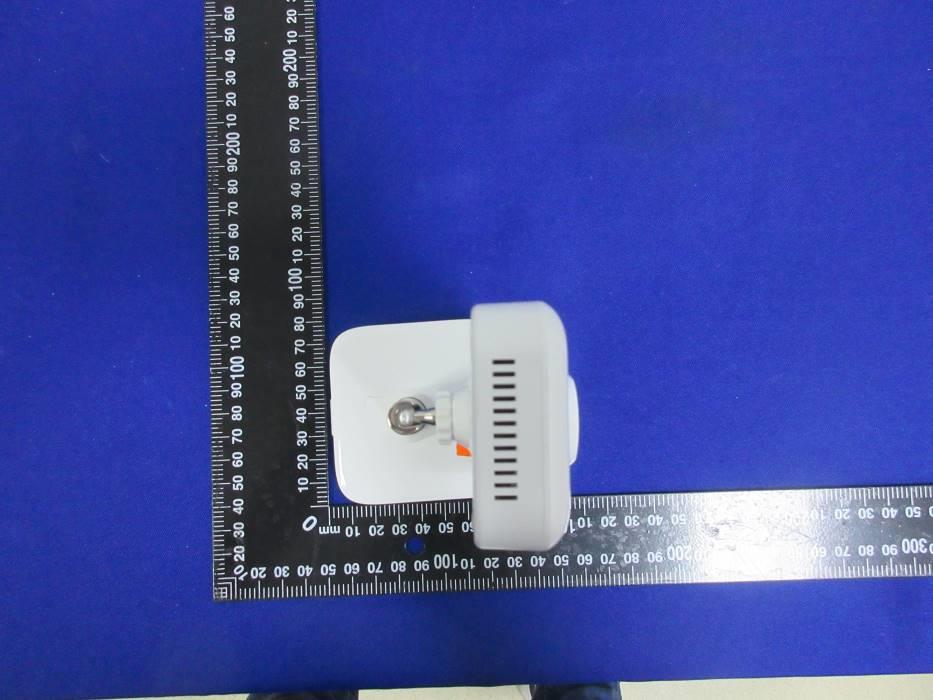

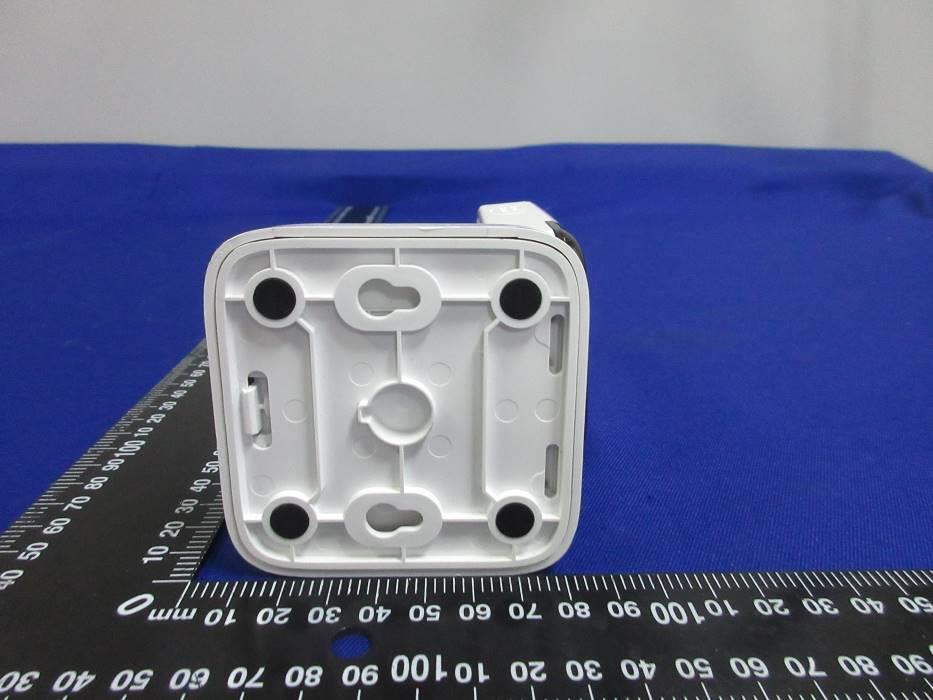

Appendix I External Photographs Page 2 of 4 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT( All View of EUT) Bottom View of EUT Page 3 of 4 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 4 of 4 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-1 Internal View of EUT-2 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-3 Internal View of EUT-4 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-5 Internal View of EUT-6 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-7 Internal View of EUT-8 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-9 RF Model & Antennas location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. RF EXPOSURE REPORT For IR NETWORK CAMERA MODEL NUMBER: DS-2CD2446G2-IW ADDTIONAL MODEL NUMBER: DS-2CD2446G2-IWUHK,DS-2CD2446G2- IWCKV,DS-2CD2446G2-IWUVS,DS-2CD2446G2-IWKVO,DS-2CD2446G2- IWHUN,DS-2CD2443G2-IW,DS-2CD2443G2-IWUHK,DS-2CD2443G2-IWCKV,DS- 2CD2443G2-IWUVS,DS-2CD2443G2-IWKVO,DS-2CD2443G2-IWHUN PROJECT NUMBER: 4789920552 REPORT NUMBER: 4789920552-5 FCC ID: 2ADTD-I0R2401 ISSUE DATE: May, 24,2021 Prepared for HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789920552-5 Page 2 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Rev. Issue Date Revisions Revised By V0 05/24/2021 Initial Issue REPORT No.: 4789920552-5 Page 3 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. REQUIREMENT ................................................................................................................. 7 REPORT No.: 4789920552-5 Page 4 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. Address: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Manufacturer Information Company Name: HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. Address: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Factory Information(1) Company Name: Hangzhou Hikvision Technology Co., Ltd. Address: No.700,DongliuRoad, Binjiang District, Hangzhou Ctiy,Zhejiang, 310052, China. Factory Information(2) Company Name: Hangzhou Hikvision Electronics Co., Ltd. Address: No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County, Hangzhou,Zhejiang,310052,China. Factory Information(3) Company Name: Hangzhou Hikvision Digital Technology Co., Ltd. Address: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China. EUT Description Product Name IR NETWORK CAMERA Model Name DS-2CD2446G2-IW Additional No. DS-2CD2446G2-IWUHK,DS-2CD2446G2-IWCKV, DS-2CD2446G2-IWUVS,DS-2CD2446G2-IWKVO, DS-2CD2446G2-IWHUN,DS-2CD2443G2-IW,DS-2CD2443G2- IWUHK,DS-2CD2443G2-IWCKV,DS-2CD2443G2-IWUVS, DS-2CD2443G2-IWKVO,DS-2CD2443G2-IWHUN Sample Number 3889193 Data of Receipt Sample May 08, 2021 Date Tested May 08, 2021~ May. 22, 2021 REPORT No.: 4789920552-5 Page 5 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Jason Yang Tom Tang Engineer Engineer Project Associate Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789920552-5 Page 6 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789920552-5 Page 7 of 8 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 3…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For IR NETWORK CAMERA MODEL NUMBER: DS-2CD2446G2-IW ADDTIONAL MODEL NUMBER: DS-2CD2446G2-IWUHK,DS-2CD2446G2- IWCKV,DS-2CD2446G2-IWUVS,DS-2CD2446G2-IWKVO,DS-2CD2446G2- IWHUN,DS-2CD2443G2-IW,DS-2CD2443G2-IWUHK,DS-2CD2443G2-IWCKV,DS- 2CD2443G2-IWUVS,DS-2CD2443G2-IWKVO,DS-2CD2443G2-IWHUN PROJECT NUMBER: 4789920552 REPORT NUMBER: 4789920552-4 FCC ID: 2ADTD-I0R2401 ISSUE DATE: May, 24,2021 Prepared for HANGZHOU HIKVISION DIGITAL TECHNOLOGY CO., LTD. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4789920552-4 ` Page 2 of 191 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 05/24/2021 Initial Issue REPORT No.: 4789920552-4 ` Page 3 of 191 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.1. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.3. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.4. TEST ENVIRONMENT ...............................................................................................12 5.5. DESCRIPTION OF TEST SETUP ...............................................................................13 5.6. MEASURING INSTRUMENT AND SOFTWARE USED ..............................................14 6. MEASUREMENT METHODS ............................................................................................15 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6 dB BANDWIDTH ......................................................................................................19 7.3. CONDUCTED POWER...............................................................................................33 7.4. POWER SPECTRAL DENSITY ..................................................................................35 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................49 7.6. RADIATED TEST RESULTS .................................................................................... 109 7.6.1. LIMITS AND PROCEDURE ............................................................................... 109 7.6.2. TEST ENVIRONMENT ...................................................................................... 114 7.6.3. RESTRICTED BANDEDGE ............................................................................... 114 7.6.4. SPURIOUS EMISSIONS ................................................................................... 131 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 188 9. ANTENNA REQUIREMENTS .......................................................................................... 191 REPORT No.: 4789920552-4 ` Page 4 of 191 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. …

Text truncated - open the document above for the full version.
