2ADTD-I0R2C00NETWORK CAMERA

About this Manual The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the company website Please use this Manual with the guidance and assistance of professionals trained in supporting the Product. Trademarks Acknowledgement Trademarks and logos mentioned are the properties of their respective owners. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. OUR COMPANY MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL OUR COMPANY BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF OUR COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL- CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. FCC conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU and the RE Directive 2014/53/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. The power supply must conform to LPS. The recommended adaptor models and manufacturers are shown in the below. Use the attached adapter, and DO NOT change the adaptor randomly. ModelManufacturer MKAC-57-242500M, MKAC- 57-242200M, MKAC-57- 241500M MACBLE Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause inte…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Hikvision Digital Technology Co., Ltd. Address No. 555 Qianmo Road, Binjiang District Hangzhou 310052, China Grantee Code 2ADTD FCC ID 2ADTD-I0R2C00 Authorized Contact Name Xiuying Zhang Contact Email [email protected] Contact Phone +86-571-88075998 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2021/01/20 Print Name: Xiuying Zhang Title: Senior Certification engineer *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Hikvision Digital Technology Co., Ltd. Current Date : 2021-01-20 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Hangzhou Hikvision Digital Technology Co., Ltd.) HEREBY DECLARED THAT Product Description NETWORK CAMERA Model No. DS-2CV2C21G0-IWUHK, DS-2CV2C21G0-IWCKV, DS-2CV2C21G0-IWHUN, DS-2CV2C21G0-IWKVO, DS-2CV2C21G0-IWUVS Manufacturer’s Name Hangzhou Hikvision Digital Technology Co., Ltd. Manufacturer’s Address No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China *Except that the model number and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. Model No. (型号): DS-2CV2C21G0-IW Manufacturer’s Name (生产商名称): Hangzhou Hikvision Digital Technology Co., Ltd. Manufacturer’s Address（生产商商地址): No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Sincerely, Signature (签字): Printed Name (姓名): Xiuying Zhang Position/Title (职位): Senior Certification engineer Contact Number (联系电话): +86-571-88075998

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2021-01-20 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-I0R2C00 To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-I0R2C00 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

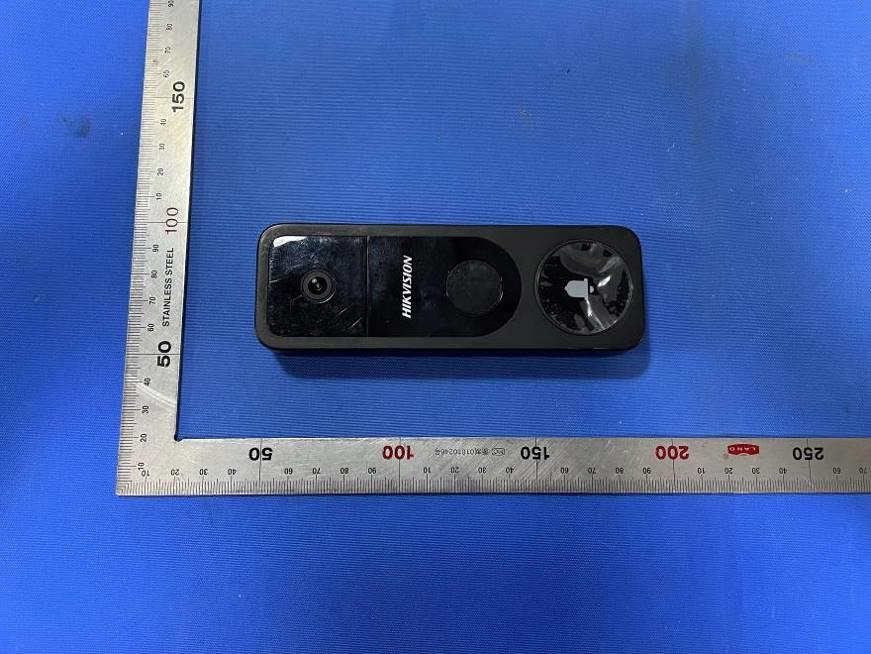

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: NETWORK CAMERA Model No.: DS-2CV2C21G0-IW SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 End

Remark：It's hard to put FCC statement on the product due to device’s irregular appearance and size. FCC statement will be placed in the user manual which the device is marketed. Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 10 Page 1 of 10 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: NETWORK CAMERA Model No.: DS-2CV2C21G0-IW SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 10 Page 2 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 10 Page 3 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 10 Page 4 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 10 Page 5 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 10 Page 6 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 10 Page 7 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 10 Page 8 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 10 Page 9 of 10 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 10 of 10 Page 10 of 10 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201014902 Page: 1 of 9 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2012010149CR FCC ID: 2ADTD-I0R2C00 IC : 20199-I0R2C00 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co.,Ltd Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Chongqing Hikvision technology Co.,Ltd. Address of Factory: 1.No.700, Dongliu Road, Binjiang District, Hangzhou Ctiy, Zhejiang, 310052, China 2.No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County, Hangzhou,Zhejiang,310052,China 3.No.118,Haikang Road,Area C,Jianqiao Industrial Park,Dadukou District,Chongqing,401325,China Equipment Under Test (EUT): EUT Name: NETWORK CAMERA Model No.: DS-2CV2C21G0-IW,DS-2CV2C21G0-IWUHK,DS-2CV2C21G0-IWCKV,DS- 2CV2C21G0-IWHUN,DS-2CV2C21G0-IWKVO,DS-2CV2C21G0-IWUVS Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 RSS-102 Issue 5 (March 2015) Date of Receipt: 2020-12-03 Date of Test: 2020-12-03 to 2020-12-28 Date of Issue: 2020-12-30 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201014902 Page: 2 of 9 For IC Model No.: DS-2CV2C21G0-IW SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201014902 Page: 3 of 9 Revision Record Version Description Date Remark 00 Original 2020-12-30 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201014902 Page: 4 of 9 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 4 3 GENERAL INFORMATION .......................................................................................................................... 5 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 5 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 5 3.3 TEST LOCATION ....................................................................................................................................... 6 3.4 TEST FACILITY .......................................................................................................................................... 6 4 TEST STANDARDS AND LIMITS ............................................................................................................... 7 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 7 4.2 IC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ............................................................................. 7 5 MEASUREMENT AND CALCULATION .................................................................................................... 8 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 8 5.2 MPE CALCULATION ................................................................................................................................. 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201014902 Page: 5 of 9 3 General Information 3.1 General Description of E.U.T. Power supply: AC 16-24V 50/60Hz Serial Number: E98703957 Firmware Version: V5.5.120_201016 3.2 Technical Specifications 2.4GHz Antenna Gain: Antenna 1:0.5dBi(Provided by applicant) Antenna 2:1dBi(Provided by applicant) Directional gain: 3.76dBi Antenna Type: Antenna 1:PCB Antenna Antenna 2:PCB Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201201014902 Page: 6 of 9 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Ce…

Text truncated - open the document above for the full version.

Appendix A for SHEM201201014901 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 6.300 10.050 62.69 2.03 2437 SISO 1 6.300 10.010 62.94 2.01 2462 SISO 1 6.300 10.040 62.75 2.02 802.11g 2412 SISO 1 2.060 10.050 20.50 6.88 2437 SISO 1 2.060 10.050 20.50 6.88 2462 SISO 1 2.060 10.080 20.44 6.90 802.11n(HT20) 2412 MIMO 1 1.920 10.050 19.10 7.19 2437 MIMO 1 1.920 10.020 19.16 7.18 2462 MIMO 1 1.920 10.020 19.16 7.18 802.11n(HT40) 2422 MIMO 1 0.930 10.080 9.23 10.35 2437 MIMO 1 0.940 10.050 9.35 10.29 2452 MIMO 1 0.930 10.590 8.78 10.57 Note：The customer declares that it has reached the maximum duty cycle that the sample can support 1.2 Test Graph 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 9.875 ≥0.5 PASS 2 9.793 ≥0.5 PASS 2437 SISO 1 9.677 ≥0.5 PASS 2 9.700 ≥0.5 PASS 2462 SISO 1 9.711 ≥0.5 PASS 2 9.902 ≥0.5 PASS 802.11g 2412 SISO 1 16.361 ≥0.5 PASS 2 16.440 ≥0.5 PASS 2437 SISO 1 16.415 ≥0.5 PASS 2 16.424 ≥0.5 PASS 2462 SISO 1 16.370 ≥0.5 PASS 2 16.413 ≥0.5 PASS 802.11n(HT20) 2412 MIMO 1 17.369 ≥0.5 PASS 2 17.390 ≥0.5 PASS 2437 MIMO 1 17.333 ≥0.5 PASS 2 17.615 ≥0.5 PASS 2462 MIMO 1 17.544 ≥0.5 PASS 2 17.363 ≥0.5 PASS 802.11n(HT40) 2422 MIMO 1 35.523 ≥0.5 PASS 2 35.143 ≥0.5 PASS 2437 MIMO 1 35.592 ≥0.5 PASS 2 35.414 ≥0.5 PASS 2452 MIMO 1 35.589 ≥0.5 PASS 2 35.709 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 14.889 Only for Report Use 2 14.957 Only for Report Use 2437 SISO 1 14.892 Only for Report Use 2 14.913 Only for Report Use 2462 SISO 1 14.908 Only for Report Use 2 14.897 Only for Report Use 802.11g 2412 SISO 1 16.744 Only for Report Use 2 16.829 Only for Report Use 2437 SISO 1 16.849 Only for Report Use 2 16.785 Only for Report Use 2462 SISO 1 16.792 Only for Report Use 2 16.763 Only for Report Use 802.11n(HT20) 2412 MIMO 1 17.784 Only for Report Use 2 17.820 Only for Report Use 2437 MIMO 1 17.772 Only for Report Use 2 17.796 Only for Report Use 2462 MIMO 1 17.769 Only for Report Use 2 17.764 Only for Report Use 802.11n(HT40) 2422 MIMO 1 36.053 Only for Report Use 2 36.159 Only for Report Use 2437 MIMO 1 36.151 Only for Report Use 2 36.132 Only for Report Use 2452 MIMO 1 36.113 Only for Report Use 2 36.083 Only for Report Use 2.2 Test Graph - 6dB Bandwidth 2.3 Test Graph - 99% Occupied Bandwidth 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 Ant 2 Total 802.11b 2412 SISO 17.80 14.84 / 30 PASS 2437 SISO 17.83 15.33 / 30 PASS 2462 SISO 17.67 15.87 / 30 PASS 802.11g 2412 SISO 19.98 16.29 / 30 PASS 2437 SISO 19.91 17.07 / 30 PASS 2462 SISO 19.35 17.35 / 30 PASS 802.11n(HT20) 2412 MIMO 19.85 16.25 21.42 30 PASS 2437 MIMO 19.89 16.89 21.65 30 PASS 2462 MIMO 19.16 17.20 21.30 30 PASS 802.11n(HT40) 2422 MIMO 19.86 16.59 21.54 30 PASS 2437 MIMO 19.69 17.15 21.61 30 PASS 2452 MIMO 19.41 17.35 21.51 30 PASS 3.2 Test Graph

4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 Ant 2 Total 802.11b 2412 SISO -7.81 -11.42 / ≤8 PASS 2437 SISO -7.73 -10.83 / ≤8 PASS 2462 SISO -8.31 -8.46 / ≤8 PASS 802.11g 2412 SISO -12.35 -15.86 / ≤8 PASS 2437 SISO -12.65 -15.38 / ≤8 PASS 2462 SISO -12.17 -14.43 / ≤8 PASS 802.11n(HT20) 2412 MIMO -13.33 -17.26 -11.86 ≤8 PASS 2437 MIMO -12.95 -16.34 -12.24 ≤8 PASS 2462 MIMO -13.91 -15.28 -12.71 ≤8 PASS 802.11n(HT40) 2422 MIMO -15.16 -18.74 -14.57 ≤8 PASS 2437 MIMO -15.17 -18.55 -14.20 ≤8 PASS 2452 MIMO -16.10 -17.00 -14.75 ≤8 PASS 4.2 Test Graph 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -14.24 PASS 2 Refer to test graph -14.24 PASS 2437 SISO 1 Refer to test graph -14.24 PASS 2 Refer to test graph -14.24 PASS 2462 SISO 1 Refer to test graph -14.24 PASS 2 Refer to test graph -14.24 PASS 802.11g 2412 SISO 1 Refer to test graph -18.42 PASS 2 Refer to test graph -18.42 PASS 2437 SISO 1 Refer to test graph -18.42 PASS 2 Refer to test graph -18.42 PASS 2462 SISO 1 Refer to test graph -18.42 PASS 2 Refer to test graph -18.42 PASS 802.11n(HT20) 2412 MIMO 1 Refer to test graph -20.99 PASS 2 Refer to test graph -20.99 PASS 2437 MIMO 1 Refer to test graph -20.99 PASS 2 Refer to test graph -20.99 PASS 2462 MIMO 1 Refer to test graph -20.99 PASS 2 Refer to test graph -20.99 PASS 802.11n(HT40) 2422 MIMO 1 Refer to test graph -23.57 PASS 2 Refer to test graph -23.57 PASS 2437 MIMO 1 Refer to test graph -23.57 PASS 2 Refer to test graph -23.57 PASS 2452 MIMO 1 Refer to test graph -23.57 PASS 2 Refer to test graph -23.57 PASS 5.2 Test Graph

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201014901 Page: 1 of 69 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2012010149CR FCC ID: 2ADTD-I0R2C00 IC: 20199-I0R2C00 Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Chongqing Hikvision technology Co.,Ltd, Address of Factory: 1.No.700,Dongliu Road,Binjiang District,Hangzhou Ctiy,Zhejiang,310052,China 2.No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County,Hangzhou,Zhejiang,310052,China. 3.No.118,Haikang Road, Area C, Jianqiao Industrial Park, Dadukou District, Chongqing, 401325,China Equipment Under Test (EUT): EUT Name: NETWORK CAMERA Model No.: DS-2CV2C21G0-IW,DS-2CV2C21G0-IWUHK,DS-2CV2C21G0- IWCKV,DS-2CV2C21G0-IWHUN,DS-2CV2C21G0-IWKVO,DS- 2CV2C21G0-IWUVS¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISION Standard(s) : 47 CFR Part 15, Subpart C 15.247 RSS-247 Issue 2, February 2017 RSS-Gen Issue 5, March 2019 Amendment 1 Date of Receipt: 2020-12-03 Date of Test: 2020-12-03 to 2020-12-28 Date of Issue: 2020-12-30 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201014901 Page: 2 of 69 For IC Model No.: DS-2CV2C21G0-IW SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201014901 Page: 3 of 69 Revision Record Version Description Date Remark 00 Original 2020-12-30 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201201014901 Page: 4 of 69 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart …

Text truncated - open the document above for the full version.
