QF094234 Page 1 of 1 Revision 0 Authority to Act as Agent Date: 18 June 2020 TUV Rheinland Group 762 Park Avenue Youngsville, NC 27596 To Whom It May Concern: I appoint TUV Rheinland (Shenzhen) Co., Ltd.to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Hangzhou Hikvision Digital Technology Co.,Ltd. / No. 555 Qianmo Road, Binjiang District, Hangzhou, 310052 Zhejiang, P.R. China For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 17 July 2021 By : Xiuying Zhang (Print Name) Title : Certification Manager Te le phone : +86-571-88075998 On be half of : Hangzhou Hikvision Digital Technology Co.,Ltd. (Company Name)

Confidentiality Letter Date: 19 Jun. 2020 Subject: Confidentiality Request for FCC ID: 2ADTD-K1T201AMF Pursuant to FCC 47 CRF 0.457(d) and 0.459, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Hangzhou Hikvision Digital Technology Co.,Ltd. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04- 1705. Sincerely, By: Xiuying Zhang (Signature/Title) (Print name)

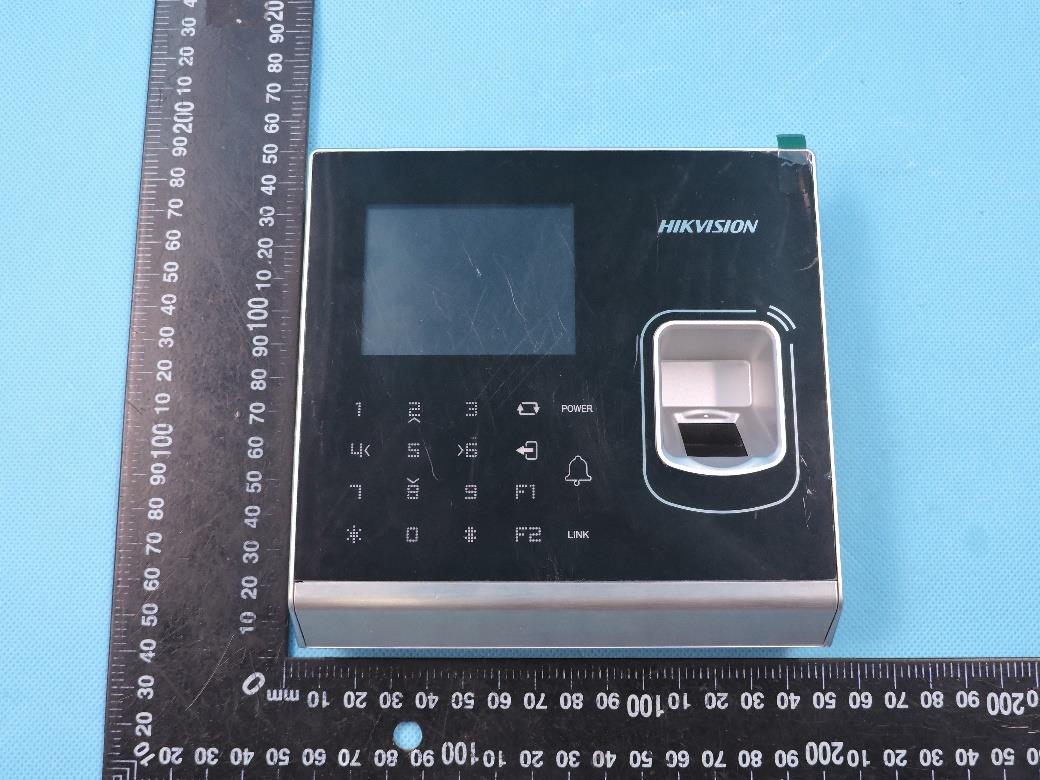

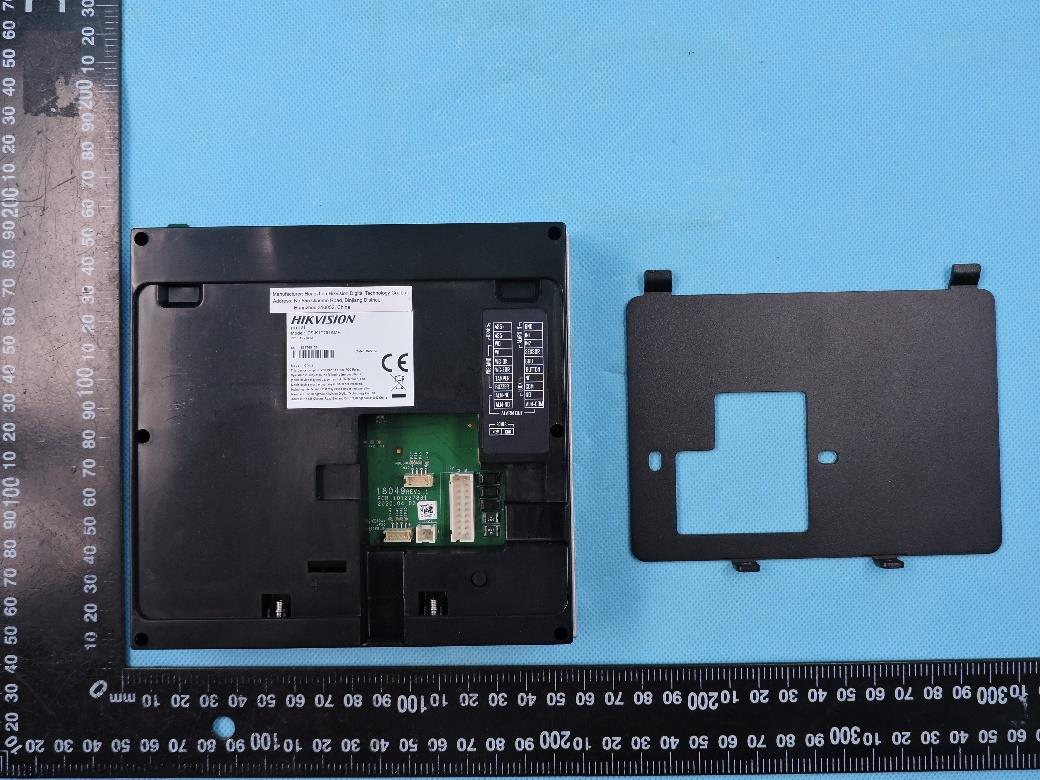

External Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 1 of 4 External Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 2 of 4 External Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 3 of 4 External Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 4 of 4 --THE END--

Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 1 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 2 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 3 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 4 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 5 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 6 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 7 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 8 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 9 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 10 of 11 Internal Photos of EUT Report No.: 60381593 001 Model No. : DS-K1T201AMF Page: 11 of 11 --THE END--

1 RF Exposure Compliance 1.1 Test Standards 1.2 Limits of FCC SAR Test Exclusion Thresholds for 100 MHz – 6 GHz For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR Where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation 1.3 Limits of FCC SAR Test Exclusion Thresholds for below 100MHz For frequencies below 100 MHz, the following may be considered for SAR test exclusion: 1) For test separation distances > 50 mm and < 200 mm, the power threshold at the corresponding test separation distance at 100 MHz in step b) is multiplied by [1 + log(100/f(MHz))] 2) For test separation distances ≤ 50 mm, the power threshold determined by the equation in 1) for 50 mm and 100 MHz is multiplied by ½ Test standard : FCC 47 CFR Part 2 Section 2.1093 447498 D01 General RF Exposure Guidance v06 FCC ID : 2ADTD-K1T201AMF 1.4 Test Result a) Stand-alone Operation Mode Operating Mode Band Maximum Average Power level (mW) Separation Distance (mm) FCC Extremity SAR Test Exclusion Thresholds Limit (mW) Result Wi-Fi 2.4GHz 24.55 5.00 25.00 PASS RFID 13.56MHz 10^((64.69- 97.38)/10) =0.001 <50.00 442.65 PASS b) Simultaneous Transmission Operation Mode Operating Mode WiFi Ratio RFID Ratio Sum Ratio Limit Ratio (≤1) Result Wi-Fi + RFID 0.982 2*10^-6 0.982 1 PASS Note: 1. The 10-g Extremity SAR Test Exclusion Power Thresholds are 2.5 times higher than the 1-g SAR Test Exclusion Thresholds. 2. The Max. RF output power refer to test report 60381593 001 and STS2005284W04.

Produkte Products Prüfbericht-Nr.: Test report No.: 60381593 001 Auftrags-Nr.: Order No.: 168266209 Seite 1 von 16 Page 1 of 16 Kunden-Referenz-Nr.: Client reference No.: N/A Auftragsdatum: Order date.: 22.05.2020 Auftraggeber: Client: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, Hangzhou, 310052 Zhejiang, P.R. China Prüfgegenstand: Test item: Fingerprint Access Control Terminal Bezeichnung / Typ-Nr.: Identification / Type No.: DS-K1T201AMF, DS-K1T201AMFUHK, DS-K1T201AMFCKV, DS-K1T201AMFUVS, DS-K1T201AMFKVO, DS-K1T201AMFHUN (Trademark: HIKVISION) Auftrags-Inhalt: Order content: FCC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of receipt: 27.05.2020 Please refer to photo documents Prüfmuster-Nr.: Test sample No.: A002831817-002 A002831817-004 Prüfzeitraum: Testing period: 27.05.2020 - 08.06.2020 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: kontrolliert von / reviewed by: 15.06.2020 Ryan Yang / Assistant Project Manager 15.06.2020 Winnie Hou / Technical Certif ier Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: This report is f or FCC Part 15C(Conducted) of Wi-Fi 802.11 b/g/n requirements only. Ref er to STS report STS2005284W03 f or details of FCC Part 15C(Radiated) of Wi-Fi 802.11 b/g/n requirements. FCC ID: 2ADTD-K1T201A MF Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = bef riedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = v ery good 2 = good 3 = satisfactory 4 = suf ficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = f ailed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfm uster und darf ohne Genehm igung der Prüfstelle nicht auszugsw eise vervielfältigt w erden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V04 duplicated in extracts. This test report does not entitle to carry any test mark. T ÜV Rheinland (Shenzhen) Co., Ltd., 1F East & 2-4F, Cybio T echnology Building No.1, No.16 Langshan 2nd Road, High-Tech Industrial Park North Nanshan District, 518057, Shenzhen, China http://www.tuv.com Produkte Products Prüfbericht - Nr.: Test Report No. 60381593 001 Seite 2 von 16 Page 2 of 16 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 6DB BANDWIDTH RESULT: Pass 5.1.5 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 60381593 001 Seite 3 von 16 Page 3 of 16 Contents 1 GENERAL REMARKS .......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................. 4 2 TEST SITES ..................................................................................................................... 5 2.1 TEST FACILITIES ............................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ..................................................................... 5 2.3 TRACEABILITY.................................................................................................................. 5 2.4 CALIBRATION................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY ............................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA ............................................................................................. 6 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................... 6 3 GENERAL PRODUCT INFORMATION........................................................................................ 7 3.1 PRODUCT FUNCTION AND INTENDED USE................................................................................ 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................... 7 3.3 INDEPENDENT OPERATION MODES ........................................................................................ 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS............................................................... 8 3.5 SUBMITTED DOCUMENTS .................................................................................................... 8 4 TEST SET-UP AND OPERATION MODES................................................................................... 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................................. 9 4.2 TEST OPERATION AND TEST SOFTWARE................................................................................. 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................................. 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ............................................................... 9 4.5 TEST SETUP DIAGRAM ...................................................................................................…
