2ADTD-K1T672MWFace Recognition Terminal

UDB The figures are for reference only. Direct Sunlight Direct Sunlight through Window Backlight Indirect Sunlight through Window Close to Light Installation Environment: Indoor installation is supported. The device should be at least 2 meters away from the light, and at least 3 meters away from the window or the door. The additional force shall be equal to three times the weight of the equipment but not less than 50N. The equipment and its associated mounting means shall remain secure during the installation. After the installation, the equipment, including any associated mounting plate, shall not be damaged. IR Light Screen CameraCamera IR Light Debugging Port (For debugging only) Wiring Terminal PSAM Card Slot (Reserved) TAMPER Network Interface 185.8 mm 103.36 mm 20.7mm 91.84±0.15 mm 10.2±0.15 mm Card Presenting Area microUSB (Use microUSB to USB cabe to connect with USB interface) DS-K1T672 Series Face Recognition Terminal Quick Start Guide ©2019 Hangzhou Hikvision Digital Technology Co., Ltd. It includes instructions on how to use the Product. The software embodied in the Product is governed by the user license agreement covering that Product. About this Manual This Manual is subject to domestic and international copyright protection. Hangzhou Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Trademarks and other Hikvision marks are the property of Hikvision and are registered trademarks or the subject of applications for the same by Hikvision and/or its affiliates. Other trademarks mentioned in this manual are the properties of their respective owners. No right of license is given to use such trademarks without express permission. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Data Protection During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method; for fingerprint device, only fingerprint template will be saved, which is impossible to reconstruct a fingerprint image. As data controller, you are advised to collect, store, process and transfer data in accordance with the applicable data protection laws and regulations, including without limitation, conducting security controls to safeguard personal data, such as, implementing reasonable administrative and physical security controls, conduct periodic reviews and assessments of the effectiveness of your security controls. Scan the QR code to get the user manual for detailed information. Note that mobile data charges may apply if Wi-Fi is unavailable. Use only power supplies listed in the user instructions: When connecting door magnetic sensor and exit button, the device and the RS-485 card reader should use the common ground connection. The Wiegand termimal here is a Wiegand input terminal. You should set the face recognition terminal’s Wiegand direction to “Input”. If you should connect to an access controller, you should set the Wiegand direction to “Output”. For details, see Setting Wiegand Parameters in Communication Settings in the user manual. The suggested external power supply for door lock is 12 V, 1A. The suggested external power supply for Wiegand card reader is 12 V, 1 A. For wiring the fire system, see the user manual. Model Manufacture Standard ADS-26FSG-12 12024EPG Shenzhen Honor Electronic Co.,Ltd PG MSA-C2000IC12.0-24P-DE MOSO Technol ogy Co.,Ltd PDE ADS-26FSG-12 12024EPB Shenzhen Honor Electronic Co.,Ltd PB ADS-26FSG-12 12024EPCU/EPC Shenzhen Honor Electronic Co.,Ltd PCU ADS-2 6FSG-1 2 12024EPI-0 1 Shenzhen Honor Electronic Co.,Ltd PI ADS-26FSG-12 12024EPBR Shenzhen Honor Electronic Co.,Ltd PBR 1 Installation 2 Appearance 3.1 Device Wiring (Normal) Network Interface Wiegand Door Lock RS-485 Alarm Output Alarm Input GND Black Green White Yellow Blue Black White/Purple White/Yellow Yellow/Green White/Red Black Yellow/Grey GND GND Yellow/Black GND BTN 12V Power Supply Wiegand Card Reader Group B Group D C1 C2 C3 C4 C5 C6 IN2 GND IN1 Yellow/Orange Black Yellow/Blue Red Black Yellow/Red Yellow/Brown Yellow/Purple NO COM NC B1 B2 B3 B4 B5 B6 D6 D7 D1 D2 D3 D4 D5 (NC) (COM) NO COM NC NO COM NC (NO) Alarm Input Device Alarm Output Device Alarm Output Device Po…

Text truncated - open the document above for the full version.

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020-03-10 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-K1T672MW To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-K1T672MW LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

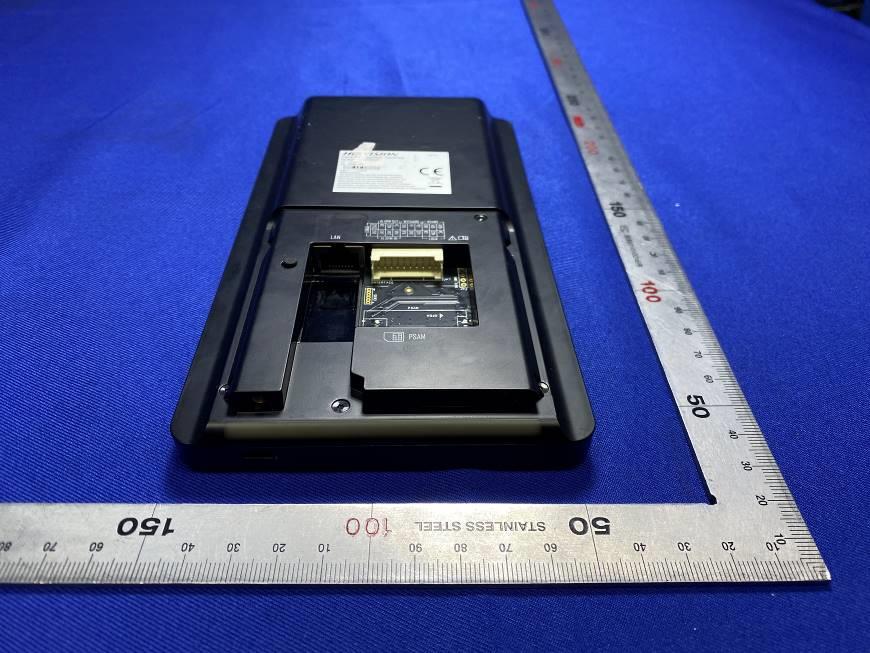

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Face Recognition Terminal Model No.: DS-K1T672MW SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 End

Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 9 Page 1 of 9 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Face Recognition Terminal Model No.: DS-K1T672MW SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 9 Page 2 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 9 Page 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 9 Page 4 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 9 Page 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 9 Page 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 9 Page 7 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 9 Page 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 9 Page 9 of 9 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201994603 Page: 1 of 8 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM1912019946CR FCC ID: 2ADTD-K1T672MW Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1. No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China 3. No. 555, Qianmo Road, Binjiang District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: Face Recognition Terminal Model No.: DS-K1T672MW Add Model No.: DS-K1T672M, DS-K1T672DW, DS-K1T672D, DS-K5672MW-Z, DS- K5672M-Z, DS-K1T672MWUHK, DS-K1T672MWCKV, DS- K1T672MWUVS, DS-K1T672MWKVO, DS-K1T672MWHUN, DS- K1T672MUHK, DS-K1T672MCKV, DS-K1T672MUVS, DS-K1T672MKVO, DS-K1T672MHUN, DS-K5672M-ZUHK, DS-K5672M-ZCKV, DS-K5672M- ZUVS, DS-K5672M-ZKVO, DS-K5672M-ZHUN Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2019-12-20 Date of Test: 2019-12-26 to 2020-01-13 Date of Issue: 2020-01-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201994603 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2020-01-21 / Authorized for issue by: Vincent Zhu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM190801591503 Page: 3 of 8 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION ........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4 3.2 TECHNICAL SPECIFICATIONS .......................................................................................................................... 4 3.3 TEST LOCATION ............................................................................................................................................. 5 3.4 TEST FACILITY ............................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................. 6 5 MEASUREMENT AND CALCULATION ..................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ........................................................................................................................ 7 5.2 MPE CALCULATION ....................................................................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM190801591503 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V 2A Test voltage: AC 120V 60Hz 3.2 Technical Specifications 2.4G WiFi Antenna Gain 2.8dBi Antenna Type Integral Antenna Channel Spacing 5MHz Modulation Type 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz 13.56MHz: Antenna Type Loop antenna Modulation Type ASK Number of Channels 1 Operation Frequency 13.56MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM190801591503 Page: 5 of 8 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China. Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (LAB CODE: 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National V…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201994601 Page: 1 of 59 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM1912019946CR FCC ID: 2ADTD-K1T672MW Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1.Hangzhou Hikvision Technology Co., Ltd. 2.Hangzhou Hikvision Electronics Co., Ltd. 3.Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1. No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2. No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China 3. No. 555, Qianmo Road, Binjiang District, Hangzhou City, Zhejiang Province,China Equipment Under Test (EUT): EUT Name: Face Recognition Terminal Model No.: DS-K1T672MW, DS-K1T672M, DS-K1T672DW, DS-K1T672D, DS- K5672MW-Z, DS-K5672M-Z, DS-K1T672MWUHK, DS-K1T672MWCKV, DS-K1T672MWUVS, DS-K1T672MWKVO, DS-K1T672MWHUN, DS- K1T672MUHK, DS-K1T672MCKV, DS-K1T672MUVS, DS-K1T672MKVO, DS-K1T672MHUN, DS-K5672M-ZUHK, DS-K5672M-ZCKV, DS-K5672M- ZUVS, DS-K5672M-ZKVO, DS-K5672M-ZHUN ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISION Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2019-12-20 Date of Test: 2019-12-26 to 2020-01-13 Date of Issue: 2020-01-21 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201994601 Page: 2 of 59 Revision Record Version Description Date Remark 00 Original 2020-01-21 / Authorized for issue by: Vincent Zhu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201994601 Page: 3 of 59 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Custome r Declarati on Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Note: Declaration of EUT Family Grouping: There are series models mentioned in this report and they are the similar in electrical and electronic characters. Only the model DS-K1T672MW was tested since their differences are model number, trade name and appearance. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM191201994601 Page: 4 of 59 3 Contents Page 1 COVER PAGE ............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T. ................................................................................................................................ 5 4.2 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY .............................................................................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM191201994601 1.6dB Bandwidth Test Mode Test Channel Ant EBW[MHz] Limit Verdict 11B 2412 Ant1 10.05 0.5 PASS 11B 2437 Ant1 10.05 0.5 PASS 11B 2462 Ant1 10.04 0.5 PASS 11G 2412 Ant1 16.57 0.5 PASS 11G 2437 Ant1 16.57 0.5 PASS 11G 2462 Ant1 16.57 0.5 PASS 11N20SISO 2412 Ant1 17.79 0.5 PASS 11N20SISO 2437 Ant1 17.80 0.5 PASS 11N20SISO 2462 Ant1 17.78 0.5 PASS 11N40SISO 2422 Ant1 36.07 0.5 PASS 11N40SISO 2437 Ant1 36.09 0.5 PASS 11N40SISO 2452 Ant1 36.05 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N40SISO_2422_Ant1 6dB Bandwidth_11N40SISO_2437_Ant1 6dB Bandwidth_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict 11B 2412 Ant1 14.85 --- PASS 11B 2437 Ant1 14.93 --- PASS 11B 2462 Ant1 15.04 --- PASS 11G 2412 Ant1 17.08 --- PASS 11G 2437 Ant1 17.17 --- PASS 11G 2462 Ant1 17.32 --- PASS 11N20SISO 2412 Ant1 18.04 --- PASS 11N20SISO 2437 Ant1 18.11 --- PASS 11N20SISO 2462 Ant1 18.24 --- PASS 11N40SISO 2422 Ant1 36.45 --- PASS 11N40SISO 2437 Ant1 36.44 --- PASS 11N40SISO 2452 Ant1 36.55 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412 Occupied Bandwidth_11B_2437 Occupied Bandwidth_11B_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412 Occupied Bandwidth_11G_2437 Occupied Bandwidth_11G_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412 Occupied Bandwidth_11N20SISO_2437 Occupied Bandwidth_11N20SISO_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N40SISO_2422 Occupied Bandwidth_11N40SISO_2437 Occupied Bandwidth_11N40SISO_2452 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Ant Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict 11B 2412 Ant1 13.57 0.00 13.57 30 PASS 11B 2437 Ant1 14.45 0.00 14.45 30 PASS 11B 2462 Ant1 15.23 0.00 15.23 30 PASS 11G 2412 Ant1 10.44 0.00 10.44 30 PASS 11G 2437 Ant1 11.03 0.00 11.03 30 PASS 11G 2462 Ant1 11.71 0.00 11.71 30 PASS 11N20SISO 2412 Ant1 9.39 0.00 9.39 30 PASS 11N20SISO 2437 Ant1 10.43 0.00 10.43 30 PASS 11N20SISO 2462 Ant1 11.29 0.00 11.29 30 PASS 11N40SISO 2422 Ant1 9.34 0.00 9.34 30 PASS 11N40SISO 2437 Ant1 9.95 0.00 9.95 30 PASS 11N40SISO 2452 Ant1 10.48 0.00 10.48 30 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N40SISO_2422_Ant1 Maximum conducted (average) output power_11N40SISO_2437_Ant1 Maximum conducted (average) output power_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 4.Maximum(average) power spectral density Test Mode Test Channel Ant Level [dBm/3kHz] 10log(1/x) Factor[dB] PSD[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -19.10 0.00 -19.10 8.00 PASS 11B 2437 Ant1 -18.30 0.00 -18.30 8.00 PASS 11B 2462 Ant1 -17.53 0.00 -17.53 8.00 PASS 11G 2412 Ant1 -24.31 0.00 -24.31 8.00 PASS 11G 2437 Ant1 -23.70 0.00 -23.70 8.00 PASS 11G 2462 Ant1 -23.05 0.00 -23.05 8.00 PASS 11N20SISO 2412 Ant1 -25.47 0.00 -25.47 8.00 PASS 11N20SISO 2437 Ant1 -24.42 0.00 -24.42 8.00 PASS 11N20SISO 2462 Ant1 -23.75 0.00 -23.75 8.00 PASS 11N40SISO 2422 Ant1 -28.40 0.00 -28.40 8.00 PASS 11N40SISO 2437 Ant1 -27.75 0.00 -27.75 8.00 PASS 11N40SISO 2452 Ant1 -27.34 0.00 -27.34 8.00 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11B_2412_Ant1 Maximum(average) power spectral density_11B_2437_Ant1 Maximum(average) power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11G_2412_Ant1 Maximum(average) power spectral density_11G_2437_Ant1 Maximum(average) power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N20SISO_2412_Ant1 Maximum(average) power spectral density_11N20SISO_2437_Ant1 Maximum(average) power spectral density_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N40SISO_2422_Ant1 Maximum(average) power spectral density_11N40SISO_2437_Ant1 Maximum(average) power spectral density_11N40SISO_2452_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 5.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 3.85 -30.38 -26.15 PASS 11B 2462 Ant1 5.57 -32.13 -24.43 PASS 11G 2412 Ant1 -7.96 -38.82 -37.96 PASS 11G 2462 Ant…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 7 Page 1 of 7 Test Setup Photos-FCC Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Face Recognition Terminal Model No.: DS-K1T672MW SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 7 Page 2 of 7 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................. 3 2.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup ......... 3 2.2 RF Conducted Test Setup ................................................................................. 4 2.3 Spurious emissions ........................................................................................... 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 7 Page 3 of 7 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emissions at AC Power Line (150kHz-30MHz) Test Setup 2.4GHz 13.56MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 7 Page 4 of 7 2.2 RF Conducted Test Setup SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 7 Page 5 of 7 2.3 Spurious emissions 2.4GHz 30MHz-1GHz Above 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 7 Page 6 of 7 Zoom: 13.56MHz Below 30MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 7 Page 7 of 7 30MHz-1GHz Zoom End
