2ADTD-K1T804AEFFingerprint Access Control Terminal

Fingerprint Access Control Terminal Quick Start Guide UD17820B 1 2 3 Activation Mounting Screw Appearance Installation 1. Install 120 or 86gang box into the wall. 2. Route the cables through the cable hole of the mounting plate. 3. Secure the device mounting plate on the gang box with two screws. (Supplied). 4. Connect the corresponding cables. 5. Align the terminal with mounting plate. Push the terminal in the mounting plate from bottom up. Fasten the terminal with the buckles on the plate. 6. Tighten the screws to fix the terminal on the mounting plate and complete the installation. The default values of the terminal are as follows: • The default IP address: 192.0.0.64 • The default port No.: 8000 • The default user name: admin Activating via SADP 1. Download SADP SoftwareGet the SADP software from the supplied disk or the official website. Install and run the software. 2. Activate Device: Check the inactive device from the device list. Create a password in the right side of the interface and confirm the password. 3. Edit Device IP Address: Check the device and manually edit the device IP address, Port No., Subnet Mask, Gateway, etc. Activating via Client Software STRONG PASSWORD RECOMMENDED We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product. Activating via Device Power on and wire the network cable after installation. You should activate the device before the first login. After powering on, the interface will be displayed as follows. You can create the device password and confirm the password to activate. Online Devices (2) Add to Client IP xxxxxxxxxxxxxxxxxxxxxxxxxxXX-XXXXXX8000Activate Device TypeFirmware VersionServer PortSecurityDevice Serial No. Add AllModify Netinfo Reset Password Activate Filter Refresh Every 60s xx.xx.xx.xx xxxxxxxxxxxxxxxxxxxxxxxxxxXX-XXXXXX 8000Inactivate xx.xx.xx.xx 2.4-inch LCD Display Screen Indicator Keypad Fingerprint Reading Module Door Bell Button 12V Power Interface USB Interface/ Reset Button (Inside of the Cover) Ethernet Port Door Lock Wiring Terminal Alarm Wiring Terminal RS-485/Wiegand Wiring Terminal Tamper-proof Button ESCOK 1 2 ABC 3 DEF 4 GHI 6 MNO 7 PQRS 8 TUV 9 WXYZ 0 5 JKL Exiting Key Direction Keys Numeric Keys/ Letter Keys OK Key Editing Key Deleting Key EN OK Key: Press to confirm operations. Press and hold the key for 3s to login the main interface. Deleting Key: 1.Press to delete the letters or numbers one by one; 2.Long-press to clear all contents in the textbox; Numeric Keys/Letter Keys: Input numbers or letters. Exiting Key: Press the button to exit the menu. Direction Keys: Use , , and to move the cursor. Editing Key: Press to enter the editing status. Shift among numbers/lowercases, numbers/uppercases and symbols. Note: Long press Key 6 for 3s to enter One-Touch Wi-Fi Settings mode. You can set Wi-Fi parameters for the device via the App on the phone. Press Key 6 again to exit the mode. (The model with “-1” does not support One-Touch Wi-Fi Settings mode.) Keypad Descriptions Anticlockwise Rotation ©2019 Hangzhou Hikvision Digital Technology Co., Ltd. It includes instructions on how to use the Product. The software embodied in the Product is governed by the user license agreement covering that Product. About this Manual This Manual is subject to domestic and international copyright protection. Hangzhou Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Trademarks and other Hikvision marks are the property of Hikvision and are registered trademarks or the subject of applications for the same by Hikvision and/or its affiliates. Other trademarks mentioned in this manual are the properties of their respective owners. No right of license is given to use such trademarks without express permission. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTO- RY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-IN- FRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILI- TY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. 1. Get the client software from the supplied disk or the official website. Install and run the client software. 2. Click Device Management to enter the Device Management interface. 3. Select an inactive device from the O…

Text truncated - open the document above for the full version.

Hangzhou Hikvision Digital Technology Co., Ltd. Date: 2020-02-26 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2ADTD-K1T804AEF To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Hikvision Digital Technology Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Xiuying Zhang Title: Senior Certification engineer Signature: On behalf of Company: Hangzhou Hikvision Digital Technology Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Hikvision Digital Technology Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Hikvision Digital Technology Co., Ltd. No. 555 Qianmo Road, Binjiang District, angzhou 310052, China Regarding: Confidentiality Request regarding application for FCC ID: 2ADTD-K1T804AEF LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Xiuying Zhang Title: Senior Certification engineer Company Name: Hangzhou Hikvision Digital Technology Co., Ltd.

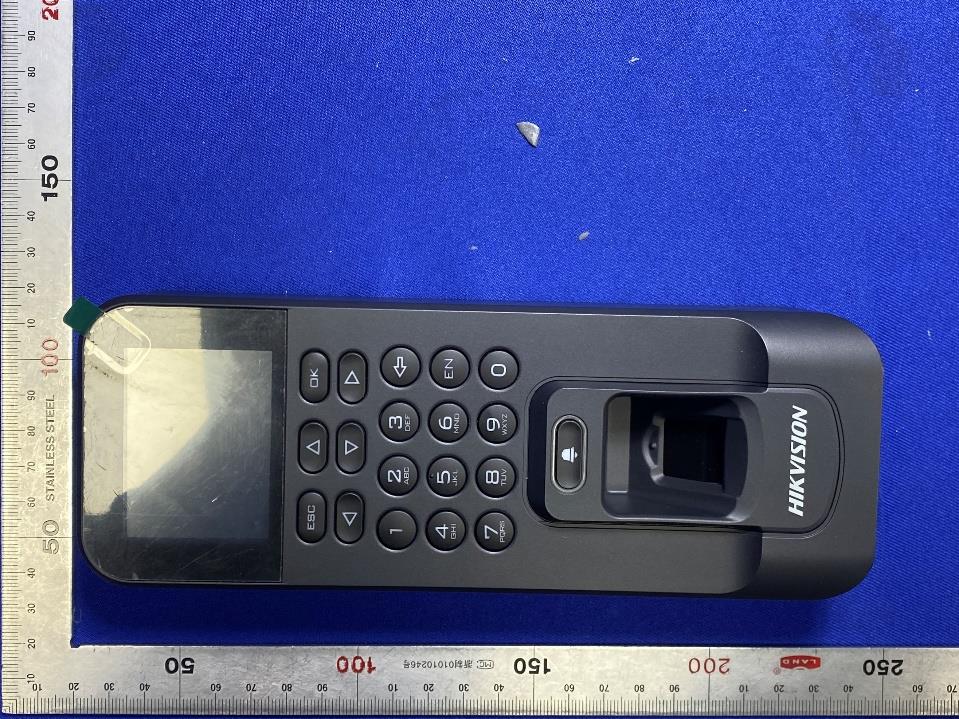

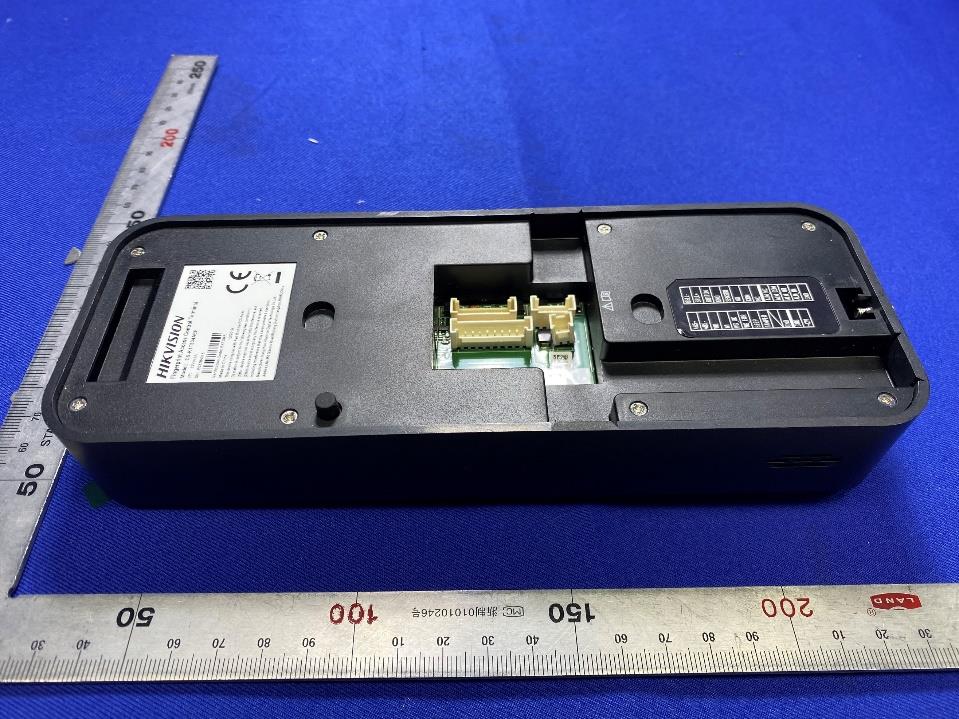

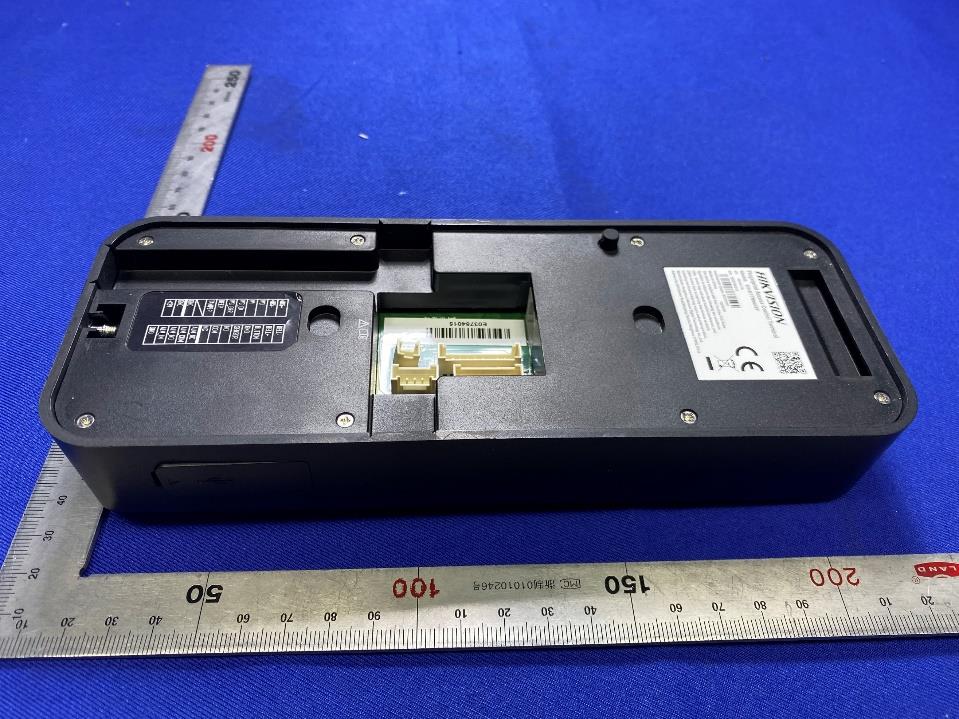

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Fingerprint Access Control Terminal Model No.: DS-K1T804AEF SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 End

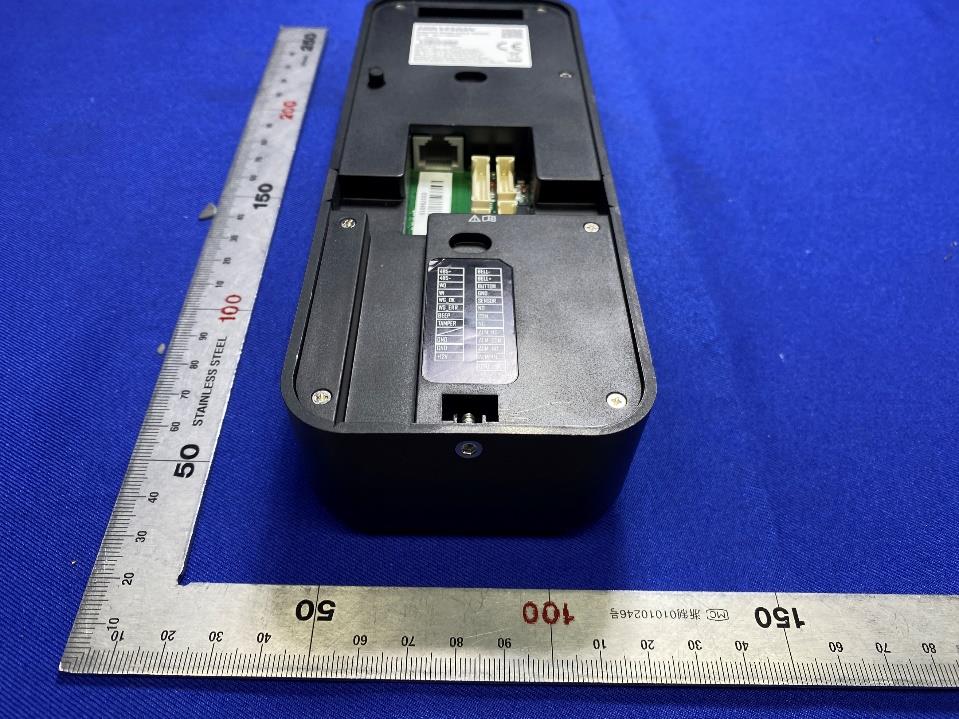

Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 7 Page 1 of 7 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Fingerprint Access Control Terminal Model No.: DS-K1T804AEF SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 7 Page 2 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 7 Page 3 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 7 Page 4 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 7 Page 5 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 7 Page 6 of 7 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 7 Page 7 of 7 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100016903 Page: 1 of 8 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM2001000169CR FCC ID: 2ADTD-K1T804AEF Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1, Hangzhou Hikvision Technology Co., Ltd. 2, Hangzhou Hikvision Electronics Co., Ltd. 3, Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1, No.700, Dongliu Road, Binjiang District, Hangzhou City, Zhejiang, 310052, China 2, No.299, Qiushi Road, Tonglu Economic Development Zone, Tonglu County, Hangzhou, Zhejiang, 310052, China. 3, No. 555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): EUT Name: Fingerprint Access Control Terminal Model No.: DS-K1T804AEF Add Model No.: DS-K1T804AEFUHK,DS-K1T804AEFCKV,DS-K1T804AEFUVS,DS- K1T804AEFKVO,DS-K1T804AEFHUN Trade mark: HIKVISION Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-02-21 Date of Test: 2020-01-10 to 2020-01-20 Date of Issue: 2020-02-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100016903 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2020-02-22 / Authorized for issue by: Micheal Niu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100016903 Page: 3 of 8 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION ........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4 3.2 TECHNICAL SPECIFICATIONS .......................................................................................................................... 4 3.3 TEST LOCATION ............................................................................................................................................. 5 3.4 TEST FACILITY ............................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................. 6 5 MEASUREMENT AND CALCULATION ..................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ........................................................................................................................ 7 5.2 MPE CALCULATION ....................................................................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100016903 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V 1A by adapter Test voltage: AC 120V 60Hz 3.2 Technical Specifications 2.4G WiFi Antenna Gain 2.42 dBi Antenna Type PCB Antenna Channel Spacing 5MHz Modulation Type 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels 802.11b/g/n(HT20):11 802.11n(HT40):7 Operation Frequency 802.11b/g/n(HT20): 2412MHz to 2462MHz 802.11n(HT40): 2422MHz to 2452MHz 125kHz Antenna Type Loop Antenna Modulation Type ASK Number of Channels 1 Operation Frequency 125kHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200100016903 Page: 5 of 8 3.3 Test Location All tests were performed at: All measurement facilities used to collect the measurement data are located at No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC –Designation Number: CN1172 Compliance Certification Services Inc. has been recognized as an accredited testin…
