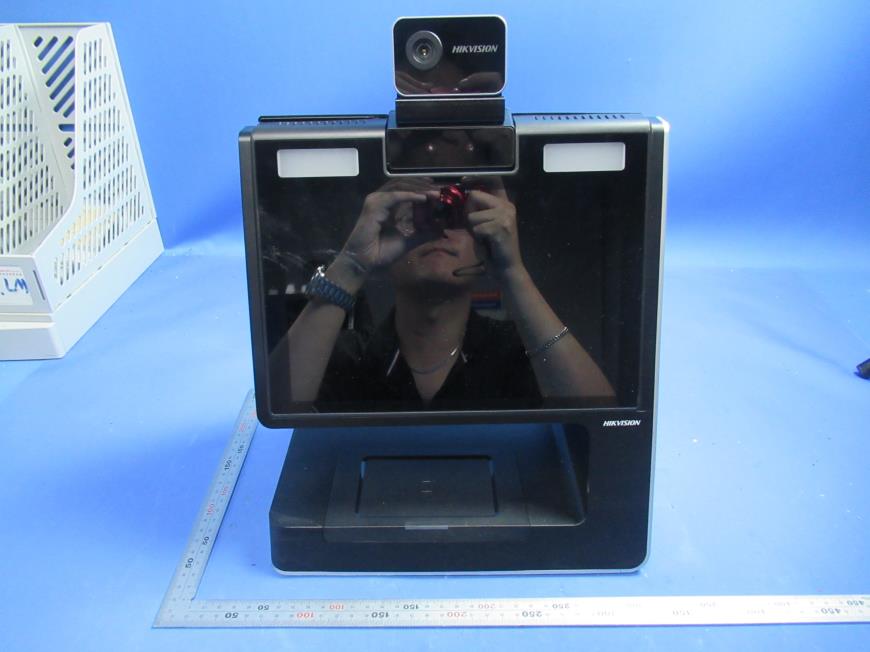

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 4 Page 1 of 4 External Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Visitor Terminal Model No.: DS-K5032-3XFD SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 4 Page 2 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 4 Page 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 4 Page 4 of 4 End

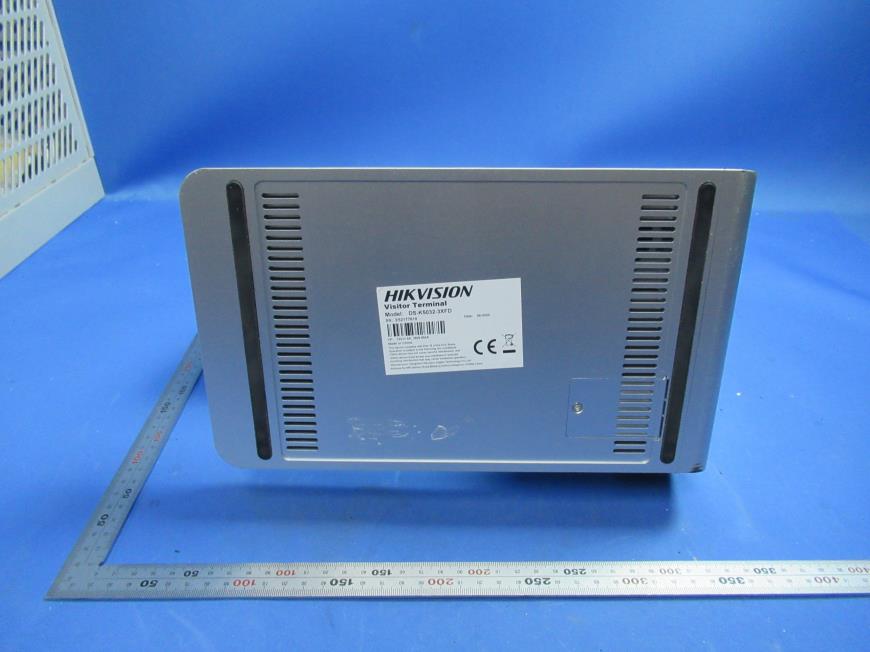

Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 16 Page 1 of 16 Internal Photos Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Visitor Terminal Model No.: DS-K5032-3XFD SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 16 Page 2 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 16 Page 3 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 16 Page 4 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 16 Page 5 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 16 Page 6 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 16 Page 7 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 16 Page 8 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 16 Page 9 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 10 of 16 Page 10 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 11 of 16 Page 11 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 12 of 16 Page 12 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 13 of 16 Page 13 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 14 of 16 Page 14 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 15 of 16 Page 15 of 16 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 16 of 16 Page 16 of 16 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531603 Page: 1 of 8 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF Exposure Evaluation Report Application No.: SHEM2007005314CR FCC ID: 2ADTD-K50323XFD Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1, Hangzhou Hikvision Technology Co., Ltd. 2, Hangzhou Hikvision Electronics Co., Ltd. 3, Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1, No.700,Dongliu Road, Binjiang District, Hangzhou City,Zhejiang, 310052, China 2, No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County, Hangzhou,Zhejiang,310052,China. 3, No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Equipment Under Test (EUT): EUT Name: Visitor Terminal Model No.: DS-K5032-3XFD Add Model No.: DS-K5032-3XFDUHK,DS-K5032-3XFDCKV,DS-K5032-3XFDUVS,DS- K5032-3XFDKVO,DS-K5032-3XFDHUN,DS-K5032-D,DS-K5032- DUHK,DS-K5032-DCKV,DS-K5032-DUVS,DS-K5032-DKVO,DS-K5032- DHUN Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-07-01 Date of Test: 2020-07-05 to 2020-07-23 Date of Issue: 2020-07-24 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531603 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2020-07-24 / Authorized for issue by: Micheal Niu /Project Engineer Parlam Zhan /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531603 Page: 3 of 8 2 Contents Page 1 COVER PAGE ................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION........................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4 3.2 TECHNICAL SPECIFICATIONS ......................................................................................................................... 4 3.3 TEST LOCATION ............................................................................................................................................. 5 3.4 TEST FACILITY .............................................................................................................................................. 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ................................................................................ 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ........................................................................................................................ 7 5.2 MPE CALCULATION ...................................................................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531603 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V by Adapter 3.2 Technical Specifications 2.4G WiFi Antenna Gain: 3.73dBi Antenna Type: PIFA Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz 13.56MHz Antenna Type Loop Antenna Modulation Type ASK Number of Channels 1 Operation Frequency 13.56MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531603 Page: 5 of 8 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 588 West Jindu Road, Xinqiao, Songjiang, 201612 Shanghai, China Tel: +86 21 6191 5666 Fax: +86 21 6191 5678 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L0599) CNAS has accredited SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • NVLAP (LAB CODE: 201034-0) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP). • FCC (Designation Number: CN5033) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. has been recognized as an accredited testing laboratory. • ISED (…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Appendix A for SHEM200700531401 1.6dB Bandwidth Test Mode Test Channel Ant EBW[MHz] Limit Verdict 11B 2412 Ant1 8.54 0.5 PASS 11B 2437 Ant1 8.06 0.5 PASS 11B 2462 Ant1 8.03 0.5 PASS 11G 2412 Ant1 15.13 0.5 PASS 11G 2437 Ant1 15.01 0.5 PASS 11G 2462 Ant1 15.10 0.5 PASS 11N20SISO 2412 Ant1 15.11 0.5 PASS 11N20SISO 2437 Ant1 15.11 0.5 PASS 11N20SISO 2462 Ant1 15.10 0.5 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11B_2412_Ant1 6dB Bandwidth_11B_2437_Ant1 6dB Bandwidth_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11G_2412_Ant1 6dB Bandwidth_11G_2437_Ant1 6dB Bandwidth_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6dB Bandwidth_11N20SISO_2412_Ant1 6dB Bandwidth_11N20SISO_2437_Ant1 6dB Bandwidth_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 2.Occupied Bandwidth Test Mode Test Channel Ant OBW[MHz] Limit[MHz] Verdict 11B 2412 Ant1 14.06 --- PASS 11B 2437 Ant1 14.05 --- PASS 11B 2462 Ant1 14.07 --- PASS 11G 2412 Ant1 16.47 --- PASS 11G 2437 Ant1 16.43 --- PASS 11G 2462 Ant1 16.42 --- PASS 11N20SISO 2412 Ant1 17.54 --- PASS 11N20SISO 2437 Ant1 17.55 --- PASS 11N20SISO 2462 Ant1 17.55 --- PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11B_2412 Occupied Bandwidth_11B_2437 Occupied Bandwidth_11B_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11G_2412 Occupied Bandwidth_11G_2437 Occupied Bandwidth_11G_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Occupied Bandwidth_11N20SISO_2412 Occupied Bandwidth_11N20SISO_2437 Occupied Bandwidth_11N20SISO_2462 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 3.Maximum conducted (average) output power Test Mode Test Channel Ant Level [dBm] 10log(1/x) Factor[dB] Power [dBm] Limit [dBm] Verdict 11B 2412 Ant1 12.5 0.00 12.50 30 PASS 11B 2437 Ant1 12.37 0.00 12.37 30 PASS 11B 2462 Ant1 12.06 0.00 12.06 30 PASS 11G 2412 Ant1 12.07 0.13 12.20 30 PASS 11G 2437 Ant1 12.01 0.13 12.14 30 PASS 11G 2462 Ant1 11.65 0.13 11.78 30 PASS 11N20SISO 2412 Ant1 11.39 0.14 11.53 30 PASS 11N20SISO 2437 Ant1 11.46 0.14 11.60 30 PASS 11N20SISO 2462 Ant1 11.15 0.14 11.29 30 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11B_2412_Ant1 Maximum conducted (average) output power_11B_2437_Ant1 Maximum conducted (average) output power_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11G_2412_Ant1 Maximum conducted (average) output power_11G_2437_Ant1 Maximum conducted (average) output power_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum conducted (average) output power_11N20SISO_2412_Ant1 Maximum conducted (average) output power_11N20SISO_2437_Ant1 Maximum conducted (average) output power_11N20SISO_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 4.Maximum(average) power spectral density Test Mode Test Channel Ant Level [dBm/3kHz] 10log(1/x) Factor[dB] PSD[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B 2412 Ant1 -18.68 0.00 -18.68 8.00 PASS 11B 2437 Ant1 -19.07 0.00 -19.07 8.00 PASS 11B 2462 Ant1 -18.95 0.00 -18.95 8.00 PASS 11G 2412 Ant1 -21.64 0.13 -21.51 8.00 PASS 11G 2437 Ant1 -21.63 0.13 -21.50 8.00 PASS 11G 2462 Ant1 -22.31 0.13 -22.18 8.00 PASS 11N20SISO 2412 Ant1 -22.46 0.14 -22.32 8.00 PASS 11N20SISO 2437 Ant1 -22.37 0.14 -22.23 8.00 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11B_2412_Ant1 Maximum(average) power spectral density_11B_2437_Ant1 Maximum(average) power spectral density_11B_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11G_2412_Ant1 Maximum(average) power spectral density_11G_2437_Ant1 Maximum(average) power spectral density_11G_2462_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Maximum(average) power spectral density_11N20SISO_2412_Ant1 Maximum(average) power spectral density_11N20SISO_2437_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 5.Band-edge for RF Conducted Emissions Test Mode Test Channel Ant Carrier Power[dBm] Max. Spurious Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 4.56 -39.90 -25.45 PASS 11B 2462 Ant1 4.03 -52.37 -25.97 PASS 11G 2412 Ant1 1.71 -32.94 -28.29 PASS 11G 2462 Ant1 1.17 -46.82 -28.83 PASS 11N20SISO 2412 Ant1 0.51 -32.82 -29.50 PASS SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11B_2412_Ant1 Band-edge for RF Conducted Emissions_11B_2462_Ant1 Band-edge for RF Conducted Emissions_11G_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Band-edge for RF Conducted Emissions_11G_2462_Ant1 Band-edge for RF Conducted Emissions_11N20SISO_2412_Ant1 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch 6.RF Conducted Spurious Emissions Test Mode Test Channel Ant StartFre [MHz] StopFre [MHz] RBW [kHz] VBW [kHz] Pref[dBm] Max. Level [dBm] Limit [dBm] Verdict 11B 2412 Ant1 30 10000 100 300 4.42 -54.24 <- 25.58 PASS 11B 2412 Ant1 10000 26000 100 300 4.421 -43.649 <- 25.579 PASS 11B 2437 Ant1 30 10000 100 300 4.37 -53.46 <- 25.63 PASS 11B 2437 Ant1 10000 26000 100 300 4.366 -43.611 <- 25.634 PASS 11B 2462 Ant1 30 10000 100 300 4.40 -54.08 <- 25.60 PASS 11B 2462 Ant1 10000 26000 100 300 4.4 -43.461 <-25.6 PASS 11G 2412 Ant1 30 10000 100 300 1.63 -54.19 <- 28.37 PASS 11G 2412 Ant1 10000 26000 100 300 1.634 -43.892 <- 28.366 PASS 11G 2437 Ant1 30 10000 100 300 1.38 -54.15 <- 28.62 PASS 11G 2437 Ant1 10000 26000 100 300 1.38 -43.954 <- 28.62 PASS 11G 2462 Ant1 30 10000 100 300 0.94 -53.54 <- 29.07 PASS 11G 2462 Ant1 10000 26000 100 300 0.935 -43.500 <- 29.065 PASS 11N20SISO 2412 Ant1 30 10000 1…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531401 Page: 1 of 73 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2007005314CR FCC ID: 2ADTD-K50323XFD Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Manufacturer: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Manufacturer: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Factory: 1, Hangzhou Hikvision Technology Co., Ltd. 2, Hangzhou Hikvision Electronics Co., Ltd. 3, Hangzhou Hikvision Digital Technology Co., Ltd. Address of Factory: 1, No.700,Dongliu Road, Binjiang District, Hangzhou City,Zhejiang, 310052, China 2, No.299,Qiushi Road,Tonglu Economic Development Zone,Tonglu County, Hangzhou,Zhejiang,310052,China. 3, No.555 Qianmo Road,Binjiang District Hangzhou 310052,China Equipment Under Test (EUT): EUT Name: Visitor Terminal Model No.: DS-K5032-3XFD,DS-K5032-3XFDUHK,DS-K5032-3XFDCKV,DS-K5032- 3XFDUVS,DS-K5032-3XFDKVO,DS-K5032-3XFDHUN,DS-K5032-D,DS- K5032-DUHK,DS-K5032-DCKV,DS-K5032-DUVS,DS-K5032-DKVO,DS- K5032-DHUN ¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade mark: HIKVISON Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-07-01 Date of Test: 2020-07-06 to 2020-07-23 Date of Issue: 2020-07-24 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531401 Page: 2 of 73 Revision Record Version Description Date Remark 00 Original 2020-07-24 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531401 Page: 3 of 73 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Average Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.3 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model DS-K5032-3XFD was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM200700531401 Page: 4 of 73 3 Contents Page 1 COVER PAGE.............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T.................................................................................................................................. 5 4.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................... 5 4.3 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.4 TEST LOCATION ..................................................................................................................................... 7 4.5 TEST FACILITY ....................................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS ................................................................................................................ 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................... 7 5 EQUIPMENT LIST ......................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 6 Page 1 of 6 Test Setup Photos-FCC Applicant: Hangzhou Hikvision Digital Technology Co., Ltd. Address of Applicant: No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China Equipment Under Test (EUT): Product Name: Visitor Terminal Model No.: DS-K5032-3XFD SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 6 Page 2 of 6 1 Contents Page 1 CONTENTS............................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES ............................................................ 3 2.1 Conducted Emission Test Setup ....................................................................... 3 2.2 Radiated Emission Test Setup .......................................................................... 3 2.3 RF Conducted Test Setup ................................................................................. 6 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 6 Page 3 of 6 2 EQUIPMENT UNDER TEST PICTURES 2.1 Conducted Emission Test Setup 2.2 Radiated Emission Test Setup 2.4GHz 30MHz to 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 6 Page 4 of 6 Above 1GHz Zoom: SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 6 Page 5 of 6 13.56MHz Below 30MHz 30MHz to 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 6 Page 6 of 6 2.3 RF Conducted Test Setup End
